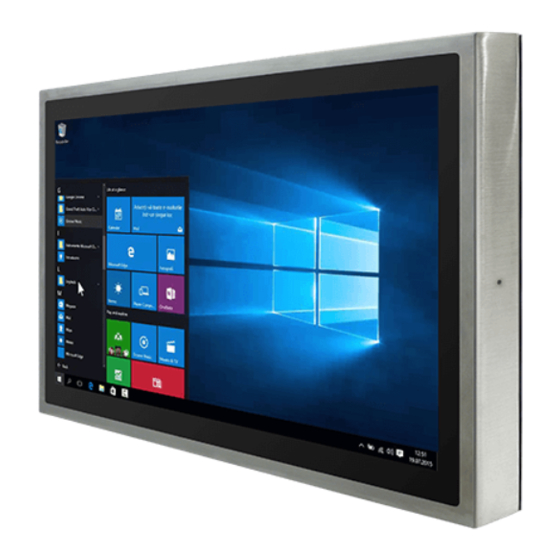

- Page 1 Flat Stainless P-Cap Panel PC Intel® Core™ i5-5250U Broadwell 1.6GHz (turbo to 2.7GHz) Full IP69K User Manual Version 1.0 Please read this instructions before operating the device and retain them for future reference.
-
Page 2: Table Of Contents
User Manual Contents CONTENTS PREFACE ....................... - 4 - ABOUT THIS USER MANUAL ................- 11 - CHAPTER 1: INTRODUCTION ................- 13 - 1.1 Product Features .................. - 13 - 1.2 Package Content .................. - 14 - 1.3 Connector Placement ................- 15 - 1.4 Physical Buttons and LED Indicators ............ - Page 3 User Manual Contents 4.2 BIOS Functions ..................- 34 - 4.2.1 Main Menu .................. - 36 - 4.2.2 Advanced Settings ..............- 37 - 4.2.3 Boot Menu ................... - 55 - 4.2.4 Security Menu ................- 57 - 4.2.5 Save & Exit .................. - 58 - 4.3 Using Recovery Wizard to Restore Computer ..........
-
Page 4: Preface
Disclaimer Winmate Inc. reserve the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. We assume no responsibility or liability for... - Page 5 User Manual Contents Customer Service We provide a service guide for any problem by the following steps: First, visit the website of our distributor to find the update information about the product. Second, contact with your distributor, sales representative, or our customer service center for technical support if you need additional assistance.
- Page 6 User Manual Contents Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings. The following is an example of each type of advisory.
- Page 7 User Manual Contents Safety Information WARNING! / AVERTISSEMENT! Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. Only experienced electronics personnel should open the PC chassis.
- Page 8 User Manual Contents Safety Precautions For your safety carefully read all the safety instructions before using the device. Keep this user manual for future reference. Always disconnect this equipment from any AC outlet before cleaning. Do not use liquid or spray detergents for cleaning. Use a damp cloth. ...
- Page 9 User Manual Contents CAUTION/ATTENTION Use the recommended mounting apparatus to avoid risk of injury. Utiliser l’appareil de fixation recommandé pour éliminer le risque de blessure. WARNING! / AVERTISSEMENT! Only use the connection cords that come with the product. When in doubt, please contact the manufacturer. Utiliser seulement les cordons d’alimentation fournis avec le produit.
- Page 10 User Manual Contents Important Information Federal Communications Commission Radio Frequency Interface Statement This device complies with part 15 FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received including ...
-
Page 11: About This User Manual
This User Manual provides information about using the Winmate® IP69K Stainless P- Cap Panel PC with Intel® Core™ i5-5200U Broadwell processor. This User Manual applies to the IP69K Flat Stainless P-Cap Panel PC – R15IH3S-SPC369, R19IH3S- SPM169 and W22IH3S-SPA369. The documentation set for the IP69K Flat Stainless P-Cap Panel PC provides information for specific user needs, and includes: ... - Page 12 User Manual Chapter 1 Introduction Introduction This chapter gives you product overview, describes features and hardware specification. You will find all accessories that come with the device in the packing list. Mechanical dimensions and drawings included in this chapter. - 12 -...
-
Page 13: Chapter 1: Introduction
CHAPTER 1: INTRODUCTION Congratulations on purchasing Winmate® IP69K Stainless P-Cap Panel PC. Winmate flat stainless steel P-Cap panel PCs and display are designed for applications with high hygienic requirements. IP69K series is completely waterproof with IP69K level of protection allowing for easy cleaning and sterilization. -
Page 14: Package Content
User Manual Chapter 1 Introduction 1.2 Package Content Carefully remove the box and unpack your Panel PC. Please check if all the items listed below are inside your package. If any of these items are missing or damaged contact us immediately. Factory shipment list: Quick Start Guide Driver CD &... -
Page 15: Connector Placement
User Manual Chapter 1 Introduction 1.3 Connector Placement IP69K Flat Stainless P-Cap Panel PC has M25 type connectors with protection cap and air venting valve. Ch.2,“Cable Specifications” For cable specifications refer to the of this user manual. - 15 -... -
Page 16: Physical Buttons And Led Indicators
User Manual Chapter 1 Introduction 1.4 Physical Buttons and LED Indicators Physical buttons and LED indicators located on the rear side of the Panel PC. Physical Buttons Icon Button Description Reset Press to reset the system Power On/ Press to power on or power off the device LED Indicators LED Type Status... -
Page 17: Schematics And Dimensions
User Manual Chapter 1 Introduction 1.5 Schematics and Dimensions This section contains mechanical drawing of the panel PC. Notice that this is a simplified drawing and some components are not marked in detail. 1.5.1 Dimensions 15" Unit: mm Dimensions : 378 x 301 x 56.4 1.5.2 Dimensions 19”... -
Page 18: Dimensions 21.5
User Manual Chapter 1 Introduction 1.5.3 Dimensions 21.5” Unit: mm Dimensions : 541 x 337 x 53 - 18 -... - Page 19 User Manual Chapter 2 Getting Started Getting Started This chapter tells you important information on power supply, adapter and precautions tips. Pay attention to power considerations. - 19 -...
-
Page 20: Chapter 2: Getting Started
User Manual Chapter 2 Getting Started CHAPTER 2: GETTING STARTED This chapter provides information on how to connect the panel PC to the source of power, connector pinouts and the guideline to turn on/off the Panel PC. 2.1 Powering On 2.1.1 AC Adapter Components AC Adapter supplied with the power cord. -
Page 21: Power Considerations
User Manual Chapter 2 Getting Started ALTERNATING CURRENT / MISE À LE TERRE! This product must be grounded. Use only a grounded AC outlet. Install the additional PE ground wire if the local installation regulations require it. *If you do not use a grounded outlet while using the device, you may notice an electrical tingling sensation when the palms of your hands touch the device. -
Page 22: Connecting The Power
User Manual Chapter 2 Getting Started 2.1.4 Connecting the Power Cable Mounting Steps: Connect the AC adapter to the DC-in jack connector located on the back side of the Panel PC. Connect the power cord to AC adapter. Plug the power cord to the AC outlet and the device will turn on automatically. -
Page 23: Connector Pin Assignments
User Manual Chapter 2 Getting Started 2.2 Connector Pin Assignments This Panel PC is equipped with four M25 type waterproof connectors. Use only the cables that are included in the package. The pin assignments of the cables are as follows. 2.2.1 Power Cable The IP69K Stainless P-Cap Panel PC has M25 type connector. -
Page 24: Serial Cable
User Manual Chapter 2 Getting Started 2.2.2 Serial Cable The IP69K Stainless P-Cap Panel PC has M25 type serial port connector. Use serial cable to connect serial interfaces. - 24 -... -
Page 25: Ethernet Cable
User Manual Chapter 2 Getting Started 2.2.3 Ethernet Cable The IP69K Stainless P-Cap Panel PC has M25 type Ethernet connector. Use Ethernet cable to connect the Panel PC to the Internet. - 25 -... -
Page 26: Usb 2.0 Cable
User Manual Chapter 2 Getting Started 2.2.4 USB 2.0 Cable The IP69K Stainless P-Cap Panel PC has one M25 type USB2.0 connector. Use USB2.0 cable to connect external devices such as mouse or keyboard to the Panel PC. - 26 -... -
Page 27: Turning On And Off
User Manual Chapter 2 Getting Started 2.3 Turning On and Off The unit is configured to Power ON when is connected to the power source Ch.2, “Powering On” (refer to section of this user manual for more details on how to power on the HMI device). - Page 28 User Manual Chapter 3 Operating the Device Operating the Device This chapter provides detailed information on how to operate the device. If you have been using touch- screen Panel PCs before, the interface may look familiar. Sections include system settings parameters. - 28 -...
-
Page 29: Chapter 3: Operating The Device
User Manual Chapter 3 Operating the Device CHAPTER 3: OPERATING THE DEVICE In this chapter you will find instructions on how to operate the Panel PC. 3.1 Operating System The Panel PCs support several versions of Windows OS: Windows 10 IoT Enterprise, Windows Embedded 8.1 Industry Pro, Windows 7 Pro for Embedded Systems, and Windows Embedded Standard 7 –... -
Page 30: Multi-Touch
User Manual Chapter 3 Operating the Device 3.2 Multi-Touch The touchpad supports the core gestures for Windows. Gesture Windows Usage Gesture Action Action Tap/ Click / Double- Click or double-click Double- click Panning Scrolling Drag one or two fingers with up and down Inertia Selection... -
Page 31: How To Enable Watchdog
Chapter 3 Operating the Device 3.3 How to Enable Watchdog To enable Watchdog, you need to download Winmate Watchdog utility. Find more information on Watchdog in “Watchdog Guide” that you can download from Ch.7, “Technical Support” Winmate Download Center or File Share. Refer to the for more details. - Page 32 User Manual Chapter 3 Operating the Device 3. In Watchdog utility window set countdown time and periodically feed time, or disable watchdog. Example: Every 10 min watchdog will monitor the system, in case any error occurs the system will restart automatically when the countdown time reaches 0.
- Page 33 User Manual Chapter 4 AMI UEFI BIOS Setup AMI UEFI BIOS Setup BIOS Setup Utility is a program for configuration basic Input / Output system settings of the computer for optimum use. This chapter provides information on how to use BIOS setup, its functions and menu.
-
Page 34: Chapter 4: Ami Uefi Bios Setup
User Manual Chapter 4 AMI UEFI BIOS Setup CHAPTER 4: AMI UEFI BIOS SETUP BIOS Setup Utility is a program for configuration basic Input / Output system settings of the computer for optimum use. This chapter provides information on how to use BIOS setup, its functions and menu. 4.1 When and How to Use BIOS Setup To enter the BIOS setup, you need to connect an external USB keyboard, press <Del>... - Page 35 User Manual Chapter 4 AMI UEFI BIOS Setup The following Keys can be used after entering the BIOS Setup. Function General Help Previous Values Optimized Defaults Save & Exit Exit Change Opt. Enter Select or execute command Cursor ↑ Moves to the previous item Cursor ↓...
-
Page 36: Main Menu
User Manual Chapter 4 AMI UEFI BIOS Setup 4.2.1 Main Menu The Main menu displays the basic information about your system including BIOS version, processor RC version, system language, time, and date. When you enter BIOS setup, the first menu that appears on the screen is the main menu. -
Page 37: Advanced Settings
User Manual Chapter 4 AMI UEFI BIOS Setup 4.2.2 Advanced Settings Select the Advanced Tab from the IH32 setup menu to enter the advanced BIOS setup screen. You can select any of the items on the left frame of the screen to go to the sub menu for the item, such as CPU Configuration. - Page 38 User Manual Chapter 4 AMI UEFI BIOS Setup BIOS Setting Description Setting Option Effect ACPI Settings Configures ACPI Enter Opens submenu settings RTC Wake Configures RTC Enter Opens submenu Settings Wake parameters Trusted Configures Enter Opens submenu Computing Trusted Computing parameters Configures CPU Enter...
- Page 39 User Manual Chapter 4 AMI UEFI BIOS Setup 4.2.2.1 ACPI Settings BIOS Setting Description Setting Option Effect Enable ACPI BIOS ACPI Auto Enable/ Disable Enables or Auto Configuration Disables this Configuration function Enable Control Enable/ Disable Enables or Hibernation hibernation Disables this function - 39 -...
- Page 40 User Manual Chapter 4 AMI UEFI BIOS Setup 4.2.2.2 RTC Wake BIOS Setting Description Setting Option Effect Wake System Enables or Disabled Disables wake up from S5 disables system function wake on alarm Fixed Time System will wake event. on the hr: min: sec specified Dynamic Time System will wake...
- Page 41 User Manual Chapter 4 AMI UEFI BIOS Setup 4.2.2.3 Trusted Computing BIOS Setting Description Setting Option Effect Security Device Enable or disable Enabled/Disabled Set required Support BIOS support for configuration security device TPM State Enable or disable Enabled/Disabled Set required TPM state.
- Page 42 User Manual Chapter 4 AMI UEFI BIOS Setup 4.2.2.4 CPU Configuration CPU Configuration allows you to change CPU settings. Use key arrows to navigate through the menu. BIOS Setting Description Setting Option Effect Hyper-threading Enabled for Enabled/Disabled When Disabled Windows XP and only one thread Linux (OS per enabled core...
- Page 43 User Manual Chapter 4 AMI UEFI BIOS Setup 4.2.2.5 SATA Configuration BIOS Setting Description Setting Option Effect SATA Allows users to Enabled/ Set desirable Controller (s) enable or disable the Disabled configuration SATA controller (s) SATA Mode Allows users to Enabled/ Set desirable Selection...
- Page 44 User Manual Chapter 4 AMI UEFI BIOS Setup 4.2.2.6 USB Configuration BIOS Setting Description Setting Option Effect Legacy USB User can enable Disabled Will keep USB Support or disable USB devices port. available only for EFI applications. Enabled Enable all the USB devices This is a Disabled...
- Page 45 User Manual Chapter 4 AMI UEFI BIOS Setup USB Transfer 1 Sec Depends on the The time‐out time‐ out 5 Sec time‐out value value for control, bulk, and interrupt 10 Sec transfers. 20 Sec Device Reset USB mass 10 Sec Depends on the time‐...
- Page 46 User Manual Chapter 4 AMI UEFI BIOS Setup 4.2.2.7 F81866 H/W Monitor 4.2.2.8 F81866 Super IO Configuration - 46 -...
- Page 47 User Manual Chapter 4 AMI UEFI BIOS Setup BIOS Setting Description Setting Option Effect Setting Serial User can Enable/Disable Enable or Disable Port Parameters Enable/Disable Serial Port the serial port and Default: Enable (COM). select optimal settings for the Super IO Device. Super IO Watch Dog Timer Setting The watchdog timer circuit has to be triggered within a specified time by the...
- Page 48 User Manual Chapter 4 AMI UEFI BIOS Setup 4.2.2.9 Serial Port Setting BIOS Setting Description Setting Option Effect Enable or Disable Set required Serial Port Enabled/ Disabled Serial Port (COM) parameters Details of USB Set required Change setting Auto items parameters Select UART Set required...
- Page 49 User Manual Chapter 4 AMI UEFI BIOS Setup 4.2.2.10 Chipset Menu 4.2.2.11 PCH - IO Configuration - 49 -...
- Page 50 User Manual Chapter 4 AMI UEFI BIOS Setup BIOS Setting Description Setting Option Effect PCI Express Detail of PCI Set desirable Configuration Express items. parameters Details of USB Set desirable Configuration items parameters Enables or PCH LAN Enabled/ Set desirable disables the controller Disabled...
- Page 51 User Manual Chapter 4 AMI UEFI BIOS Setup 4.2.2.12 PCI Express Configuration BIOS Setting Description Setting Option Effect DMI Link ASPM Allows users to Enabled/ Set desirable Control enable or disable Disabled parameters the DMI Link ASPM Control DMI Link Allows users to Enabled/ Set desirable...
- Page 52 User Manual Chapter 4 AMI UEFI BIOS Setup 4.2.2.13 USB Configuration BIOS Setting Description Setting Option Effect Allows user to Enabled/ Set desirable Precondition enable or disable Disabled parameters USB precondition XHCI Mode Allows user to [Smart Auto] Set desirable enable or disable parameters XHCI mode.
- Page 53 User Manual Chapter 4 AMI UEFI BIOS Setup 4.2.2.14 System Agent (SA) Configuration Allows users to enable or disable VT-d. 4.2.2.15 Graphics Configuration - 53 -...
- Page 54 User Manual Chapter 4 AMI UEFI BIOS Setup BIOS Setting Description Graphics Turbo IMON Current Allows users to select which Graphics Turbo IMON Current Internal Graphics Allows users to enable or disable IGD Aperture Size This item allows users to select aperture size DVMT Pre-Allocated Allows users to select DVMT pre-...
-
Page 55: Boot Menu
User Manual Chapter 4 AMI UEFI BIOS Setup 4.2.3 Boot Menu The Boot menu sets the sequence of the devices to be searched for the operating system. The bootable devices will be automatically detected during POST and shown here, allowing you to set the sequence that the BIOS use to look for a boot device from which to load the operating system. - Page 56 User Manual Chapter 4 AMI UEFI BIOS Setup BIOS Setting Description Setting Option Effect Setup Prompt Allows user to Enter Set the prompt Timeout configure the timeout number of seconds to stay in BIOS setup prompt screen. Boot NumLock Enables or On/ Off Remains On or State...
-
Page 57: Security Menu
User Manual Chapter 4 AMI UEFI BIOS Setup 4.2.4 Security Menu This section allows to configure and improve system, and set up some system features according to your preferences. BIOS Setting Description Setting Option Effect Administrator Displays whether Enter Enter password Password or not an administrator... -
Page 58: Save & Exit
User Manual Chapter 4 AMI UEFI BIOS Setup 4.2.5 Save & Exit BIOS Setting Description Setting Option Effect Save Changes This saves the Enter <YES> Save changes and Exit changes to the CMOS and exits the BIOS Setup program. Discard Changes This exits the Enter <YES>... - Page 59 User Manual Chapter 4 AMI UEFI BIOS Setup saving any Enter <NO> Return to the changes BIOS Setup Main Menu Save Changes Save changes Enter <YES> Saves the done so far to changes any of the setup Enter <NO> Return to the options.
-
Page 60: Using Recovery Wizard To Restore Computer
User Manual Chapter 4 AMI UEFI BIOS Setup 4.3 Using Recovery Wizard to Restore Computer The Panel PC has a dedicate recovery partition stored on the hard drive of the PC to enable quick one-key recovery process. This partition occupies about 11GB of the storage space, and comes built-in to the PC. - Page 61 User Manual Chapter 4 AMI UEFI BIOS Setup Wait the recovery process to complete. During the recovery process, a command prompt will show up to indicate the percent of recovery process complete. The system will restart automatically after recovery completed. - 61 -...
- Page 62 User Manual Chapter 5 Driver Installation Driver Installation This chapter describes how to install all necessary drivers.
-
Page 64: Chapter 5: Driver Installation
User Manual Chapter 5 Driver Installation CHAPTER 5: DRIVER INSTALLATION This chapter provides guideline to driver installations. 5.1 Installing Chipset Driver The Intel Chipset Drivers should be installed first before the software drivers enable Plug & Play INF support for Intel chipset components. Follow the instructions below to complete the installation. - Page 65 User Manual Chapter 5 Driver Installation Step 2 Click “Next” to start the installation. Step 3 Click “Next” to continue the installation. - 65 -...
- Page 66 User Manual Chapter 5 Driver Installation Step 4 Click “Yes, I want to restart this computer now” to finish installation. - 66 -...
-
Page 67: Installing Graphics Driver
User Manual Chapter 5 Driver Installation 5.2 Installing Graphics Driver The Panel PC comes with Intel mobile Core i5 Dual Core CPU and integrated graphic controller. You need to install the Graphic driver to enable the function. Intel Graphic supports versatile display options and 32-bit 3D graphics engine. Triple independent display, enhanced display modes for widescreen flat panels for extend, twin, and clone display mode. - Page 68 User Manual Chapter 5 Driver Installation Step 2 Click “Next” to install the driver. Step 3 Click “Yes” to agree with the license terms. - 68 -...
- Page 69 User Manual Chapter 5 Driver Installation Step 4 Click “Next” to install the driver. Step 5 Click “Yes, I want to restart this computer now” to finish installation. - 69 -...
-
Page 70: Installing Audio Driver
User Manual Chapter 5 Driver Installation 5.3 Installing Audio Driver The ALC886 series are high-performance 7.1+2 Channel High Definition Audio Codecs providing ten DAC channels that simultaneously support 7.1 sound playbacks, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs. - Page 71 User Manual Chapter 5 Driver Installation Step 3 Click “Yes, I want to restart my computer now” to finish the installation. - 71 -...
-
Page 72: Installing Ethernet Driver
User Manual Chapter 5 Driver Installation 5.4 Installing Ethernet Driver Please confirm which operating system is used on the IH32 Motherboard before installing the Ethernet drivers. Follow the steps below to complete the installation of the Intel® I210IT Gigabit-LAN Controller + I218LM Gigabit-LAN drivers. You will quickly complete the installation. - Page 73 User Manual Chapter 5 Driver Installation Step3 Click “Next” to agree with the license terms. Step 4 Click “Next” to install the driver. - 73 -...
- Page 74 User Manual Chapter 5 Driver Installation Step 5 Click “Finish” to complete the driver installation. - 74 -...
-
Page 75: Intel® Management Engine Software
User Manual Chapter 5 Driver Installation 5.5 Intel® Management Engine Software This installation program installs the Intel® ME software components required for the platform on which you are installing, and installs only those components that matches your platform’s capabilities. Step 1 Insert the driver CD and select the “Intel ME 9.0” folder and click “Setup.exe”. - Page 76 User Manual Chapter 5 Driver Installation Step 2 Click “Next” to continue the installation. Step 3 Click “Yes” to agree with the License terms. - 76 -...
- Page 77 User Manual Chapter 5 Driver Installation Step 4 Choose “I accept the terms of the license agreement”, and click “Next” to continue. Step 5 Click “Finish” to complete the software installation. - 77 -...
- Page 78 User Manual Chapter 6 Mounting Mounting This chapter provides step-by-step mounting guide for all available mounting options. - 78 -...
-
Page 79: Chapter 6: Mounting
User Manual Chapter 6 Mounting CHAPTER 6: MOUNTING This chapter provides mounting guide for all available mounting options. Pay attention to cautions and warning to avoid any damages. WARNING! / AVERTISSEMENT! Follow mounting instructions and use recommended mounting hardware to avoid the risk of injury. Suivez les instructions de montage et d'utilisation recommandé... -
Page 80: Safety Precautions
User Manual Chapter 6 Mounting 6.2 Safety Precautions Observe the following common safety precautions before installing any electronic device: • Use separate, non-intersecting paths to route power and networking wires. If power wiring and device wiring paths must be crossed make sure the wires are perpendicular at the intersection point. -
Page 81: Mounting Guide
Refer to sub-sections below for more details. 6.3.1 VESA Mount Flat Stainless P-CAP Panel PC has VESA mount holes on the rear side. Follow instructions below to mount the unit with VESA Mount bracket (not supplied by Winmate). Size VESA Plate Dimensions Screw hole diameter 15”,19”... -
Page 82: Yoke Mount
Mounting 6.3.2 Yoke Mount Yoke Mount solution allows installing the Panel PC with the bracket (not supplied by Winmate). Mounting instruction: 1. Place the Panel PC on the bracket stand, aiming screw holes for each other. 2. Secure screws to fix the device upon the bracket stand. - Page 83 Technical Support This chapter includes directory to Winmate technical support. - 83 -...
-
Page 84: Chapter 7: Technical Support
(SDK). If any problem occurs fill in problem report form enclosed and immediately contact us. 7.1 Software Developer Support Winmate provides the following SDK and Utilities for the IP69K Stainless P-CAP Panel PC. Item File Type Description Watchdog SDK Utility... -
Page 85: Problem Report Form
User Manual Chapter 7 Technical Support 7.2 Problem Report Form IP69K Flat Stainless P-CAP Panel PC Customer name: Company: Tel.: Fax: E-mail: Date: Product Serial Number: ____________________________________________________ Problem Description: Please describe the problem as clearly as possible. Detailed description of the occurred problem will allow us to find the best solution to solve the problem as soon as possible. - Page 86 User Manual Appendix A Product Specifications Product Specifications This section includes product specifications. Appendix - 86 -...
-
Page 87: Appendix A: Product Specifications
User Manual Appendix A Product Specifications APPENDIX A: PRODUCT SPECIFICATIONS Hardware Specifications Model Name R15IH3S-SPC369 R19IH3S-SPM169 W22IH3S-SPA369 Display 15” 19” 21.5” Size Resolution 1024 x 768 1280 x 1024 1920 x 1080 Brightness (typ.) (typ.) (typ.) Contrast 700 : 1 (typ.) 1000 : 1 (typ.) - Page 88 User Manual Appendix A Product Specifications Input/ Output Connectors Ethernet LAN 1 x RJ45 - 10/100/1000 Mbps 1 x RS232 2 x USB Type-A Receptacle Power 1 x 12VDC Mechanical Specification Cooling Fanless System Mounting Yoke Mount, VESA Mount Environmental Consideration Operating 0°C to +45°C Temperature...
- Page 89 User Manual Appendix A Product Specifications Software Support – Drivers Item Driver Windows 7 Windows 8 Windows Chipset Driver ☑ ☑ ☑ Graphics Driver ☑ ☑ ☑ Audio Driver ☑ ☑ ☑ Ethernet Driver ☑ ☑ ☑ Intel® Management Engine ☑...
- Page 90 User Manual Appendix B Order Information Order Information This section includes product specifications. Appendix - 90 -...
-
Page 91: Appendix B: Order Information
User Manual Appendix B Order Information APPENDIX B: ORDER INFORMATION The IP69K Flat Stainless P-CAP Panel PC available for ordering in the following configurations. Panel PC SODIMM DDR3L Windows 10 IoT Enterprise 2GB/4GB/8GB/16GB Windows Embedded 8.1 Industry Windows Embedded 7 Standard Storage Mini PCIe SSD Touch... - Page 92 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C Tel: 886-2-8511-0288 Fax: 886-2-8511-0211 Email: sales@winmate.com.tw Official website: www.winmate.com...
