Summary of Contents for CYP CLUX-16EN

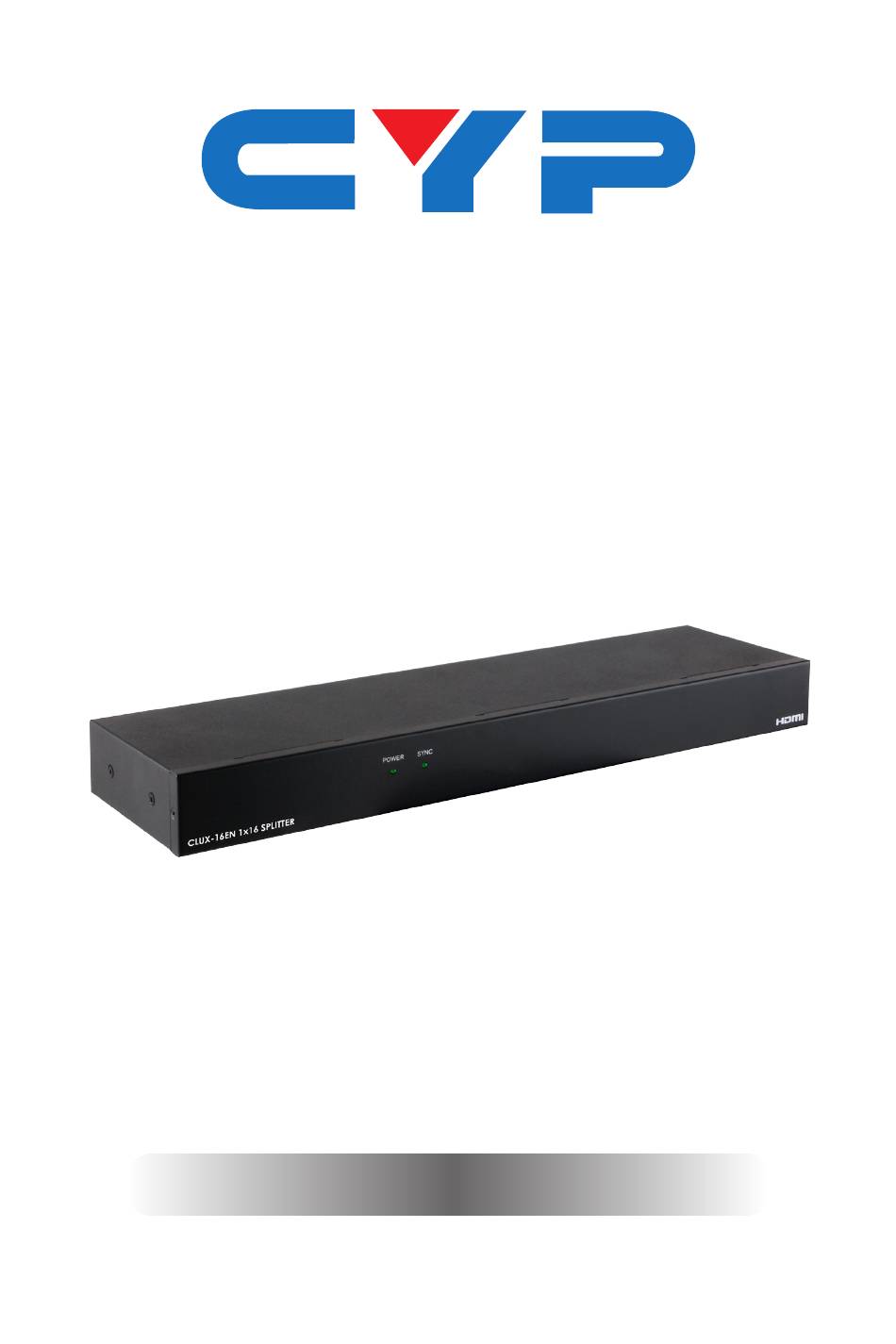

- Page 1 CLUX-16EN 1 by 16 HDMI Splitter Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........1 6. Operation Controls and Functions ..2 6.1 Front Panel ........2 6.2 Rear Panel .........2 7. Connection Diagram ......3 8. -
Page 6: Introduction
1. INTRODUCTION This range of high performance HDMI splitters provide one HDMI in to sixteen HDMI outputs and supports 3D, 12-bit Deep Color as well as High Definition Lossless Audio. With its addtional features of the latest HDMI standards you can be sure of great HDMI distribution. 2. -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER SYNC CLUX-16EN 1x16 SPLITTER POWER LED: The power LED will illuminate when the unit is powered. SYNC LED: The LED will illuminate when the HDMI source signal is connected to the input port. -
Page 8: Connection Diagram
7. CONNECTION DIAGRAM TV/Monitors Simultaneous HDMI Outputs Power INPUT OUTPUT DC 5V Supply EDID SERVICE HDMI Blu-ray Input Player Simultaneous HDMI Outputs TV/Monitors... -
Page 9: Specifications
8. SPECIFICATIONS Video Bandwidth 225 MHz/6.75Gbps Input Ports 1×HDMI (Female connector) 1×USB (Manufacturer use only) Output Ports 16×HDMI (Female connector) Output Resolution 480i~1080p@50/60, 1080p@24/50/60, VGA~WUXGA Power Supply 5V/6A DC (US/EU standards, CE/FCC/UL certified) HDMI Cable Distance IN: Up to 10M for 1080p/8-bit or 12-bit OUT: Up to 15/10M for 1080p 8-bit/12-bit ESD Protection Human body model:... -
Page 10: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM HDMI High-Definition Multimedia Interface HDTV High-Definition Television... - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CPRO16EN...
