Dräger X-dock 5300
Dräger X-dock 6300/6600
Technical Manual
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X-dock 5300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dräger X-dock 5300

Summary of Contents for Dräger X-dock 5300

  • Page 1 Dräger X-dock 5300 Dräger X-dock 6300/6600 Technical Manual...
  • Page 3 Technical data ......28 Order list ....... . .28 Dräger X-dock 5300/6300/6600...

  • Page 4: General Safety Notes

    Indicates a potentially hazardous situation which, if not avoided, could result in physical injury, or damage to the product or environment. It may also be used to alert against unsafe practices. NOTICE Indicates additional information on how to use the product. Dräger X-dock 5300/6300/6600...

  • Page 5: Description

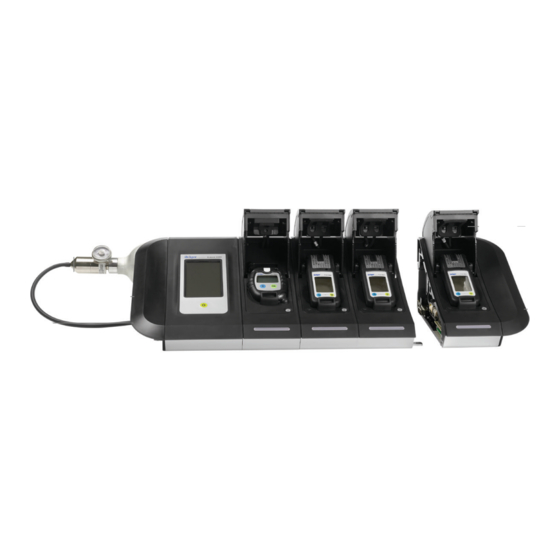

    Description Description Product overview X-dock 5300 (X-am) X-dock 5300 (Pac) X-dock 6300/6600 X-dock 5300/6300 X-dock 6600 X-dock 6300/6600 max. 10 00133286.eps Dräger X-dock 5300/6300/6600...

  • Page 6: Feature Description

    A system consists of one master for 3 (X-dock 5300/ 6300) or 6 (X-dock 6600) test gases. The X-dock 5300 consists of a master station with one module and cannot be expanded.

  • Page 7: Installation

    2. If applicable, install wall mount or cylinder holder in Dräger recommends connecting an exhaust hose accordance with the assembly instructions. (max. 10 m long) to the exhaust outlet to discharge the test gas into the open air. Dräger X-dock 5300/6300/6600...

  • Page 8: Basics

    > System configuration > Date & time. b. Make the desired settings. c. Confirm settings with OK. 6. If required, change standard tests (see chapter 4.9 on page 14. 7. If required, set up network (see chapter 6.4.3 on page 20). Dräger X-dock 5300/6300/6600...

  • Page 9: Logging Users In Or Out

    Select this button to log users in 1. Select or out. The number in the symbol Information about the current user will be displayed. indicates the permission level 2. Select (see chapter 7 on page 23). The current user will be logged out. Dräger X-dock 5300/6300/6600...

  • Page 10: Managing User Profiles

    Create Test gas ◄ component NOTICE ► ◄ Delete Select test gas configuration User profiles can only be created by the administrator ► ◄ Select Enter or by users with authorisation level 5. concentration unit ► Further options Dräger X-dock 5300/6300/6600...
  • Page 11 0.4 - 0.6 bar Gas pressure correct. >0.6 bar Gas pressure too high. Gas cylinder level indicator: Gas cylinder level Display 61 - 100 %) 30 - 60 %) < 30 % Gas cylinder level indicator deactivated Dräger X-dock 5300/6300/6600...
  • Page 12 Methane - CH (default setting)   3. Confirm selection with OK. Propane - C  Pentane - PENT  For propane and pentane, the "Increased sensitivity" (vapour sensitivity) option can also be activated. 3. Confirm selection with OK. Dräger X-dock 5300/6300/6600...

  • Page 13: Quick And Extended Bump Test Overview

    In this case, the test threshold is recalculated. The test NOTICE threshold is set at 1/3 of the test gas concentration. For increased safety and in case of cross-sensitivities to the connected test gases, Dräger recommends using the extended bump test. Dräger X-dock 5300/6300/6600...

  • Page 14: Manage Tests

    Calibration 3. If necessary, select of the test mode to be edited (only adjustment possible with the Test scheduler test mode). 4. If necessary, edit tests (see chapter 4.9.2 on page 14). 5. Save settings with OK. Dräger X-dock 5300/6300/6600...

  • Page 15: Set Up Template Configuration

    For this reason, the X-dock performs the conversion check of the configuration. here. There is no compensation for the effects of temperature, so testing/calibration is only recommended in a range of from 0- 30 °C.) Dräger X-dock 5300/6300/6600...

  • Page 16: Conducting A Visual Inspection

    To insert the instrument in the module: 1. If necessary, push the lock up slightly and open the module cover upwards. 2. Place the instrument in the corresponding module. 3. Close the module flap. The instrument will be detected automatically. Dräger X-dock 5300/6300/6600...

  • Page 17: Station Self-Test

    2. If necessary, switch on the X-dock. device that is switched off! 3. Conduct a visual inspection of the instruments (see chapter 5.1 on page 16). 4. Insert the instruments into the modules (see chapter 5.2 on page 16). Dräger X-dock 5300/6300/6600...

  • Page 18: After Use

    An error message is shown on the display. The Status LED flashes red.   If required, select the desired instrument field for additional information.  Identify and rectify the error. Repeat the test if necessary.  Dräger X-dock 5300/6300/6600...

  • Page 19: Menu

    System configuration Date & time Data management Language Network System address Database DBMS address Info screen Update Service interval Station options Users Station event logger Export data logger Export certificates Mobile synchronization Device configuration Mass storage device Dräger X-dock 5300/6300/6600...

  • Page 20: Manage Tests

    1. Select > System configuration > Network > System address. 2. Select dynamic or static IP address. 3. Where necessary, enter the IP of the system address. 4. Where necessary, enter the Subnet Mask (default: 255.255.255.0). Dräger X-dock 5300/6300/6600...

  • Page 21: Data Management

    3. Insert the USB memory stick into the USB port on the 4. Acknowledge selection with OK. station. The selected certificates are copied onto the USB data 4. Select > Data management > Device configuration. storage device. Dräger X-dock 5300/6300/6600...
  • Page 22 8. Confirm selection with OK. The template file is imported to the station. NOTICE A template file that is imported using a USB memory stick will always overwrite a template file that has been imported using the X-dock Manager. Dräger X-dock 5300/6300/6600...

  • Page 23: Permission Level

    Performing default tests in logged on condition Following configuration Change password Define test Export data memory (station) Set Gas configuration Show devices Specifying advanced options Manage users Set date and time Perform SW update (station) Set Language Set network configuration Database operations Dräger X-dock 5300/6300/6600...

  • Page 24: Troubleshooting

    Error message Firmware version not The firmware version of the affected gas Perform an update with the CC Vision PC supported on module: X. monitor is not compatible with X-dock. software. Dräger X-dock 5300/6300/6600...

  • Page 25: Maintenance

    3. Screw pressure regulator valve on full test gas cylinder with potential risk of overheating and error displays on the changed test gas concentration. module. 4. Slowly open the test gas cylinder valve. 5. Reconfigure the corresponding test gas inlet, see chapter 4.7 on page 10. Dräger X-dock 5300/6300/6600...

  • Page 26: Perform A Firmware Update

    A list of all firmware updates available on the USB storage device will be displayed. 4. Select desired firmware update from the list. The selected firmware update is marked blue. 5. Start the firmware update using OK. Dräger X-dock 5300/6300/6600...

  • Page 27: Changing The Sealing Insert

    6. Squeeze external locking lugs in and insert the sealing insert into the module cover until the locking lugs engage. 7. Check that the sealing insert is fitted correctly in the module cover. 00733286.eps Dräger X-dock 5300/6300/6600...

  • Page 28: Technical Data

    Dimensions (H x W x D): Order No. Name and description Master approx. 3.54 x 5.70 x 9.84 inches Dräger X-dock 5300 X-am 125 83 21 880 (120 x 130 x 250 mm) Dräger X-dock 5300 Pac 83 21 881 Module approx.
  • Page 29 Database management system Data logger Favourite HORN Horn Light-emitting diode Lower explosive limit Mass storage device Master SPAN Span calibration Software Response time test Time-weighted average UNDEF Unknown Unknown info Vibration ZCHECK Zero-point check ZERO Zero-point calibration Dräger X-dock 5300/6300/6600...
  • Page 32 Dräger Safety AG & Co. KGaA Revalstraße 1 23560 Lübeck, Germany Tel +49 451 882 0 Fax +49 451 882 20 80 www.draeger.com 90 33 286 - TH 4634.600 en © Dräger Safety AG & Co. KGaA Edition 09 - January 2015 (Edition 01 - August 2012) Subject to alteration...
