Summary of Contents for Dräger Alcotest 5510
- Page 1 ® Dräger Alcotest 5510 WARNING Strictly follow the Instructions for Use. Breath Alcohol Monitor The user must fully understand and strictly observe the instructions. Use the product Instructions for Use only for the purposes specified in the Intended use section of this document.
-
Page 3: Table Of Contents
Battery disposal....... . . 15 Technical data ....... . . 16 Dräger Alcotest 5510... -
Page 4: For Your Safety
Use only genuine Dräger spare parts and accessories, or the proper functioning of the product may be impaired. Do not use a faulty or incomplete product and do not modify the product. Notify Dräger in the event of any component fault or failure. Dräger Alcotest 5510... -
Page 5: Description

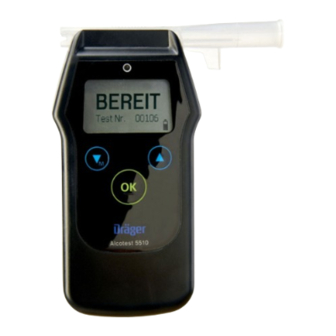

Alcotest 5510 Case ® Measuring device Dräger Alcotest 5510 Mouthpieces, 3 pieces Batteries, 3 pieces Wrist strap Transport case Quick Guide 00233390.eps Measuring device Display "UP" menu key "OK" key "DOWN/MENU" menu key Socket Light, red/green Mouthpiece receptacle Dräger Alcotest 5510... -
Page 6: Intended Use
Further entries below the visible entries Setting values and selection of menu functions. Further entries above the visible entries 2.3.5 Function Activated function Current display (1) of the total display number (6) ® Alcotest is a registered trademark of Dräger. Dräger Alcotest 5510... -
Page 7: Use
NiMH batteries the menu, if required. are discharged, it is recommended to have replacement batteries available. Replace the batteries within 5 minutes, otherwise the save time will be reset and must be set again. Dräger Alcotest 5510... - Page 8 1. Pass the fastening cord of the (LR6, AA) wrist strap through the hole in the casing and form a loop. 2x 1.2 V NiMH rechargeable 2. Pull the lower part of the strap battery through the eye created. 00733390.eps 00533390.eps Dräger Alcotest 5510...
- Page 9 NOTICE The device will switch off automatically approx. 4 minutes after the last use. 00933390.eps When the batteries or rechargeable batteries are discharged, the battery symbol flashes and then the device switches off automatically. Dräger Alcotest 5510...
-
Page 10: Automatic Measurements
After about 6 seconds, READY will appear on the display and a short 01633390_en.eps 01533390_de.eps acoustic signal will sound. At the same time the current test number is displayed. The light flashes green. The device is ready to use. Dräger Alcotest 5510... - Page 11 After approx. 4 to 30 seconds, the device is ready for measuring. ready to take a measurement, see section 9 on page 16, the display 03333390.eps counts down the time until the device is next ready. NOTICE Periodically switching off the device does not reduce this waiting period! Dräger Alcotest 5510...
-
Page 12: Additional Sampling Options
2. Hold the ready to measure device without mouthpiece in the air mg/L Manual to be analysed. 02533390_en.eps 3. Briefly press the key. Display for "No alcohol present": ALCOHOL 02333390_en.eps Display for "Alcohol present": ALCOHOL 02433390_en.eps 4. Press the key for a new measurement. Dräger Alcotest 5510... -
Page 13: Quick Menu
The number that appears below the message is used for service If no key is pressed within 120 seconds, the device automatically functions. If the fault persists even after the device has been switched returns to the measurement mode. on and off several times, contact DrägerService. Dräger Alcotest 5510... -
Page 14: Troubleshooting
(alcohol possibly present in the mouth). 15 minutes after the last oral alcohol intake. "Internal System ERROR" with error number Device fault, measurement not possible. Remove the batteries/rechargeable batteries (minimum of 2 seconds) and re-insert, contact DrägerService, if required. Dräger Alcotest 5510... -
Page 15: Maintenance
Damage to the device! For long term storage (longer than 6 months), remove the batteries or rechargeable batteries from the device. This will prevent damage due to leaking battery acid. Dräger Alcotest 5510... -
Page 16: Technical Data
Values for other units of measure can be calculated according to table on page 16. Display range The range of indication and the measuring range are identical. If the result is exceeding the measuring range the display will show three arrows " " as overflow indication. Dräger Alcotest 5510... - Page 17 Intervals for other units of measure selected can be calculated accordingly (see page 16). Calibration depends on required accuracy, Calibration interval typically: 12 months 142 mm x 75 mm x 36 mm Dimensions (H x W x D) approx. 195 g Weight Dräger Alcotest 5510...
- Page 18 18 90 092 Case for Dräger Alcotest 5510 83 179 20 Leather case for Dräger Alcotest 5510 83 17 911 (belt attachment) Leather case for Dräger Alcotest 5510 (yellow) 83 17 931 (Device can be operated from the case) Dräger Alcotest 5510...
- Page 20 Dräger Safety AG & Co. KGaA Revalstraße 1 23560 Lübeck, Germany 90 33 424 - GA 4754.570 +49 451 882-0 © Dräger Safety AG & Co. KGaA Fax +49 451 882-20 80 Edition 02 - May 2013 (Edition 01 - March 2013) www.draeger.com Subject to alteration...
