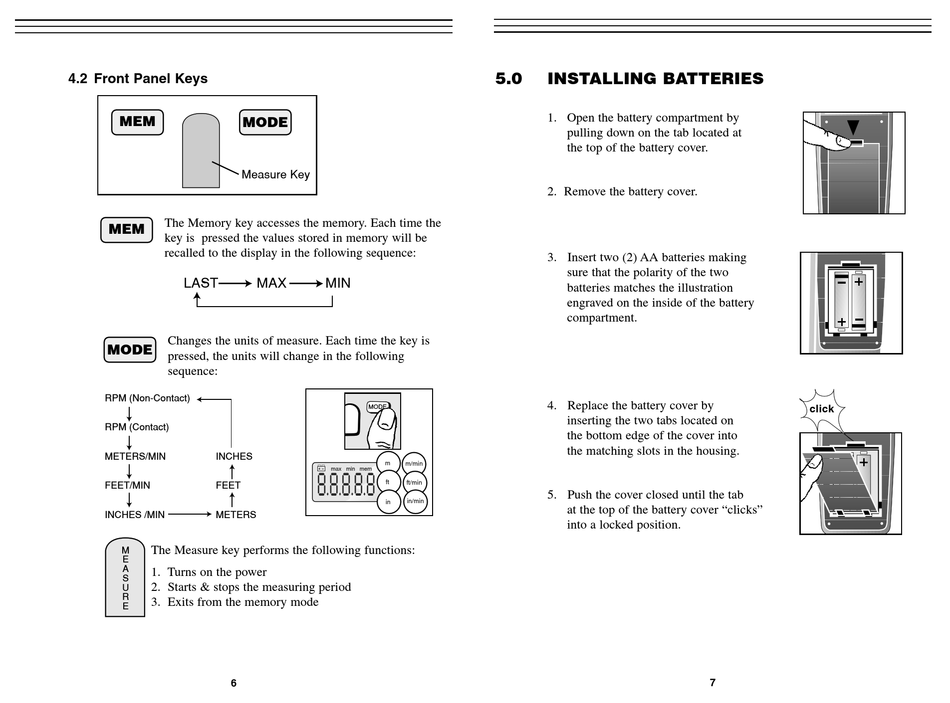

4.2 Front Panel Keys
MEM
MODE
Measure Key
The Memory key accesses the memory. Each time the
MEM
key is pressed the values stored in memory will be
recalled to the display in the following sequence:
LAST
Changes the units of measure. Each time the key is
MODE
pressed, the units will change in the following
sequence:
RPM (Non-Contact)
RPM (Contact)
METERS/MIN INCHES
FEET/MIN FEET
INCHES /MIN METERS
The Measure key performs the following functions:
M
E
A
1. Turns on the power
S
2. Starts & stops the measuring period
U
R
3. Exits from the memory mode
E
6
MAX MIN
m
m/min
max min mem
8.8.8.8.8
rpm
ft
m/min ft/min
ft/min
in/min
in/min
in
5.0 INSTALLING BATTERIES
1. Open the battery compartment by
pulling down on the tab located at
the top of the battery cover.
2. Remove the battery cover.
3. Insert two (2) AA batteries making
sure that the polarity of the two
batteries matches the illustration
engraved on the inside of the battery
compartment.
4. Replace the battery cover by
inserting the two tabs located on
the bottom edge of the cover into
the matching slots in the housing.
5. Push the cover closed until the tab
at the top of the battery cover "clicks"
into a locked position.
click
