Check-line CDT-2000 Operating Instructions Manual page 5

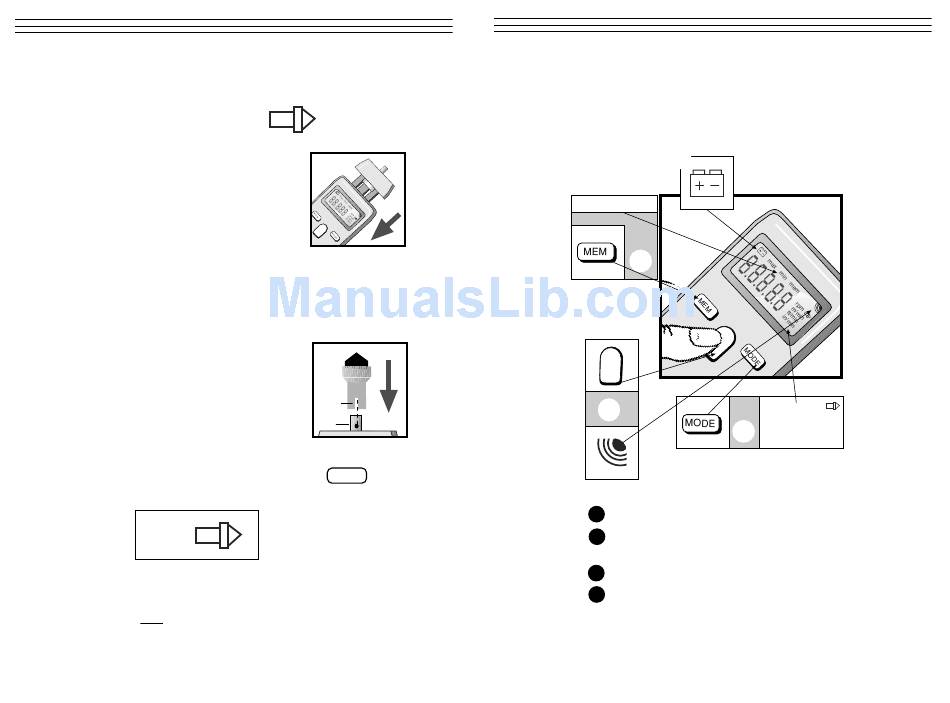

6.0 MEASURING RPM
6.1 Contact Operation - RPM
1. Install the Slide-on Contact Adapter.
2. Select either the Cone Tip Adapter or the Funnel Tip Adapter for
contact with the rotating shaft.
Note: The Funnel Tip is part of the Surface Speed Wheel.
3. Slide the selected adapter over the shaft
of the instrument. Be sure to align the
pin on the side of the shaft with the slot
in the adapter. Push on securely.
4. Select the Contact RPM mode by pressing the
key until the following symbol is shown on the LCD Display.
RPM
5. Position the adapter carefully so that it contacts the center of the
rotating shaft. Apply enough pressure to eliminate any slip.
6. Press and hold the Measure key to take measurements.
7. Release the Measure key prior to removing the instrument from the
rotating element. The Last reading will be retained on the display.
SLOT
PIN
MODE
8
4.0 Overview of CDT-2000
4.1 LCD Display
➊
max min mem
➍
➌
Low Battery Indicator
1
Units of Measure Indicators
2
Each time the MODE key is pressed the units will change.
On-Target Indicator
3
Memory Indicators
4
rpm rpm
m/min m
ft/min ft
➋
in/min in
5
