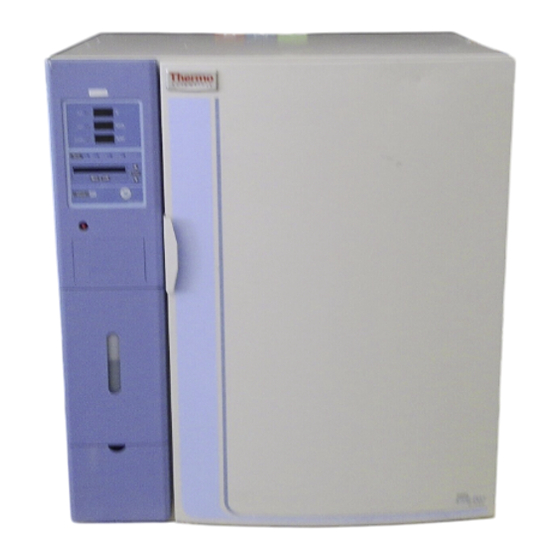

Thermo Scientific Unity Lab Services 3307 Manual

Stericult incubator troubleshootingresetting overtemp protection

Model 3307 and 3310 Stericult

Incubator Troubleshooting-

Resetting Overtemp Protection

(OTP)

This troubleshooting document provides basic instructions for resetting the manually

resettable overtemperature protection device to restore heating functionality.

The device description, location, and instructions for resetting are outlined.

Model 3307_3310 Stericult Troubleshooting-

Resetting Overtemperature Protection (OTP)

Revision Date: March 27, 2017

Table of Contents

Need help?

Do you have a question about the Unity Lab Services 3307 and is the answer not in the manual?

Page 1 Model 3307 and 3310 Stericult Incubator Troubleshooting- Resetting Overtemp Protection (OTP) This troubleshooting document provides basic instructions for resetting the manually resettable overtemperature protection device to restore heating functionality. The device description, location, and instructions for resetting are outlined. Model 3307_3310 Stericult Troubleshooting- Resetting Overtemperature Protection (OTP) Revision Date: March 27, 2017...
Page 2 3307_3310 Troubleshooting- Resetting OTP Description of OTP Device:  The unit is fitted with a manually resettable overtemperature protection device (OTP).  This device is designed to open and interrupt the heating circuit in the event of an overtemperature condition. ...
Page 3 3307_3310 Troubleshooting- Resetting OTP Resetting the OTP:  Turn unit power off.  Remove 1” black, plastic hole plug from OTP opening. Pry off using a flat-tipped tool.  Press button in center of OTP with a narrow, non-conductive tool (i.e. pencil) until reset. ...
Page 4 3307_3310 Troubleshooting- Resetting OTP Photo of OTP Location on Exterior Rear Wall of Chamber During Assembly: 400150 – T-Stat Snap-action 160C Part Number for OTP Device: 4 of 4 www.unitylabservices.com/contactus...
