Aaeon ITP11 User Manual

Industrial motherboard
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EMB-KB1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ITP11 and is the answer not in the manual?

Questions and answers

Related Manuals for Aaeon ITP11

Summary of Contents for Aaeon ITP11

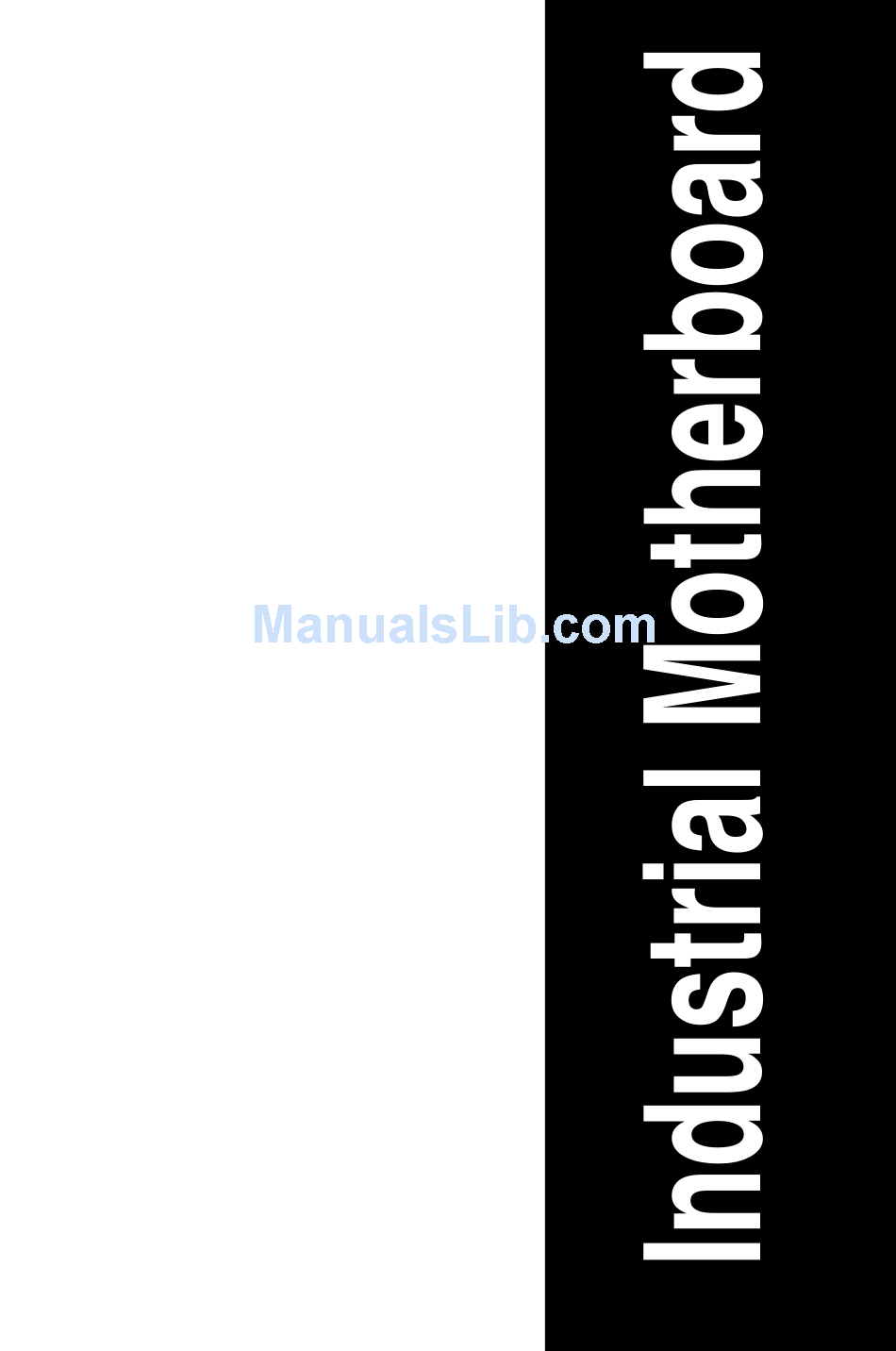

  • Page 1 EMB-KB1...
  • Page 2 E8620 First Edition October 2013 Copyright Notice This document is copyrighted, 2013. All rights are reserved. The original manufacturer reserves the right to make improvements to the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of the original manufacturer.
  • Page 3 Contents Chapter 1 Product overview Package contents ................. 1-1 Features ..................1-1 1.3 Specifications ................1-2 Chapter 2 Motherboard information Before you proceed ..............2-1 Motherboard layout ..............2-2 Screw size ..................2-4 AMD Accelerated Processing Unit ..........2-6 System memory ................2-6 Jumpers ..................

  • Page 5: Package Contents

    Chapter 1 Product overview Package contents Check your industrial motherboard package for the following items. 1 x Industrial Motherboard 1 x SATA Cable 1 x I/O Shield 1 x Support CD If any of the above items is damaged or missing, contact your distributor or sales representative immediately.

  • Page 6: Specifications

    1.3 Specifications SYSTEM Form factor Mini-ITX 1st generation APU SoC (FT3 BGA package) Quad core GX- ® 420CA, Dual-core GX-217GA (optional) Memory 2 x SO-DIMM (8GB per DIMM), max. 16GB, unbuffered, non-ECC DDR3 / DD3L 1600 / 1333 MHz Single channel memory architecture I/O Chipset Fintek F81866D-I Ethernet...
  • Page 7 DISPLAY Chipset Quad-core GX-420CA / Dual-core GX-217GA (Integrated) Resolution Up to 1920x1200@60Hz for VGA Up to 1920x1200@60Hz for DVI Up to 1920x1080@60Hz, Dual Channel 18/24-bit Output interface 1 x LVDS 1 x VGA 1 x DVI Storage 2 x SATA 6.0Gb/s ports 1 x SATA power connector Serial port 1 x RS-232/422/485 supports 5V/12V/RI option (COM1 on rear I/O)
  • Page 8 EMB-KB1...

  • Page 9: Before You Proceed

    Chapter 2 Motherboard information Before you proceed Take note of the following precautions before you install motherboard components or change any motherboard settings. CAUTION! • Unplug the power cord from the wall socket before touching any component. • Before handling components, use a grounded wrist strap or touch a safely grounded object or a metal object, such as the power supply case, to avoid damaging them due to static electricity.

  • Page 10: Motherboard Layout

    Motherboard layout NOTE: Place four screws into the holes indicated by circles to secure the motherboard to the chassis. CAUTION! Do not overtighten the screws! Doing so can damage the motherboard. 17.0cm(6.7in) KBMS CHA_FAN CPU_FAN DDR3_DIMM_A1 (64bit, 204-pin module) SIM1 DDR3_DIMM_A2 (64bit, 204-pin module) EATX_PWR2 MINI_CARD1...
  • Page 11 Connectors/Jumpers/Slots Page LVDS connector (30-pin LVDS1) 2-19 COM1 Ring/+5V/+12V selection (6-pin J4) 2-10 ATX power connectors (24-pin EATXPWR1, 4-pin EATX_PWR2) 2-14 SO-DIMM memory slots CPU and chassis fan connectors (4-pin CPU_FAN, 4-pin CHA_FAN) 2-15 Minicard connector (MINI_CARD1, MINI_CARD2) 2-20 BIOS programmable connector (8-pin SPI1) 2-21 Standby Power LED (Main_PWR_LED1, SB_PWR_LED1) 2-11...

  • Page 12: Screw Size

    Screw size 2.3.1 Component side EMB-KB1...

  • Page 13: Solder Side

    2.3.2 Solder side Chapter 2: Motherboard information...

  • Page 14: Amd Accelerated Processing Unit

    AMD Accelerated Processing Unit The motherboard comes with an AMD Generation APU SoC Quad Core GX- ® 420CA, Dual-core GX-217GA (optional). EMB-KB1 APU System memory This motherboard comes with two Double Data Rate 3 / Double Data Rate 3 Low Voltage (DDR3/DD3L) Small Outline Dual Inline Memory Modules (SO-DIMM) socket.

  • Page 15: Installing A Dimm

    2.5.1 Installing a DIMM To remove a DIMM Chapter 2: Motherboard information...

  • Page 16: Jumpers

    Jumpers Clear RTC RAM (CLRTC) This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS. You can clear the CMOS memory of system setup parameters by erasing the CMOS RTC RAM data. The onboard button cell battery powers the RAM data in CMOS, which include system setup information such as system passwords.

  • Page 17: Lvds Panel Voltage Selection (3-Pin J1)

    LVDS panel voltage selection (3-pin J1) (Default) EMB-KB1 LVDS Panel Voltage Selection Setting Pins +3.3V Inverter voltage selection (3-pin J2) +12V (Default) EMB-KB1 Inverter Voltage Selection Setting Pins +12V +5V (Default) Chapter 2: Motherboard information...

  • Page 18: Inverter Backlight Control Of Inverter Selector (3-Pin J3)

    Inverter Backlight Control of Inverter selector (3-pin J3) DC CTL PWM CTL (Default) EMB-KB1 Mode Selection for Backlight Control of Inverter Setting Pins DC Voltage Control PWM Control (Default) COM1 Ring/+5V/+12V selector (COM1) Ring +12V (Default) EMB-KB1 COM1 Ring/+5V/+12V Selection Setting Pins +12V (Default)

  • Page 19: Onboard Leds

    Onboard LEDs Standby Power LED The motherboard comes with a standby power LED that lights up to indicate that the system is ON, in sleep mode, or in soft-off mode. This is a reminder that you should shut down the system and unplug the power cable before removing or plugging in any motherboard component.

  • Page 20: Connectors

    Connectors 2.8.1 Rear panel connectors PS/2 Mouse port (green). This port is for a PS/2 mouse. Serial port (COM1). This port connects a modem, or other devices that conform with serial specification. This serial port also supports RS-232 / RS- 422 / RS-485 connections.
  • Page 21 LAN1~2 (RJ-45) ports. These ports allow Gigabit connection to a Local Area Network (LAN) through a network hub. Refer to the table below for the LAN2 port LED indications. LAN port LED indications Speed Activity Link ACT/LINK LED SPEED LED Status Description Status...

  • Page 22: Internal Connectors

    2.9.2 Internal connectors ATX power connectors (24-pin EATXPWR1, 4-pin EATXPWR2) These connectors are for ATX power supply plugs. The power supply plugs are designed to fit these connectors in only one orientation. Find the proper orientation and push down firmly until the connectors completely fit. EATX_PWR2 EATX_PWR1 PIN 1...

  • Page 23: Cpu And Chassis Fan Connectors (4-Pin Cpu_Fan, 4-Pin Cha_Fan)

    CPU and chassis fan connectors (4-pin CPU_FAN, 4-pin CHA_FAN) Connect the fan cables to the fan connectors on the motherboard, ensuring that the black wire of each cable matches the ground pin of the connector. CHA_FAN CPU_FAN EMB-KB1 Fan connectors CAUTION: Do not forget to connect the fan cables to the fan connectors.

  • Page 24: Front Panel Audio Connector (10-1 Pin Aafp1)

    Front panel audio connector (10-1 pin AAFP1) This connector is for a chassis-mounted front panel audio I/O module that supports either HD Audio or legacy AC`97 audio standard. Connect one end of the front panel audio I/O module cable to this connector. AAFP PIN 1 HD-audio-compliant...

  • Page 25: System Panel Connector (10-1 Pin F_Panel)

    System panel connector (10-1 pin F_PANEL) This connector supports several chassis-mounted functions. F_PANEL (NC) HWRST# Ground PWR_LED- HDD_LED- PWR_LED+ HDD_LED+ PIN 1 EMB-KB1 System panel connector • System power LED (2-pin PWR_LED) This 2-pin connector is for the system power LED. Connect the chassis power LED cable to this connector.

  • Page 26: Serial Ata 6.0Gb/S Connectors (7-Pin Sata6G_1, Sata6G_2)

    Serial ATA 6.0Gb/s connector (7-pin SATA6G_1, SATA6G_2) ThIS connector connects to Serial ATA 6.0 Gb/s hard disk drives via Serial ATA 6.0 Gb/s signal cables. RSATA_RXP2 RSATA_TXP1 RSATA_RXN2 RSATA_TXN1 RSATA_TXN2 RSATA_RXN1 RSATA_TXP2 RSATA_RXP1 EMB-KB1 SATA 6.0Gb/s connectors IMPORTANT: • You must install Windows XP Service Pack 3 or later version before using ®...

  • Page 27: Lvds Connector (30-Pin Lvds1)

    LVDS connector (30-pin LVDS1) This connector is for an LCD monitor that supports Low-Voltage Differential Signaling (LVDS) interface. LVDS1 LVDS Panel Enable Back Light Control for DC mode LVDS VCC LVDS0_CLK- LVDS0_CLK+ LVDS VCC LVDS0_D0- LVDS0_D0+ LVDS0_D1- LVDS0_D1+ LVDS0_D2- LVDS0_D2+ LVDS0_D3- LVDS0_D3+ EDID_Data...
  • Page 28 Minicard connector Use this connector to connect a Minicard reader. MINI_CARD1 MINI_CARD2 EMB-KB1 MINICARD connectors NOTE: The Mini-card module is purchased separately. 10. USB 2.0 connector (10-1 pin USB67 and USB45) This connector is for USB 2.0 ports. Connect the USB module cable to connector USB1112.

  • Page 29: Bios Programmable Connector (8-Pin Spi1)

    11. BIOS programmable connector (8-pin SPI1) Use this connector to flash the BIOS ROM. SPI1 PIN 1 EMB-KB1 BIOS Programmable Connector 12. Serial port connectors (10-1 pin COM3~COM6) These connectors are for serial (COM) ports. Connect the serial port module cable to this connector, then install the module to a slot opening at the back of the system chassis.
  • Page 30 13. Speaker out connector (4-pin AMP_CON1) The 4-pin connector is for the chassis-mounted speaker. AMP_CON1 PIN 1 EMB-KB1 SPEAKER OUT Connector NOTE: The Speaker module is purchased separately. 14. Digital I/O connector (10-pin DIO1) This connector includes 8 I/O lines (In/Out programmable). All of the Digital I/O lines are programmable and each I/O pin can be individually programmed to support various devices.

  • Page 31: Bios Setup

    Chapter 3 BIOS setup BIOS setup Use the BIOS Setup to update the BIOS or configure settings. The BIOS screens include navigation keys and help to guide you in using the BIOS Setup program. Entering BIOS Setup at startup To enter BIOS Setup at startup: Press <Delete>...

  • Page 32: Main Menu

    3.1.1 Menu bar The menu bar on top of the screen has the following main items: Main For changing the basic system configuration. Advanced For changing the advanced system settings. Chipset For viewing and changing chipset settings. Boot For changing the system boot configuration. Security For setting up BIOS security settings.

  • Page 33: Advanced Menu

    Advanced menu The Advanced menu items allow you to change the settings for the CPU and other system devices. Be cautious when changing the settings of the Advanced menu items. Incorrect field values can cause the system to malfunction. 3.3.1 ACPI Settings ACPI Sleep State [S3 only(Suspend to RAM)] Select ACPI sleep state the system will enter when the Suspend button is pressed.
  • Page 34 3.3.4 USB Configuration The USB Devices item lists auto-detected values. If no USB device is detected, the item shows None. Legacy USB Support [Enabled] [Enabled] Enables the support for USB devices on legacy operating systems (OS). [Disabled] USB devices are only available when running BIOS Setup.
  • Page 35 3.3.6 F81866 H/W Monitor The items in this menu allow you to configure hardware monitoring settings. Smart Fan Function [Enabled] Allows you to enable or disable Smart Fan Function. Configuration options: [Enabled] [Disabled] Smart Fan Mode Configuration Fan 1~2 Smart Fan Control [Auto Duty-Cycle Mode] Select Smart Fan mode.

  • Page 36: Power Management

    3.3.7 Dynamic Digital IO The items in this menu allow you to modify Digital IO settings. GPIO1~3 Direction [Input] Set GPIO data flow as Input or Output. Configuration options: [Input] [Output] GPO0~3 Direction [Output] Set GPO0 data flow as Input or Output. Configuration options: [Input] [Output] Output Level [Hi] Configuration options: [Hi][Low] 3.3.8...

  • Page 37: S5 Rtc Wake Settings

    3.3.9 S5 RTC Wake Settings Wake System with Fixed Time [Disabled] Enable or disable system wake on at an alarm event. When enabled, the system will wake up at the specified hr::min::sec. Configuration options: [Disabled] [Enabled] The following items appear when Wake System with Fixed Time is enabled. Wake up day/hour/minute/second [0] Specify the values for day/hour/minute/second.

  • Page 38: Chipset Menu

    Chipset menu The Chipset menu items allow you to change configuration options for the North Bridge and South Bridge. 3.4.1 North Bridge DDR3L Voltage Selection [1.5V] Configuration options: [1.35V] [1.5V] PCI GEN Speed [GEN2] Configuration options: [GEN1] [GEN2] GFX Configuration DP0 Output Mode [LVDS] Configuration options: [LVDS] [Disabled] LVDS1 [Enabled] Configuration options: [Disabled] [Enabled]...

  • Page 39: Boot Menu

    Boot menu The Boot menu items allow you to change the system boot options. 3.5.1 Boot Configuration Quiet Boot [Enabled] This item enables/disables Quiet Boot. Configuration options: [Disabled] [Enabled] Launch PXE OpROM [Disabled] This item enables/disables Legacy PXE OpROM. Configuration options: [Disabled] [Enabled] 3.5.2 Boot Option Priorities These items specify the boot device priority sequence from the available devices.

  • Page 40: Security Menu

    Security menu The Security menu items allow you to change the system security settings. 3.6.1 Administrator Password If you have set an administrator password, we recommend that you enter the administrator password for accessing the system. Otherwise, you might be able to see or change only selected fields in the BIOS setup program.

  • Page 41: Save & Exit Menu

    To change a user password: Select the User Password item and press <Enter>. From the Enter Current Password box, key in the current password, then press <Enter>. From the Create New Password box, key in a new password, then press <Enter>.
  • Page 42 EMB-KB1 3-12...

  • Page 43: Notices

    Appendix Notices Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference. • This device must accept any interference received including interference that may cause undesired operation.
  • Page 44 電子信息產品污染控制標示：圖中之數字為產品之環保使用期限。僅指電子 信息產品中含有的有毒有害物質或元素不致發生外洩或突變從而對環境造成 污染或對人身、財產造成嚴重損害的期限。 有毒有害物質或元素的名稱及含量說明標示： 有害物質或元素 部件名稱 六 價 鉻 多 溴 聯 苯 多 溴 二 苯 醚 鉛 (Pb) 汞 (Hg) 鎘 (Cd) (Cr(VI)) (PBB) (PBDE) 印 刷 電 路 板 及 其 × ○ ○ ○ ○ ○ 電子組件...
