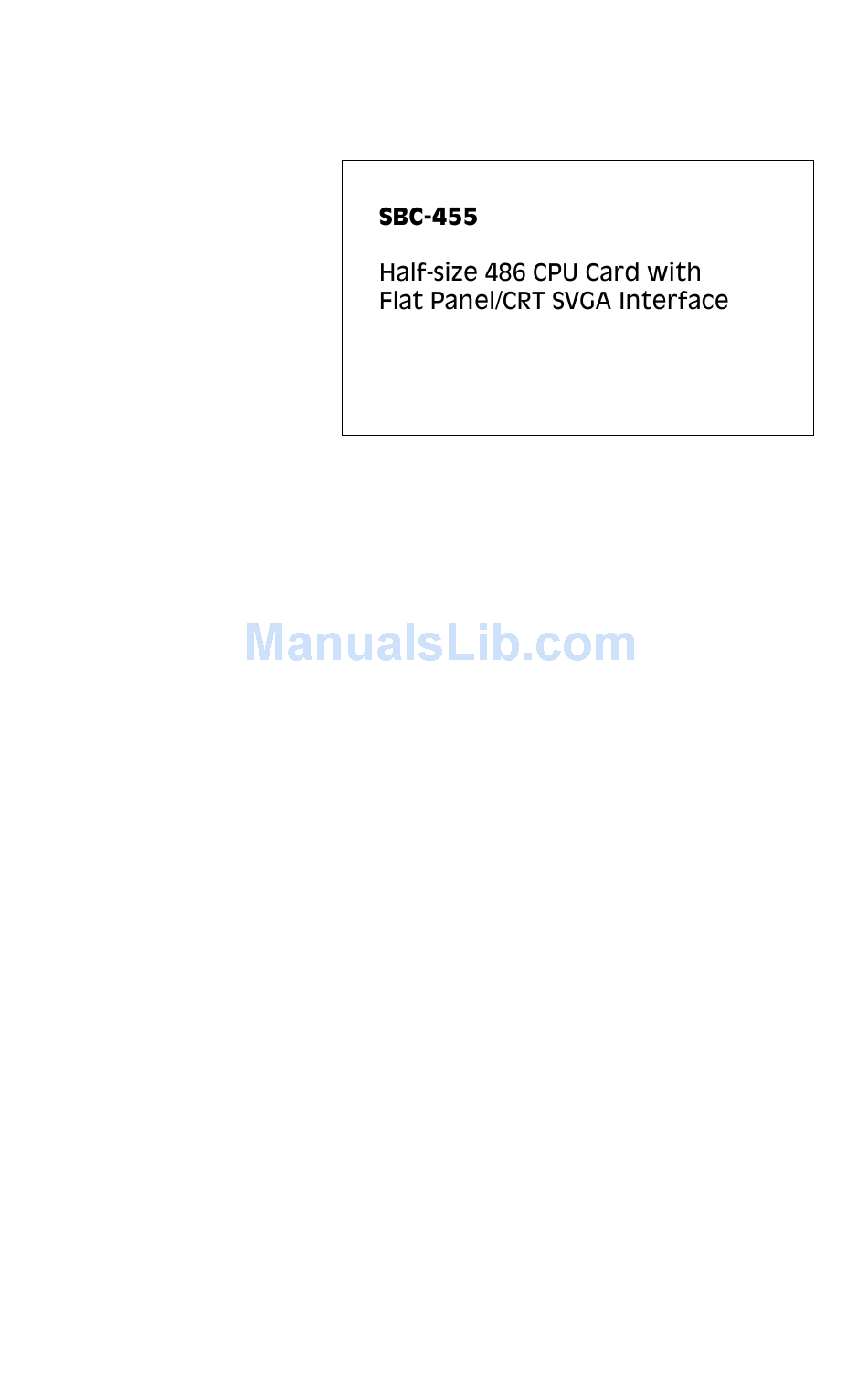

Aaeon SBC-455 Product Manual

Half-size 486 cpu card with flat panel/crt svga interface
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SBC-455 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aaeon SBC-455

Summary of Contents for Aaeon SBC-455

  • Page 2: Fcc Statement

    FCC STATEMENT THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE. (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPER- ATION.

  • Page 3: Copyright Notice

    Chip and Technologies, Inc. Cyrix is a trademark of Cyrix Corporation. IBM, PC/AT, PS/2 and VGA are trademarks of International Business Machines Corporation. Intel and Pentium are trademarks of Intel Corporation. Lotus, 1-2-3 an Symphony are trademarks of Lotus Development Corp. ®...

  • Page 4: Packing List

    Packing list Before you begin installing your card, please make sure that the following materials have been shipped: • 1 SBC-455 CPU card • 1 6-pin mini-DIN dual outlet adapter for keyboard and PS/2 mouse • 1 Hard disk drive (IDE) interface cable (40 pin) •...

  • Page 5: Table Of Contents

    Chapter 1: General Information ... 1 Introduction ... 2 Features ... 3 Specifications ... 4 Board layout ... 6 Card dimensions ... 7 Chapter 2: Installation ... 9 Jumpers and connectors ... 10 Locating jumpers and connectors ... 11 Setting jumpers ... 12 Safety precautions ...
  • Page 6 External speaker (EXT SPK) ... 30 Reset switch (RESET SW) ... 31 Turbo LED (TURBO LED)... 31 SMI (System Management Interrupt) switch (SMI SW) ... 32 Turbo Switch (TURBO SW) ... 32 Clear CMOS (JP12)... 32 Flash BIOS Protect (JP8) ... 33 Flash BIOS Write-enable Voltage (JP13) ...
  • Page 7 Security ... 57 Setting a Password ... 58 Anti-virus ... 59 Default ... 60 Original ... 60 Optimal ... 60 Fail-Safe ... 60 Exiting WinBIOS ... 61 Chpater 4: Flat Panel/CRT Controller Display Drivers and Utilities ... 63 Software drivers ... 64 Hardware configuration ...

  • Page 9: Chapter 1: General Information

    General Information This chapter provides background information for the SBC-455. Sections include: • Card specifications • Board layout Chapter 1 General Information...

  • Page 10: Introduction

    33 MHz. Excellent for display-intensive applications, it supports various LCD types including TFT, STN, B/W, and EL. Another feature of the SBC-455 is the inclusion of a high speed, local bus IDE controller. This controller supports (through ATA PIO) mode 3 and mode 4 hard disks, enabling data transfer rates in excess of 11 MB/second.

  • Page 11: Features

    Features • Accepts Intel, AMD, Cyrix or other compatible 486 processors, including the P24T Pentium OverDrive • Half-size PC/AT-compatible ISA-bus CPU card • AMI Flash BIOS • Daughterboard available for various flat panel displays • On-board 32-bit PCI-bus, flat panel/CRT SVGA controller •...

  • Page 12: Specifications

    BIOS: AMI Flash WIN BIOS Watchdog timer: Can generate a system reset or IRQ15. The time interval is software selectable from 2 to 32 seconds (15 steps, 2 seconds per step). PC/104: 104-pin connector for a 16-bit bus DMA channels: 7 SBC-455 User's Manual...
  • Page 13 Interrupt levels: 15 Keyboard/ PS/2 mouse connector: A 6-pin mini DIN keyboard connector is located on the mounting bracket for easy access to a keyboard and a PS/2 mouse Bus speed: 8 MHz System performance: 325 MHz in 80486 DX4-100 (Landmark V2.0) Max.

  • Page 14: Board Layout

    Board layout REV. CACHE SBC-455 User's Manual S M C FDC37C665 WITH CARD 486SX/DX/DX2/DX4 SBC-455...

  • Page 15: Card Dimensions

    Card dimensions 19.00 80.65 98.50 19.50 REV. CACHE WITH CARD 486SX/DX/DX2/DX4 SBC-455 122.00 Chapter 1 General Information...
  • Page 16 SBC-455 User's Manual...

  • Page 17: Chapter 2: Installation

    Installation This chapter explains set up procedures for the SBC-455 hardware, including instructions on setting jumpers and connecting peripherals, switches and indicators. Be sure to read all safety precautions before you begin the installa- tion procedure. Chapter 2 Installation...

  • Page 18: Jumpers And Connectors

    POWER CON IDE LED TURBO LED COM A KB CON KB/PS2 MOUSE J1,2 SIMM1,2 SBC-455 User's Manual Function CPU voltage select CPU type select COM port IRQ and Parallel port DRQ/DACK select LCD clock signal select LCD enabled signal select...

  • Page 19: Locating Jumpers And Connectors

    Locating jumpers and connectors POWER CON SMI SW TURBO SW JP12 KEY LOCK EXT SPK JP11 PRINTER COM2 JP13 FLOPPY DISK CPU TYPE CPU Vcc Primary IDE IDE LED TURBO LED RESET SW COM1 S M C F D C 3 7 C 6 6 5 SIMM SOCKETS KB/PS2 MOUSE...

  • Page 20: Setting Jumpers

    Setting jumpers You configure your card to match the needs of your application by setting jumpers. A jumper is the simplest kind of electric switch. It consists of two metal pins and a small metal clip (often protected by a plastic cover) that slides over the pins to connect them. To close a jumper you connect the pins with the clip.

  • Page 21: Safety Precautions

    Safety precautions Installing the CPU The SBC-455 CPU card supports most 486 CPUs. The system's performance depends on the CPU you choose. You can install or upgrade the CPU in the board's PGA socket by following the procedures outlined below. If your system has an existing CPU, you need to remove it before installing the new CPU.

  • Page 22: Installing A Cpu

    When you install a new CPU, you may have to adjust other settings on the board, such as CPU type, CPU clock, and PCI speed, to accommodate it. Make sure that the settings are correct for your CPU. Improper settings may damage the CPU. SBC-455 User's Manual...

  • Page 23: Cpu Type Select (Jp1, Jp3, Jp4)

    JP1, JP3, and JP4 must be set to match the CPU type. The chart below shows the proper jumper setting for their respective CPU. CPU Type select (JP4, JP3, JP1) Intel P24T AMD/Intel DX4 Series AMD-X5-133/ Intel P24D Intel DX2-66 AMD DE2-66...

  • Page 24: Cpu Vcc Select (Jp2)

    CPU clock select (JP9, JP10) JP9 and JP10 are used to synchronize the CPU clock with the CPU type. Set the CPU clock according to the base CPU speed. 25 MHz 33 MHz (default) 40 MHz 50MHz SBC-455 User's Manual...

  • Page 25: Installing Dram (Simms)

    Installing DRAM (SIMMs) The SBC-455 CPU card provides two 72-pin SIMM (Single In-line Memory Module) sockets and supports between 1 MB and 64 MB DRAM. When installing SIMMs, make sure that Bank 1 is filled first. Installing SIMMs 1. Insert the memory module into the socket at a moderate angle.

  • Page 26: Ide Hard Drive Connections (Ide)

    IDE hard drive connections (IDE) You can attach two Enhanced Integrated Device Electronics hard disk drives to the SBC-455's internal controller. The card comes with a 40-pin flat piggyback cable. This cable has three identical 40-pin flat-cable connectors. Connecting the hard drive Wire number 1 on the cable is red or blue, and the other wires are gray.

  • Page 27: Ide Led (Ide Led)

    Pin assignments The following table lists the pin numbers and their respective signals: Signal Reset N.C, IORDY N.C. IRQ 14 -ACT IDE LED (IDE LED) You can connect an LED to indicate that an IDE device is in use. The pin assignments for this jumper are as follows: Function -R/W IDE Pull high...

  • Page 28: Floppy Drive Connections (Floppy Disk)

    Floppy drive connections (FLOPPY DISK) You can attach up to two floppy disks to the SBC-455's on-board controller. You can use any combination of 5 1/4" (360 KB and 1.2 MB) and/or 3 1/2" (720 KB, 1.44 MB, and 2.88 MB) drives.

  • Page 29: Parallel Port (Printer)

    Parallel port (PRINTER) Normally, the parallel port is used to connect the card to a printer. The SBC-455 includes an on-board parallel port, accessed through the PRINTER connector, a 26-pin flat-cable connector. The CPU card comes with an adapter cable, which lets you use a traditional DB-25 connector.

  • Page 30: Parallel Port Drq And Dack (Jp11)

    Power supply connector In single board computer (non-passive backplane) applications, you will need to connect power directly to the SBC-455 board using POWER CON. This connector is fully compatible with the standard PC power supply connector. See the following table for...

  • Page 31: Display Connections (Vga, Lcd)

    Display connections (VGA, LCD) The SBC-455 CPU card's SVGA connector (VGA) with PCI bus supports monochrome display as well as high resolution color displays. The card also features an LCD connector (LCD), which allows you to connect various flat panel displays. The following...

  • Page 32: Lcd Signal Select (Jp5, Jp7)

    You can select the LCD control signals by setting JP5 and JP7. The following charts show the available options. SHF CLK from C&T65548 pin 70 ASHF CLK from SHF CLK inverse ENVEE from C&T65548 pin 61 ENVDD from C&T65548 pin 62 *Default SBC-455 User's Manual...

  • Page 33: Keyboard And Ps/2 Kb/ Mouse Connections (Kb Con, Kb/Ps2 Mouse)

    Keyboard and PS/2 KB/ mouse connections (KB CON, KB/PS2 MOUSE) The SBC-455 board provides two keyboard connectors. A 5-pin connector (KB CON) supports passive backplane applications. A second 6-pin mini-DIN connector (KB/PS2 MOUSE) on the card mounting bracket supports single board computer applications.

  • Page 34: Serial Ports

    Serial ports The SBC-455 offers two RS-232 serial ports. You can select or disable the address for each port with the BIOS Peripheral Setup program. The card mounting bracket holds COM A, the DB-9 serial port connector for the first port. The parallel port and serial port adapter kit (supplied with the card) holds COM B, the DB-9 connector for the second port.

  • Page 35: Serial Ports Irq Select (Jp11)

    Serial ports IRQ select (JP11) You can select the serial port IRQs by setting JP11 as follows: IRQ4 (default) COM A IRQ3 (default) COM B IRQ11 IRQ10 Chapter 2 Installation...

  • Page 36: Watchdog Timer Setup

    1. Write to I/O port 443 (Hex) and designate a time-out interval. This will enable the watchdog and set up its time-out interval. 2. Write to I/O port 080 (Hex) and any random value. This will in turn disable the watchdog timer. SBC-455 User's Manual IRQ15...
  • Page 37 The watchdog timer-out interval can be set at 15 levels between 2 and 32 seconds. The following table shows the Hex values for the appropriate time-out intervals: Delay time Value (Hex) 8~10 10~12 12~14 14~16 Delay time Value (Hex) 16~18 18~20 20~22 22~24...

  • Page 38: External Switches And Leds

    KEY LOCK supplies power to the LED; Pin 3 is the ground. You can use a switch (or a lock) to disable the keyboard. In this state the PC will not respond to any input. This is useful if you don’t want anyone to change or stop a running program.

  • Page 39: Reset Switch (Reset Sw)

    Reset switch (RESET SW) You can connect an external switch to easily reset your computer. This switch restarts your computer as if you had turned off the power then turned it back on. The following table shows the pin assignments for RESET SW.

  • Page 40: Smi (System Management Interrupt) Switch (Smi Sw)

    Function Ground Turbo Switch (TURBO SW) You can connect a switch across TURBO SW to change the CPU speed between Turbo and non-Turbo mode. When you leave the pins open, the CPU card operates at full speed. When you close the pins, the card operates at slow speed for compatibility with older software.

  • Page 41: Flash Bios Protect (Jp8)

    Flash BIOS Protect (JP8) You can set the JP8 to protect BIOS write-enable. The configura- tion is as follows: Write protect (default) Write-enable Flash BIOS Write-enable Voltage (JP13) This jumper sets the voltage supplied to the Flash BIOS Write- enable. The figure below shows the proper jumper settings for both 5V and 12V voltage.
  • Page 42 SBC-455 User's Manual...

  • Page 43: Chapter 3: Ami Winbios Setup

    AMI WinBIOS Setup Chapter 3 AMI WinBIOS setup...

  • Page 44: General Information

    General information Starting WinBIOS setup Hit <DEL> if you want to run SETUP WinBIOS main menu SBC-455 User's Manual...

  • Page 45: Using A Mouse With Winbios Setup

    Using a mouse with WinBIOS setup Using the keyboard with WinBIOS setup Keystroke <tab> Move to the next window or field. Move to the next field to the right, left, above, or below. <ENTER> Select in the current field. Increments a value. Decrements a value.

  • Page 46: Setup

    Setup Standard Setup Pri Master, Pri Slave, Sec Master and Sec Slave Date, Day and Time Configuration SBC-455 User's Manual...
  • Page 47 Floppy A, Floppy B User-Defined Drive Chapter 3 AMI WinBIOS setup...

  • Page 48: Advanced Setup

    Advanced Setup SBC-455 User's Manual...
  • Page 49 Quick Boot: Setting Description Disabled AMIBIOS test all system memory. AMIBIOS waits up to 40 seconds for a READY signal from the IDE hard disk drive. AMIBIOS waits for .5 seconds after sending a RESET signal to the IDE drive to allow the IDE drive time to get ready again.
  • Page 50 Turbo Switch: Floppy Drive Swap: Floppy Drive Seek: Mouse Support: System Keyboard: Primary Display: Display Device: This option allows user to select display device. The settings are CRT, LCD, and Both. The Fail-Safe default setting is Both. SBC-455 User's Manual...
  • Page 51 Password Check: Parity Check: OS/2 Compatible Mode: Wait for F1 if Error: Press <F1> to continue Hit Del Message Display: Hit <DEL> if you want to run Setup Chapter 3 AMI WinBIOS setup...
  • Page 52 Disabled WriteBack WriteThru System BIOS Cacheable Numeric Processor Test Hard Disk Delay SBC-455 User's Manual Description Neither L1 internal cache memory on the CPU nor L2 secondary cache memory is enabled. Use the write-back caching algorithm. Use the write-through caching algorithm.
  • Page 53 C000,16 KB Shadow C400,16 KB Shadow C800,16 KB Shadow CC00,16 KB Shadow Setting Description Shadow The contents of C 0000h - C3FFFh are written to the same address in system memory (RAM execution. Enabled The contents of the named ROM area are written to the same address in system memory (RAM) for faster execution, if an adapter ROM will be using the named ROM area.

  • Page 54: Chipset Setup

    Chipset Setup Function Auto Configuration Function AT Bus Clock DRAM Read Timing SBC-455 User's Manual Options Disabled/Enabled 7.16 CPU Bus Speed/3 CPU Bus Speed/4 CPU Bus Speed/5 CPU Bus Speed/6 CPU Bus Speed/8 Slow Normal Faster Fastest...
  • Page 55 Function DRAM Write Timing SRAM Type SRAM Read Timing SRAM Write Timing Memory Parity Check DRAM Hidden Refresh DRAM Refresh Period Setting Memory Hole at 15-16 M ISA I/O Recovery ISA I/O Recovery Time Cx5x86 Linear Wrapped Mode System Hidden Refresh Options Slow Normal...

  • Page 56: Power Management Setup

    Power Management Setup Power Management Mode/APM Funtion SBC-455 User's Manual...

  • Page 57: Pci/Pnp Setup

    PCI/PnP Setup Plug and Play Aware OS Chapter 3 AMI WinBIOS setup...
  • Page 58 PCI Latency Timer (in PCI Clocks) VGA Locate Bus CPU to PCI Write Buffer PCI IDE BusMaster Offboard PCI IDE Card SBC-455 User's Manual...
  • Page 59 PCI Slot1 IRQ Priority PCI Slot2 IRQ Priority PCI Slot3 IRQ Priority PCI Slot4 IRQ Priority IRQ3 IRQ4 IRQ5 IRQ7 IRQ9 IRQ10 IRQ11 IRQ12 IRQ14 IRQ15 Chapter 3 AMI WinBIOS setup...
  • Page 60 Reserved Memory Size Reserved Memory Address SBC-455 User's Manual...

  • Page 61: Peripheral Setup

    Peripheral Setup Onboard FDC Onboard Serial Port 1 Chapter 3 AMI WinBIOS setup...
  • Page 62 The parallel port can be used with devices that adhere to the Extended Capabilities Port (ECP) specification. ECP uses the DMA protocol to achieve transfer rates of approximately 2.5 Mbs. ECP provides symmetric bidirectional communla- tions. SBC-455 User's Manual...
  • Page 63 Parallel Port DMA Channel Parallel Port IRQ Onboard IDE Chapter 3 AMI WinBIOS setup...

  • Page 64: Utility

    Utility Detect IDE: Language: SBC-455 User's Manual...

  • Page 65: Security

    Security Two Levels of Passwords Chapter 3 AMI WinBIOS setup...

  • Page 66: Setting A Password

    Setting a Password SBC-455 User's Manual...

  • Page 67: Anti-Virus

    Changing a password Anti-virus Boot Sector Write !!! nue (Y/N)? _ Possible VIRUS: Conti Format!!! Possible VIRUS: Continue (Y/N)? _ Chapter 3 AMI WinBIOS setup...

  • Page 68: Default

    Default Original Optimal Fail-Safe SBC-455 User's Manual...

  • Page 69: Exiting Winbios

    Exiting WinBIOS Chapter 3 AMI WinBIOS setup...
  • Page 70 SBC-455 User's Manual...

  • Page 71: Utilities

    This chapter provides information about: • Driver types and installation • Software utility installation and use Chapter 5 Flat Panel/ CRT Controller...

  • Page 72: Software Drivers

    Software drivers This chapter describes the operation and installation of the software drivers supplied on the Display Driver Diskettes that are shipped with your VGA adapter. Your VGA adapter is based on the CHIPS VGA Flat Panel/CRT controller and is fully IBM VGA compatible. This controller offers a large set of extended functions and higher resolutions.

  • Page 73: Necessary Prerequisites

    Necessary prerequisites The instructions in this manual assume that you understand elementa- ry concepts of MS-DOS and the IBM Personal Computer. Before you attempt to install any driver or utility, you should: • Know how to copy files from a floppy disk to a directory on the hard disk •...

  • Page 74: Windowsô 95

    Windows Ô Ô Ô Ô Ô 95 These drivers are designed to work with Microsonft You just install these drivers through the WindowsÔ operating system. Driver installation 1. Install WindowsÔ 95 as you normally would for a VGA display. Click the Start button, go to Settings and click on Control Panel.

  • Page 75: Windowsô 3.1

    Windows Ô Ô Ô Ô Ô These drivers are designed to work with Microsoft Windows Version 3.1. You may install these drivers either through Windows or in DOS. Driver installation - Windows Setup 1. Install Windows as you normally would for a VGA display. Run Windows to make sure that it is working correctly.

  • Page 76: Dos

    Changing Color Schemes After you change display drivers, you may notice that the color scheme used by Windows looks strange. This is because different drivers have different default colors. You can correct this by choosing the same color scheme or a new color scheme. First select the Control Panel from the Main window.

  • Page 77: Os/2

    9. Follow the directions on the screen to complete the setup. In most cases, you may press <ENTER> to accept the suggested option. When Setup is done, it will return to DOS. Type WIN <ENTER> to start Windows with the new display driver. Changing Display Drivers from DOS To change display drivers from DOS, change to the Windows directory and run Setup, repeating steps 4 and 5 from the previous page.
  • Page 78 2. Place the OS/2 Display Driver Diskette in drive A. Type A:<ENTER> to make this the default drive. Then type INST2X A: C: <ENTER> (for OS/2 2.1x systems) or INST30 A: C: <ENTER> (for OS/2 Version 3 systems). Once the Install Program is completed, do a system shutdown and reboot.
  • Page 79 4. When running WIN-OS/2, DO NOT use <ALT>+<HOME> to switch a DOS or OS/2 Full Screen session to Windows. If this happens, do a system shutdown and reboot. Driver diskette copy NOTE: Diskette copies of the OS/2 drivers must have a VOLUME LABEL that reads “DISP 1”...

  • Page 80: Windowsô Nt3.51

    Windows NT 3.51 Ô Ô Ô Ô Ô These drivers are designed to work with Microsonft Driver installation 1. Install WindowsÔ NT3.51 as you normally would for a VGA display. Run WindowsÔ NT Control Panel from the Main Group. Choose the Display option. In the Display Settings dialog box, click on Change Display Type.
  • Page 81 Windows NT 4.0 Driver Installation 1. Install Windows NT4.0 as you normally would for a VGA display. First click the Start button, go to Settings and click on Control Panel. Choose the Display icon and click on the icon. In the Display Properties window, click on the Set- tings tab.

  • Page 82: Software Utilities

    SOFTWARE UTILITIES This chapter describes the operation and installation of the following software utilities supplied on the Display Driver Diskettes: • CHIPSDSP • CHIPSCPL The CHIPSDSP utility program This utility program is designed to work with Microsoft Installing the utility CHIPSDSP.DLL is located on the CHIPS WindowsÔ...
  • Page 83 REFRESH RATE allows you to select the refresh rate from the following: • Interlaced • 56 Hz • 60 Hz • 70 Hz • 72 Hz • 75 Hz • 85 Hz The refresh rate is available in CRT Mode only. Note: 1.

  • Page 84: The Chipscpl Utility Program

    The CHIPSCPL utility program This utility program is designed to work with Microsoft Version 3.1. Installing the utility CHIPSCPL.CPL is a WindowsÔ based utility to select resolutions and color depth. It is a Control Panel Applet with its own icon that is auto- matically installed when installing CHIPS WindowsÔ...
  • Page 85 DPI<ALT P> allows you to select a large or small font. DISPLAY<ALT D> allows you to select the display type from the following: • CRT only • LCD (Flat Panel) only • Both CRT and LCD (Flat Panel) MONITOR SELECTION <ALT M> allows you to select from the list of monitors.
  • Page 86 PCM-5890 User's Manual...

  • Page 87: Appendix A: Watchdog Timer Demo Program

    The following demo program illustrates the programming steps required to enable, set, and disable the watchdog timer.
  • Page 88 [3]. Return to O.S."); /* Read key pressed */ while(1){ if(kbhit()){ inkey=getch(); switch(inkey){ A-80 SBC-455 User's Manual /* Input watchdog timer time- /* Convert time-out interval case '1': /* Reset Watchdog timer */ gotoxy(15,11);printf("Now enable watchdog timer!"); outportb(0x443,dog); run_time=0;...

  • Page 89: Appendix A Watchdog Timer Demo Program A

    mydelay(); run_time=run_time+1; /* Display time elapsed */ gotoxy(45,11);printf(%2d.%1d sec",run_time/ 10,run_time%10); /* USER FUNCTION LIBRARY */ void mydelay(void) /* Delay program: */ /* Delay 109.89ms (18.2Hz*2) */{ clock_t start,end; start=clock(); end=start; while((end-start)<2){ end=clock(); Appendix A Watchdog Timer Demo Program A-81...
  • Page 90 A-82 SBC-455 User's Manual...

  • Page 91: Appendix B: Installing Pc/104 Modules

    This appendix gives instructions for installing PC/104 modules.
  • Page 92 • PCM-3610 • PCM-3660 • PCM-3718 • PCM-3724 • PCM-3910 To install these modules on the SBC-455 is a quick and simple operation. The following steps show how to mount the PC/104 modules: Step1 Remove the SBC-455 from your system paying particular attention to the safety instructions already mentioned above.

  • Page 93: Appendix B Installing Pc/104 Modules B

    Step4 Mount the PC/104 module onto the CPU card. Do this by pressing the module firmly but carefully onto the mounting connectors. Step5 Secure the PC/104 module onto the CPU card using the four mounting spacers and srews. Female P C / 1 0 4 M o u n t i n g S B C - 4 5 5 C P U C a r d PC/104 Module Mounting Diagram...
  • Page 94 3 . 7 7 5 3 . 5 7 5 0 . 2 0 0 PC/104 module dimensions (inches ±5 B-86 SBC-455 User's Manual 3 . 5 0 0 0 . 2 0 0 3 . 2 5 0 3 . 5 7 5 0 .
  • Page 95 This appendix gives instructions for configuring various LCD displays.
  • Page 96 Follow the instructions below to modify the VGA BIOS: 1. To update your SBC-455 with the newly created BIOS, execute the following command on enclosed Diskette of VGA BIOS. AAFLASH FILENAME.ROM Note : Before you execute the AAFLASH.COM utility program, please make sure you bypass both CONFIG.SYS and AUTOEXEC.BAT.

  • Page 97: Appendix C Lcd Display Bios Configuration

    Appendix C LCD Display BIOS Configuration C-89...

Table of Contents
