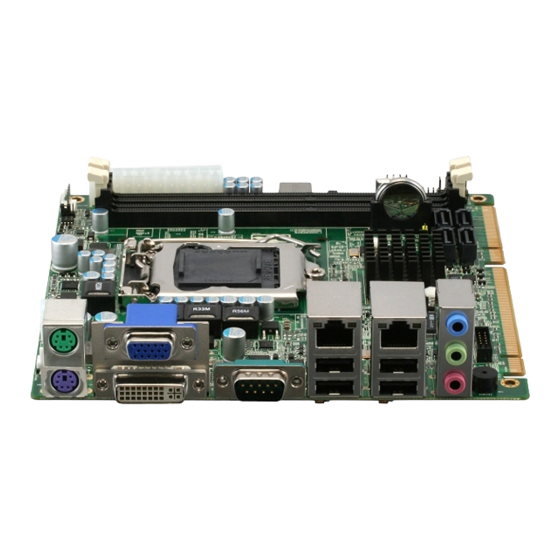

I n d u s t r i a l M o t h e r b o a r d
I M B I - Q 5 7
IMBI-Q57
®
TM
Intel
Core
i3/i5/i7 DT Processor
Dual View With VGA & DVI
Two 240-pin DDR3 1066/1333 SDRAM
4 SATA2/ RAID 0, 1, 5, 10
8 USB 2.0/ 1 RS-232/ 1 RS-232/422/485
IMBI-Q57 Manual Rev.A 1st Ed.
October 2010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IMBI-Q57 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aaeon IMBI-Q57

Summary of Contents for Aaeon IMBI-Q57

  • Page 1 I M B I - Q 5 7 IMBI-Q57 ® Intel Core i3/i5/i7 DT Processor Dual View With VGA & DVI Two 240-pin DDR3 1066/1333 SDRAM 4 SATA2/ RAID 0, 1, 5, 10 8 USB 2.0/ 1 RS-232/ 1 RS-232/422/485 IMBI-Q57 Manual Rev.A 1st Ed. October 2010...

  • Page 2: Copyright Notice

    AAEON assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein. AAEON reserves the right to make changes in the product design without notice to its users.
  • Page 3 I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 Acknowledgments All other products’ name or trademarks are properties of their respective owners.

  • Page 4: Packing List

    I M B I - Q 5 7 Packing List Before you begin installing your card, please make sure that the following materials have been shipped: • IMBI-Q57 Mini-ITX Main Board • SATA Signal Cable • COM Port Cable with DB-9 •...

  • Page 5: Table Of Contents

    I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 Contents Chapter 1 General Information 1.1 Introduction..............1-2 1.2 Features ..............1-3 1.3 Specifications ............
  • Page 6 I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 2.19 4-Pin ATX Power Connector (ATX2)..... 2-13 2.20 Expansion Interface (PICMGA1)......2-13 2.21 Expansion Interface (PICMGB1)......

  • Page 7: Chapter 1 General Information

    I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 Chapter General Information 1- 1 Chapter 1 General Information...

  • Page 8: Introduction

    Gen 6.0 that support dual view with VGA and DVI to meet the demand of the media and high definition. In addition, IMBI-Q57 deploys 8 USB 2.0, 2 COMs, Keyboard & Mouse, and multiple extended bus for a flexible expansion selection. The storage of IMBI-Q57 supports 4 SATA2 ports to support RAID 0, 1, 5, 10 function.

  • Page 9: Features

    I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 1.2 Features ® Intel 32/45nm Core™ i7/i5/i3 LGA1156 CPU Integrated Graphics & Memory Controller ®...

  • Page 10: Specifications

    I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 1.3 Specifications System Form Factor Mini-ITX ® Processor Intel 32/45nm Core™ i7/i5/i3 LGA1156 CPU, TDP: 95W Max.
  • Page 11 I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 H/W Status Monitor Monitoring system temperature, voltage, and cooling fan status Expansion Interface Multiple Extended Bus with Golden Finger...
  • Page 12 I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 Keyboard & Mouse Keyboard x 1 & Mouse x 1 Universal Serial Bus USB 2.0 x 8 (four on the I/O side, four with header) Audio...

  • Page 13: Chapter 2 Quick Installation Guide

    I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 Chapter Quick Installation Guide 2 - 1 Chapter 2 Quick Installation Guide...

  • Page 14: Safety Precautions

    I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 2.1 Safety Precautions Always completely disconnect the power cord from your board whenever you are working on it.

  • Page 15: Location Of Connectors And Jumpers

    I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 2.2 Location of Connectors and Jumpers Component Side 2 - 3 Chapter 2 Quick Installation Guide...

  • Page 16: Solder Side

    I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 Solder Side 2 - 4 Chapter 2 Quick Installation Guide...

  • Page 17: Mechanical Drawing

    I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 2.3 Mechanical Drawing Component Side 2 - 5 Chapter 2 Quick Installation Guide...
  • Page 18 I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 Solder Side 2 - 6 Chapter 2 Quick Installation Guide...

  • Page 19: List Of Jumpers

    I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 2.4 List of Jumpers The board has a number of jumpers that allow you to configure your system to suit your application.

  • Page 20: List Of Connectors

    I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 2.5 List of Connectors The board has a number of connectors that allow you to configure your system to suit your application.

  • Page 21: Setting Jumpers

    I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 2.6 Setting Jumpers You configure your card to match the needs of your application by setting jumpers.

  • Page 22: Auto Pwrbtn Selection (Jp1)

    I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 2.7 Auto PWRBTN Selection (JP1) Function Use Auto PWRBTN Don’t use Auto PWRBTN (Default) 2.8 CMOS Setting (JP2) Function Normal (Default)

  • Page 23: Rs-232/422/485 Serial Port Connector (Com2)

    I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 2.12 Pin Header (USB_F1, USB_F2) Signal Signal USBD1- USBD1+ USBD2+ USBD2- 2.13 RS-232 Serial Port Connector (COM1) Signal Signal...

  • Page 24: Sata Connector (Sata1~4)

    I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 OUT0 (U15 Pin24) OUT1 (U15 Pin25) OUT2 (U15 Pin26) OUT3 (U15 Pin27) BIOS Connector Address...

  • Page 25: 4-Pin Atx Power Connector (Atx2)

    I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 PWROK +5VSB +12V +12V +3.3V +3.3V -12V PS_ON 2.19 4-Pin ATX Power Connector (ATX2) Signal Signal +12V...
  • Page 26 I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 B12 EXP_A_TXP_13 A12 GND B13 EXP_A_TXN_13 A13 EXP_A_TXN_12 B14 GND A14 EXP_A_TXP_12 B15 EXP_A_TXN_14 A15 GND B16 EXP_A_TXP_14...
  • Page 27 I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 B42 EXP_A_TXN_3 A42 GND B43 EXP_A_TXP_3 A43 EXP_A_RXP_11 B44 GND A44 EXP_A_RXN_11 B45 EXP_A_TXN_4 A45 GND B46 EXP_A_TXP_4...

  • Page 28: Expansion Interface (Picmgb1)

    I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 B72 CFG_1 A72 GND B73 CFG_0 A73 CK_PE_100M_P_1PORT_B1 B74 CK_PE_100M_P_1PORT_B2 A74 CK_PE_100M_N_1PORT_B1 B75 CK_PE_100M_N_1PORT_B2 A75 GND B76 GND A76 CK_PE_100M_P_1PORT_B3...
  • Page 29 I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 B17 GND A17 DDPB_AUXN B18 DPC_STALLP A18 GND B19 DPC_STALLN A19 SDVO_CTRL_CLK B20 GND A20 SDVO_CTRL_DATA B21 DPC_TVCLKP...
  • Page 30 I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 B47 +3_3V A47 +5V B48 +5V A48 +5V B49 +5V A49 +5V 2 - 18 Chapter 2 Quick Installation Guide...
  • Page 31 I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 Below Table for China RoHS Requirements 产品中有毒有害物质或元素名称及含量 AAEON Main Board/ Daughter Board/ Backplane 有毒有害物质或元素 部件名称 铅...

  • Page 32: Chapter 3 Ami Bios Setup

    I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 Chapter BIOS Setup Chapter 3 AMI BIOS Setup 3-1...

  • Page 33: System Test And Initialization

    3. The CMOS memory has lost power and the configuration information has been erased. The IMBI-Q57 CMOS memory has an integral lithium battery backup for data retention. However, you will need to replace the complete unit when it finally runs down.

  • Page 34: Ami Bios Setup

    I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 3.2 AMI BIOS Setup AMI BIOS ROM has a built-in Setup program that allows users to modify the basic system configuration.

  • Page 35: Chapter 4 Driver Installation

    I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 Chapter Driver Installation Chapter 4 Driver Installation...
  • Page 36 I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 The IMBI-Q57 comes with a CD-ROM that contains all drivers your need.
  • Page 37 I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 4.1 Installation: Insert the IMBI-Q57 CD-ROM into the CD-ROM Drive. And install the drivers from Step 1 to Step 6 in order. Step 1 – Install INF Driver 1.
  • Page 38 I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 3. Follow the instructions that the window shows 4. The system will help you to install the driver automatically Step 5 –...

  • Page 39: Appendix A Programming The Watchdog Timer

    I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 Appendix Programming the Watchdog Timer Appendix A Programming the Watchdog Timer A-1...

  • Page 40: Programming

    I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 A.1 Programming IMBI-Q57 utilizes ITE 8718 chipset as its watchdog timer controller. Below are the procedures to complete its configuration and the AAEON initial watchdog timer program is also attached based on which you can develop customized program to fit your application.
  • Page 41 I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 There are three steps to complete the configuration setup: (1) Enter the MB PnP Mode;...
  • Page 42 I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 WatchDog Timer Configuration Registers Configure Control (Index=02h) This register is write only. Its values are not sticky; that is to say, a hardware reset will automatically clear the bits, and does not require the software to clear them.
  • Page 43 I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 Watch Dog Timer Configuration Register (Index=72h Default=001s0000b) Watch Dog Timer Time-Out Value (LSB) Register (Index=73h Default=38h) Watch Dog Timer Time-Out Value (MSB) Register (Index=74h Default=00h)

  • Page 44: Ite8718 Watchdog Timer Initial Program

    I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 A.2 ITE8718 Watchdog Timer Initial Program .MODEL SMALL .CODE Main: CALL Enter_Configuration_mode CALL Check_Chip mov cl, 7 call Set_Logic_Device...
  • Page 45 I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 call Superio_Set_Reg ; game port enable mov cl, 9 call Set_Logic_Device Initial_OK: CALL Exit_Configuration_mode MOV AH,4Ch...
  • Page 46 I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 CALL Write_Configuration_Data Exit_Configuration_Mode ENDP Check_Chip PROC NEAR MOV AL,20h CALL Read_Configuration_Data CMP AL,87h JNE Not_Initial MOV AL,21h...
  • Page 47 I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 OUT DX,AL MOV DX,WORD PTR CS:[Cfg_Port+06h] IN AL,DX Read_Configuration_Data ENDP Write_Configuration_Data PROC NEAR MOV DX,WORD PTR CS:[Cfg_Port+04h] OUT DX,AL XCHG AL,AH...
  • Page 48 I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 Set_Logic_Device proc near push ax push cx xchg al,cl mov cl,07h call Superio_Set_Reg pop cx pop ax...

  • Page 49: Appendix B I/O Information

    I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 Appendix I/O Information Appendix B I/O Information...

  • Page 50: I/O Address Map

    I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 B.1 I/O Address Map Appendix B I/O Information...

  • Page 51: Memory Address Map

    I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 B.2 1 MB Memory Address Map B.3 IRQ Mapping Chart B.4 DMA Channel Assignments Appendix B I/O Information...

  • Page 52: Appendix C Mating Connector

    I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 Appendix Mating Connector C - 1 Appendix C Mating Connector...

  • Page 53: List Of Mating Connectors And Cables

    I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 C.1 List of Mating Connectors and Cables The table notes mating connectors and available cables. Connector Function Mating Connector...
  • Page 54 I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 JFM38U1 Ethernet B-21U5-4 LAN2 FOXCONN Connector CRT+DVI TechBast D205D2B Connector Electronics 01022PN Mini-Din PS/2 MH11061-...

  • Page 55: Appendix D Raid & Ahci Settings

    I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 A ppendix RAID & AHCI Settings Appendix D RAID & AHCI Settings...

  • Page 56: Setting Raid

    I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 D.1 Setting RAID OS installation to setup RAID Mode Step 1: Copy the files below from “Driver CD -> Raid Driver -> F6 Floppy - x86”...
  • Page 57 I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 Step 3: The setting procedures “ In BIOS Setup Menu” A: Advanced -> SATA Configuration -> SATA Mode -> RAID Mode Step 4: The setting procedures “In BIOS Setup Menu”...
  • Page 58 I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 Step 5: The setting procedures “In BIOS Setup Menu” C: Boot -> Boot Option #1 -> DVD-ROM Type Step 6: The setting procedures “In BIOS Setup Menu”...
  • Page 59 I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 Step 7: Press Ctrl-I to enter MAIN MENU Step 8: Choose “1.Create RAID Volume” Appendix D RAID &...
  • Page 60 I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 Step 9: RAID Level -> RAID0(Stripe) Step 10: Choose “Create Volume” Appendix D RAID &...
  • Page 61 I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 Step 11: Choose “Y” Step 12: Choose “5. Exit” Appendix D RAID & AHCI Settings...
  • Page 62 I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 Step 13: Choose “Y” Step 14: Setup OS Appendix D RAID & AHCI Settings...
  • Page 63 I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 Step 15: Press “F6” Step 16: Choose “S” Appendix D RAID & AHCI Settings...
  • Page 64 I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 Step 17: Choose “Intel(R) ICH8M-E/ICH9M-E/5 Series SATA RAID Controller” Step 18: It will show the model number you select and then press “ENTER” D-10 Appendix D RAID &...
  • Page 65 I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 Step 19: Setup is starting Windows D-11 Appendix D RAID & AHCI Settings...

  • Page 66: Setting Ahci

    I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 D.2 Setting AHCI OS installation to setup AHCI Mode Step 1: Copy the files below from “Driver CD -> Raid Driver -> F6 Floppy - x86”...
  • Page 67 I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 Step 3: The setting procedures “ In BIOS Setup Menu” A: Advanced -> SATA Configuration -> SATA Configuration -> SATA Mode ->...
  • Page 68 I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 Step 5: The setting procedures “In BIOS Setup Menu” C: Save & Exit -> Save Changes and Exit Step 6: Setup OS D-14 Appendix D RAID &...
  • Page 69 I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 Step 7: Press “F6” Step 8: Choose “S” D-15 Appendix D RAID & AHCI Settings...
  • Page 70 I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 Step 9: Choose “Intel(R) 5 Series 6 Port SATA AHCI Controller” Step 10: It will show the model number you select and then press “ENTER”...
  • Page 71 I n d u s t r i a l M o t h e r b o a r d I M B I - Q 5 7 Step 11: Setup is loading files D-17 Appendix D RAID & AHCI Settings...
