I n d u s t r i a l M o t h e r b o a r d

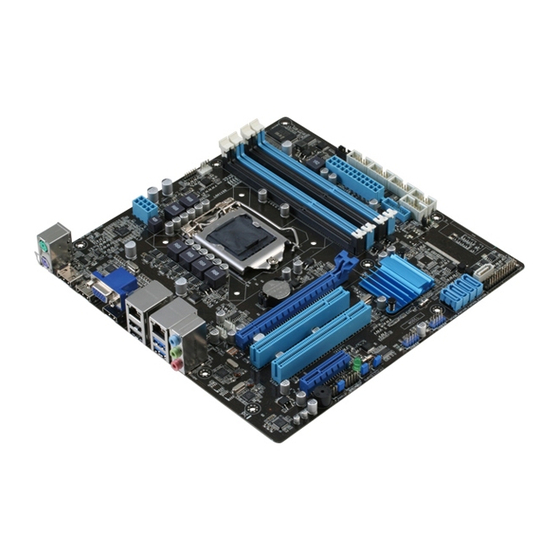

I M B M - B 7 5 A
IMBM-B75A
®
Intel
3rd Generation Core™ i7/i5/i3
Processor
DDR3 1333/1066
2 10/100/1000Base-T Ethernet
1 PCI-E[x16],1 PCI-E[x4], 2 PCI Slots
6 USB2.0, 4 USB3.0, 5 COM
IMBM-B75A Manual Rev.A 1st Ed.
April 2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IMBM-B75A and is the answer not in the manual?

Questions and answers

Related Manuals for Aaeon IMBM-B75A

Summary of Contents for Aaeon IMBM-B75A

  • Page 1 I M B M - B 7 5 A IMBM-B75A ® Intel 3rd Generation Core™ i7/i5/i3 Processor DDR3 1333/1066 2 10/100/1000Base-T Ethernet 1 PCI-E[x16],1 PCI-E[x4], 2 PCI Slots 6 USB2.0, 4 USB3.0, 5 COM IMBM-B75A Manual Rev.A 1st Ed. April 2012...

  • Page 2: Copyright Notice

    AAEON assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein. AAEON reserves the right to make changes in the product design without notice to its users.
  • Page 3 I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A Acknowledgments All other products’ name or trademarks are properties of their respective owners.

  • Page 4: Packing List

     Serial Port Cable with one DB-9 connector  SATA Cables  IMBM-B75A Industrial Motherboard  I/O Shield  DVD-ROM for manual (in PDF format) and drivers If any of these items should be missing or damaged, please...

  • Page 5: Table Of Contents

    I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A Contents Chapter 1 General Information 1.1 Introduction..............1-2 1.2 Features ..............1-3 1.3 Specifications ............
  • Page 6 I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A 2.16 BIOS Programmable Connector (F1U2/F2U2) ..2-11 2.17 IrDA Connector (IRDA) ........... 2-11 2.18 PS/2 Keyboard/Mouse Connector (KBMS) .....
  • Page 7 I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A Appendix C Mating Connector C.1 List of Mating Connectors and Cables....C-2 Appendix D AHCI Setting D.1 Setting AHCI ............

  • Page 8: Chapter 1 General Information

    I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A Chapter General Information Chapter 1 General Information...

  • Page 9: Introduction

    CPU types. IMBM-B75A supports three independent display with one VGA and three HDMI that makes the IMBM-B75A with a great performance on VGA and HDMI display. Intel integrated Graphics Engine equipped high graphic performance and is perfect for gaming industry.

  • Page 10: Features

    I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A 1.2 Features ®  Intel Socket 1155 For 3 Generation Core™ i7/Core™ i5/Core™...

  • Page 11: Specifications

    I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A 1.3 Specifications System  Form Factor Micro ATX ®  Intel Socket 1155 for 3 generation...
  • Page 12 I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A alarm, CPU/System Fan Speed Monitoring  Expansion Interface PCI-Express[x16] x 1, PCI-Express[x4] x 1, PCI x 2 ...
  • Page 13 I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A  USB3.0 x 2 (Type A port ), USB3.0 x 2 (box header);...

  • Page 14: Chapter 2 Quick Installation Guide

    I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A Chapter Quick Installation Guide Chapter 2 Quick Installation Guide...

  • Page 15: Safety Precautions

    I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A 2.1 Safety Precautions Always completely disconnect the power cord from your board whenever you are working on it.

  • Page 16: Location Of Connectors And Jumpers

    I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A 2.2 Location of Connectors and Jumpers Chapter 2 Quick Installation Guide...

  • Page 17: Mechanical Drawing

    I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A 2.3 Mechanical Drawing Chapter 2 Quick Installation Guide...

  • Page 18: List Of Jumpers

    I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A 2.4 List of Jumpers The board has a number of jumpers that allow you to configure your system to suit your application.
  • Page 19 I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A CPU_FAN CPU FAN Connector CHA_FAN System FAN Connector DIMM_A1 DIMM1 Slot DIMM_A2 DIMM2 Slot DIMM_B1...
  • Page 20 I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A PCIEX16 PCI-Express[x16] Slot PCIEX4_1 PCI-Express[x4] Slot SATA3G_1 SATA II Connector SATA3G_2 SATA II Connector SATA3G_3...

  • Page 21: Setting Jumpers

    I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A 2.6 Setting Jumpers You configure your card to match the needs of your application by setting jumpers.

  • Page 22: Clear Cmos (Clrtc)

    I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A 2.7 Clear CMOS (CLRTC) CLRTC Function Protected (Default) Clear 2.8 COM1 Ring/+5V/+12V Selection (COM1_VSET1) COM1_VSET1 Function +12V...

  • Page 23: Fan Connector (Cpu_Fan/Cha_Fan)

    I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A (kill pin) 2.12 FAN Connector (CPU_FAN/CHA_FAN) Signal SENSE 2.13 Digital I/O Connector (DIO1) Signal Signal DIO_I#1...

  • Page 24: Front Panel Connector (F_Panel2)

    I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A 2.15 Front Panel Connector (F_PANEL2) Signal Signal SPKO+ KEYLOCK# (NC) S_Buzzer S_SMBCLK_MAIN SPKO...

  • Page 25: Ps/2 Keyboard/Mouse Connector (Kbms)

    I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A 2.18 PS/2 Keyboard/Mouse Connector (KBMS) Signal Signal KB_DATA (NC) KB_CLK (NC) MS_DATA (NC)

  • Page 26: 1000Base-T Ethernet Connector With Dock Usb

    I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A LAN_CTR LAN_MDI_DP0 LAN_MDI_DN0 LAN_MDI_DP1 LAN_MDI_DN1 LAN_MDI_DP2 LAN_MDI_DN2 LAN_MDI_DP3 LAN_MDI_DN3 LAN_LED_ACT LAN_LED_ACT# LAN_LED_LINK1000# LAN_LED_LINK100#...
  • Page 27 I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A LAN_LED_LINK1000# LAN_LED_LINK100# 2.21 Internal Parallel Port Connector (LPT) Signal Signal LPT_XSTB# LPT_XAFD# LPT_XPD0...

  • Page 28: Internal Usb 2.0 Connector (Usb34/Usb56)

    I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A USB2_DP1 USB2_DN2 USB2_DN1 USB3_TX_DP2 USB3_TX_DP1 USB3_TX_DN2 USB3_TX_DN1 USB3_RX_DP2 USB3_RX_DP1 USB3_RX_DN2 USB3_RX_DN1 (kill pin) 2.23 Internal USB 2.0 Connector (USB34/USB56)
  • Page 29 I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A Below Table for China RoHS Requirements 产品中有毒有害物质或元素名称及含量 AAEON Main Board/ Daughter Board/ Backplane 有毒有害物质或元素 部件名称 铅...

  • Page 30: Chapter 3 Ami Bios Setup

    I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A Chapter BIOS Setup Chapter 3 AMI BIOS Setup 3-1...

  • Page 31: System Test And Initialization

    3. The CMOS memory has lost power and the configuration information has been erased. The IMBM-B75A CMOS memory has an integral lithium battery backup for data retention. However, you will need to replace the complete unit when it finally runs down.

  • Page 32: Ami Bios Setup

    I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A 3.2 AMI BIOS Setup AMI BIOS ROM has a built-in Setup program that allows users to modify the basic system configuration.
  • Page 33 I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A Advanced Advanced BIOS Features Setup including TPM, ACPI, etc. Chipset Host bridge parameters.
  • Page 34 I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A Boot Enables/disable quiet boot option. Security Set setup administrator password. Chapter 3 AMI BIOS Setup 3-5...
  • Page 35 I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A Save&Exit Exit system setup after saving the changes. Chapter 3 AMI BIOS Setup 3-6...

  • Page 36: Chapter 4 Driver Installation

    I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A Chapter Driver Installation Chapter 4 Driver Installation...
  • Page 37 I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A The IMBM-B75A comes with a DVD-ROM that contains all drivers and utilities that meet your needs.
  • Page 38 I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A 4.1 Installation: Insert the IMBM-B75A DVD-ROM into the DVD-ROM Drive. And install the drivers from Step 1 to Step 9 in order. Step 1 – Install Chipset Driver 1.
  • Page 39 I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A Step 4 – Install Audio Driver 1. Click on the Step 4-Audio folder and double click on the Setup.exe file 2.
  • Page 40 I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A Follow the instructions that the window shows The system will help you install the driver automatically Chapter4 Drivers Installation...

  • Page 41: Appendix A Programming The Watchdog Timer

    I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A Appendix Programming the Watchdog Timer Appendix A Programming the Watchdog Timer A-1...

  • Page 42: Programming

    I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A A.1 Programming IMBM-B75A utilizes ITE 8783 chipset as its watchdog timer controller. Below are the procedures to complete its configuration and the AAEON initial watchdog timer program is also attached based on which you can develop customized program to fit your application.
  • Page 43 I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A There are three steps to complete the configuration setup: (1) Enter the MB PnP Mode;...
  • Page 44 I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A WatchDog Timer Configuration Registers Configure Control (Index=02h) This register is write only. Its values are not sticky; that is to say, a hardware reset will automatically clear the bits, and does not require the software to clear them.
  • Page 45 I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A Watch Dog Timer 1, 2, 3 Configuration Register (Index=72h, 82h, 92h Default=001s0000b) Watch Dog Timer 1,2,3 Time-Out Value (LSB) Register (Index=73h,83h,93h, Default=38h) Watch Dog Timer 1,2,3 Time-Out Value (MSB) Register...

  • Page 46: Ite8783 Watchdog Timer Initial Program

    I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A A.2 ITE8783 Watchdog Timer Initial Program .MODEL SMALL .CODE Main: CALL Enter_Configuration_mode CALL Check_Chip mov cl, 7...
  • Page 47 I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A call Superio_Set_Reg ; game port enable mov cl, 9 call Set_Logic_Device Initial_OK: CALL Exit_Configuration_mode MOV AH,4Ch...
  • Page 48 I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A CALL Write_Configuration_Data Exit_Configuration_Mode ENDP Check_Chip PROC NEAR MOV AL,20h CALL Read_Configuration_Data CMP AL,87h JNE Not_Initial MOV AL,21h...
  • Page 49 I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A OUT DX,AL MOV DX,WORD PTR CS:[Cfg_Port+06h] IN AL,DX Read_Configuration_Data ENDP Write_Configuration_Data PROC NEAR MOV DX,WORD PTR CS:[Cfg_Port+04h] OUT DX,AL...
  • Page 50 I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A Set_Logic_Device proc near push ax push cx xchg al,cl mov cl,07h call Superio_Set_Reg pop cx pop ax...

  • Page 51: Appendix B I/O Information

    I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A Appendix I/O Information Appendix B I/O Information...

  • Page 52: I/O Address Map

    I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A B.1 I/O Address Map Appendix B I/O Information...
  • Page 53 I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A Appendix B I/O Information...
  • Page 54 I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A Appendix B I/O Information...

  • Page 55: St Mb Memory Address Map

    I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A B.2 1 MB Memory Address Map Appendix B I/O Information...

  • Page 56: Irq Mapping Chart

    I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A B.3 IRQ Mapping Chart Appendix B I/O Information...
  • Page 57 I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A Appendix B I/O Information...

  • Page 58: Dma Channel Assignments

    I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A B.4 DMA Channel Assignments Appendix B I/O Information...
  • Page 59 I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A Appendix Mating Connector C - 1 Appendix C Mating Connector...
  • Page 60 I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A C.1 List of Mating Connectors and Cables The table notes mating connectors and available cables. Connector Function Mating Connector...
  • Page 61 I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A EATX12V ATX 8P POWER PINREX 740-81-08TVY8 Connector EATXPWR ATX 24P Power Connector PINREX 740-81-24TVS3 F_PANEL Front Panel Connector...
  • Page 62 I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A SATA3G_1 SATA II Connector PINREX 770-83-07SV29 SATA3G_2 SATA II Connector PINREX 770-83-07SV29 SATA3G_3 SATA II Connector...

  • Page 63: Ahci Setting

    I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A A ppendix AHCI Setting Appendix D AHCI Setting...
  • Page 64 I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A D.1 Setting AHCI OS Installation to Setup AHCI mode Step 1: Copy the files below from the Driver CD: Step 6 - AHCI\Driver\32bit or 64bit to Disk.
  • Page 65 I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A Step 3: To install “In BIOS Setup Menu”, select Advanced -> SATA Configuration ->...
  • Page 66 I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A Step 5: To save, select Save & Exit -> Save Changes and Exit Step 6: Setup OS Appendix D AHCI Setting...
  • Page 67 I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A Step 7: Press “F6” Step 8: Choose “S” Appendix D AHCI Setting...
  • Page 68 I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A Step 9: Mobile Choose “Intel(R) 7 Series Chipset Family SATA AHCI Controller” Desktop Choose “Intel(R) 7 Series/C216 Chipset Family SATA AHCI Controller”...
  • Page 69 I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A Step 10: Select “ENTER” to choose the model number Mobile Desktop Appendix D AHCI Setting...
  • Page 70 I n d u s t r i a l M o t h e r b o a r d I M B M - B 7 5 A Step 11: Setup is loading files Appendix D AHCI Setting...
