XT-2614E/2614Q
Touch Terminal
User Manual

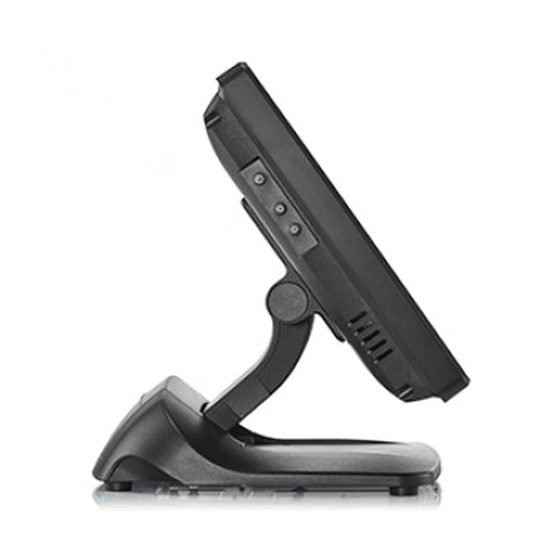

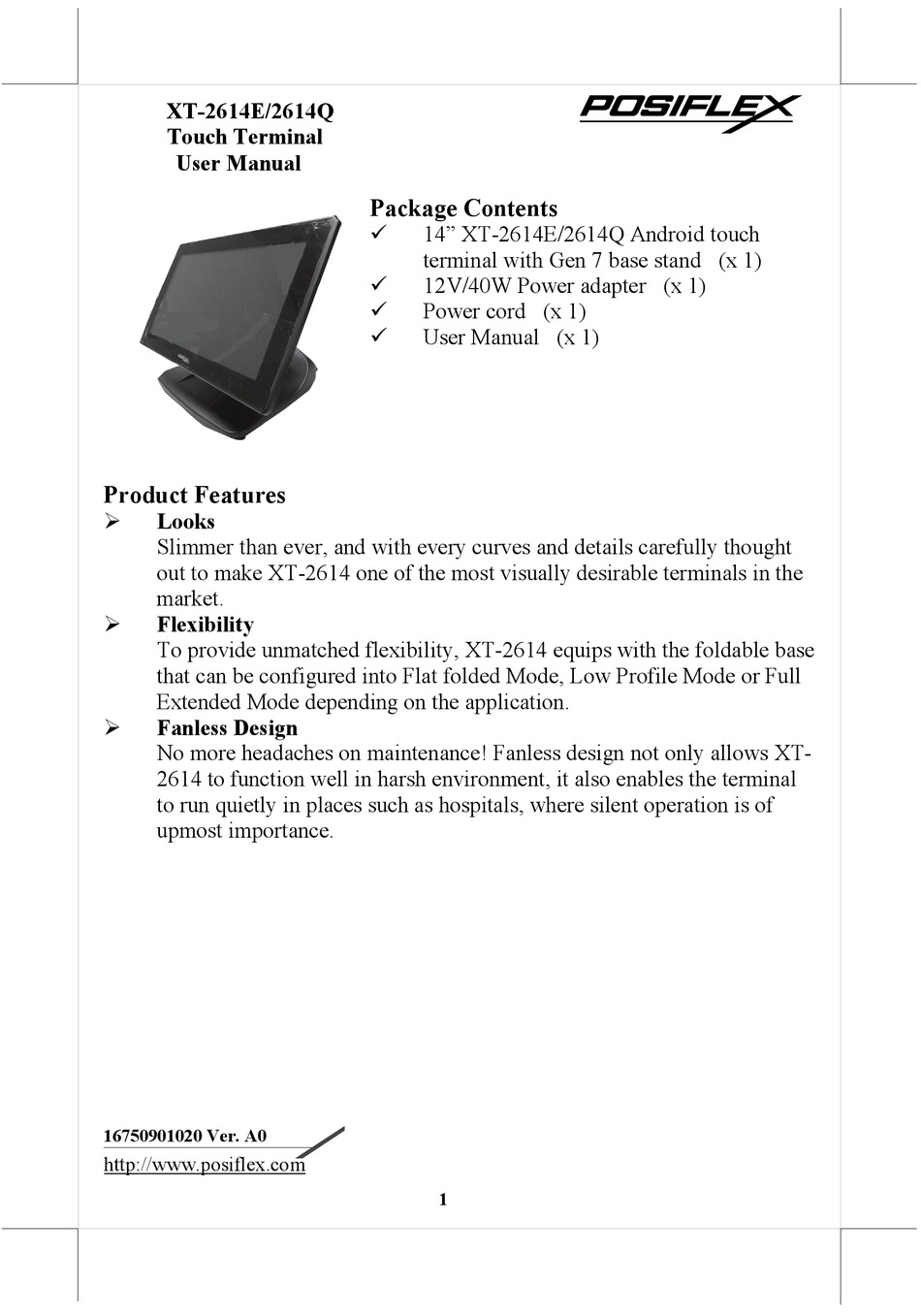

Product Features
Looks
Slimmer than ever, and with every curves and details carefully thought
out to make XT-2614 one of the most visually desirable terminals in the
market.
Flexibility
To provide unmatched flexibility, XT-2614 equips with the foldable base
that can be configured into Flat folded Mode, Low Profile Mode or Full
Extended Mode depending on the application.
Fanless Design
No more headaches on maintenance! Fanless design not only allows XT-
2614 to function well in harsh environment, it also enables the terminal
to run quietly in places such as hospitals, where silent operation is of
upmost importance.
16750901020 Ver. A0
http://www.posiflex.com
Package Contents
14" XT-2614E/2614Q Android touch
terminal with Gen 7 base stand (x 1)
12V/40W Power adapter (x 1)
Power cord (x 1)
User Manual (x 1)
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for POSIFLEX XT-2614Q
Summary of Contents for POSIFLEX XT-2614Q
- Page 1 No more headaches on maintenance! Fanless design not only allows XT- 2614 to function well in harsh environment, it also enables the terminal to run quietly in places such as hospitals, where silent operation is of upmost importance. 16750901020 Ver. A0 http://www.posiflex.com...
- Page 2 Views of the XT-2614E/2614Q with Gen 7 Base Stand Front View XT-2614E/2614Q LCD Touch Panel LED indicator Gen 7 Base Stand Rear View Neck Cover Cable Cover Cable Exit Reset Button for XT-2614Q only Power Button Brightness Adjustment Button ＋ Brightness Adjustment Button －...
- Page 3 OTG USB Port DC IN Power Connector LAN Port USB Ports Line out DB9 COM Ports Reset Button View of I/O Interface of XT-2614Q DC IN Power VGA Port Connector LAN Port USB Ports Micro SD Card Slot DB9 COM Ports...
- Page 4 Please refer to the following instructions on how to switch among different positioning modes to find an ideal viewing angle for XT-2614E/2614Q with Gen 7 base stand. And, XT-2614Q will be used in the following demonstration. Unpack XT-2614E/2614Q, which is supposed...
- Page 5 XT-2614E/2614Q Position in Full Extended mode. After grabbing the bottom edge of the screen with your hand, gently move the screen upward until the screen is locked into place with a click sound. Tilt the screen up or down to your desired angle.
- Page 6 Return XT-2614E/2614Q back to Flat Folded mode from Full Extended mode. Tilt your screen in a horizontal position. Then, remove the cable cover from Gen 7 base stand. Support the screen with one hand holding onto its bottom edge. While pulling the lever backwards, move the display downwards until the lever is lifted off the hook as shown in the figure Hook...
- Page 7 Position XT-2614E/2614Q in Low Profile mode. Follow Step 4 to set up the terminal in Flat Folded mode. Tilt the screen all the way down DO NOT press on the LCD panel while tilting the screen up or down to your desired angle.
- Page 8 Pull outwards the locking levers with your forefingers and then remove the neck cover in the direction shown by the arrow. Place the terminal with the rear facing towards you. After tilting the screen to the horizontal positon, route the cable along the cable passage and through the cable exit.
- Page 9 3 seconds. It takes around 21 seconds to load an operating system on your terminal. In the case that XT-2614Q is connected to the second display, you have to wait at least 30 seconds to initiate the monitor after the terminal completely boots into the operating system.
- Page 10 Installing an Operating System You are highly advised not to install or change the Android operating system and drivers which are preloaded on XT-2614E/2614Q without professional instructions. Not only might the careless handling during installation cause irreversible damage to your machine, but also the improper installation likely leads to system malfunction or failure.
-
Page 11: Specifications
Specifications XT-2614E XT-2614Q Allwinner A20, Allwinner A31, Dual-Core, 1.0GHz Quad-Core, 1.0GHz System Memory DDR3 1GB DDR3 1GB, Dual Bank Storage Device 8GB NAND Flash + 8GB eMMC Flash+ Micro SD card slot Micro SD card slot Power Supply 12V / 40W OS Support Android 4.2.2... - Page 12 <MEMO>...
