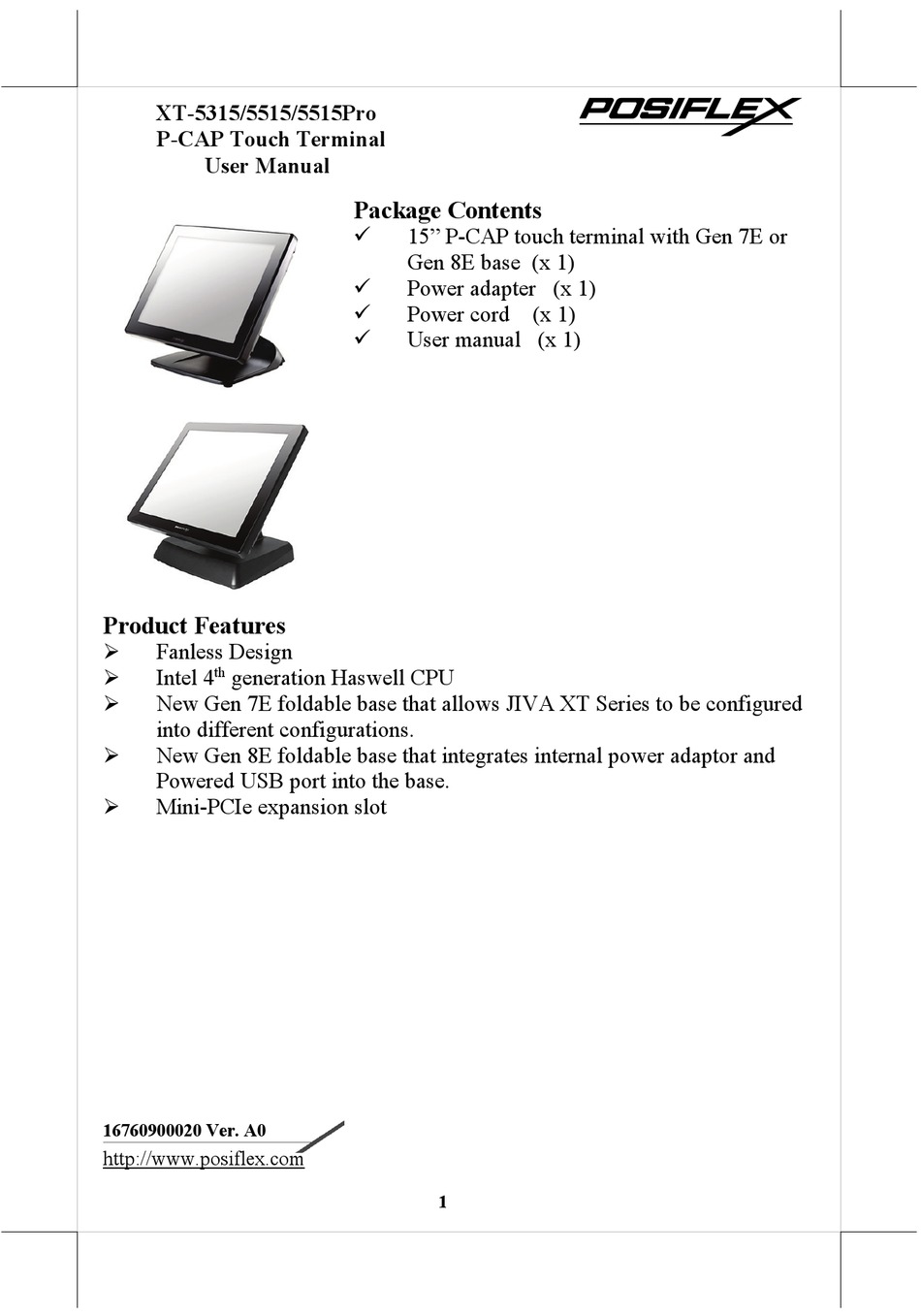

XT-5315/5515/5515Pro
P-CAP Touch Terminal
User Manual
Product Features
Fanless Design
Intel 4
th
generation Haswell CPU
New Gen 7E foldable base that allows JIVA XT Series to be configured
into different configurations.
New Gen 8E foldable base that integrates internal power adaptor and
Powered USB port into the base.
Mini-PCIe expansion slot
16760900020 Ver. A0
http://www.posiflex.com
Package Contents

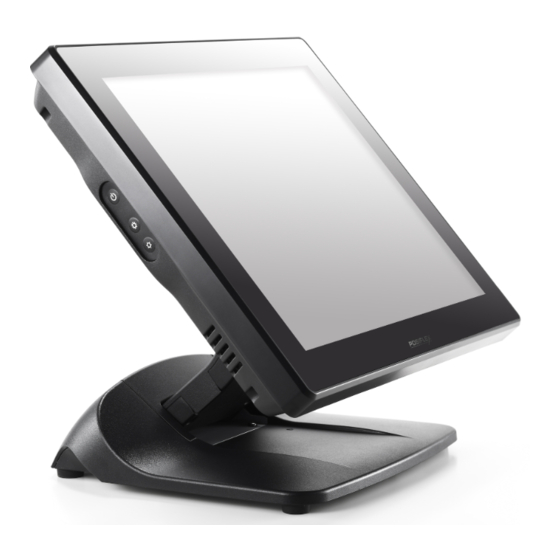

15" P-CAP touch terminal with Gen 7E or
Gen 8E base (x 1)
Power adapter (x 1)
Power cord (x 1)
User manual (x 1)
1
Advertisement
Related Manuals for POSIFLEX XT-5315
Summary of Contents for POSIFLEX XT-5315
- Page 1 XT-5315/5515/5515Pro P-CAP Touch Terminal User Manual Package Contents 15” P-CAP touch terminal with Gen 7E or Gen 8E base (x 1) Power adapter (x 1) Power cord (x 1) User manual (x 1) Product Features Fanless Design ...
- Page 2 Views of XT-5315/5515/5515Pro with Gen 7E Base Front View XT-5315/5515/5515Pro P-CAP Touch Panel Gen 7E Base LED indicator Rear View HDD Cover Neck Cover Cable Cover Cable Exit Side View Power Button Brightness Adjustment Button ＋ Brightness Adjustment Button －...
- Page 3 Bottom View Rubber Feet with Fixing Screw Cable Exit Cable Holder Rubber Feet with Fixing Screw Views of XT-5315/5515/5515Pro with Gen 8E Base Front View XT-5315/5515 /5515Pro P-CAP Touch Panel Gen 8E Base LED indicator Rear View HDD Cover Neck Cover...
- Page 4 Rubber Feet with Fixing Screw UPS Battery Compartment Power Adapter Compartment PoweredUSB HD Compartment Compartment Rubber Feet with Fixing Screw View of I/O Interface of XT-5315/5515 Line Out/MIC-In DC IN Combo Jack Power DB9 COM Ports USB 3.0 LAN Ports CR Port...
- Page 5 Ports Positioning your POS for a Perfect Viewing Angle The adjustable bases designed for XT-5315/5515/5515Pro come in two models, Gen 7E/8E, and allow you to determine an ideal position for your terminal using its unique tilt adjustment mechanism. As the below figures suggest, both bases provide three standard positioning solutions for your terminal: Flat Folded mode, Low Profile mode, and Full Extended mode.
- Page 6 In general, XT-5315/5515/5515Pro will be set up beforehand in Flat Folded mode and then packaged into the box for shipping. After it is unpacked, you may re-adjust the terminal in either Low Profile mode or Full Extended mode according to your situation. Below will provide instructions on how to adjust the specific base connected to the POS system.
- Page 7 Return your terminal back to Flat Folded mode from Full Extended mode. Tilt your screen in a horizontal position. Then, remove the cable cover from the base. Support the screen with one hand holding onto its bottom edge. While pulling the lever backwards, move the display downwards until the lever is lifted off the hook as shown in the figure Hook Lever...
- Page 8 XT-5315/5515/5515Pro with Gen 8E Base Please refer to the following instructions on how to switch among different positioning modes to find an ideal viewing angle for XT-5315/5515/5515Pro with Gen 8E base. Unpack XT-5315/5515/5515Pro, which is supposed to be set in flat folded mode, out of the package box and then lay your POS system on a flat surface.
- Page 9 Push the cable cover outwards to remove it from the base. Position your terminal in Full Extended mode. Support the screen with one hand holding onto its bottom edge. Then, while pulling the lever backwards, move the display upwards until the lever is snapped into the lower hook to raise the screen as shown in the below figure.
- Page 10 Position the terminal in Low Profile mode. While keeping your terminal steady with your hand holding on to the base, tilt your terminal down. Then, remove the cable cover from the base. Support the screen with one hand holding onto its bottom edge. Then, while pulling the lever backwards, move the display upwards or downwards until the lever is snapped into the upper hook to lower the screen as shown in the below figure.
- Page 11 Return the terminal back to Flat Folded mode. While steadying your terminal with your hand holding onto the base, tilt your screen up. Support the screen with one hand holding onto its bottom edge. While pulling the lever backwards, release the lever back to the point above the upper hook as shown in the figure.
- Page 12 Routing and Arranging Cables Gen 7E/8E bases feature their own cable management to help you well organize the cords whenever you need to connect peripheral devices to XT- 5315/5515/5515Pro. The following provides some useful cable-routing instructions required to manage your cables. Set up your terminal in Full Extended mode and then tilt the screen all the way down.
- Page 13 Remove the cable arrangement cover by pushing it up in the direction shown by the arrow. Properly insert the cable into the correct port on the bottom I/O plate. Neatly arrange your cable. Then, make sure the cord can be held into place and passed through the cable exit after sliding back the cable arrangement cover.
- Page 14 Installing Optional Upgrade Kits and Peripherals XT-5315/5515/5515Pro is an expandable model which allows you to upgrade its own capacity by additionally installing multiple peripheral devices, such as magnetic stripe reader (MSR), LCD monitor and cash drawer, according to your preference. The following will give you installation instructions on how to expand on your current POS system with these optional upgrade kits.
- Page 15 Take the AC power adapter with its rubber feet facing you. Place the bottom side of the power adapter into the bottom of the power adapter compartment first, and then push the top side of the adaptor into the compartment. After pushing the power adapter up to the top, place two brackets separately on the top and bottom sides of the power...
- Page 16 Neatly thread the cord along the bottom edge of the PoweredUSB compartment (1), and then use the cable tie to hold the extra cable (2) as shown in the figure. Cable tie Place back the PoweredUSB compartment bracket into place, and then secure it using two fixing screws.
-
Page 17: Installing An Operating System
Please contact with your dealers about the issues of operating system installation. Performing System Recovery For XT-5315/5515/5515Pro models with preloaded operating systems, you are not encouraged to recover your system without the help of system integrators. Please be advised to contact your service center for further assistance with... -
Page 18: Operation Environment
Operation Environment To prevent XT-5315/5515/5515Pro from overheating, it is suggested to position your terminal in a well-ventilated working environment. In doing so, please be advised to keep the POS terminal at least 25mm away from other devices to ensure the machine is properly cooled down and functioning normally. -
Page 19: Specifications
2 ports, 10 / 100 / 1000 Mb x 2 1 port, 10/100/1000 Mb x1 (Intel i217LM only) VGA Port 1 port, D-SUB 15 Pin with 12V power for Posiflex LCD Monitor CR Port 1 port, controlling 2 CR PS/2 Keyboard... - Page 20 <MEMO>...
