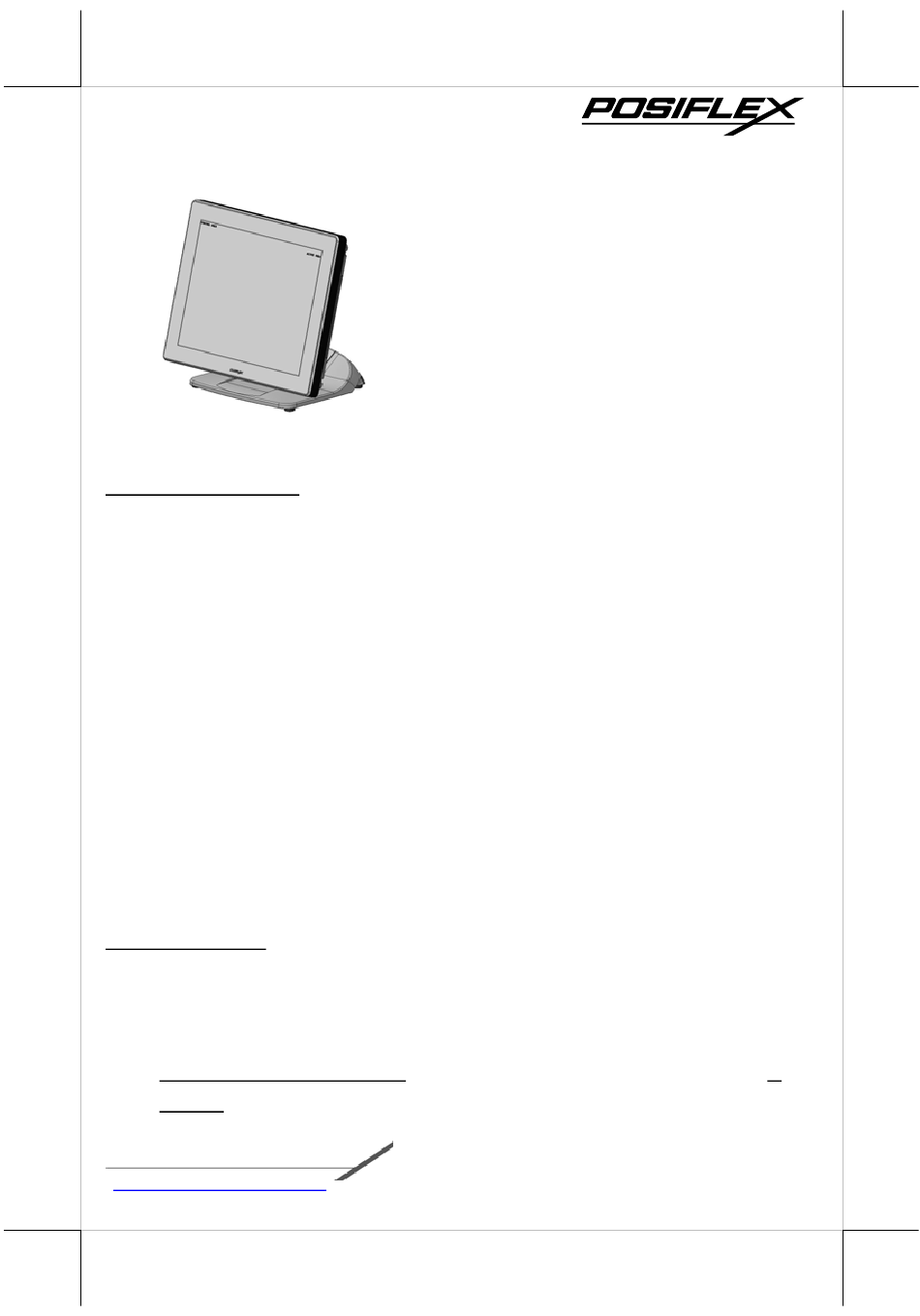

XT-5317/5517 Fanfree LCD Touch Terminal Quick Installation Guide Package Contents XT-5317 or XT-5517 terminal with base stand x 1 130W Power adaptor x 1 Power cord x 1 User manual & DVD x 1 Screw for IO cable cover x 2...
Page 2
Power adapter kits for 130W/150W power adapters Back mount displays, such as LM/TM-3010/3014/3015/LM- 6607, PD-6607U/PD-350UE/PD-2608UE Views of the XT-5317/5517 Front and Rear Views of XT-5317/5517 with Gen 7E Base Stand HDD Cover 17’’ LCD Touch Panel Hinge for LCD...
Page 3
Brightness Adjustment Button “-” Locking Hook Bottom View of XT-5317/5517 with GEN 7E Base Stand Bottom Plate Rubber Cushion Wrapping Screw Front and Rear Views of XT-5317/5517 with GEN 8E Base Stand HDD Cover 17” LCD Touch Panel Hinge for LCD Cable Cover...
Page 4
Left Side View of XT-5317/5517 with GEN 8E Base Stand Power Button Brightness Adjustment Button “+” Brightness Adjustment Button “-” Locking Hook Bottom View of XT-5317/5517 with GEN 8E Base Stand UPS Chamber Bottom Plate Power Adaptor Chamber Powered USB Board Cover...
The introduction to the kit and the brief description of installation of the kit are made below. For the detailed description of installation of the 130W/150W power adapter kit, refer to the XT-5317/5517 technical manual. Secure the Power Cord To avoid the power cord from being pulled out accidentally, the power adapter kits are shipped with a power cord bracket.
Page 6
Routing and Arranging Cables For GEN 7E Base Stand Before connecting cables, please follow the steps made below to remove the cable cover from the GEN 7E base stand for routing and arranging the cables. 1. Press section A with your thumb. 2.
Page 7
6. Then, slide the cable arrangement cover to remove from the main unit. After removing the covers illustrated above, follow steps made below to route the cables from the bottom of base stand to the I/O interfaces of the main unit. Make the connectors, which will be connected to the I/O interfaces of main unit, pass through the...
This product is highly professional equipment. Therefore, we do NOT encourage you to install any operating system into this machine. Posiflex Technology, Inc. shall not be responsible for any technical support to questions on this aspect. We suggest that you contact your dealer for OS installation.
High quality 17” TFT active matrix LCD panel, 1280x1024 Display Port 1 port, mini-DP on the I/O plate 1 port, DB15 with 12V power for Posiflex LCD Monitor, supporting interface +12V@2.5A, software enable/disable SATAIII x2 (2.5" HDD), 2 HDD stack on main unit / Storage optional 16GB minimum (XT-5517 supports RAID if it has 2HDDs.)
Page 10
Temp & 0°C - 50°C, 20%RH - 90%RH (Equipped with SSD) Humidity Storage Condition: -20°C - 70°C, 10%RH - 90%RH ※ To get the detailed information on XT-5317/5517, please download the technical manual of this model from Posiflex Global Website (http://www.posiflex.com/en-global/Download/download).
