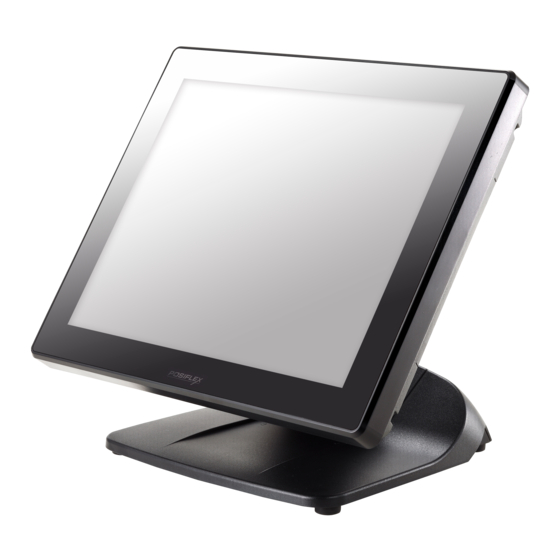

POSIFLEX XT-6015C User Manual

Fanless pos terminal
Hide thumbs

Advertisement

Quick Links

Download this manual

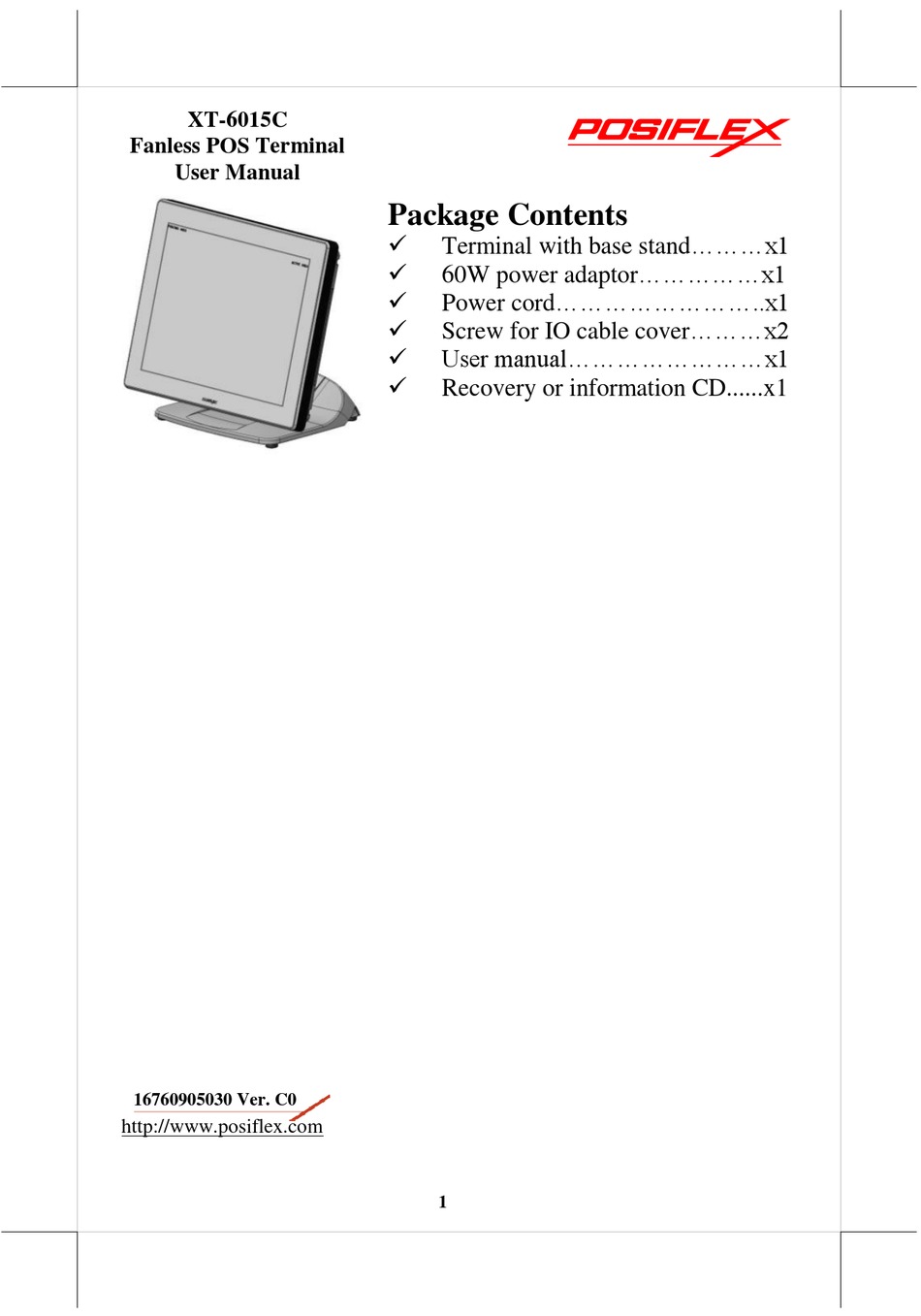

XT-6015C
Fanless POS Terminal
User Manual
16760905030 Ver. C0
http://www.posiflex.com
Package Contents
Terminal with base stand.........x1
60W power adaptor...............x1
Power cord..........................x1
Screw for IO cable cover.........x2
User manual........................x1
Recovery or information CD......x1
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the XT-6015C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for POSIFLEX XT-6015C

Summary of Contents for POSIFLEX XT-6015C

  • Page 1 XT-6015C Fanless POS Terminal User Manual Package Contents  Terminal with base stand………x1  60W power adaptor……………x1  Power cord……………………..x1  Screw for IO cable cover………x2  User manual……………………x1  Recovery or information CD..x1 16760905030 Ver. C0 http://www.posiflex.com...
  • Page 2 SOME IMPORTANT NOTES FCC NOTES This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 3 BATTERY CAUTION NOTES  Dispose of used batteries according to the instructions.  Replacement of a battery with an incorrect type that can defeat a safeguard (for example, in the case of some lithium battery types)  Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery that can result in an explosion.

  • Page 4: Product Features

    Product Features Standard Features System  Intel Kaby Lake-U Core i5-7360U Processor Mechanical Structure  Fanless structure with Aluminum die-cast main unit casing  Water resistant structure allowing easy cleaning  Foldable base Display  High-quality 15” TFT active matrix LCD monitor provided with true-flat Projected Capacitive touch panel supporting 10-point multi-touch Optional Items System...
  • Page 5 Views of the XT-6015C Front and Rear Views of Terminal with Gen 7E Base Stand LCD Touch Panel Hinge for main unit Power Indicator Neck Cover Cable Cover Base Stand Cable Exit DDR4 Memory Cover Left Side View of Terminal with Gen 7E Base Stand...
  • Page 6 Front and Rear Views of Terminal with GEN 8E Base Stand LCD Touch Panel Hinge for main unit Cable Cover Cable Exit Neck Cover Power Indicator Base Stand DDR4 Memory Cover Left Side View of Terminal with GEN 8E Base Stand Power Button Brightness Adjustment Button “+”...
  • Page 7 VGA Port Positioning your POS for a Perfect Viewing Angle The adjustable bases designed for XT-6015C come in two models, Gen 7E/8E, and allow you to determine an ideal position for your terminal by using its unique tilt adjustment mechanism. As the below figures suggest, both bases provide three standard positioning solutions for your terminal: Flat Folded mode, Low Profile mode, and Full Extended mode.
  • Page 8 In general, XT-6015C will be set up beforehand in Flat Folded mode and then packaged into the box for shipping. After it is unpacked, you may re-adjust the terminal in either Low Profile mode or Full Extended mode according to your situation.
  • Page 9 Support the screen with one hand holding onto its bottom edge. Then, while pulling the lever backwards, move the display upwards until the lever is snapped into the lower hook to raise the screen as shown in the below figure. Lower hook Lever...
  • Page 10 Return your terminal back to Flat Folded mode from Full Extended mode. Remove the cable cover from the base. 4.2 Remove the two screws from the base. Remove the two screws. 4.3 Tilt your screen in a horizontal position.
  • Page 11 4.4 Support the screen with one hand holding onto its bottom edge. While pulling the lever backwards, move the display downwards until the lever is lifted off the hook as shown in the figure. Hook Lever 4.5 Push the cable cover back. 4.6 Tilt the screen again to the horizontal position.
  • Page 12 XT-6015C with Gen 8E Base Please refer to the following instructions on how to switch among different positioning modes to find an ideal viewing angle for XT-6015C with Gen 8E base. Unpack XT-6015C, which is supposed to be set in flat folded mode, out of the package box and then lay your POS system on a flat surface.
  • Page 13 Push the cable cover outwards to remove it from the base. Position your terminal in Full Extended mode. Support the screen with one hand holding onto its bottom edge. Then, while pulling the lever backwards, move the display upwards until the lever is snapped into the lower hook to raise the screen as shown in the below figure.
  • Page 14 Fix the base with two #/6/32-14L screws. Push the cable cover back. Position the terminal in Low Profile mode. While keeping your terminal steady with your hand holding on to the base, tilt your terminal down. Then, remove the cable cover from the base.
  • Page 15 Remove the two screws from the base. Remove the two screws. Support the screen with one hand holding onto its bottom edge. Then, while pulling the lever backwards, move the display upwards or downwards until the lever is snapped into the upper hook to lower the screen as shown in the below figure.
  • Page 16 Return the terminal back to Flat Folded mode. While steadying your terminal with your hand holding onto the base, tilt your screen up. Support the screen with one hand holding onto its bottom edge. While pulling the lever backwards, release the lever back to the point above the upper hook as shown in the figure.
  • Page 17 For the detailed description of installation of the 80W/150W power adapter kit, refer to the XT-6015C technical manual. Secure the Power Cord To avoid the power cord from being pulled out accidentally, the power adapter kits are shipped with a power cord bracket.

  • Page 18: Power Indicator

    Installing an Operating System This product is highly professional equipment. Therefore, we do NOT encourage you to install any operating system into this machine. Posiflex Technology, Inc. shall not be responsible for any technical support to questions on this aspect. We suggest that you contact your dealer for OS installation.

  • Page 19: Specifications

    Humidity: 10 to 90 %; 5 to 90 % (operation condition) ※ The product information and specification are subject to change without prior notice. To get the detailed information on XT-6015C, please check this model from Posiflex Global Website (http://www.posiflex.com/en-global/Download/download).
  • Page 20 <MEMO>...
