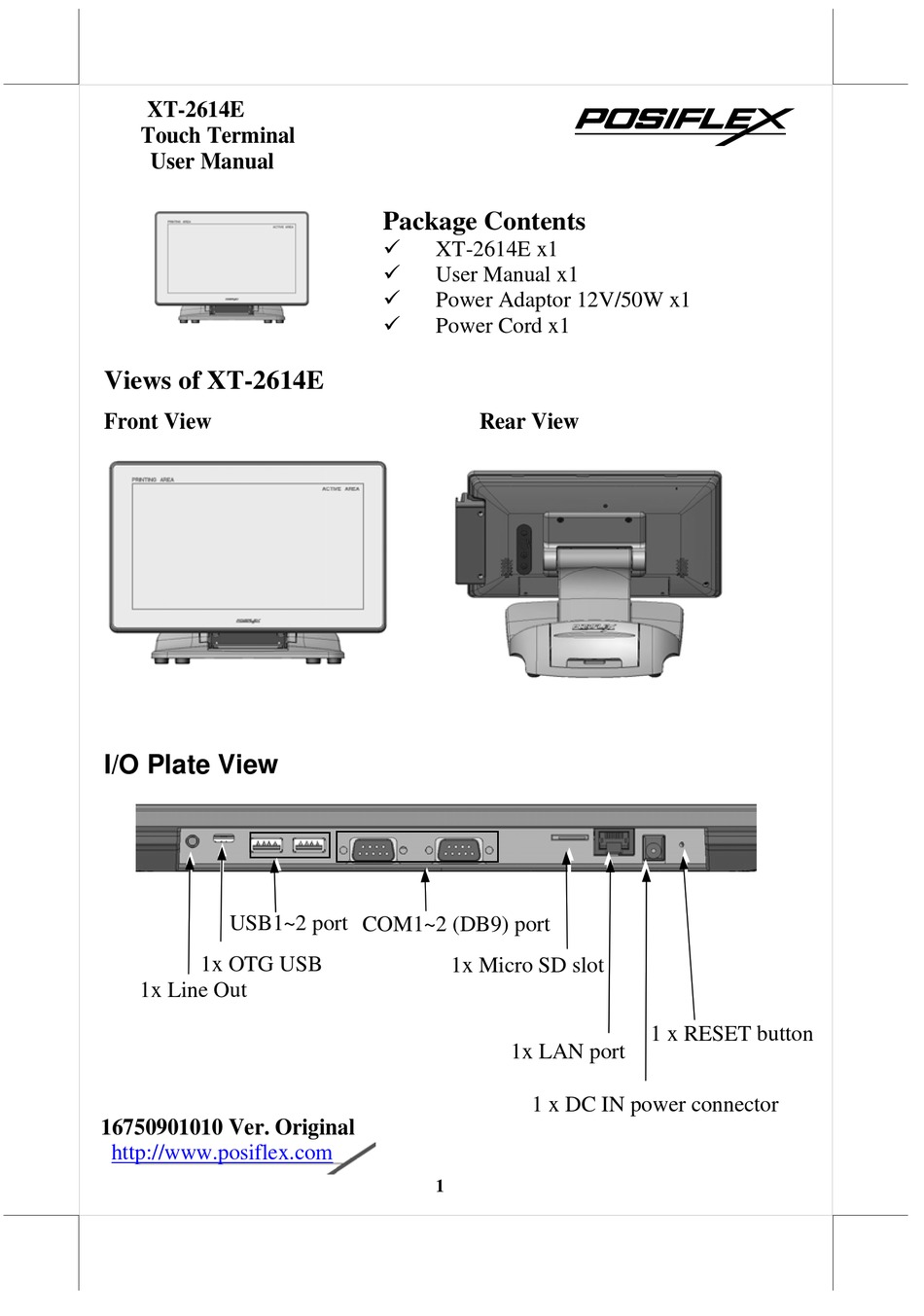

XT-2614E

Touch Terminal

User Manual

Views of XT-2614E

Front View

I/O Plate View

USB1~2 port COM1~2 (DB9) port

1x OTG USB

1x Line Out

16750901010 Ver. Original

http://www.posiflex.com

Package Contents



XT-2614E x1



User Manual x1



Power Adaptor 12V/50W x1



Power Cord x1

Rear View

1x Micro SD slot

1x LAN port

1 x DC IN power connector

1 x RESET button

Need help?

Do you have a question about the XT-2614E and is the answer not in the manual?

Page 1 XT-2614E x1  User Manual x1  Power Adaptor 12V/50W x1  Power Cord x1 Views of XT-2614E Front View Rear View I/O Plate View USB1~2 port COM1~2 (DB9) port 1x OTG USB 1x Micro SD slot 1x Line Out...
Page 2: Hardware Installation
During Installation and configuration of XT-2614E, please do NOT power ON your monitor and terminal. Start to install XT-2614E according to the following steps. Find the DC IN jack on the I/O plate. Upon connecting the included power adaptor to the jack, XT-2614E will power up after a while.
Page 3 Similarly, on the middle part of task bar, press to access Settings. Next click Sound then Volume to scroll up and down volumes control bar, then click This series provides a software power on/off command for application program operations. If user would like to shut down the system, please press the power button on the left-sided control button area in the rear panel.
Page 4 Routing Cables thru Passage from Bottom for Gen 7E base Start to route cables thru passage from bottom according to the following steps. Release the indicated base stand back cover and base cover. Release the compression lock of base stand cover at both sides.
Page 5 Please reserve the cover if there is chance to have the side mount kit removed in the future. ※ To get the detailed information on XT-2614E, please check this model from Posiflex Global Website (http://www.posiflex.com/en- global/Download/download).
