XT-3817
Fanless Touch Terminal
User Manual
Product Features
Intel Bay Trail-D J1900 2.0G CPU, Quad Core, 2MB Cache
DDR3L SO-DIMM slot x 1, max 8GB
True Flat PCAP touch with 10 points multi-touch
Support Windows 7, POSReady 7, Win 8.1 Industry, Linux per request
Gen 7E or optional Gen 8E foldable base (U.S. Patent #9004436)
16780903010 Ver. Original
http://www.posiflex.com
Package Contents
17" fanless touch terminal with
Gen 7E or Gen 8E base stand (x 1)
Power adapter (x 1)
Power cord (x 1)
User manual (x 1)
Recovery DVD or Information
DVD (x 1)
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for POSIFLEX XT-3817
Summary of Contents for POSIFLEX XT-3817

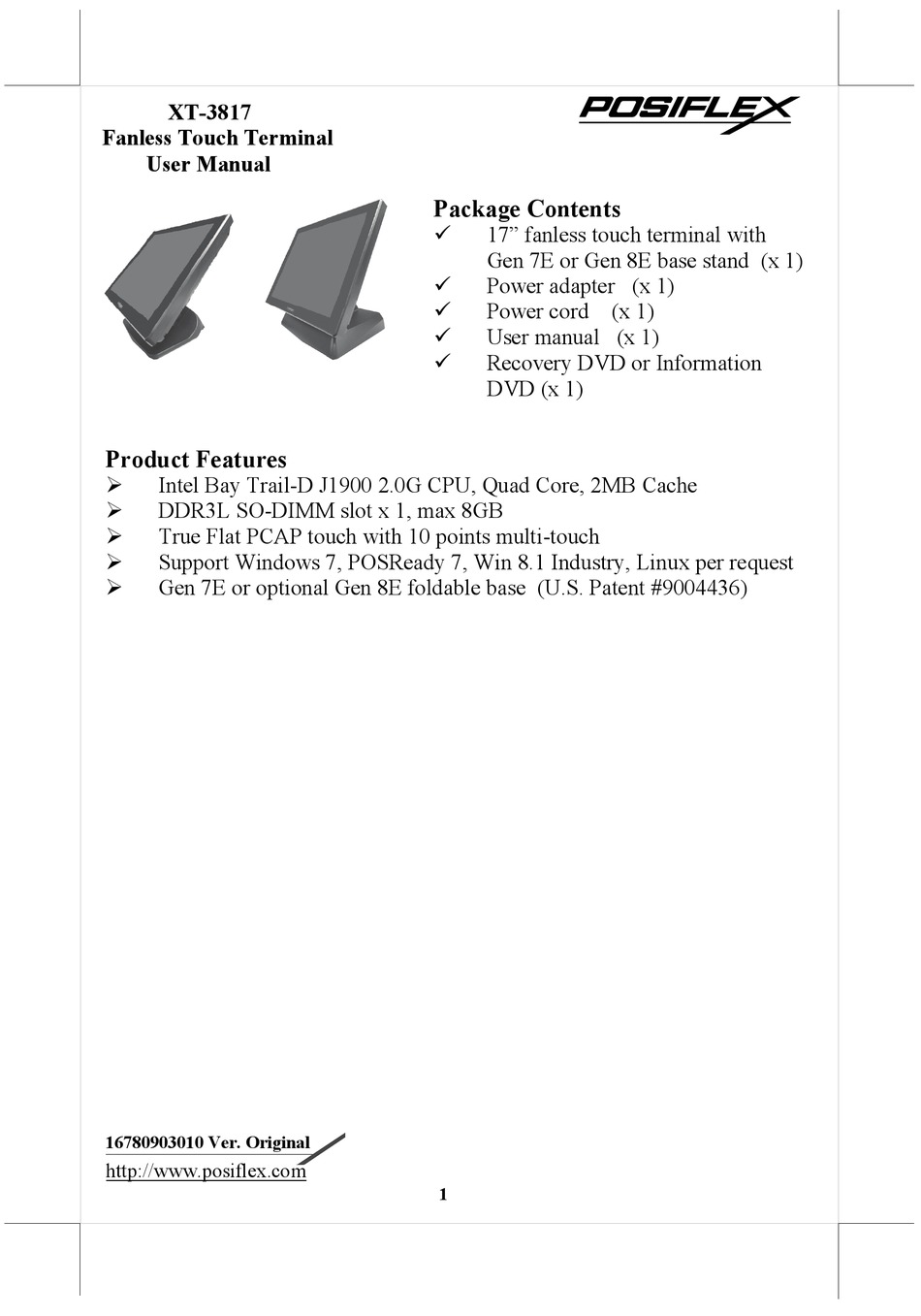

- Page 1 XT-3817 Fanless Touch Terminal User Manual Package Contents 17” fanless touch terminal with Gen 7E or Gen 8E base stand (x 1) Power adapter (x 1) Power cord (x 1) User manual (x 1) Recovery DVD or Information ...
- Page 2 Views of the XT-3817 with Gen 7E Base Stand Front View XT-3817 P-Cap Touch Panel LED indicator Gen 7E Base Stand I/O Compartment Rear View Cover HDD Cover Cable Arrangement Cover Neck Cover Cable Cover Cable Exit Side View Power Button Brightness Adjustment Button ＋...
- Page 3 Bottom View Rubber Feet with Fixing Screw Cable Exit Cable Holder Rubber Feet with Fixing Screw Views of the XT-3817 with Gen 8E Base Stand Front View XT-3817 P-Cap Touch Panel Gen 8E Base Stand LED indicator Rear View I/O Compartment...
- Page 4 Bottom View Rubber Feet with Fixing Screw Power Adapter Compartment UPS Battery Compartment PoweredUSB Compartment Rubber Feet with Fixing Screw View of I/O Interface of XT-3817 DC IN Power Connector USB Ports LAN Ports DB9 COM Ports CR Port VGA Port...
- Page 5 Low profile mode Full extended mode In general, XT-3817 will be set up beforehand in flat folded mode before packaged into the box for shipping. After it is unpacked, you may re-adjust the terminal in either low profile mode or full extended mode according to your situation.
- Page 6 XT-3817 with Gen 7E Base Stand Please refer to the following instructions on how to switch among different positioning modes to find an ideal viewing angle for XT- 3817 with Gen 7E base stand.Unpack XT- 3817, which is supposed to be set in flat folded mode, out of the package box and then lay your POS system on a flat surface.
- Page 7 Restore your terminal to Flat Folded mode from Full Extended mode. Tilt your screen in a horizontal position. Remove the cable cover from the base stand. Support the screen with one hand holding onto its bottom edge. While pulling the lever backwards, move the display downwards until the lever is lifted off the hook as shown in the figure Hook Lever...
- Page 8 XT-3817 with Gen 8E Base Stand Please refer to the following instructions on how to switch among different positioning modes to find an ideal viewing angle for XT-3817 with Gen 8E base stand. Unpack XT-3817, which is supposed to be set in flat folded mode, out of the package box and then lay your POS system on a flat surface.
- Page 9 Push the cable cover outwards to remove it from the base stand. Position your terminal in Full Extended mode. Support the screen with one hand holding onto its bottom edge. Then, while pulling the lever backwards, move the display upwards until the lever is snapped into the lower hook to raise the screen as shown in the below figure.
- Page 10 Position the terminal in Low Profile mode. Properly Tile the screen up or down to make sure the cable cover could be removed easily. Then, release the cable cover from the base. Support the screen with one hand holding onto its bottom edge. Then, while pulling the lever backwards, move the display upwards or downwards until the lever is snapped into the upper hook to lower the screen as shown in the below figure.
- Page 11 Return the terminal back to Flat Folded mode. While steadying your terminal with your hand holding onto the base stand, tilt your screen up. Then, make sure the cable cover is removed from the base stand. Support the screen with one hand holding onto its bottom edge. While pulling the lever backwards, release the lever back to the point above the upper hook as shown in the figure.
- Page 12 XT-3817. The following provides some useful cable-routing instructions required to manage your cables. XT-3817 with Gen 7E base will be used to demonstrate the basic routing rules for your reference. .
- Page 13 Tilt the terminal up enough to have the bottom I/O plate towards you. Remove the cable arrangement cover by pushing it up in the direction shown by the arrow. Cable Arrangement Cover Properly insert the cable into the correct port on the bottom I/O plate.
- Page 14 Gen 8E base Installing Optional Upgrade Kits and Peripherals XT-3817 is an expandable model which allows you to upgrade its own capacity by additionally installing multiple peripheral devices, such as magnetic stripe reader (MSR), LCD monitor and cash drawer, according to your preference.
- Page 15 Please go through the below steps to install the power adapter into Gen 8E base stand. If the power adapter is already installed to Gen 8E base stand, you may skip this section Lay your POS terminal on a flat surface with its bottom facing towards you.
- Page 16 Properly secure the bracket for power adapter. For 150W power adapter, after pushing the power adapter up to the top, place two brackets separately on the top and bottom sides of the power adapter compartment as shown in the figure, and then fasten them with four fixing screws.
- Page 17 Pass the cable of the power adapter Cable Exit through the cable exit and then connect it to the port on the I/O plate of your POS system. (Please refer to Routing and Arranging Cables section to thread the cable, according to the model of your base stand.) Neatly thread the cord along the bottom edge of the PoweredUSB compartment (1), and then use the cable tie to hold the extra cable (2)
-
Page 18: Installing An Operating System
Installing an Operating System You are highly advised not to install an operating system on XT-3817 without professional instructions. Not only might the careless handling during installation cause irreversible damage to your machine, but also the improper installation likely leads to system malfunction or failure. -
Page 19: Operation Environment
Operation Environment To prevent XT-3817 from overheating, it is suggested to position your terminal in a well-ventilated working environment. In doing so, please be advised to keep the POS terminal at least 25mm away from other devices to ensure the machine is properly cooled down and functioning normally. -
Page 20: Specifications
Specifications XT-3817 Intel Bay Trail-D J1900 2.0G CPU, Quad Core, 2M Cache System Memory DDR3L 1333 FSB, SO-DIMM socket x 1, max. 8GB Storage Device SATA Storage x 2 Power Supply 12V / 80W OS Support Windows 7 / POSReady 7 / Windows Embedded 8.1...
