4.13 Idle Noise FFT Spectrum (BTL)

Automute disabled – Register x04h set to x60h. Reference voltage is 19.02 V. FFT size 16k.
0
-10
-20
-30
-40
-50
-60
-70
-80
-90
-100
-110
-120
-130
-140
4.14 Idle Noise FFT Spectrum (PBTL)
Automute disabled – Register x04h set to x60h. Reference voltage is 18.75 V. FFT size 16k.
SLAU239A – February 2008 – Revised September 2015
Submit Documentation Feedback
0 2k 4k 6k 8k

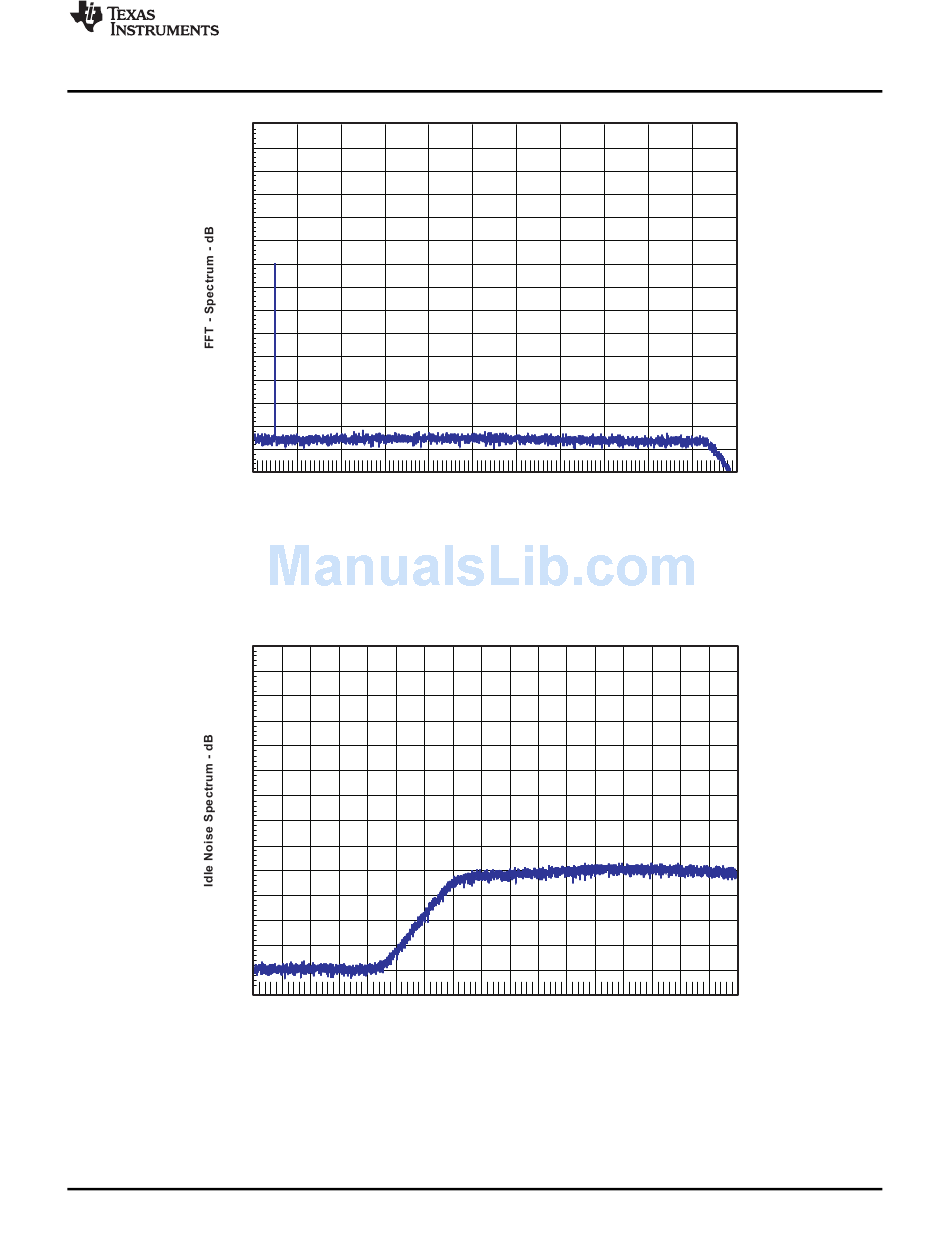

Figure 15. FFT Spectrum with –60-dBFS Tone (PBTL)
