User's Guide
TLC6984 48 × 16 Common Cathode Matrix LED Display
Driver Evaluation Module
This user's guide describes the TLC6984 evaluation module used as a reference for engineering demonstration
and evaluation. Included in this user's guide are setup instructions, a schematic diagram, printed board (PCB)
layout, and a bill of materials (BOM).
1
Introduction.............................................................................................................................................................................2
1.1 Features.............................................................................................................................................................................
1.2
Applications........................................................................................................................................................................2
2 Test Setup and Results..........................................................................................................................................................
2.1 TLC6984 EVM Board.........................................................................................................................................................
2.2
Connectors.........................................................................................................................................................................4
2.3
Jumpers..............................................................................................................................................................................4
Setup................................................................................................................................................................................5
Layout...........................................................................................................................................................................6
Materials...........................................................................................................................................7
5.1
Schematics.........................................................................................................................................................................7
Materials.................................................................................................................................................................10
Figure 4-1. TLC6984EVM Layout................................................................................................................................................
Parameters..........................................................................................................................................5
Table 5-1. TLC6984 EVM Bill of Materials.................................................................................................................................
Trademarks
LaunchPad
is a trademark of Texas Instruments.
All trademarks are the property of their respective owners.
SLVUCB5 - OCTOBER 2021
Submit Document Feedback
ABSTRACT

Table of Contents

List of Figures
Board................................................................................................................3
Connector Pinout.........................................................................
3)..............................................................................................................................7
3)..............................................................................................................................8
3)..............................................................................................................................9
List of Tables
TLC6984 48 × 16 Common Cathode Matrix LED Display Driver Evaluation
Copyright © 2021 Texas Instruments Incorporated
Table of Contents
2
3
3
5
6
10
1
Module

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TLC6984 and is the answer not in the manual?

Questions and answers

Summary of Contents for Texas Instruments TLC6984

  • Page 1: Table Of Contents

    Driver Evaluation Module ABSTRACT This user’s guide describes the TLC6984 evaluation module used as a reference for engineering demonstration and evaluation. Included in this user’s guide are setup instructions, a schematic diagram, printed board (PCB) layout, and a bill of materials (BOM).
  • Page 2: Introduction

    The TLC6984 is a highly integrated, common cathode matrix LED display driver with 48 constant current sources and 16 scanning FETs. One TLC6984 is capable of driving 16 × 16 RGB LED pixels, while stacking two TLC6984s can drive 32 × 32 RGB LED pixels, three TLC6984s are capable of driving 48 × 48 RGB LED pixels, and stacking four TLC6984s can drive 64 ×...
  • Page 3: Test Setup And Results

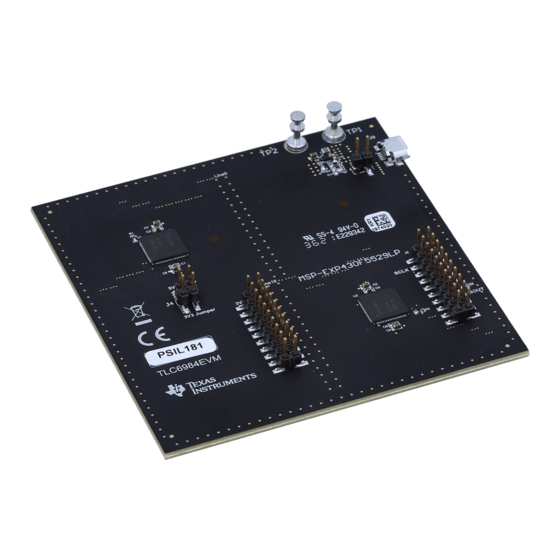

    IC side of the TLC6984EVM board. Figure 2-1. Driver IC Side of the TLC6984EVM Board SLVUCB5 – OCTOBER 2021 TLC6984 48 × 16 Common Cathode Matrix LED Display Driver Evaluation Submit Document Feedback Module...
  • Page 4: Connectors

    • J4 (3V3 Jumper): input 3V3 power supply from J3 (DC/DC) or J1/J2 • J5: 3.3-V power supply from DC/DC TLC6984 48 × 16 Common Cathode Matrix LED Display Driver Evaluation SLVUCB5 – OCTOBER 2021 Module Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
  • Page 5: Test Setup

    Power on 5 V/GND power supply. ™ Figure 3-1. TLC6984EVM and MSP430F5529 LaunchPad Connector Pinout SLVUCB5 – OCTOBER 2021 TLC6984 48 × 16 Common Cathode Matrix LED Display Driver Evaluation Submit Document Feedback Module Copyright © 2021 Texas Instruments Incorporated...
  • Page 6: Board Layout

    4 Board Layout Figure 4-1 illustrates the EVM Board Layout. Figure 4-1. TLC6984EVM Layout TLC6984 48 × 16 Common Cathode Matrix LED Display Driver Evaluation SLVUCB5 – OCTOBER 2021 Module Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
  • Page 7: Schematics And Bill Of Materials

    AGND AGND 1503-2 TSM-110-01-L-DV TSM-110-01-L-DV AGND AGND ZX62R-B-5P(30) Figure 5-1. TLC6984EVM Schematic (1 of 3) SLVUCB5 – OCTOBER 2021 TLC6984 48 × 16 Common Cathode Matrix LED Display Driver Evaluation Submit Document Feedback Module Copyright © 2021 Texas Instruments Incorporated...
  • Page 8: Figure 5-2. Tlc6984Evm Schematic (2 Of 3)

    EAST1616RGBA8 EAST1616RGBA8 EAST1616RGBA8 EAST1616RGBA8 EAST1616RGBA8 EAST1616RGBA8 EAST1616RGBA8 Line7 Figure 5-2. TLC6984EVM Schematic (2 of 3) TLC6984 48 × 16 Common Cathode Matrix LED Display Driver Evaluation SLVUCB5 – OCTOBER 2021 Module Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
  • Page 9: Figure 5-3. Tlc6984Evm Schematic (3 Of 3)

    TLC6984EVM_LEDsch.SchDoc TLC6984EVM_LEDsch.SchDoc TLC6984EVM_LEDsch.SchDoc TLC6984EVM_LEDsch.SchDoc TLC6984EVM_LEDsch.SchDoc TLC6984EVM_LEDsch.SchDoc TLC6984EVM_LEDsch.SchDoc TLC6984EVM_LEDsch.SchDoc Figure 5-3. TLC6984EVM Schematic (3 of 3) SLVUCB5 – OCTOBER 2021 TLC6984 48 × 16 Common Cathode Matrix LED Display Driver Evaluation Submit Document Feedback Module Copyright © 2021 Texas Instruments Incorporated...
  • Page 10: Bill Of Materials

    VQFN76 Instruments Power 2-A High Efficiency Synchronous Texas TPS62825DMQT Buck Converter, DMQ0006A DMQ0006A Instruments (VSON-HR-6) TLC6984 48 × 16 Common Cathode Matrix LED Display Driver Evaluation SLVUCB5 – OCTOBER 2021 Module Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
