3. Install the chassis into your rack.
Follow the rackmounting instructions on the template that is included in the rackmount kit.
4. If you depopulated the chassis, replace the components now.
Return each component to its original location in the chassis. Refer to the online installation or service
manual for installation details.

▼ Install Optional Components

♦
Install any optional modular components (such as server modules and storage modules) that you ordered
for the modular system.
For details, refer to the installation or user's guides for the optional components. See
Documentation" on page
▼ Provide Connectivity to the CMM
The chassis monitoring module (CMM) is preinstalled with the Oracle Integrated Lights Out Manager
(ILOM) software. You use Oracle ILOM on the CMM to configure, start, and administer the modular
components in the chassis.
There are two types of ports you can use to access Oracle ILOM on the CMM, the Ethernet NET MGT port
and the serial SER MGT port.
This guide instructs you to use the SER MGT port to gain initial access to ILOM. Through this serial
connection, you set up a static IP address for the CMM NET MGT port so that future access to Oracle ILOM
can be made through your network.
Note – There are other ways to initially access Oracle ILOM on the CMM. For example, from the factory, the
CMM automatically requests an IP address from a DHCP server on your network. If you know the IP address
assigned to the CMM, you can use the NET MGT port without having to provide a connection to the SER MGT
port. For more details on other methods to access Oracle ILOM on the CMM, refer to the installation guide.

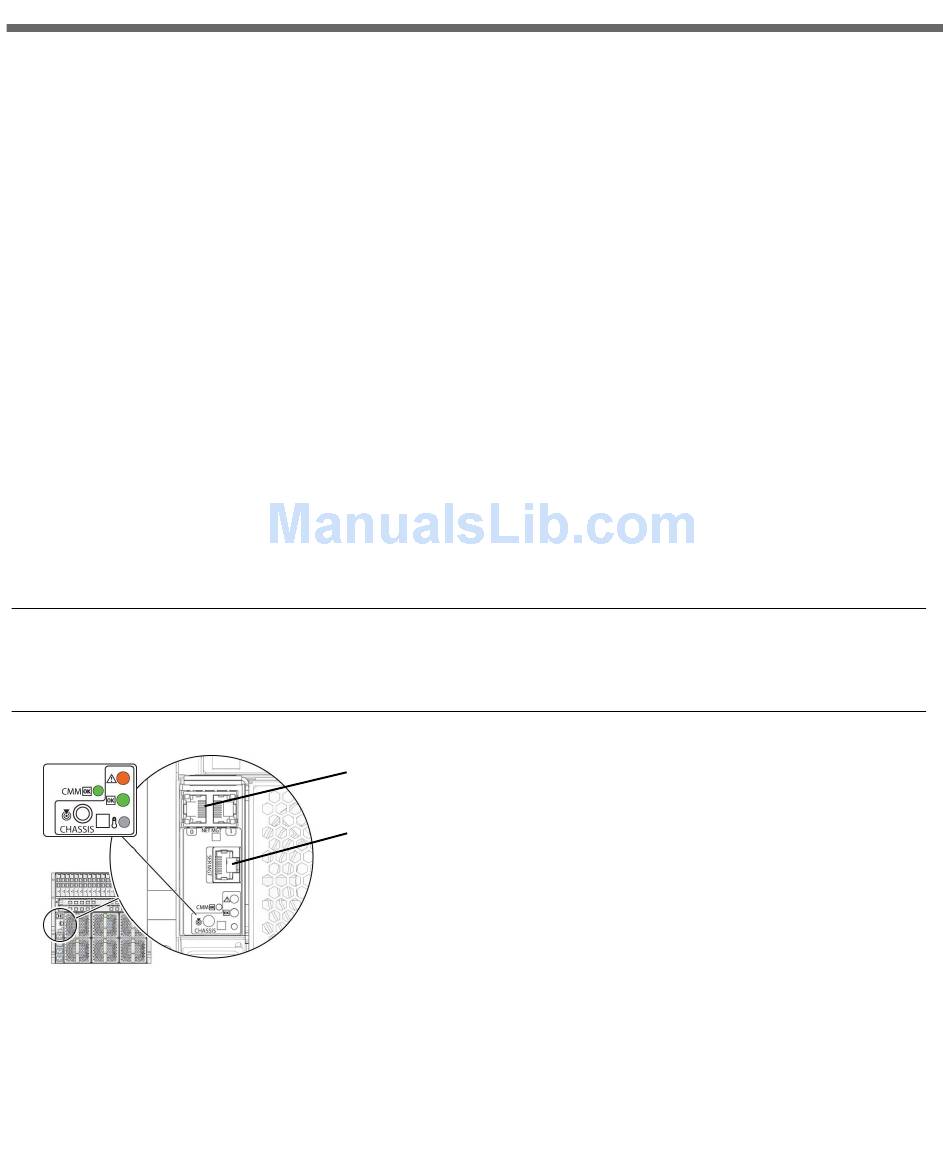

CMM connectors
1. Connect a serial terminal device to the CMM SER MGT port.
The terminal device can be a terminal, a connection to a terminal server, a laptop with terminal emulation
software, and so on.
6.
CMM NET MGT port 0
CMM SER MGT port
SER MGT settings and cable requirements:
• The SER MGT port communicates using 9600
baud, 8 bit, no parity, 1 stop bit, and no hardware
handshaking.
• Use a shielded twisted pair serial cable to meet
NEBS level 3 lightning requirements.
• Use a crossover cable or adapter.
