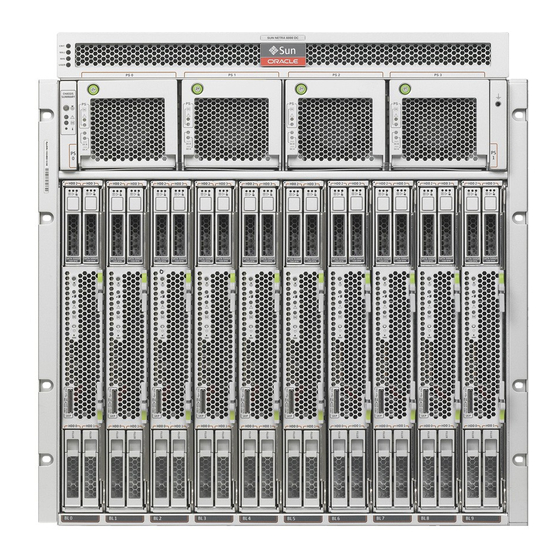

- Page 1 Sun Blade 6000 Modular System Site Planning Guide Part No. E20776-02 February 2012...
- Page 2 Copyright © 2008, 2012, Oracle and/or its affiliates. All rights reserved. This software and related documentation are provided under a license agreement containing restrictions on use and disclosure and are protected by intellectual property laws. Except as expressly permitted in your license agreement or allowed by law, you may not use, copy, reproduce, translate, broadcast, modify, license, transmit, distribute, exhibit, perform, publish, or display any part, in any form, or by any means.
-
Page 3: Table Of Contents
Contents Using This Documentation v ▼ Downloading Chassis Firmware v Introduction to Site Planning 1 Customer Obligations System Configuration 1 Site Planning Checklist 2 Preparing the Site for System Installation 5 Load-Bearing and Handling Precautions 5 Power and Electrical Requirements 6 Power Consumption 6 Power Budgeting 6 Electrical Requirements 7... - Page 4 Chassis and Components Dimensions and Weights 18 AC Power Requirements 19 Environmental Specifications 19 Thermal Design Specifications 20 Acoustic Noise Emissions 20 Regulatory Compliance 21 Glossary 23 Index 25 Site Planning Guide for Sun Blade 6000 and Sun Blade 6048 Modular Systems • February 2012...
-
Page 5: Using This Documentation
■ “About This Documentation” on page vi ■ ▼ Downloading Chassis Firmware 1. Navigate to the Sun Blade 6000 modular system product page at: http://www.oracle.com/technetwork/systems/patches/firmware/rel ease-history-jsp-138416.html 2. Click Sun Blade 6000 Chassis. 3. Click the software update version that you want to download. - Page 6 A PDF that includes all information on a particular topic subject (such as hardware installation or product notes) can be generated by clicking on the PDF button in the upper left corner of the page. Site Planning Guide for Sun Blade 6000 and Sun Blade 6048 Modular Systems • February 2012...
-
Page 7: Introduction To Site Planning
Introduction to Site Planning This document provides system specifications and site requirements you must meet when planning to install the Sun Blade 6000 modular system in your data center. For safety and compliance information, refer to the Safety and Compliance Manual for Sun Blade 6000 and Sun Blade 6048 Modular Systems and Important Safety Information for Sun Hardware Systems. -
Page 8: Site Planning Checklist
Have you determined the thermal load, heat dissipation, and air Yes__ No__ conditioning requirements of all equipment in the data center? Site Planning Guide for Sun Blade 6000 and Sun Blade 6048 Modular Systems • February 2012... - Page 9 Requirement Task Completed Can you maintain the data center environment when certain failures Yes__ No__ occur, such as power failure, air conditioning unit failure, or humidity control unit failure? Is fire suppression and alarm equipment installed? Yes__ No__ Power Have you determined the maximum power requirements of the systems? Yes__ No__ Are you using two AC power sources to establish power grid Yes__ No__ redundancy?
- Page 10 Site Planning Guide for Sun Blade 6000 and Sun Blade 6048 Modular Systems • February 2012...
-
Page 11: Preparing The Site For System Installation
Preparing the Site for System Installation Install the Sun Blade 6000 modular system in accordance with the local safety codes and regulations at the facility site. You must be familiar with and adhere to the safety precautions in the Sun Blade 6000 Modular System Safety and Compliance Manual. -
Page 12: Power And Electrical Requirements
The power requirements for different components in the Sun Blade 6000 system are provided through the power conversion calculator. Use the power calculator for estimating the power consumption of your system: http://www.oracle.com/us/products/servers-storage/sun-power-calc ulators/calc/6000chassis-power-calculator.html Site Planning Guide for Sun Blade 6000 and Sun Blade 6048 Modular Systems • February 2012... -
Page 13: Electrical Requirements
Power Cords The connection to the Sun Blade 6000 chassis AC inlet requires the following types of power cords, dependent on site location and power source. If you are connecting the system directly to an external power source (for example, ■... -
Page 14: Grid Redundancy
BTU/hr. This requires that the data center HVAC system must accommodate the maximum heat release of a fully configured system, as well as any other systems in the data center. Site Planning Guide for Sun Blade 6000 and Sun Blade 6048 Modular Systems • February 2012... -
Page 15: Temperature And Humidity Requirements
The amount of heat output per Sun Blade 6000 system varies, depending on the system configuration. The systems are equipped with fans that route cool air throughout the chassis from front to rear. The fans are speed controlled based on system temperature sensors. -
Page 16: Airflow Requirements
System extended from rack 3 feet (0.9 m) on both sides of the system to facilitate installation Front cold aisle 5 feet (1.5 m); required for rackmounting Site Planning Guide for Sun Blade 6000 and Sun Blade 6048 Modular Systems • February 2012... -
Page 17: Route To The Data Center
Location Service Access Requirement Back hot aisle 3 feet (0.9 m); required for cable access Arrange racks in a hot aisle–cold aisle layout. This layout enables cool air to flow through the aisles to the system’s front air intake and enables heated air to flow from the system’s back exhaust. - Page 18 Site Planning Guide for Sun Blade 6000 and Sun Blade 6048 Modular Systems • February 2012...
-
Page 19: Rackmounting Considerations
You should use a mechanical lift to install the chassis into the rack. To install the chassis manually, you will need four people. Refer to the Sun Blade 6000 Rack Alignment Template, for specific instructions on rackmounting the chassis. This document is available at: http://www.oracle.com/pls/topic/lookup?ctx=sb6000&id=homepage... - Page 20 1200 lb (544 kg) Number of Chassis Supported in a Rack Up to four Sun Blade 6000 chassis can be installed in a 1000-42 rack, with the exceptions shown in the following list. The following configurations are supported by MPS: Worst case consumption (32A), 60A-3 phase: one Sun Blade 6000 chassis ■...
- Page 21 Blade 6000 modular system to prevent the cabinet from moving. Placement of Product Do not block or cover the openings of the Sun Blade 6000 modular system. Never place an Oracle product near a radiator or heat register. Failure to follow these guidelines can cause overheating and affect the reliability of your Oracle product.
- Page 22 Because of the inherent nature of the system’s modular design, take care to ensure that operators are not exposed to moving parts and sharp edges. Site Planning Guide for Sun Blade 6000 and Sun Blade 6048 Modular Systems • February 2012...
- Page 23 “Acoustic Noise Emissions” on page 20 ■ “Regulatory Compliance” on page 21 ■ Shipping Crate Physical Specifications The standard Sun Blade 6000 modular system is shipped with the following components installed: 1 Sun Blade 6000 chassis ■ 2 power supply modules ■...
- Page 24 • Chassis monitoring module: 1.15 lb (0.52 kg) • Front indicator module: 0.75 lb (0.34 kg) • Server module - see server module documentation Site Planning Guide for Sun Blade 6000 and Sun Blade 6048 Modular Systems • February 2012...
- Page 25 AC Power Requirements The AC power requirements of the system are shown in the following table. Power Type Function Specification AC Power Input power 1+1 PSU rating, 6272 W or 6400 VA each power supply module Voltage 200 to 240 VAC Frequency 50 to 60 Hz Current...
- Page 26 Data center personnel should take necessary precautions to reduce exposure to the high noise levels. Acoustic noise emission levels are shown in the following table. Site Planning Guide for Sun Blade 6000 and Sun Blade 6048 Modular Systems • February 2012...
- Page 27 Function Specification Operating/idling acoustic noise 8.6 B at or below 25 C, 9.2 B at maximum ambient (LwAd, 1B=10 dB) Regulatory Compliance The system complies with the Oracle and regulatory agency standards shown in the following table. Category Standard Product safety •...
- Page 28 • IEC 61000-4-11 Voltage dips, short interruptions, and voltage variations immunity tests Line distortion • EN 61000-3-2 per EMC Directive 89/336/EEC Voltage fluctuations • EN 61000-3-3 per EMC Directive 89/336/EEC and flicker Site Planning Guide for Sun Blade 6000 and Sun Blade 6048 Modular Systems • February 2012...
- Page 29 Glossary Cubic feet per minute Chassis monitoring module Electrostatic discharge HVAC Heating, ventilation, and air conditioning Modular power system...
- Page 30 Network Express Module Oracle ILOM Oracle Integrated Lights Out Manager PCIe EM PCIe ExpressModule Site Planning Guide for Sun Blade 6000 and Sun Blade 6048 Modular Systems • February 2012...
- Page 31 Index AC power requirements, 19 load-bearing precautions for chassis installation, 5 acoustic noise emissions, 20 airflow requirements for chassis installation, 10 number of chassis supported in rack, 14 cabinets compatible for chassis, 13 power budgeting for chassis, 6 chassis power requirements for chassis installation, 6 configuration, 1 specifications, 18 preparing for site planning, 5...
- Page 32 9 thermal design specifications, 20 Site Planning Guide for Sun Blade 6000 and Sun Blade 6048 Modular Systems • February 2012...
