Installation

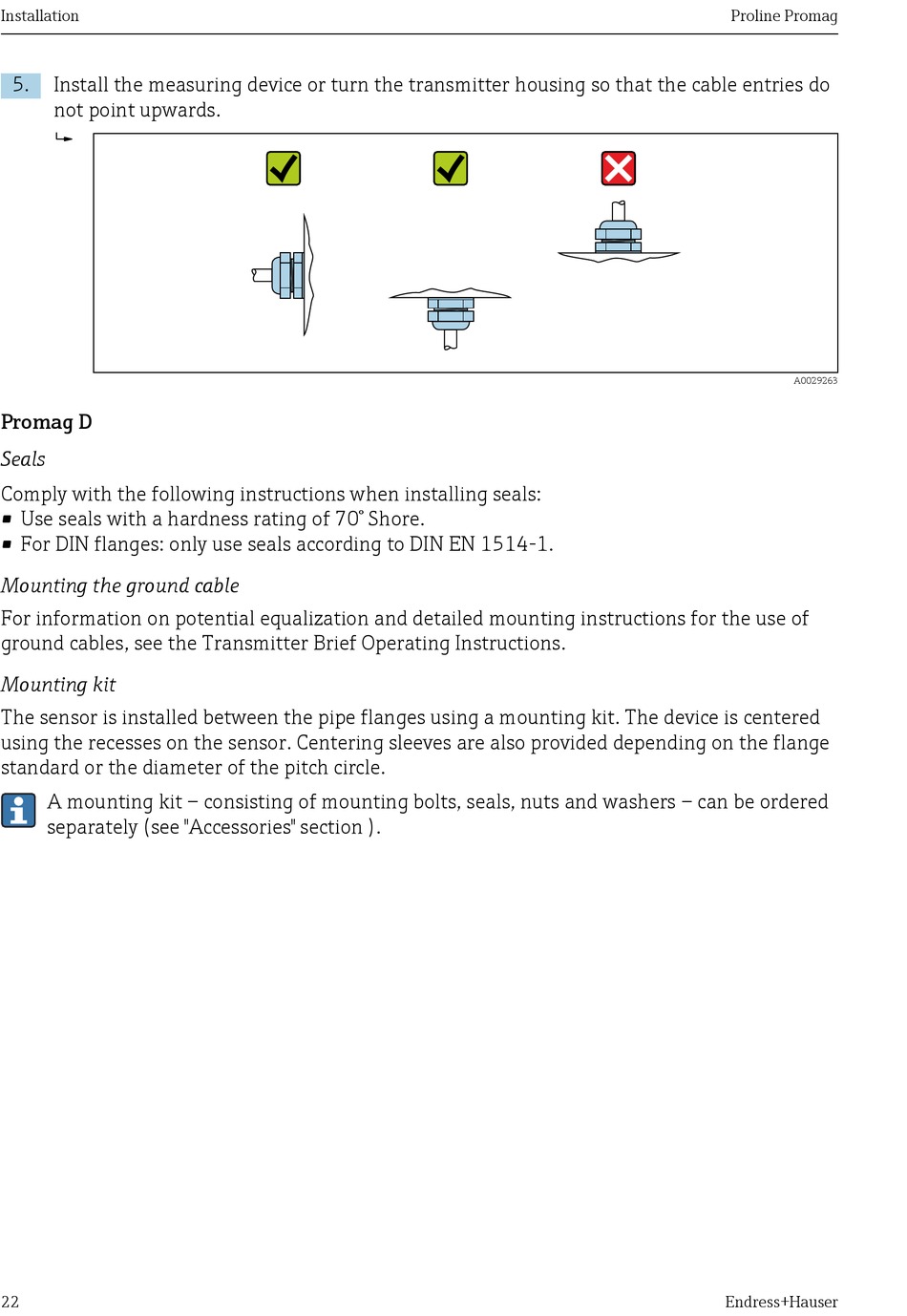

5. Install the measuring device or turn the transmitter housing so that the cable entries do
not point upwards.

Promag D
Seals
Comply with the following instructions when installing seals:
• Use seals with a hardness rating of 70° Shore.
• For DIN flanges: only use seals according to DIN EN 1514-1.
Mounting the ground cable
For information on potential equalization and detailed mounting instructions for the use of
ground cables, see the Transmitter Brief Operating Instructions.
Mounting kit
The sensor is installed between the pipe flanges using a mounting kit. The device is centered
using the recesses on the sensor. Centering sleeves are also provided depending on the flange
standard or the diameter of the pitch circle.
A mounting kit – consisting of mounting bolts, seals, nuts and washers – can be ordered
separately (see "Accessories" section ).
