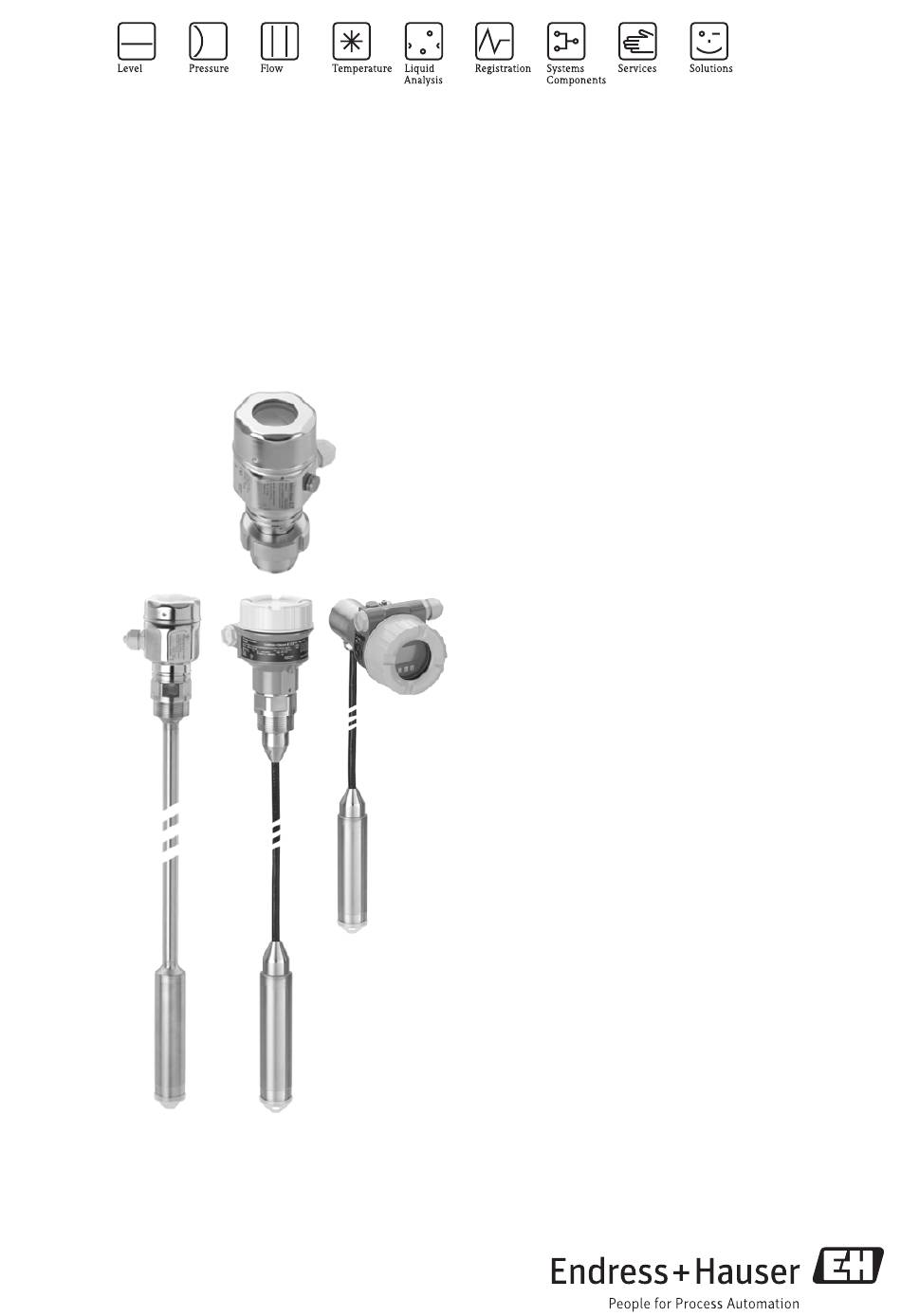

Endress+Hauser Deltapilot M FMB50 Technical Information

Technical Information
Deltapilot M FMB50/51/52/53
Hydrostatic level measurement
Pressure sensor with the CONTITE
Condensate-resistant offering long-term stability; communication
via HART, PROFIBUS PA or FOUNDATION Fieldbus.
TI00437P/00/EN/15.12
No. 71157179
TM
measuring cell
Application
The hydrostatic pressure sensor is used for the following
measuring tasks:
• Hydrostatic pressure measurement in liquids and
paste-like media in all areas of process engineering,
process measuring technology, pharmaceuticals and
the food industry
• Level, volume or mass measurements in liquids
Your benefits
• Very good reproducibility and long-term stability
• Turn down 100:1
• Hermetically sealed CONTITE
– Condensate-resistant and climatic-proofed
– High reference accuracy: ±0.2 %,
optionally ±0.1 %
– Minimum temperature effects
• End-to-end modularity for differential pressure,
hydrostatics and pressure (Deltabar M –
Deltapilot M – Cerabar M), e.g.
– replaceable display
– universal electronics
• Easy commissioning without the need for an operating
tool
• Easy and safe menu-guided operation
– on-site via display module
– via 4 to 20 mA with HART
– via PROFIBUS PA
– via FOUNDATION Fieldbus
• Wide range of approvals (e.g. ATEX, FM, CSA, etc.) for
international use
• Usage in drinking water: KTW, NSF
• Used for process pressure monitoring up to SIL2,
certified to IEC 61508 Edition 2.0 and IEC 61511 by
TÜV NORD
TM
measuring cell:
