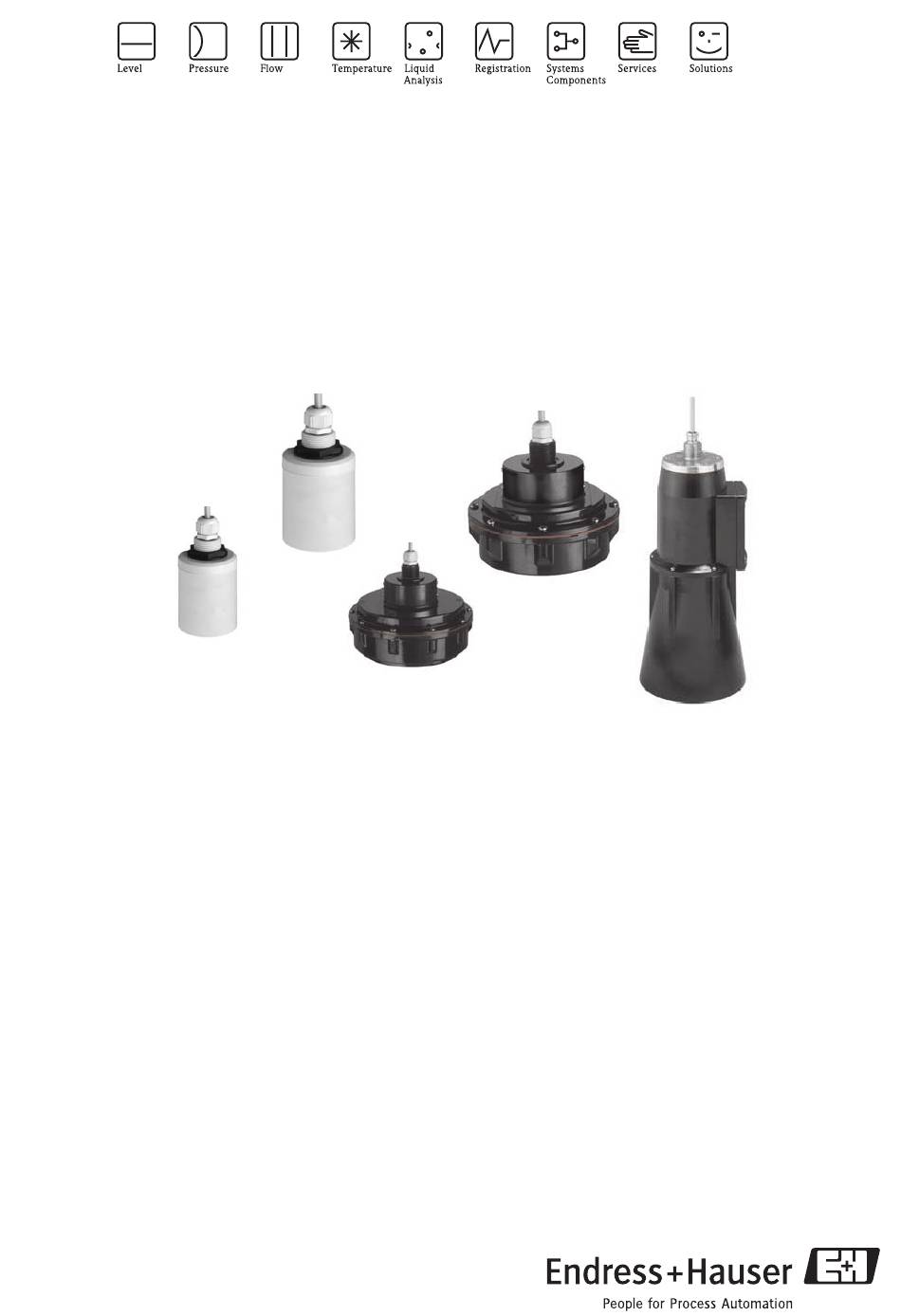

Technical Information
Prosonic S
FDU91, FDU92, FDU93, FDU95, FDU96
Ultrasonic sensors for non-contact continuous
level and flow measurement;
for connection to the transmitter FMU90
FDU91
Application
• Continuous, non-contact level measurement of fluids,
pastes, sludges and powdery to coarse bulk materials
• Flow measurement in open channels and measuring
weirs
• Maximum measuring range
– FDU91:
10 m in fluids
5 m in bulk materials
– FDU92:
20 m in fluids
10 m in bulk materials
– FDU93:
25 m in fluids
15 m in bulk materials
– FDU95:
45 m in bulk materials
– FDU96:
70 m in bulk materials
• Suited for explosion hazardous areas
TI396F/00/en/12.04
52024314
FDU92
FDU93
FDU95
Your benefits
• Non-contact measurement method, therefore almost
independent of product properties
• Integrated temperature sensor for time-of-flight
correction. Accurate measurements are possible, even
if temperature changes are present
• Hermetically welded PVDF sensors FDU91/92 for
fluid measurement; for highest chemical resistance
• Integrated automatical sensor detection for
transmitters FMU90; simple commissioning
• Can be installed up to 300 m from the transmitter
• Suited for rough ambient conditions thanks to separate
installation from the transmitter
• Insensitive to dirt and build-up because of the self-
cleaning effect
• Integrated heating against a build-up of ice at the
sensor (optional)
• Weather resistant and flood-proof (IP68)
• Dust-Ex and Gas-Ex certificats available (ATEX, FM,
CSA)
FDU96

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Prosonic S FDU91 and is the answer not in the manual?

Questions and answers

Summary of Contents for Endress+Hauser Prosonic S FDU91

  • Page 1 Technical Information Prosonic S FDU91, FDU92, FDU93, FDU95, FDU96 Ultrasonic sensors for non-contact continuous level and flow measurement; for connection to the transmitter FMU90 FDU92 FDU95 FDU91 FDU93 FDU96 Application Your benefits • Continuous, non-contact level measurement of fluids, • Non-contact measurement method, therefore almost pastes, sludges and powdery to coarse bulk materials independent of product properties •...
  • Page 2: Table Of Contents

    Prosonic S FDU91/92/93/95/96 Table of Contents Function and system design..... 3 Scope of delivery ........16 Measuring principle .
  • Page 3: Function And System Design

    Prosonic S FDU91/92/93/95/96 Function and system design Measuring principle FDU9x Prosonic S FMU90 100% Prosonic S FDU9x FMU90 L00-FMU90xxx-15-00-08-xx-009 BD: blocking distance; D: distance from sensor membrane to fluid surface; E: empty ditance F: span (full distance); L: level; V: volume (or mass); Q: flow The sensor transmits ultrasonic pulses in the direction of the product surface.
  • Page 4: Input

    Prosonic S FDU91/92/93/95/96 Input Measuring range The effective range of the sensors is dependent on the operating conditions. To estimate the range, proceed as follows (see also the example): Determine which of the influences shown in the following table are appropriate for your process.
  • Page 5: Operating Frequency

    Prosonic S FDU91/92/93/95/96 Operating frequency Sensor Operating frequency FDU91 43 kHz FDU92 30 kHz FDU93 27 kHz FDU95 - *1*** 17 kHz (low temperature version) FDU95 - *2*** 18 kHz (high temperature version) FDU96 11 kHz Output Signal transmission analogue voltages...
  • Page 6: Electrical Connection

    Prosonic S FDU91/92/93/95/96 Electrical connection Connection to the transmitter Prosonic S FMU90 FDU93/95/96 FDU91/92 < 30 m < 30 m GNYE < 300 m < 300 m FMU9x FMU9x FMU9x FMU9x L00-FMU90xxx-04-00-00-xx-002 (A): Terminal box (recommended or cable lengths > 30 m); (B): Grounding at the terminal box; (C): Grounding at the transmitter or in the control room;...
  • Page 7: Installation Conditions

    Prosonic S FDU91/92/93/95/96 Potential equalisation (for FDU93/95/96 and FDU83/84/85/86) The ground lead (GNYE) must be connected to the local potential equalisation. This can be done • at the terminal box (B) • at the transmitter FMU90 or in the cabinet (C)
  • Page 8: Installation Conditions For Level Measurements

    Prosonic S FDU91/92/93/95/96 Installation conditions for level measurements 1/6D α L00-FDU9xxxx-17-00-00-xx-003 • If possible, install the sensor so that its lower edge projects into the vessel. • Make sure, that the maximum level does not reach into the blocking distance (BD).
  • Page 9: Nozzle Installation

    Prosonic S FDU91/92/93/95/96 α Sensor Application R (max) r (max) fluids 10 m 0,96 m FDU91 11° bulk materials 0,48 m fluids 20 m 1,92 m FDU92 11° bulk materials 10 m 0,96 m fluids 25 m 0,87 m FDU93 4°...
  • Page 10: Installation Conditions For Flow Measurements

    Prosonic S FDU91/92/93/95/96 Installation conditions for flow • Install the sensor at the inflow side (A), above the maximum water level H plus the blocking distance BD. measurements • Position the sensor in the middle of the channel or weir.
  • Page 11: Ultrasound Guide Pipe

    Prosonic S FDU91/92/93/95/96 Ultrasound guide pipe In narrow shafts with strong interference echoes, we recommend using an ultrasound guide pipe (e.g. PE or PVC wastewater pipe) with a minimum diameter of 100 mm (for FDU91). Make sure that the pipe is not soiled by accumulated dirt.
  • Page 12: Mechanical Construction

    Prosonic S FDU91/92/93/95/96 Mechanical construction Dimensions FDU91 FDU92 FDU95 G1" G1" G1" NPT1" NPT1" NPT1" Ø70 Ø98 Ø235 FDU93 FDU96 G1" NPT1" G1" NPT1" Ø187 Ø198 L00-FDU90xxx-06-00-00-xx-001 Dimensions in mm Weight Sensor Weight FDU91 approx. 1.1 kg FDU92 approx. 2 kg FDU93 approx.
  • Page 13: Materials

    In this case, the total length (sensor cable + extension cable) must not exceed 300 m. Certificates and Approvals CE mark The measuring system meets the legal requirements of the EC-guidelines. Endress+Hauser confirms the instrument passing the required tests by attaching the CE-mark. Ex approval The available certificates are listed in the ordering information.
  • Page 14: Ordering Information

    Prosonic S FDU91/92/93/95/96 Ordering information Product structure FDU91 Approval Non-hazardous area ATEX II 2G EEx m II T5 ATEX II 3G EEx nA II T6 ATEX II 1/2 D ATEX II 3D CSA General Purpose (in preparation) CSA Cl.I,II,III Div.1+2 Gr.A-G (in preparation) FM Cl.I,II,III Div.
  • Page 15: Product Structure Fdu93

    Prosonic S FDU91/92/93/95/96 Product structure FDU93 Approval Non-hazardous area ATEX II 2G EEx m II T5 ATEX II 3G EEx nA II T6 ATEX II 1/2 D ATEX II 3D CSA General Purpose (in preparation) CSA Cl.I,II,III Div.1 Gr.E-G (in preparation) FM Cl.I,II,III Div.
  • Page 16: Product Structure Fdu96

    Prosonic S FDU91/92/93/95/96 Product structure FDU96 Approval Non-hazardous area ATEX II 2G EEx m II T5 ATEX II 1/2 D, -40 ... +140 °C ATEX II 1/2 D, -40 ... +80 °C ATEX II 3D CSA General Purpose (in preparation) CSA Cl.I,II,III Div.1 Gr.E-G;...
  • Page 17: Protective Cover For Fdu91

    Prosonic S FDU91/92/93/95/96 Protective cover for FDU91 • Material: PVDF • Order code: 52025686 FDU91 Ø98 L00-FDU9xxxx-06-00-00-xx-003 Cantilever The cantilever is used to mount the sensor FDU91 above open channels for example. L00-FMU4xxxx-06-00-00-yy-005 Material Order code galvanised steel 919790-0000 585 mm...
  • Page 18: Mounting Frame

    Prosonic S FDU91/92/93/95/96 Mounting Frame 33.7 Ø L00-FMU4x-00-00-00-yy-005 Height Material Order Code 700 mm galv. steel 919791-0000 700 mm 1.4301 (AISI 304) 919791-0001 1400 mm galv. steel 919791-0002 1400 mm 1.4301 (AISI 304) 919791-0003 Wall Bracket ø 33.7 L00-FMU4x-00-00-00-yy-006 Material Order Code galv.
  • Page 19: Flanges

    Prosonic S FDU91/92/93/95/96 Flanges Version Material Order code DIN B DN80/PN16 PP-FR 919789-0000 DIN B DN100/PN16 PP-FR 919789-0002 DIN B DN150/PN16 PP-FR 919789-0004 DIN B DN200/PN16 PP-FR 919789-0006 DIN B DN250/PN16 PP-FR 919789-0008 All flanges have a central G1" thread (also suited for NPT 1"). The maximum operating pressure of the sensor is always valid.
  • Page 20: Supplementary Documentation

    Prosonic S FDU91/92/93/95/96 Supplementary documentation Innovation booklet IN 003 Ultrasonic measurement - the solution for your application Technical Information TI 397F Technical Information for the transmitter Prosonic S FMU90 TI 179F Technical Information for the alignment unit FAU40 Operating Instructions...
  • Page 21 Prosonic S FDU91/92/93/95/96 Endress + Hauser...
  • Page 22 Prosonic S FDU91/92/93/95/96 International Head Quarter Endress+Hauser GmbH+Co. KG Instruments International Colmarer Str. 6 79576 Weil am Rhein Deutschland Tel. +49 76 21 9 75 02 Fax +49 76 21 9 75 34 5 www.endress.com info@ii.endress.com TI396F/00/en/12.04 52024314 FM+SGML 6.0 ProMoDo...
