KA01289D/06/EN/02.21
71508647
2021-07-01
Products
Brief Operating Instructions

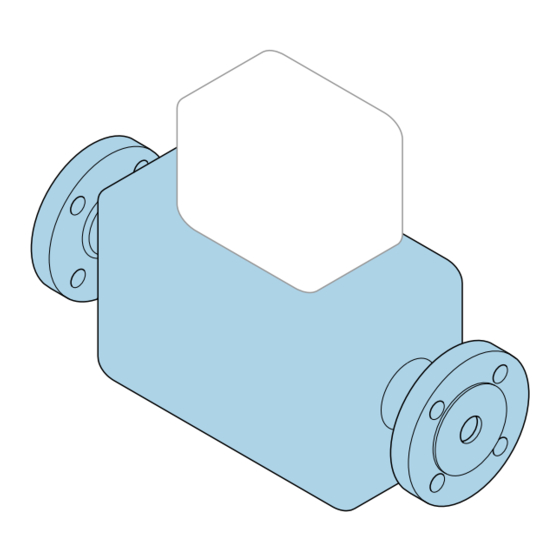

Proline Promag H
Electromagnetic sensor
These instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.
Brief Operating Instructions part 1 of 2: Sensor
Contain information about the sensor.
Brief Operating Instructions part 2 of 2: Transmitter
→ 3.
Solutions
Services
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Endress+Hauser Proline Promag H
Summary of Contents for Endress+Hauser Proline Promag H
- Page 1 Solutions Services KA01289D/06/EN/02.21 71508647 2021-07-01 Brief Operating Instructions Proline Promag H Electromagnetic sensor These instructions are Brief Operating Instructions; they are not a substitute for the Operating Instructions pertaining to the device. Brief Operating Instructions part 1 of 2: Sensor Contain information about the sensor.
- Page 2 Proline Promag H Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser...
- Page 3 These Brief Operating Instructions are the Brief Operating Instructionspart 1: Sensor. The "Brief Operating Instructions part 2: Transmitter" are available via: • Internet: www.endress.com/deviceviewer • Smart phone/tablet: Endress+Hauser Operations App Detailed information about the device can be found in the Operating Instructions and the other documentation: • Internet: www.endress.com/deviceviewer...
-
Page 4: Table Of Contents
Table of contents Proline Promag H Table of contents About this document ............. . 5 Symbols used . -
Page 5: About This Document
Proline Promag H About this document About this document Symbols used 1.1.1 Safety symbols DANGER This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious or fatal injury. WARNING This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious or fatal injury. - Page 6 About this document Proline Promag H Symbol Meaning Protective Earth (PE) A terminal which must be connected to ground prior to establishing any other connections. The ground terminals are situated inside and outside the device: • Inner ground terminal: Connects the protectiv earth to the mains supply.
-
Page 7: Basic Safety Instructions
Proline Promag H Basic safety instructions Basic safety instructions Requirements for the personnel The personnel must fulfill the following requirements for its tasks: ‣ Trained, qualified specialists must have a relevant qualification for this specific function and task. ‣ Are authorized by the plant owner/operator. -
Page 8: Workplace Safety
Verification for borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability as minute changes in the temperature, concentration or level of contamination in the process can alter the corrosion resistance properties. -
Page 9: Security
Proline Promag H Basic safety instructions IT security Our warranty is valid only if the device is installed and used as described in the Operating Instructions. The device is equipped with security mechanisms to protect it against any inadvertent changes to the settings. -
Page 10: Incoming Acceptance And Product Identification
Date: Is the envelope present with accompanying documents? • If one of the conditions is not satisfied, contact your Endress+Hauser Sales Center. • The Technical Documentation is available via the Internet or via the Endress+Hauser Operations App. Endress+Hauser... -
Page 11: Product Identification
• Enter serial numbers from nameplates in the W@M Device Viewer (www.endress.com/deviceviewer): All information about the device is displayed. • Enter the serial number from nameplates in the Endress+Hauser Operations App or scan the 2-D matrix code (QR code) on the nameplate using the Endress+Hauser Operations App: All information about the device is displayed. -
Page 12: Storage And Transport
Storage and transport Proline Promag H Storage and transport Storage conditions Observe the following notes for storage: ‣ Store in the original packaging to ensure protection from shock. ‣ Do not remove protective covers or protective caps installed on process connections. They prevent mechanical damage to the sealing surfaces and contamination in the measuring tube. - Page 13 Proline Promag H Storage and transport A0029214 4.2.2 Measuring devices with lifting lugs CAUTION Special transportation instructions for devices with lifting lugs ‣ Only use the lifting lugs fitted on the device or flanges to transport the device. ‣ The device must always be secured at two lifting lugs at least.
-
Page 14: Installation
Installation Proline Promag H Installation Installation conditions 5.1.1 Mounting position Mounting location A0029343 h ≥ 2 × DN Installation in down pipes Install a siphon with a vent valve downstream of the sensor in down pipes whose length h ≥... - Page 15 Proline Promag H Installation A0029257 Orientation The direction of the arrow on the sensor nameplate helps you to install the sensor according to the flow direction. An optimum orientation position helps avoid gas and air accumulations and deposits in the measuring tube.
- Page 16 Installation Proline Promag H A0028998 EPD electrode for empty pipe detection (available from DN > 15 mm (¹⁄₂ in)) Measuring electrodes for signal detection Measuring devices with a nominal diameter < DN 15 mm (¹⁄₂ in) do not have an EPD electrode.
- Page 17 Proline Promag H Installation System pressure A0028777 Furthermore, install pulse dampers if reciprocating, diaphragm or peristaltic pumps are used. Vibrations L > 10 m (33 ft) A0029004 3 Measures to prevent vibration of the device Endress+Hauser...
-
Page 18: Mounting The Measuring Device
Installation Proline Promag H Adapters [mbar] 8 m/s 7 m/s 6 m/s 5 m/s 4 m/s 3 m/s max. 8° 2 m/s 1 m/s d / D A0029002 Mounting the measuring device 5.2.1 Required tools For flanges and other process connections, use an appropriate mounting tool 5.2.2... - Page 19 In particular, it is absolutely essential to secure the sensor additionally if plastic process connections are used. An appropriate wall mounting kit can be ordered separately as an accessory from Endress+Hauser. Seals • In the case of metal process connections, the screws must be tightened securely. The process connection forms a metal connection with the sensor, which ensures a defined compression of the seal.
- Page 20 Installation Proline Promag H DN 2…25 DN 40…1 0 1/12… 1") (1 ½… ") A0019804 4 Seals of process connections Promag H 100 Process connections with O-ring seal Process connections with aseptic molded seal, DN 2 to 25 (1/12 to 1") Process connections with aseptic molded seal, DN 40 to 150 (1 ½...
- Page 21 • Grounding rings can be ordered separately as an accessory from Endress+Hauser . When ordering make sure that the grounding rings are compatible with the material...
- Page 22 Installation Proline Promag H Mount the process connection back on the sensor. When doing so, make sure to observe the maximum screw tightening torques for lubricated threads: 7 Nm (5.2 lbf ft) Welding the sensor into the pipe (welding connections)
-
Page 23: Post-Installation Check
Proline Promag H Installation Post-installation check Is the device undamaged (visual inspection)? Does the measuring device conform to the measuring point specifications? For example: • Process temperature • Process pressure (refer to the "Pressure-temperature ratings" section of the "Technical Information"... -
Page 24: Disposal
(WEEE), the product is marked with the depicted symbol in order to minimize the disposal of WEEE as unsorted municipal waste. Do not dispose of products bearing this marking as unsorted municipal waste. Instead, return them to Endress+Hauser for disposal under the applicable conditions. - Page 28 *71508647* 71508647 www.addresses.endress.com...
