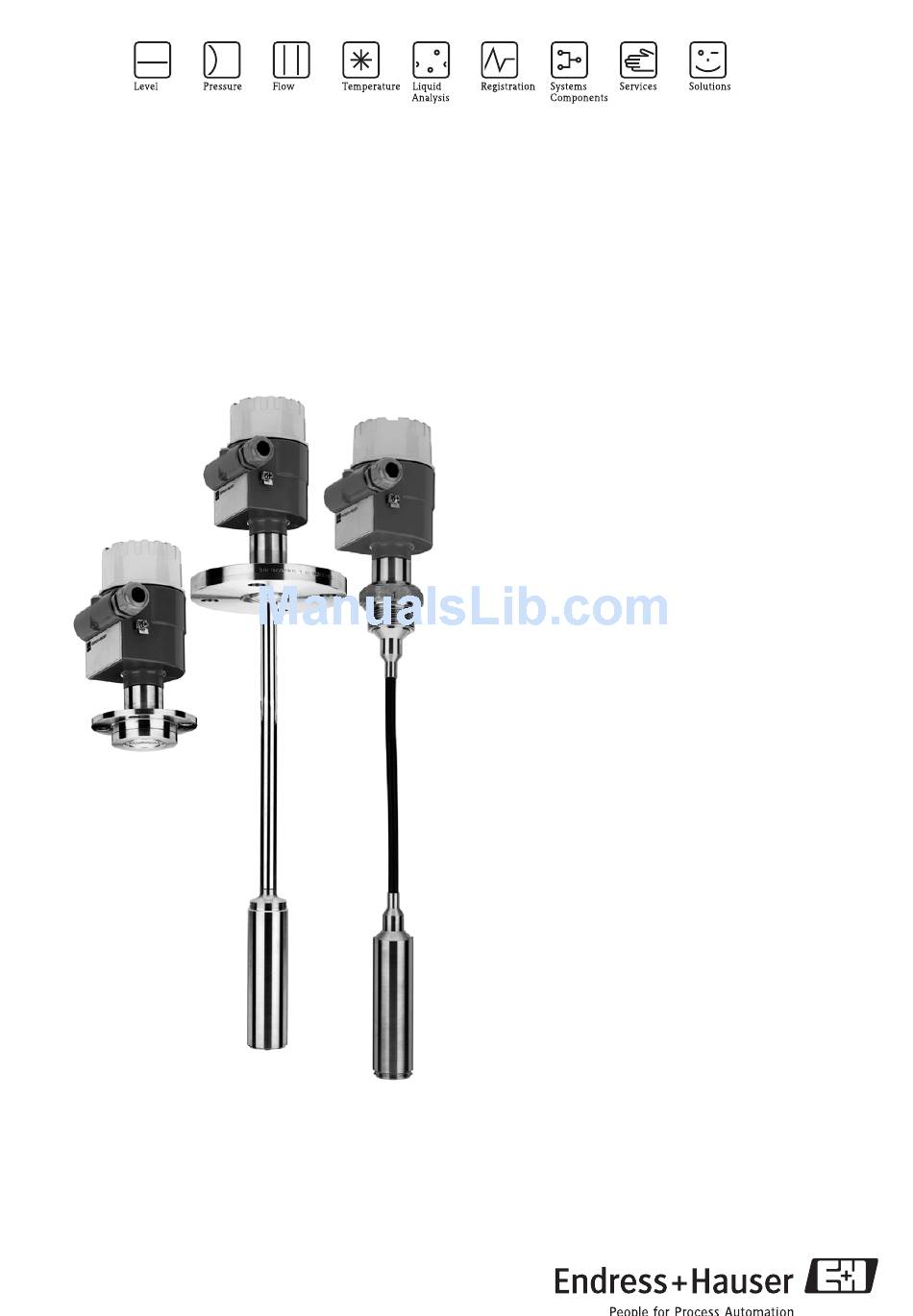

Endress+Hauser Deltapilot S DB50 Technical Information

Technical Information

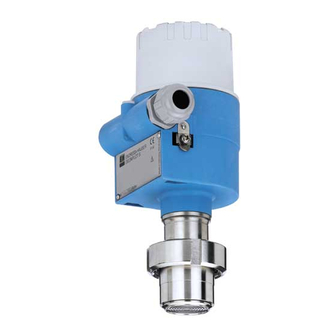

Deltapilot S DB50/50L/51/52/53
Hydrostatic Level Measurement
Pressure sensor with CONTITE
waterproof, climatic-proofed, long-term stability; for food, fresh
water and wastewater, chemical and pharmaceutical products
TI257P/00/en
71034474
TM
measuring cell;
Application
The devices in the Deltapilot S product family are used
for continuous level measurement in all liquid and paste-
like media. They are used in both the chemical,
pharmaceutical and food industry as well as in the water
and wastewater sector.
Switching units perfectly in line with the application:
• Determine the level, volume, differential pressure,
density and product weight
• Control limit contacts
• Integrate the measuring point in various automation
systems.
Your benefits
• Hermetically sealed CONTITE
– Climatic-proofed and with high long-term stability
– Maximum linearity (better than 0.1 % of the set
measuring range)
– Minimum temperature effects
(better than 0.1%/10 K).
• Compact, rod or cable versions available
• Separate mounting of housing and electronic insert
(IP 68 protection at the measuring point)
• Easy and comfortable operation:
– Onsite with display and operating module
– Operation via communication
• Replaceable electronic inserts:
– 4 to 20 mA HART
– PROFIBUS PA
– FOUNDATION Fieldbus
– Analog output
– PFM
TM
measuring cell:
