Fixture Temperatures - The menu is used to view temperatures of the fixture´s inside.
Head Temperature - The menu shows temperatures in the fixture head near the lamp.
Current - A current temperature of the fixture head.
Maximum NonRes. - A maximum temperature of the fixture head since the fixture has
been fabricated.
Maximum Res. - A maximum temperature of the fixture head since the counter
was last reset.
In order to reset this counter to 0, touch the text box next to the item "Maximum Res."
Note. If the head temperature exceeds 83°C for 1 minute, the lamp will be switched off.
Base Temperature - The menu shows temperature in the fixture base (on the display PCB).
Current - A current temperature in the fixture base.
Maximum NonRes. - A maximum temperature in the fixture base since the fixture has
been fabricated.
Maximum Res. - A maximum temperature in the fixture base since the counter
was last reset.
In order to reset this counter to 0, touch the text box next to the item "Maximum Res."
Ambient Temperature - The menu shows temperature of the induced air on the fan in the fixture base .
Current - A current temperature of the induced air in the fixture base.
Maximum NonRes. - A maximum temperature of the induced air in the fixture base since
the fixture has been fabricated.
Maximum Res. - A maximum temperature of the induced air in the fixture base since
since the counter was last reset.
In order to reset this counter to 0, touch the text box next to the item "Maximum Res."
DMX Values - The menu is used to read DMX values of each channel received by the fixture.
Wireless State - The menu serves for reading of the wireless operation status (only for Wireless DMX version).
Software Version - Select this item to read the software version of the fixture modules:
Display System - A display processor on the display board in the fixture base
Module M - A pan/tilt processor
Module G - A static gobos/rot. gobos/effect wheel processor.
Module O - A focus/zoom processor
Module P1 - A light frost/prism wheel 1 processor
Module P2 - A medium frost/prism wheel 2 processor.
Module C1 - A cyan wheel/magenta wheel/strobe/hot-spot 1 processor.
Module C2 - A colour wheel/yellow wheel/CRI filter/frost filter/hot-spot 2 processor.
Product IDs - The menu is used to read the MAC Address ,RDM UID and RDM Label.
View Logs - Use this menu to read fixture´s data which have been recorded during fixture operation. This
colected data allows easier troubleshooting.
Fixture Errors - Use this menu to read fixture errors which have occured during fixture operation.
Fixture States - Recorded following actions: Fixture On, Fixture Off, Lamp On, Lamp Off.

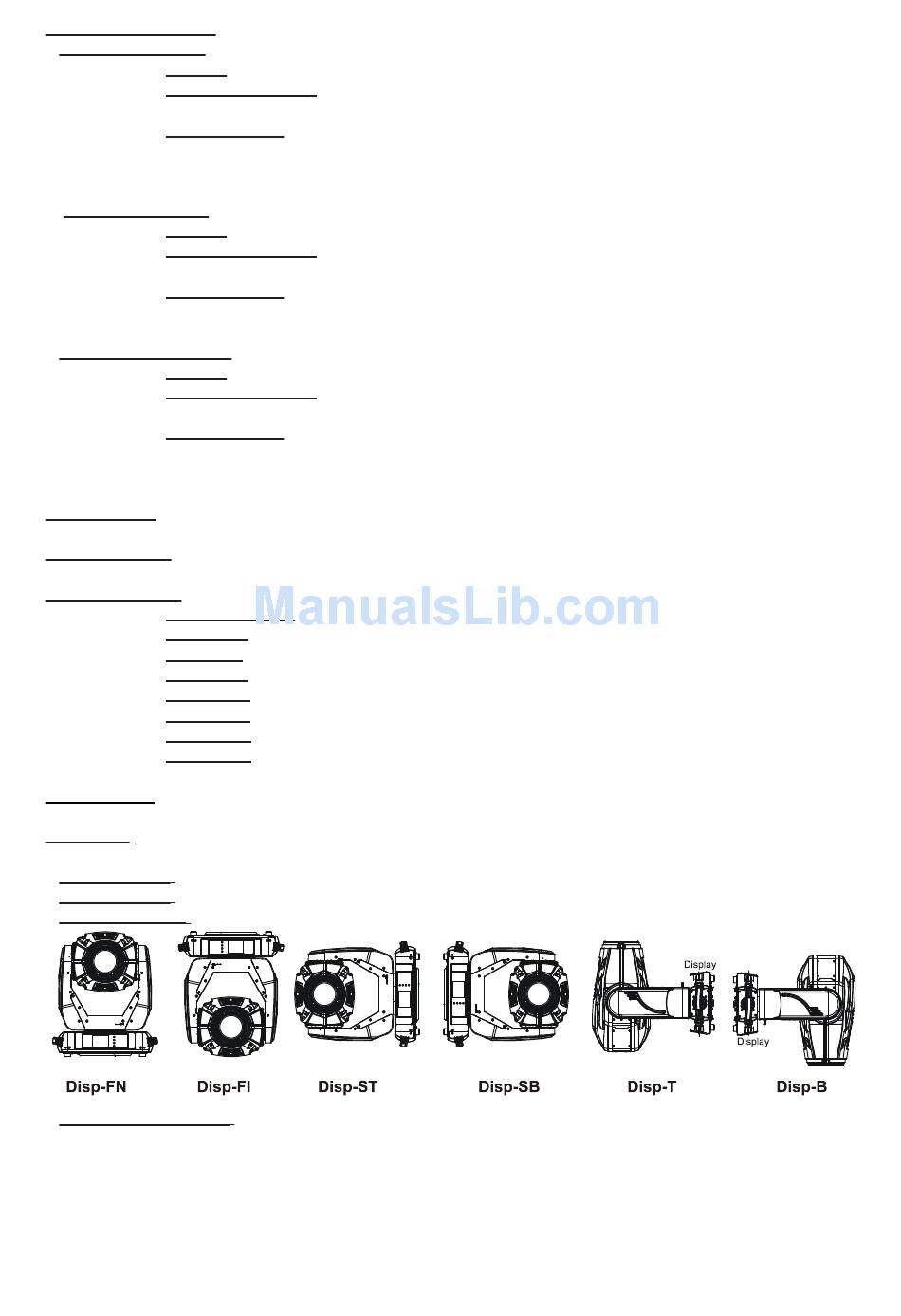

Fixture Position - Recorded installation positions of the fixture:
Fixture Temperatures - Recorded temperatures which have exceeded defined levels.
Note: The log buffer can contain 8000 records max. If the buffer is full, old data will be overwritten.
