Truss installation
1.Bolt clamps (4) to the brackets Omega CL (1) with M12 bolts and lock nuts through the hole in the bracket
Omega CL.
2.Fasten the brackets Omega CL on the bottom of the base by means of the quick-lock fasteners (2) and tighten
them fully clockwise.

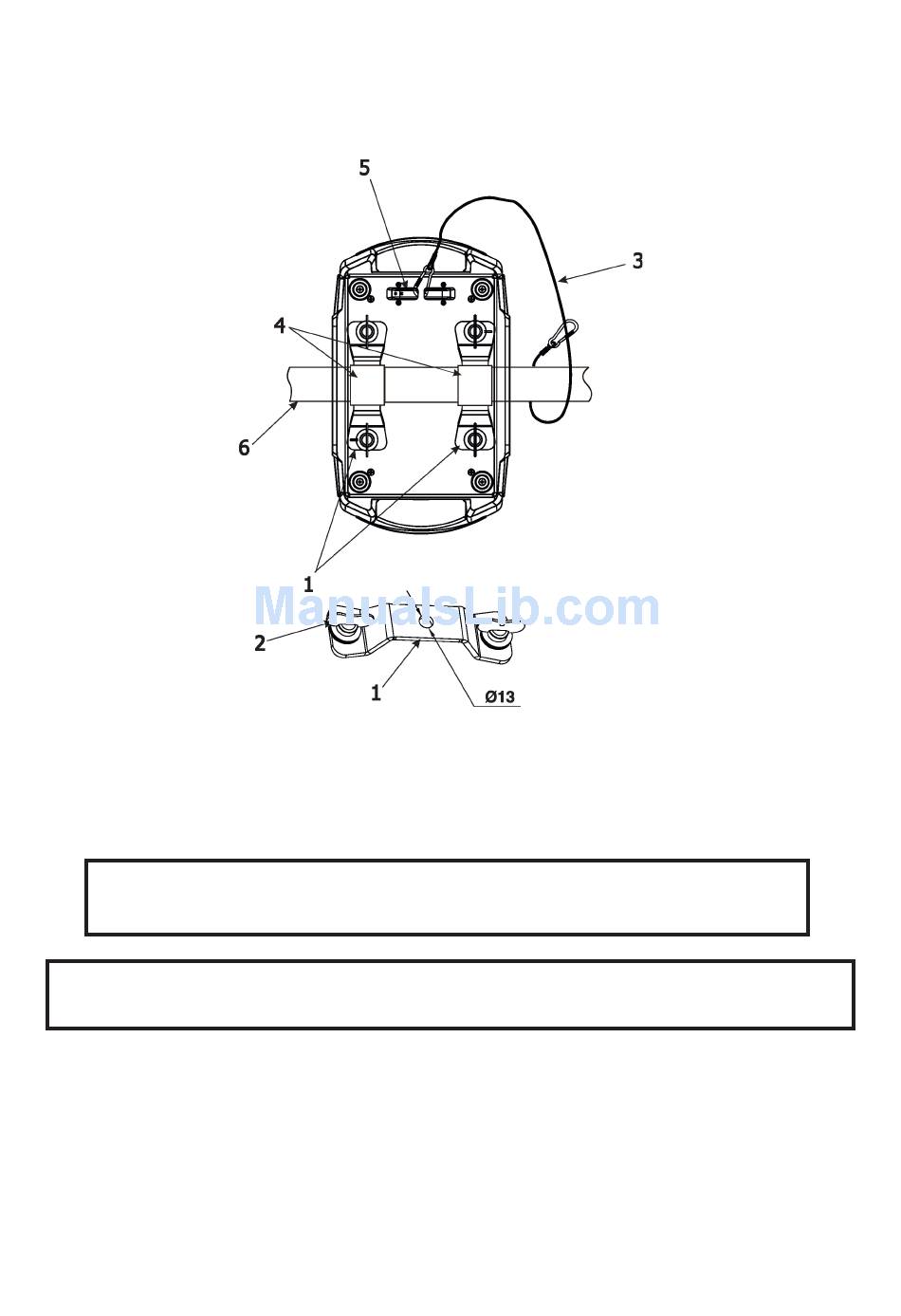

3. Fasten the safety cable in the attachment point (5) and around the truss (6) as shown on the picture below.
1-Mounting bracket Omega CL
2-Quick-lock fasteners
3-Safety wire
4-Clamps
5-Attachment point
6-Truss
In order to protect the internal parts of the head from the sun, the function
HOME POSITION must be switched ON before switching the fixture off.
The HOME POSITION function is located on the Power/Special functions channel (120-129 DMX). If the func-
tion is on, the fixture will automatically detect via G-sensor whether the fixture is on the floor or hangs on the
truss or is mounted sideways on the truss and moves the pan and tilt to the position (including movement of
zoom and focus lenses to the front part of the head) in which the front lens of the head will always face down.
Owing this position of the fixture head, there is not chance to burn internal parts of the head by the sun light.
When installing fixtures side-by-side,
avoid illuminating one fixture with another!
