The head should be locked for transportation - both tilt lock latch (2) and pan lock latch (3) have to be in locked
positions. Move these latches to unlock positions before operating the fixture.
The ENTER/DISPLAY ON button also serves for switching the display on when the fixture is disconnected
from the mains.

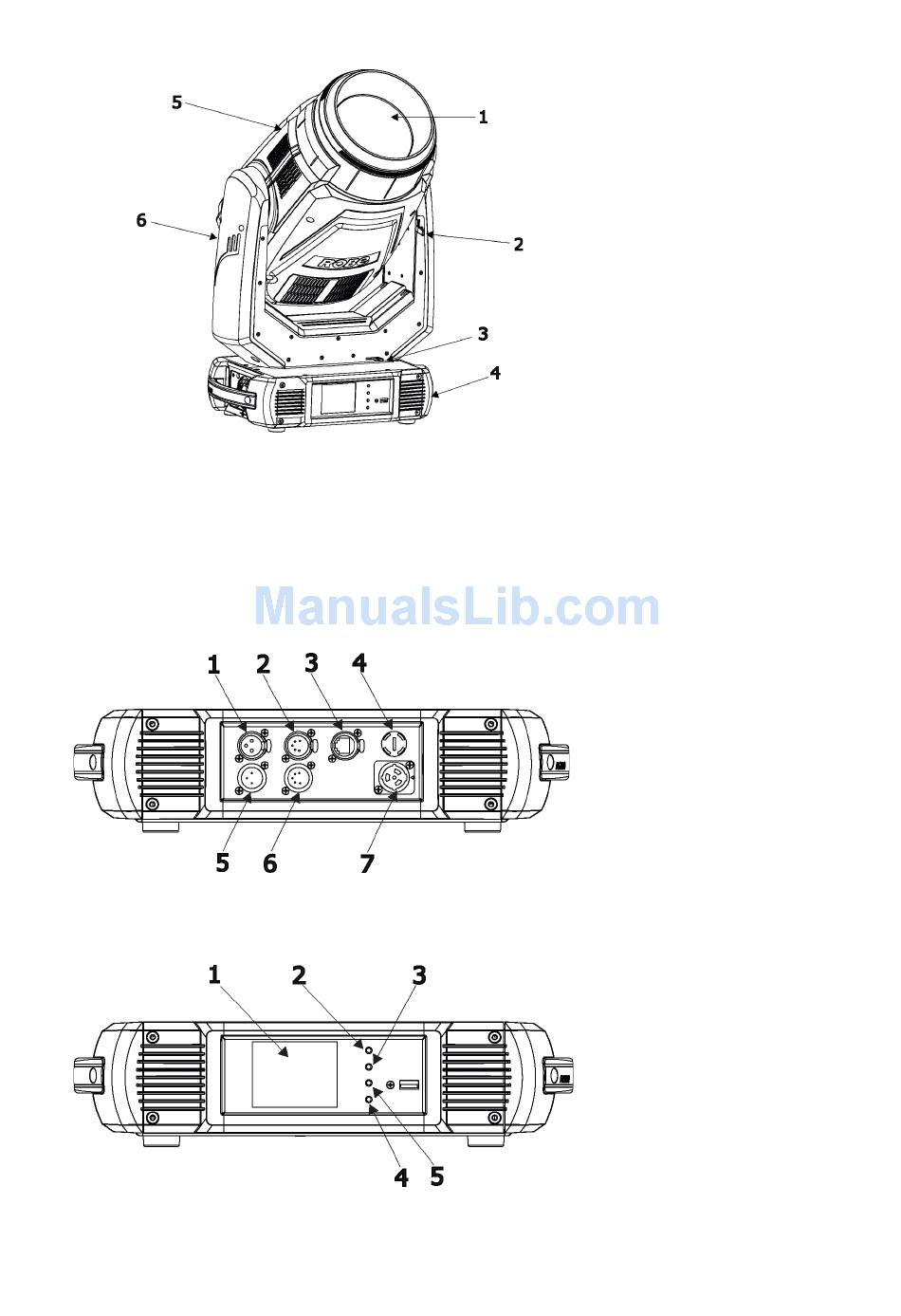

2. Fixture exterior view

5
1 - Front lens
2 - Tilt lock
3 - Pan lock
4 - Base
5 - Moving head
6 - Arm
Rear panel of the base:
1 - 3-pin DMX Out
2 - 5-pin DMX Out
3 - Ethernet
4 - Fuse holder
5 - 3-pin DMX In
6 - 5-pin DMX In
7 - Power
Front panel of the base:
1 - QVGA touch screen
2 - ESCAPE button
3 - NEXT button
4 - ENTER/DISPLAY ON button
5 - PREV button
