Version 1.3
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ROBIN iParfect 150 RGBA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Robe ROBIN iParfect 150 RGBA

Summary of Contents for Robe ROBIN iParfect 150 RGBA

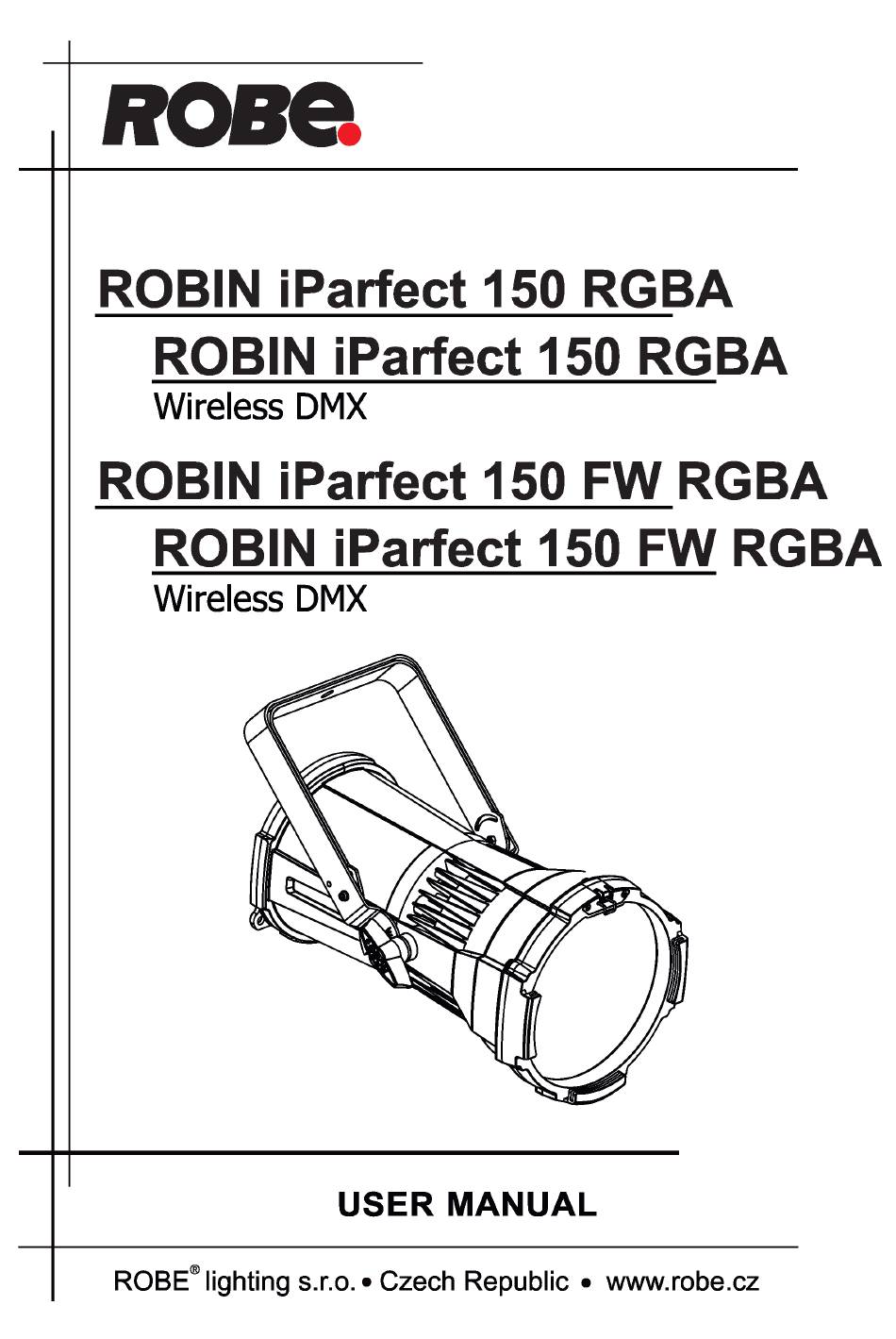

  • Page 1 Version 1.3...

  • Page 2: Table Of Contents

    ROBIN iParfect 150 RGBA ROBIN iParfect 150 WF RGBA Table of contents 1. Safety instructions ......................3 2. Fixture exterior view ...................... 5 3. Installation........................6 3.1 Connection to the mains .................... 6 3.2 Installing barndoors and the gel frame ............... 7 3.4 Rigging the fixture ......................

  • Page 3: Safety Instructions

    FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE POWERING OR INSTALLING YOUR iParfect 150 ! Save it for future reference. This device has left our premises in absolutely perfect condition. In order to maintain this condition and to en- sure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this manual.
  • Page 4 Housing of the fixture should never be covered with cloth or other materials. This fixture should not be placed in a built-in installation unless proper ventilation is provided. Only operate the fixture after having checked that the housing is firmly closed and all screws are tightly fastened. Make sure that the area below the installation place is blocked when rigging, derigging or servicing the fixture.

  • Page 5: Fixture Exterior View

    2. Fixture exterior view 1 - Mounting bracket 2 - Tilt locks 3 - Lens array with transparent glass cover 4 - Accessory frame adaptor 5 - Mounting hole for clamp 6 - Attachment point for accessories 7 - DMX OUT (with sealing cover)* 8 - Mains IN (with sealing cover)* 9 - Mains OUT (with sealing cover)* 10 - DMX IN (with sealing cover)*...

  • Page 6: Installation

    3. Installation Fixtures must be installed by a Qualified electrician in accordance with all national and local electrical and construction codes and regulation. 3.1 Connection to the mains For protection from electric shock, the fixture must be earthed! The iParfect 150 is equipped with auto-switching power supply that automatically adjusts to any 50-60Hz AC power source from 100-240 Volts.

  • Page 7: Installing Barndoors And The Gel Frame

    3.2 Installing barndoors and the gel frame Disconnect the fixture from mains before barndoors and the gel frame installation! 1. Unlock the spring lock (1) of the accessory frame adaptor (2) via pushing this spring lock as show red arrows on the picture.
  • Page 8 Note: the barndoors can be rotated to desired position and secured in this position via the securing screw (5).

  • Page 9: Rigging The Fixture

    3.4 Rigging the fixture A structure intended for installation of the fixture(s) must safely hold weight of the fixture(s) placed on it. The structure has to be certificated to the purpose. The fixture must be installed in accordance with national and local electrical and construction codes and re- gulation.
  • Page 10 For securing the fixture to the truss, install a safety wire which can hold at least 10 times the weight of the fixture. Use only the safety wire with snap hooks with screw lock gates. Fasten the safety cable around the truss and the mounting bracket as shown on the picture below.

  • Page 11: Dmx-512 Connection

    3.5 DMX-512 connection The fixture is equipped with 5-pin XLR sockets for DMX input and output. Only use a shielded twisted-pair cable designed for RS-485 and 5-pin XLR connectors in order to connect the controller with the fixture and fixtures each other.

  • Page 12: Wireless Dmx Operation

    3.6. Wireless DMX operation The wireless DMX version of the fixture is equipped with the Lumen Radio CRMX module and antenna for receiving DMX signal. CRMX module operates on the 2.4 GHz band. To link the fixture with DMX transmitter. The fixture can be only linked with the transmitter by running a link procedure on DMX transmitter .

  • Page 13: Control Menu Map

    4. Control menu map Default settings=Bold print Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Level 7 DMXA Set DMXA 001-512 DMX Pres Mode 1 Mode 2 Mode 3 Info POn Time Total Reset DMX In Powr 0-255 Dim F...
  • Page 14 Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Level 7 Prog 1 Prog 3 Pr Edit Prog 1 Step 1 Powr Prog 2 Prog 3 Step 40 F.Tim 0-25.5 S.Tim 0-25.5 COPY Prg En 1-40 Reset Special RDM Low RDM Hight...

  • Page 15: Control Menu (Standard And Easy Control Mode)

    5. Control menu (Standard and Easy control mode) The iParfect 150 is equipped with 2-row LCD display which allows to set the fixture´s behaviour according to your needs, obtain information on its operation, control all range of effects and program it in stand-alone mode. The four control buttons have the following functions according to the control mode: Standard control mode (default setting) - ESCAPE button used to leave the menu without saving changes.

  • Page 16: Addressing (Dmxa)

    The following menu items are accessible in the Standard control mode only. 5.1 Addressing (DMXA) Set DMXA - Use this menu item to set the DMX start address of the fixture, which is defined as the first channel from which the iParfect 150 will respond to the controller. If you set, for example, the address 31, the iParfect 150 will use channels 31 - 48 for control (if Mode 1 is selected).

  • Page 17: Manual Control (Manual)

    Col. Mix. - Colour mixing mode. This item allows switching into RGBA or CMY mode. In the CMY mode, the amber(8bit) and amber (16) bit channels are not active. White P - White Point 8000K. If the function is on, the CTC channel allows to set desired white in range of 8000K-2700K (0 DMX=8000K,64 DMX=5600K, 128 DMX=4200K, 192 DMX=3200K, 255 DMX=2700K).

  • Page 18: Reset Function (Reset)

    4. Press [NEXT] or [PREV] to select the desired item and press [ENTER] button. Now you can edit by [NEXT] or [PREV] buttons the DMX value (0-255) for selected item: Prg En. a total number of the program steps (value 1-40). This value you should be set before starting of programming (e.g.
  • Page 19 If you use the Robe Universal Interface, connect a USB port of your computer with the Robe Universal Interface by means of the USB cable and DMX input of the fixture with the DMX output of the Robe Universal Interface via a DMX cable.

  • Page 20: Rdm

    Another way, how to update software in the fixtures (especially large installation of fixtures) is to use the ROBE Uploader. It is a software for automatized software update of Robe fixtures. It takes advantage of RDM support).

  • Page 21: Error And Information Messages

    7. Error and information messages Short Err The message informs you that short circuit has occured on the LED PCB. 8. Technical Specifications Electrical Power supply: electronic auto-ranging Input voltage range: 100-240V, 50-60Hz Max. power consumption: 180W (power factor=0.96) Fuse:T 3.15A Mains input: CE - max.
  • Page 22 Connection DMX data in/out: 5-pin XLR connectors, Neutrik NC5MX-HD (male), Neutrik NC5FX-HD (female) Power IN/OUT : Neutrik powerCON TRUE1 NAC 3PX Note: mains cable is optional accessories Rigging Via mounting bracket (220° tilt range) Temperatures Maximum ambient temperature : 40° C Maximum surface temperature : 80°...

  • Page 23: Maintenance And Cleaning

    Included items 1 x ROBIN iParfect 150 FW RGBA ( ROBIN iParfect 150 RGBA) 1 x User manual Optional accessories (P/N 10980349) Barndoor for Robin ParFect 150 black (P/N 10980372) Gel Frame for Parfect 150 (P/N 13052276) Mains Cable powerCON TRUE1 In/open ended, EU 2m, Outdoor...

  • Page 24: Replacing The Fuse

    9.1 Replacing the fuse Replace the fuse by a fuse of the same type and rating only. Before replacing the fuse, unplug mains lead! 1. Disconnect the fixture from mains 2. Remove the rear panel (1) from housing by unscrewing the six screws (2). 3.

  • Page 25: Photometric Diagrams

    10. Photometric diagrams iParfect 150 FW RGBA...
  • Page 26 Copyright © 2018-2019 Robe Lighting - All rights reserved Specifications are subject to change without notice. February 12, 2019 Made in ROBE Lighting s.r.o., Palackého 416, 757 01 Valašské Meziříčí, Czech Republic...
  • Page 27 DMX protocol Robin iParfect 150 FW RGBA/Robin iParfect 150 RGBA Version: 1.0 Mode 1-Standard 16-bit, Mode 2 -Reduced 8-bit Mode/channel Type of Function Value control Power/Special functions 0 -19 Reserved (0=default) To activate following functions, stop in DMX value for at least 3 s and shutter must be closed at least 3 sec.
  • Page 28 DMX protocol Mode/channel Type of Function Value control Filter 124 (Dark Green) 31-32 step 33-34 Filter 106 (Primary Red) step 35-36 Filter 111 (Dark Pink) step 37-38 Filter 115 (Peacock Blue) step Filter 126 (Mauve) 39-40 step Filter 117 (Steel Blue) 41-42 step Filter 118 (Light Blue)
  • Page 29 DMX protocol Mode/channel Type of Function Value control 129-130 Filter 778 (Millennium Gold) step 131-132 Filter 793 (Vanity Fair) step 133-235 Raw DMX proportional 236-245 Rainbow effect (with fade time) from slow-> fast proportional 246-255 Rainbow effect (without fade time) from slow-> fast proportional Red/Cyan (8 bit)* 0 - 255...
  • Page 30 Dimmer intensity - fine (16 bit) 0 - 255 Fine dimming (0=default) proportional *Select RGBA or CMY mixing mode on channel "Power/Special functions" . Copyright © 2018 Robe Lighting s.r.o. - All rights reserved All Specifications subject to change without notice Page 4...
  • Page 31 Robin iParfect 150 RGBA/Robin iParfect 150 FW RGBA - colours on Virtual Colour Wheel Green Blue Amber Colour name (DMX) (DMX) (DMX) (DMX) Filter 4 (Medium Bastard Amber) Filter 25 (Sunset Red) Filter 19 (Fire) Filter 26 (Bright Red) Filter 58 (Lavender)
  • Page 32 Green Blue Amber Colour name (DMX) (DMX) (DMX) (DMX) Filter 172 (Lagoon Blue) Filter 194 (Surprise Pink) Filter 180 (Dark Lavender) Filter 181 (Congo Blue) Filter 197 (Alice Blue) Filter 201 (Full C.T. Blue) Filter 202 (Half C.T. Blue) Filter 203 (Quarter C.T. Blue) Filter 204 (Full C.T.
