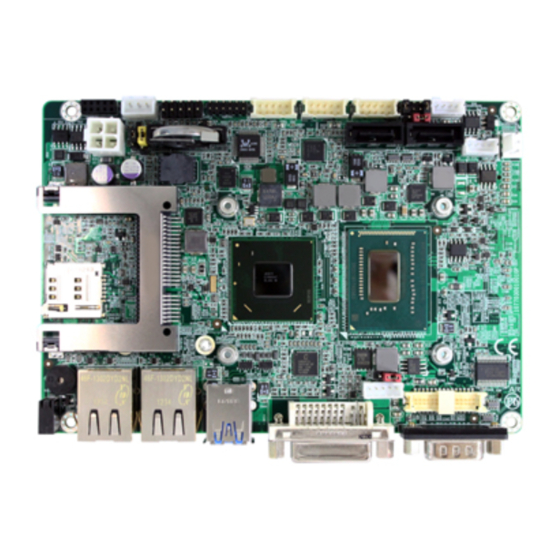

EmCORE-i77M3
Form Factor
3.5" Compact Board
Video
Dual Channel 24-bit LVDS
I/O
CFast/ SATA/ USB/ COM/
micro SIM
♦ Technical Support
If you have any technical difficulties, please consult the user's manual first at:
ftp://ftp.arbor.com.tw/pub/manual
Contact our customer service at the following addresses if your problem persists.
http://www.arbor.com.tw
E-mail: info@arbor.com.tw
♦ Declaration of Conformity
FCC Class A
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions : (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Copyright
All Rights Reserved.
®
CPU
®
Intel
Core™ i7-3517UE
Processor
LAN
®
1 x Intel
82579LM PCIe
PHY with iAMT support,
®
1 x Intel
82583V PCIe
GbE controller
- 1 -
3.5" Compact Board
Quick Installation Guide
Chipset
®
Intel
PCH QM77
Audio
Realtek ALC662 HD Audio
CODEC, MIC-in/ Line-out/
Line-in
4042770300120P
Version 1.2
Advertisement
Table of Contents
Related Manuals for Arbor Technology EmCORE-i77M3
Summary of Contents for Arbor Technology EmCORE-i77M3
-
Page 1: Quick Installation Guide
EmCORE-i77M3 3.5" Compact Board Quick Installation Guide Version 1.2 Form Factor Chipset 3.5" Compact Board ® ® Intel Core™ i7-3517UE Intel PCH QM77 Processor Video Audio Dual Channel 24-bit LVDS Realtek ALC662 HD Audio ® 1 x Intel 82579LM PCIe... -
Page 2: Packing List
Packing List Before starting with the installation, make sure the following items are shipped: 1 x EmCORE-i77M3 3.5" Compact Board with cooler 1 x Driver CD 1 x Quick Installation Guide If any of the aforelisted items is damaged or missing, contact your vendor immediately. - Page 3 Windows 7 Device Driver Path Chipset \EasyBoard-882E\Chipset_INF \EasyBoard-882E\Graphic\32\Win7_Win8_V15.31.3.64.3071 \EasyBoard-882E\Graphic\64\Win7_Win8_V15.31.3.64.3071 \EasyBoard-882E\Ethernet\32\Win7_WIN8 \EasyBoard-882E\Ethernet\64\Win7_Win8 \EasyBoard-882E\Audio\Win7_Win8\32 Audio \EasyBoard-882E\Audio\Win7_Win8\64 Management Engine \EasyBoard-882E\ME\ME_8.0.20.1513 Intel Turbo \EasyBoard-882E\Turbo Boost USB3.0 \EasyBoard-882E\USB3.0\Intel(R)_USB_3.0_win7_32_64_Driver_V1.0.5.235 Windows 8 Device Driver Path Chipset \EasyBoard-882E\Chipset_INF \EasyBoard-882E\Graphic\32\Win7_Win8_V15.31.3.64.3071 \EasyBoard-882E\Graphic\64\Win7_Win8_V15.31.3.64.3071 \EasyBoard-882E\Ethernet\32\Win7_WIN8 \EasyBoard-882E\Ethernet\64\Win7_Win8 \EasyBoard-882E\Audio\Win7_Win8\32 Audio \EasyBoard-882E\Audio\Win7_Win8\64 Management Engine \EasyBoard-882E\ME\ME_8.0.20.1513 Intel Turbo \EasyBoard-882E\Turbo Boost - 3 -...
-
Page 4: Board Dimensions
Board Dimensions 101.96 30.6 95.2 3.38 22.5 Unit: mm - 4 -... -
Page 5: Specifications
Specifications Form Factor 3.5" Compact Board Soldered onboard Intel® Core™ i7-3517UE 1.7 GHz processor Chipset Intel® PCH QM77 1 x 204-pin SO-DIMM socket, supporting up to 8GB 1333/1600MT/s System Memory DDR3 SDRAM Graphics Chipset Integrated Intel® HD Graphics 4000 DVI-I: Analog RBG support up to 2048 x 1536 @60Hz or TMDS support up to 1920 x 1200 via Chrontel CH7318 Graphics Interface... -
Page 6: Jumper Description
Jumpers & Connectors Quick Reference Jumpers Jumper Description JBAT1 Clears/keeps CMOS setting. JPWR1 Sets power mode between AT and ATX. JSATA1 Sets the power for SATA1 pin 7. JRS1 Sets the data transmitting signals for COM2 between RS232, RS422 and RS485. JVLCD1 Sets the power voltage for LVDS1 LCD. - Page 7 Jumper Locations JPWR1 JBAT1 JSATA1 JRS1 JVLCD1 - 7 -...
- Page 8 Connector Locations Board Top SIM1 PWR1 LAN1 JPWR1 ATX1 JBAT1 LAN2 JFRT1 BAT1 AUDIO1 USB1 USB2 USB3 DVI1 SATA2 COM2 INV1 JSATA1 JRS1 CON1 COM1 SATA1 PWROUT1 LVDS1 JVLCD1 CPUF1 - 8 -...
- Page 9 Board Bottom UDIO1 ATA2 ATA1 DIMM1 WROUT1 - 9 -...
- Page 10 Jumpers Connectors ➊ ➀ JPWR1:Sets the power mode between ATX1: Connector for ATX feature AT and ATX. Connector type: 2.54 mm pitch 1x3-pin box wafer connector Jumper type: 2.00 mm pitch 1x3-pin header Description Description PS-ON ATX mode (default) 5V_SB AT mode ②...
- Page 11 ⑩⑦ ⑬ SATA1,2: Serial ATA connectors LVDS1: LVDS LCD panel connector High speed transfer rates (600MB/s). Connector type: ACES 1.25mm 87209-3040-06 * Pin 7 can be set to +5V by JSATA1. connector that supports 24-bit dual channels. Pin Description Pin Description Pin Description Pin Description 2 VDD...
- Page 12 ⑰ USB1: Double-stacked USB ports PWR1: Supplies ATX +12V (Vcore) Connector type: 4-pin power connector Connector type: Two SuperSpeed type-A USB 3.0 connectors Pin Description Pin Description +12V The pin assignments conform to the industry standard. +12V MC1: Mini-card socket ⑱⑲...
