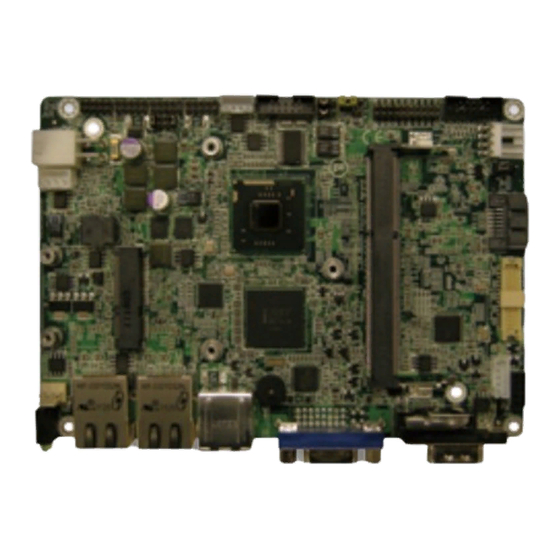

EmCORE-i2501
Form Factor
3.5" Compact Board
Video
Single Channel 18/24-bit
LVDS/ DVI-I
I/O
CFast or NANDrive/
SATA/ USB/ Mini-card/
COM
♦ Technical Support
If you have any technical difficulties, please consult the user's manual first at:
ftp://ftp.arbor.com.tw/pub/manual
Please do not hesitate to call or e-mail our customer service when you still can not
find out the answer.
http://www.arbor.com.tw
E-mail: info@arbor.com.tw
FCC Class A
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions : (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Copyright
2012 All Rights Reserved.
®
CPU
®
Intel
Atom™ N2600 or
D2550 Processor
LAN
®
2 x Intel
82583V PCIe
Gigabit Ethernet
- 1 -
3.5" Compact Board
Quick Installation Guide
Chipset
®
Intel
PCH NM10
Audio
Realtek ALC662 HD Audio
CODEC, Line-in/ Line-out/
Mic-in
4041250100100P
Version 1.0
Advertisement
Table of Contents
Related Manuals for Arbor Technology EmCORE-i2501
Summary of Contents for Arbor Technology EmCORE-i2501
-
Page 1: Quick Installation Guide
EmCORE-i2501 3.5" Compact Board Quick Installation Guide Version 1.0 Form Factor Chipset 3.5" Compact Board ® ® Intel Atom™ N2600 or Intel PCH NM10 D2550 Processor Video Audio Single Channel 18/24-bit Realtek ALC662 HD Audio ® 2 x Intel 82583V PCIe... -
Page 2: Packing List
Packing List Before you begin installing your Compact Board, please make sure that the following materials have been shipped: 1 x EmCORE-i2501 3.5" Compact Board with heatsink 1 x Power cable 1 x Driver CD 1 x Quick Installation Guide If any of the above items is damaged or missing, contact your vendor immediately. -
Page 3: Board Dimensions
Board Dimensions 145.95 (23) 33.51 64.00 Heat sink area 3.35 20.99 18.5 56.95 Heat sink area 87.21 Unit: mm 8.62 DVI Type VGA Type - 3 -... -
Page 4: Specifications
Specifications Form Factor 3.5" Compact Board Soldered onboard Intel® Atom™ N2600 at 1.6GHz or D2550 at 1.86GHz processor Chipset Intel® PCH NM10 1 x 204-pin DDR3 SO-DIMM socket supporting 1066MHz System Memory SDRAM up to 4GB (D2550)/ 2GB (N2600) Graphics Chipset Integrated Intel®... - Page 5 Jumpers & Connectors Quick Reference Jumpers Label Function JAT1 AT/ATX Power Mode Selector JBAT1 Clear CMOS Setting JCV1 COM Port Power Selector JRS1 COM2 RS-232/422/485 Selector JVLCD1 LCD Panel Voltage Selector JV1/2 Volgate/RI Selector for COM1/2 Connectors Label Function 12VIN1 ATX+12V Connector AUDIO1 Audio Connector...
- Page 6 Jumpers Location LED3 JRS1 JCV1 JAT1 JVLCD1 JBAT1 - 6 -...
-
Page 7: Connectors Location
Connectors Location FAN1 EATX1 12VIN1 LED3 JFRT1 LAN1 DIO1 USB1 LAN2 USB2 JCOM1 USB3 COM2 DVI1 COM1 AUDIO1 CFAST1 (bottom side) INV1 LVDS1 SATA1 PWROUT1 - 7 -... - Page 8 Jumpers JVLCD1: LCD Panel Voltage Selector (7) JBAT1: Clear CMOS Setting (1) Connector type: 2.00mm pitch 1x3-pin header Connector type: 2.54mm pitch 1x3-pin header Mode Mode Keep CMOS (default) 3.3V (default) Clear CMOS Connectors JAT1: AT/ATX Power Mode Selector (2) INV1: LCD Inverter Connector (8) Connector type: 2.00mm pitch 1x2-pin header Connector type: 2.00mm pitch 1x5-pin box wafer connector...
- Page 9 USB1/2: USB Connectors (16, 15) PWROUT1: SATA Power Connector (11) Connector type: 2.00mm pitch 2x5-pin header Connector type: 1x4-pin 2.54mm power connector Pin Description Pin Description Pin Description USBD- USBD- USBD+ USBD+ 10 N/C(KEY) AUDIO1: Audio Connector (12) DIO1: Digital I/O Connector (17) Connector type: 2.00mm pitch 2x5-pin box header Connector type: 2.00mm pitch 2x5-pin header Pin Description...
- Page 10 MC1: Mini-card Socket (21) DVI1: DVI-I Display Connector (26) Pin Description Pin Description Pin Description 1 DATA2- 9 DATA1- 17 DATA0- 2 DATA2+ 10 DATA1+ 18 DATA0+ 3 DATA 2/4 SHIELD 11 DATA 1/3 SHIELD 19 DATA 0/5 SHIELD 4 DATA 4- (LINK 1, NC) 12 DATA 3- (LINK 1, NC) 20 DATA 5- (LINK 1, NC) 5 DATA 4+ (LINK 1, NC)
