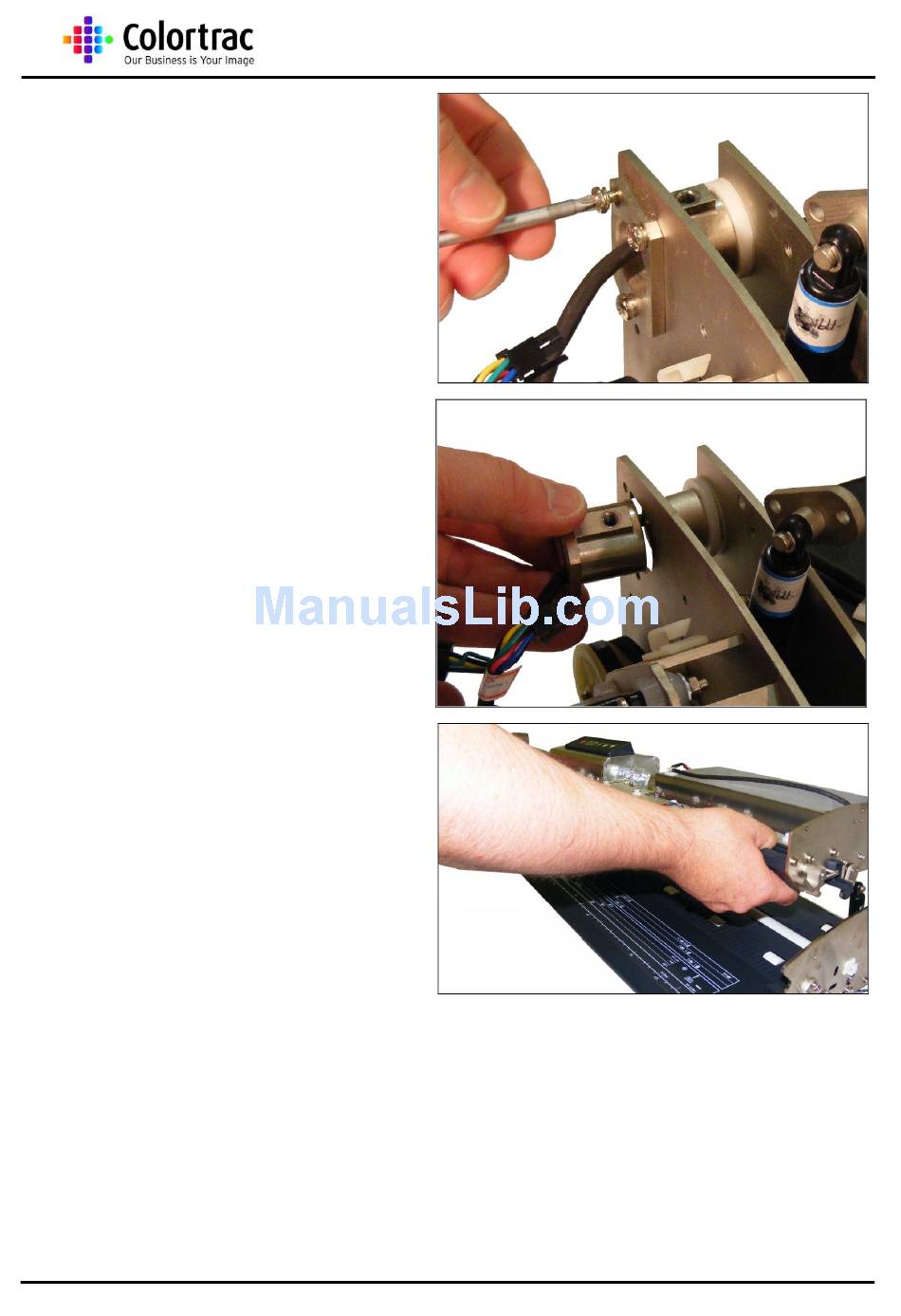

15. Remove the 3 x M5 screws
holding the Left Hinge
Bracket in place.
16. Pull the Right Outer Hinge
Bracket out from the Side
Plate, making sure not to
catch the cable or connector.
17. Gently lift the whole Lid
Assembly up and away from
the scanner. Make sure the
cables and connectors do not
catch on the end plates.
