Microswitch - Colortrac M25e Service Manual

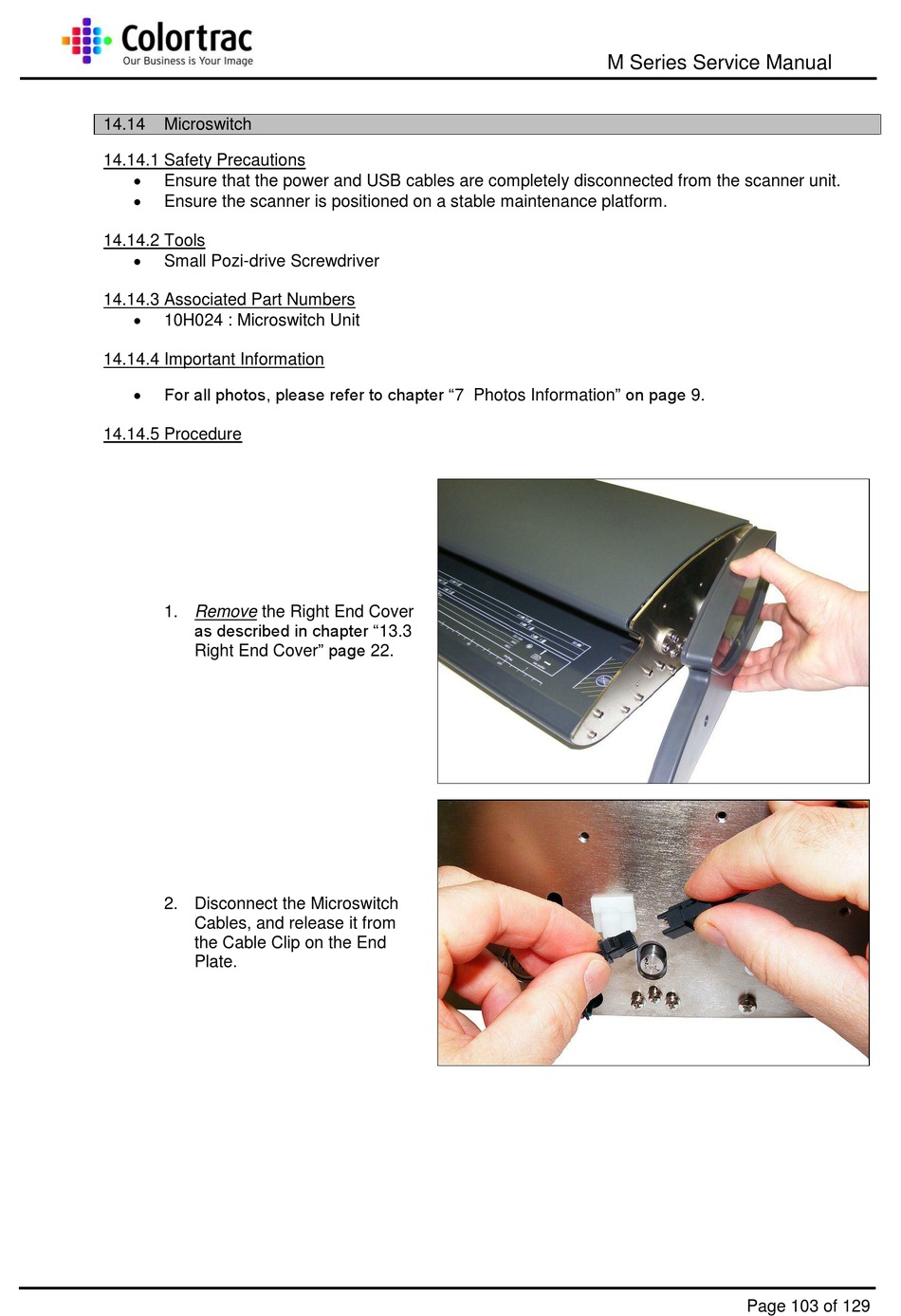

14.14

Microswitch

14.14.1 Safety Precautions

Ensure that the power and USB cables are completely disconnected from the scanner unit.

Ensure the scanner is positioned on a stable maintenance platform.
14.14.2 Tools

Small Pozi-drive Screwdriver
14.14.3 Associated Part Numbers

10H024 : Microswitch Unit
14.14.4 Important Information

For all photos, please refer to chapter "7 Photos Information" on page 9.
14.14.5 Procedure
1. Remove the Right End Cover
as described in chapter "13.3
Right End Cover" page 22.
2. Disconnect the Microswitch
Cables, and release it from
the Cable Clip on the End
Plate.
M Series Service Manual
Page 103 of 129
