INTRODUCTION
Frick® Controls has released the latest version of the
Quantum ™ LX microprocessor board. This brand will

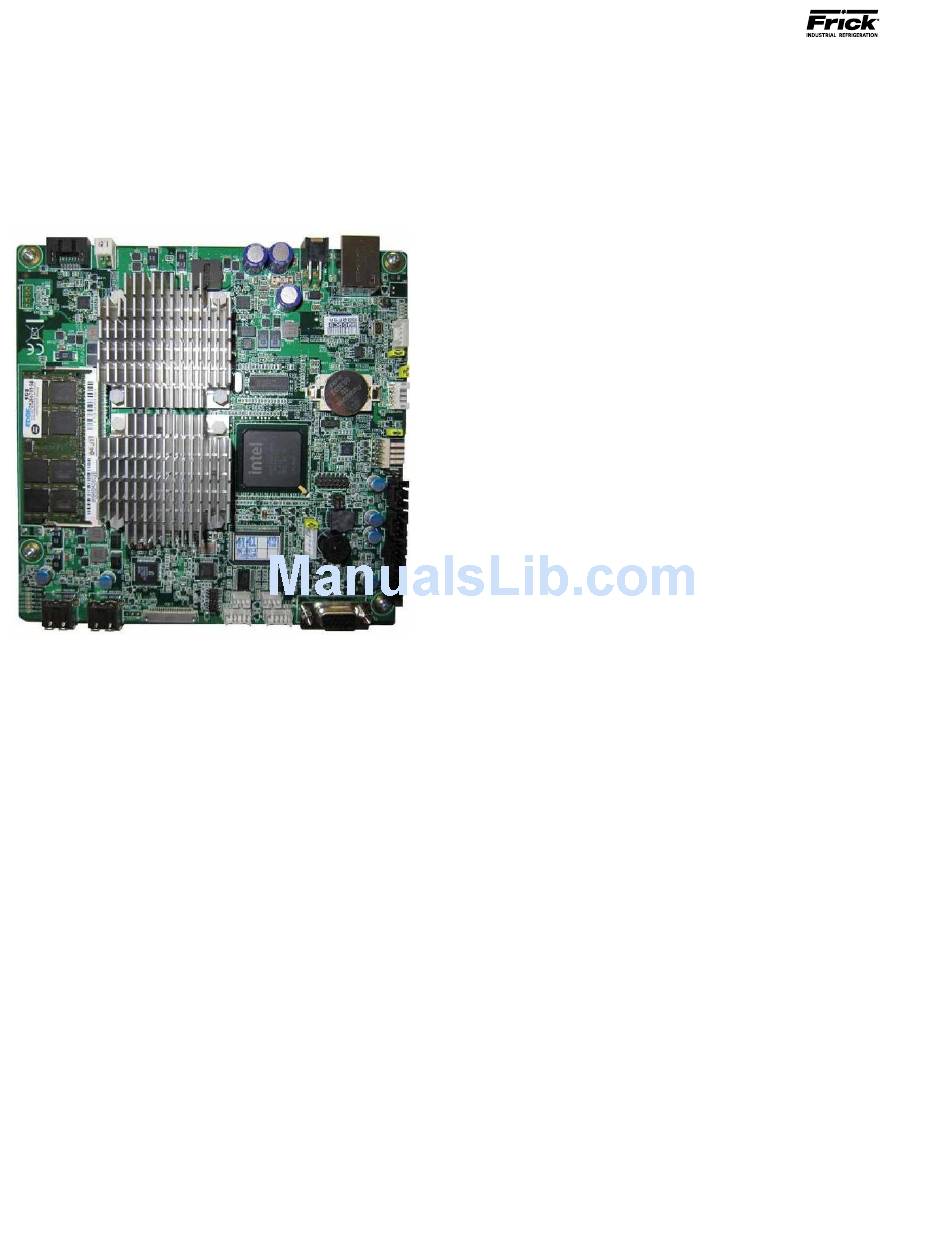

be referred to as the Q5. A photo of this board appears
here:
FEATURES
The Q5 board includes the following features:
• 6 total USB ports (2 are dedicated, 4 are avail-
able)
• 10/100/1000 Mbps Ethernet Connection
• 2 RS-422 ports
• 2 RS-485 ports
• External Video monitor connection
• LED indicators to verify proper operation of
various on board areas (power, communica-
tions, Ethernet connectivity, etc.)
• 2 GB RAM memory
• Battery to maintain date and time
WHAT SHOULD OCCUR WHEN APPLYING POWER
When powering up, the following sequence of events
are indicative of a properly working main processor
board:
• The six LED's in the lower left corner should
turn on solid.
• The on-board "buzzer" should "beep" once.
• The display should show several DOS (text)
style screens. A penguin image will appear
in the upper left corner of the screen as the
boot sequence progresses.
QUANTUM LX EVAPORATOR CONTROL PANEL
™
MAINTENANCE
Q5 CONTROLLER BOARD
• Just before fully booting, a Loading bar will
appear at the bottom of the screen, showing
the percent of load that has completed.
• The Operating Status screen will appear.
After the Q5 has properly powered up, the following
sequence of events is indicative of proper communica-
tion to the analog and digital boards:
• The Analog and Digital I/O boards TX/RX lights
should be blinking.
• Each I/O board should have the power LED
lighted and the Active LED should be blinking.
• The first thing that should be checked when
troubleshooting the Q5 board is its powering
up sequence.
WHAT IF THE OPERATING STATUS SCREEN IS NOT
SHOWN
If the Operating Status screen is not shown, check the
following items:
1. If no LED's are lit, then check AC and DC pow-
er. Refer to the Power Supply section.
2. Check if the lighting of the LED's is occurring
as described in the What Should Occur When
Applying Powering section.
• If the powering up sequence contin-
ues to repeat without displaying the
Operating Status screen, then there
is a booting problem.
3. Check all plugged connectors for proper seat-
ing.
4. Check if an error message is displayed when
booting.
• Be sure to write down any error
messages exactly as they appear,
as well as the top line on the screen
where the message appears.
5. Check that the software is OK:
• Is the correct software installed?
• Did you just install new software?
