XYZ Printing da Vinci Jr. Pro X+ Quick Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

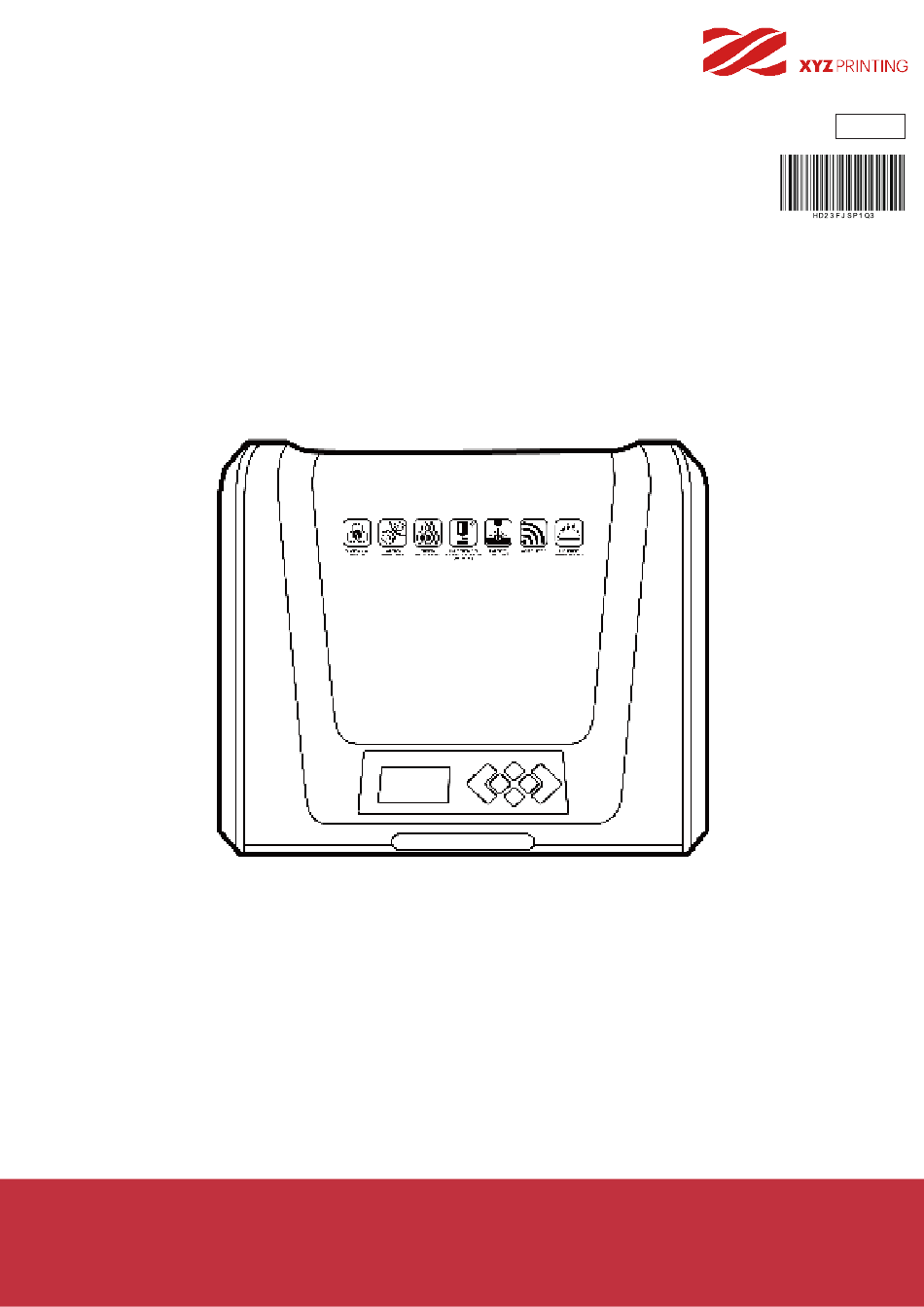

da Vinci
Jr. Pro X+
EN
da Vinci Jr. Pro X+
Quick Guide
P 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the da Vinci Jr. Pro X+ and is the answer not in the manual?

Questions and answers

Related Manuals for XYZ Printing da Vinci Jr. Pro X+

Summary of Contents for XYZ Printing da Vinci Jr. Pro X+

  • Page 1 da Vinci Jr. Pro X+ da Vinci Jr. Pro X+ Quick Guide...
  • Page 2 da Vinci Jr. Pro X+ The purpose of this user manual is to help users understand and use the da Vinci Jr. Pro X+ 3D printer correctly. It contains the operating instructions, maintenance information and application skills of the da Vinci Jr. Pro X+ 3D printer. To learn more about the latest news of the da Vinci Jr.

  • Page 3: Accessory Checklist

    da Vinci Product Overview Jr. Pro X+ A: Filament movement area B: Feed module C: Detector D: Extruder E: Filament F: Print bed G: SD card port (Storage format: FAT32) H: Control and display panel I: Front cover USB Port Power Connector Accessory Checklist Power Switch...

  • Page 4: Unpacking The Product

    Unpacking the Product da Vinci Jr. Pro X+ Open the box and then remove Remove the plastic bag and the tape. the accessories and cushions. Remove the tape and paper cardboard on the Remove the tape on removal print bed. removal print bed.

  • Page 5: Accessories Installation

    da Vinci Jr. Pro X+ Print Bed Installation Note: Please refer to this step if the print bed installed or removed. Please be careful when you remove the print bed. Do not drop it down the ground. Please handle the print bed with Confirm that the print bed is in Engage the two fitting pins while care.

  • Page 6: Filament Installation

    da Vinci Jr. Pro X+ Filament Spool Ring Installation Note: Please refer to this step if the axle ring is not installed on the spool. Insert the spool ring from Remove the genuine filament and chip, Loosen the spool ring mounting both sides of the new filament and then install the sensor chip.
  • Page 7 da Vinci Jr. Pro X+ BUILD (SD CARD) Note: Confirm that the print bed is in place for operation and ensure the front door is closed. (Please refer to the “DOOR SAFETY” section in the “UTILITIES” chapter.) 1 sample models are built into the printer. You may begin your first 3D prints with the samples. To print a sample ：...

  • Page 8: Jog Mode

    da Vinci Jr. Pro X+ HOME AXES “HOME AXES” moves the extruder to the lower left corner. To home axes： HOME AXES HOME AXES ARE YOU SURE? COMPLETED [ OK ] TO RETURN Select “YES” to proceed. Z OFFSET The user may use the Z OFFSET function to adjust the gap between the printing nozzle and the printing bed. When adjusting the gap, use keys to increase or decrease it (the minimum adjustment scale is 0.05mm).
  • Page 9 da Vinci Jr. Pro X+ CALIBRATION Note: Please remove print bed tape before you activate the calibration function on your printer. Calibration is enabled for this new extruder module. Please update printer firmware via XYZmaker Suite before using the new extruder. Results displayed after the print bed calibration: A.

  • Page 10: Change Nozzle

    da Vinci Jr. Pro X+ CHANGE NOZZLE Carry out the CHANGE NOZZLE function before changing modules. Once the extruder module has moved to the operating position, you can turn off the power and change the module. YOU CAN TURN OFF CHANGE NOZZLE REPOSITION NOW POWER &...
  • Page 11 da Vinci Jr. Pro X+ Note: The machine can be turned off only when the cooling fan of the print head stops running after the print is completed. Turning off the power directly may clog the print head. References: Please refer to CLEAN NOZZLE to remove the blocks out of the print head.

  • Page 12: Wireless Printing

    da Vinci Jr. Pro X+ Wireless printing This chapter introduces how to carry out the setting correctly and to operate the wireless printing function. To understand if your product is designed with wireless printing function, please refer to the table below. ●da Vinci 1.1 Plus ●da Vinci Jr 1.0w ●da Vinci Jr.
  • Page 13 da Vinci Jr. Pro X+ Once the connection method has been changed from USB If you need to stop or change the wireless setting, please to WiFi, you can unplug the USB cable and continue with click [Connect to new network / Disconnect]. the printing process.
  • Page 14 da Vinci Jr. Pro X+ Open Filament Load the filament from the back In the printer, insert the filament into the If you’re using third party filaments, feed port. Open the release arm so that of the printer. please secure the filament using the front tip of the filament can be the holder.

  • Page 15: Open Mode

    da Vinci Jr. Pro X+ OPEN MODE XYZprinting’s Pro series 3D printers support different filament chips. If you have multiple 3D printers at the same time, but only have one type of filament chip in your hand, you can refer to the instruction of the Open Filament section in User Manual and load the filament directly.

  • Page 16: Specifications

    da Vinci da Vinci Jr. Pro X+ 3D Printer Jr. Pro X+ Model Name da Vinci Jr. 1.0 Pro X+ Dimensions 16.54 x 16.93 x 14.96 inches （ 420 x 430 x 380 mm ） Weight 26.46 lbs (12kg) Display 3.4”...
