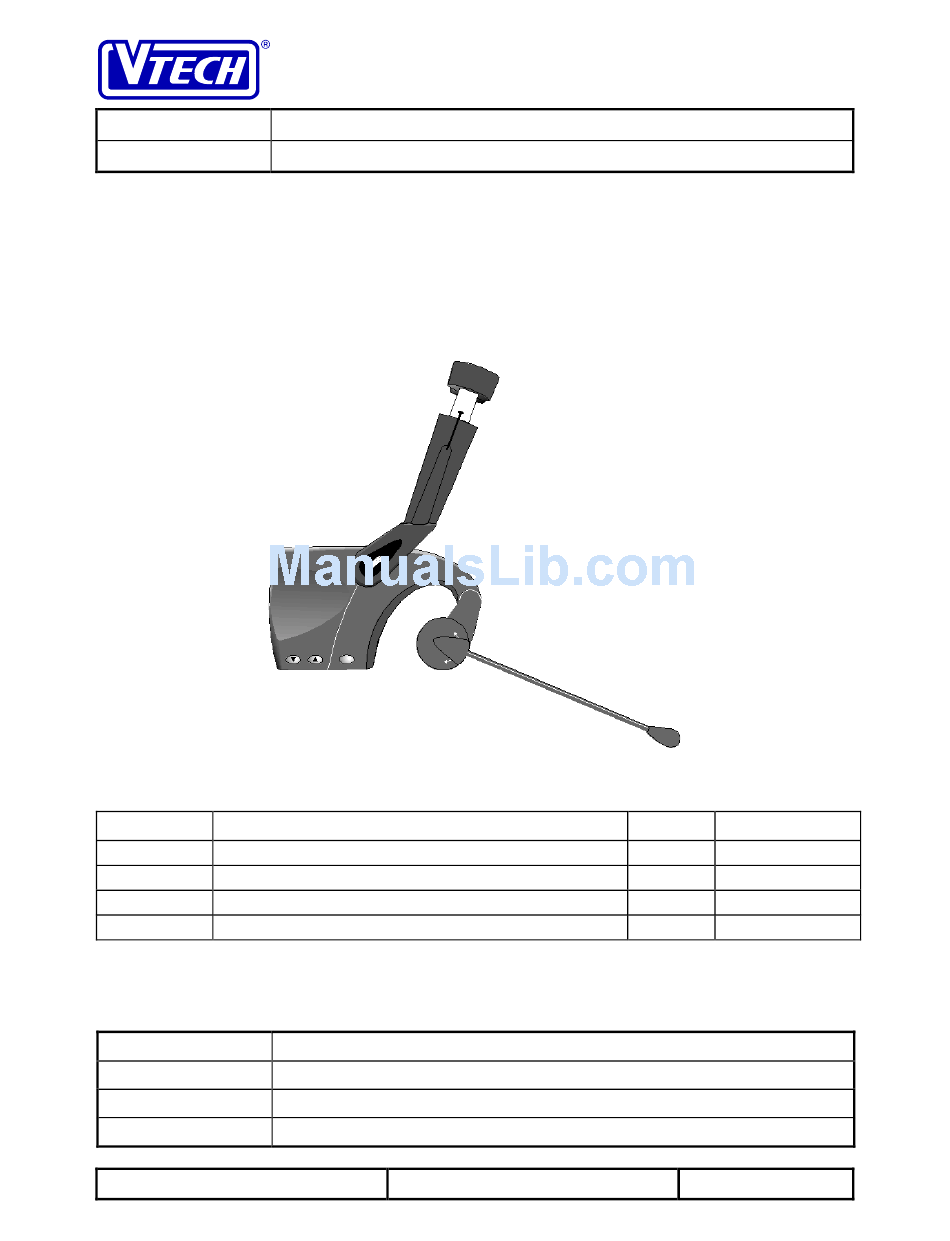

Vth1930 wireless headset phone w/ir remote dialcard, corded dialing base, and remote charge stand
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TITLE
MODEL
VTH1930 Wireless Headset Phone
w/IR Remote Dialcard, Corded Dialing Base,
Revision History:
Revision
Description
1
Initial Release.
All rights reserved. No part of this document may be reproduced, loaned, or transmitted in any form or by
any means without authorization in accordance with Vtech policies and administrative procedures. This
document remains the property of Vtech Engineering Canada Ltd., and must be returned upon request.
Prepared By
Title
Approved by
Title
Reference: PRC 00B6
This document is proprietary to V
Specifications are preliminary and are subject to change without notice.
V
E
TECH
NGINEERING
Product Specification
VTH1930 (Wireless Headset Phone)
and Remote Charge Stand
VTH1930
VOLUME
FLASH
Ralph Tischler
Project Manager
Gary Rogalski
Engineering Manager
E
C
TECH
NGINEERING
ANADA
C
ANADA
Page
Revision: 0
L
.
TD
L
.
TD
Effective Date
All
Aug 14/98
Page: 1 of 31
21146

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VTH1930 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VTech VTH1930

Summary of Contents for VTech VTH1930

  • Page 1 All rights reserved. No part of this document may be reproduced, loaned, or transmitted in any form or by any means without authorization in accordance with Vtech policies and administrative procedures. This document remains the property of Vtech Engineering Canada Ltd., and must be returned upon request. Prepared By...

  • Page 2: Table Of Contents

    TECH NGINEERING ANADA TITLE Product Specification MODEL VTH1930 (Wireless Headset Phone) CONTENTS OVERVIEW ............................... 4 ..........................4 ENERAL ESCRIPTION ......................... 4 EGULATORY TANDARDS ............................. 4 EATURE 1.3.1 Basic Features ............................4 1.3.2 Unique Features ........................... 5 1.3.3 Features Not Provided ......................... 6 ............................
  • Page 3 TECH NGINEERING ANADA TITLE Product Specification MODEL VTH1930 (Wireless Headset Phone) 2.3.19 Tone/pulse switch ......................... 14 LED I ...................... 14 EMOTE HARGER NDICATORS 2.4.1 CHARGE STATUS LED ........................14 OPERATING MODES ............................ 15 & R ...................... 15 EADSET EMOTE IALCARD 3.1.1...

  • Page 4: Overview

    & features of the VTH1930 wireless headset phone (WHS). General Description The VTH1930 is a wireless headset telephone that is based upon our PDL ADPCM core platform. The headset unit is accompanied with an Infrared dialcard, a dialing base unit with corded handset and a separate headset charging station.

  • Page 5: Unique Features

    TECH NGINEERING ANADA TITLE Product Specification MODEL VTH1930 (Wireless Headset Phone) • Non-volatile storage of security code at base unit protects against power failure • In-the-dark answering of incoming calls 1.3.2 Unique Features • Headset Binaural Sound using two receivers (non HAC) •...

  • Page 6: Features Not Provided

    TECH NGINEERING ANADA TITLE Product Specification MODEL VTH1930 (Wireless Headset Phone) 1.3.3 Features Not Provided • Will not have stutter dial detection. • Will not have MUTE function on headset (accomplished by HOLD condition only). • Will not have CID display in the base unit (provided in future models).

  • Page 7: The Base Unit Cosmetics

    TECH NGINEERING ANADA TITLE Product Specification MODEL VTH1930 (Wireless Headset Phone) 1.4.1 The Base Unit Cosmetics POWER SPARE BAT MESSAGE WAITING EXT IN USE 1 1 1 1 2 2 2 2 3 3 3 3 5 5 5 5...

  • Page 8: Headset Unit Cosmetics

    TECH NGINEERING ANADA TITLE Product Specification MODEL VTH1930 (Wireless Headset Phone) 1.4.2 Headset Unit Cosmetics VTH1930 FLASH VOLUME Reference: PRC 00B6 Revision: 0 Page: 8 of 31 This document is proprietary to V TECH NGINEERING ANADA 21146 Specifications are preliminary and are subject to change without notice.

  • Page 9: Remote Dialcard Cosmetics

    TECH NGINEERING ANADA TITLE Product Specification MODEL VTH1930 (Wireless Headset Phone) 1.4.3 Remote Dialcard Cosmetics Reference: PRC 00B6 Revision: 0 Page: 9 of 31 This document is proprietary to V TECH NGINEERING ANADA 21146 Specifications are preliminary and are subject to change without notice.

  • Page 10: Remote Charger Cosmetics

    TECH NGINEERING ANADA TITLE Product Specification MODEL VTH1930 (Wireless Headset Phone) 1.4.4 Remote Charger Cosmetics Reference: PRC 00B6 Revision: 0 Page: 10 of 31 This document is proprietary to V TECH NGINEERING ANADA 21146 Specifications are preliminary and are subject to change without notice.

  • Page 11: Functional Key And Led Indicator Descriptions

    TITLE Product Specification MODEL VTH1930 (Wireless Headset Phone) Functional Key and LED Indicator Descriptions This section will provide a short description of the key and switch functions as well as any LED indicators which may appear on the headset or base units.

  • Page 12: Off Key

    ANADA TITLE Product Specification MODEL VTH1930 (Wireless Headset Phone) 2.2.3 OFF KEY Press this key to exit all modes. The OFF key will cause the unit to exit only the mode that the phone is in at the time. 2.2.4 MEM KEY Press this key during the off-hook state to access speed dial numbers.

  • Page 13: Message Waiting Led

    TITLE Product Specification MODEL VTH1930 (Wireless Headset Phone) 2.3.4 MESSAGE WAITING LED This LED will flash whenever the base has received a VMWI signal from the C.O.. It will remain in this state until either the cancel VMWI signal is received from the C.O.

  • Page 14: Redial Key

    ANADA TITLE Product Specification MODEL VTH1930 (Wireless Headset Phone) 2.3.12 REDIAL KEY This automatically dials the last number dialed out from the base unit. To use the REDIAL, the user first goes off and then presses REDIAL. Pressing REDIAL will generate a base keybeep.

  • Page 15: Operating Modes

    TITLE Product Specification MODEL VTH1930 (Wireless Headset Phone) Operating Modes The following section will outline in detail the operation of the product in particular modes in accordance to various stimuli. Some sections will describe the operation of various elements in response to different operating modes.

  • Page 16: Headset Idle Mode, Placed On Remote Charger

    TECH NGINEERING ANADA TITLE Product Specification MODEL VTH1930 (Wireless Headset Phone) Base Action Response CORDED HANDSET LIFTED CORDED HANDSET OFF-HOOK SWITCH HOOK FLASHED NO ACTION HOLD KEY ON-HOLD INTERCOM NON-INTRUSIVE PAGING TO HEADSET ACCEPT MEM LOCATION REDIAL DIAL OUT CONTENTS OF REDIAL BUFFER...

  • Page 17: Headset Idle Mode, Headset Not Placed On Remote Charger And With The Mic Boom Switch In The Down Position

    TITLE Product Specification MODEL VTH1930 (Wireless Headset Phone) 3.1.3 Headset IDLE Mode, Headset NOT Placed On remote Charger and with the Mic Boom Switch in the DOWN Position The response to stimuli of the headset while in idle mode, NOT resting on the remote charger...

  • Page 18: Headset In Hold Mode, Off Charger, Mic Boom Down

    TECH NGINEERING ANADA TITLE Product Specification MODEL VTH1930 (Wireless Headset Phone) Headset Action Response MIC BOOM TO DOWN OFF-HOOK POSITION FLASH KEY NO ACTION (No Keybeep) VOLUME UP/DOWN NO ACTION (No Keybeep) EXCEPT TEMPORARY HEADSET RINGER MUTING DURING INCOMING RINGING...

  • Page 19: Headset In Hold Mode, Off Charger, Mic Boom Up

    NGINEERING ANADA TITLE Product Specification MODEL VTH1930 (Wireless Headset Phone) 3.1.6 Headset in HOLD Mode, OFF Charger, Mic Boom UP The response to stimuli of the headset while in HOLD mode is outlined below: Remote Dialcard Action Response ANY KEY...

  • Page 20: Base Unit

    TECH NGINEERING ANADA TITLE Product Specification MODEL VTH1930 (Wireless Headset Phone) Base Action Response INTERCOM NO ACTION (No Keybeep) RETURN BASE CORDED TO EXIT INTERCOM & RETURN TO PREVIOUS MODE CRADLE QUICK MEM EXIT INTERCOM, ENTER PHONE MODE AND DIAL OUT...

  • Page 21: Base Idle Mode, Corded Headset Placed In Cradle, Headset In Idle Mode

    TECH NGINEERING ANADA TITLE Product Specification MODEL VTH1930 (Wireless Headset Phone) MIC BOOM TO UP POSITION HEADSET EXIT PHONE MODE FLASH KEY NO LINE FLASH VOLUME UP/DOWN INCREMENT/DECREMENT VOLUME SETTING (no keybeep) 3.2.2 BASE IDLE Mode, Corded Headset Placed in Cradle, Headset in Idle Mode The base is always in idle mode when the corded headset is placed in the base cradle.

  • Page 22: Base Idle Mode, Corded Headset Placed In Cradle, Headset In Phone Mode

    TITLE Product Specification MODEL VTH1930 (Wireless Headset Phone) 3.2.3 BASE IDLE Mode, Corded Headset Placed in Cradle, Headset in PHONE Mode The base is always in idle mode when the corded headset is placed in the base cradle. The response to stimuli while in IDLE mode with the headset in PHONE Mode is outlined below:...

  • Page 23: Base In Hold Mode, Corded Headset Picked Up Out Of Cradle

    TECH NGINEERING ANADA TITLE Product Specification MODEL VTH1930 (Wireless Headset Phone) Remote Dialcard Action Response PHONE KEY HOLD CANCELLED - HEADSET PHONE MODE (boom down) HOLD KEY HOLD CANCELLED - HEADSET PHONE MODE (boom down) INTERCOM BASE PAGING ALL OTHER KEYS...

  • Page 24: Base Intercom Mode

    TECH NGINEERING ANADA TITLE Product Specification MODEL VTH1930 (Wireless Headset Phone) Other Stimuli Response HEADSET PAGING BASE PRESS INTERCOM TO INITIATE INTERCOM MODE 3.2.6 Base INTERCOM Mode The base can enter INTERCOM Mode by paging the headset (press INTERCOM key) and having the headset answer the page to initiate INTERCOM.

  • Page 25: "Special" Features & Operating Modes

    ANADA TITLE Product Specification MODEL VTH1930 (Wireless Headset Phone) "Special" Features & Operating Modes This section is also used to describe any special hardware or software features that do not fall under the description of a particular mode. Reference: PRC 00B6...

  • Page 26: Electrical Specifications

    TECH NGINEERING ANADA TITLE Product Specification MODEL VTH1930 (Wireless Headset Phone) Electrical Specifications Operating Conditions Parameter Units °C Operating Temperature Range Base Unit Operating Voltage (AC Voltage, 60Hz) Vrms Base Unit Operating Voltage (AC Adapter Output) Handset Operating Voltage Notes: 1.

  • Page 27: Headset Audio Specifications

    NGINEERING ANADA TITLE Product Specification MODEL VTH1930 (Wireless Headset Phone) Headset Audio Specifications Specifications marked with * are guaranteed at the nominal testing temperature and voltage on all units with the use of automated production test equipment (ATE) Parameter Units...

  • Page 28: Base Corded Audio Specifications

    NGINEERING ANADA TITLE Product Specification MODEL VTH1930 (Wireless Headset Phone) Base Corded Audio Specifications Specifications marked with * are guaranteed at the nominal testing temperature and voltage on all units with the use of automated production test equipment (ATE) Parameter...

  • Page 29: Telephone Line Interface Specifications

    NGINEERING ANADA TITLE Product Specification MODEL VTH1930 (Wireless Headset Phone) Telephone Line Interface Specifications Specifications marked with * are guaranteed at the nominal testing temperature and voltage on all units with the use of automated production test equipment (ATE) Parameter...

  • Page 30: Radio Specifications

    TECH NGINEERING ANADA TITLE Product Specification MODEL VTH1930 (Wireless Headset Phone) Radio Specifications Specifications marked with * are guaranteed at the nominal testing temperature and voltage on all units with the use of automated production test equipment (ATE) Parameter Units...

  • Page 31: Frequency Allocation Tables

    TITLE Product Specification MODEL VTH1930 (Wireless Headset Phone) Frequency Allocation Tables The RF channels for the 910ADL are allocated in fixed pairs as indicated in the tables below. The duplex frequency is maintained at a fixed 22.75MHz for all 10 channels.
