VTech VH6220 Quick Start Manual

Option 1: Connect to IP phone via EHS
Using the EHS cable 1
Connect the headset to a SNOM D3 Series,
or SNOM D735/D785 IP phone

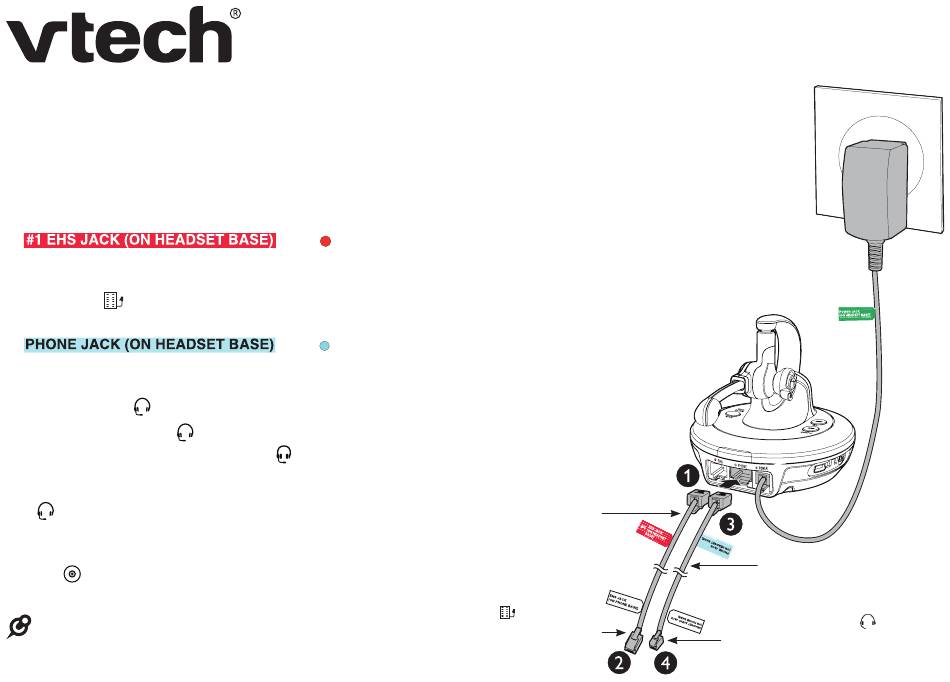

1. Take the EHS cable 1. Plug the end labelled
(red dot) of the headset base.
2. Plug the other end labelled EHS JACK (ON PHONE BASE) to
the EHS jack EXT on your VTech or SNOM phone.
3. Take the Headset audio cable. Plug the end labelled
(blue dot) of the headset base.
4. Plug the other end labelled HEADSET AUDIO JACK (ON PHONE BASE)
to the audio port on your VTech or SNOM phone.
5. On your IP Phone, press
• On the VTech or SNOM IP phone, the
appear on the LCD display.
• On the SNOM D785 series IP Phone. The LED light on the
key will turn on.
Test the headset after connection:
Press the ON/OFF button on the headset to make, answer, or end a call,
using the telephone line to which the IP phone is connected.
NOTE:
• Refer to the user's manual of your VTech or SNOM IP phones for the actual
locations of the EHS jack and audio port.
EHS jack
to the
to the PHONE jack
to turn on the headset mode.
status icon will
EHS cable 1
(for SNOM D305/
D315/ D345/ D375/
D385/ D735/ D785
IP Phone)
To the EHS jack
EXT on SNOM
D305/ D315/ D345/
D375/ D385/ D735/
D785 IP Phone
VH6220
VH6221
Headset
audio cable
To the audio port labelled
on SNOM D305/ D315/ D345/
D375/ D385/ D735/ D785
IP Phone
