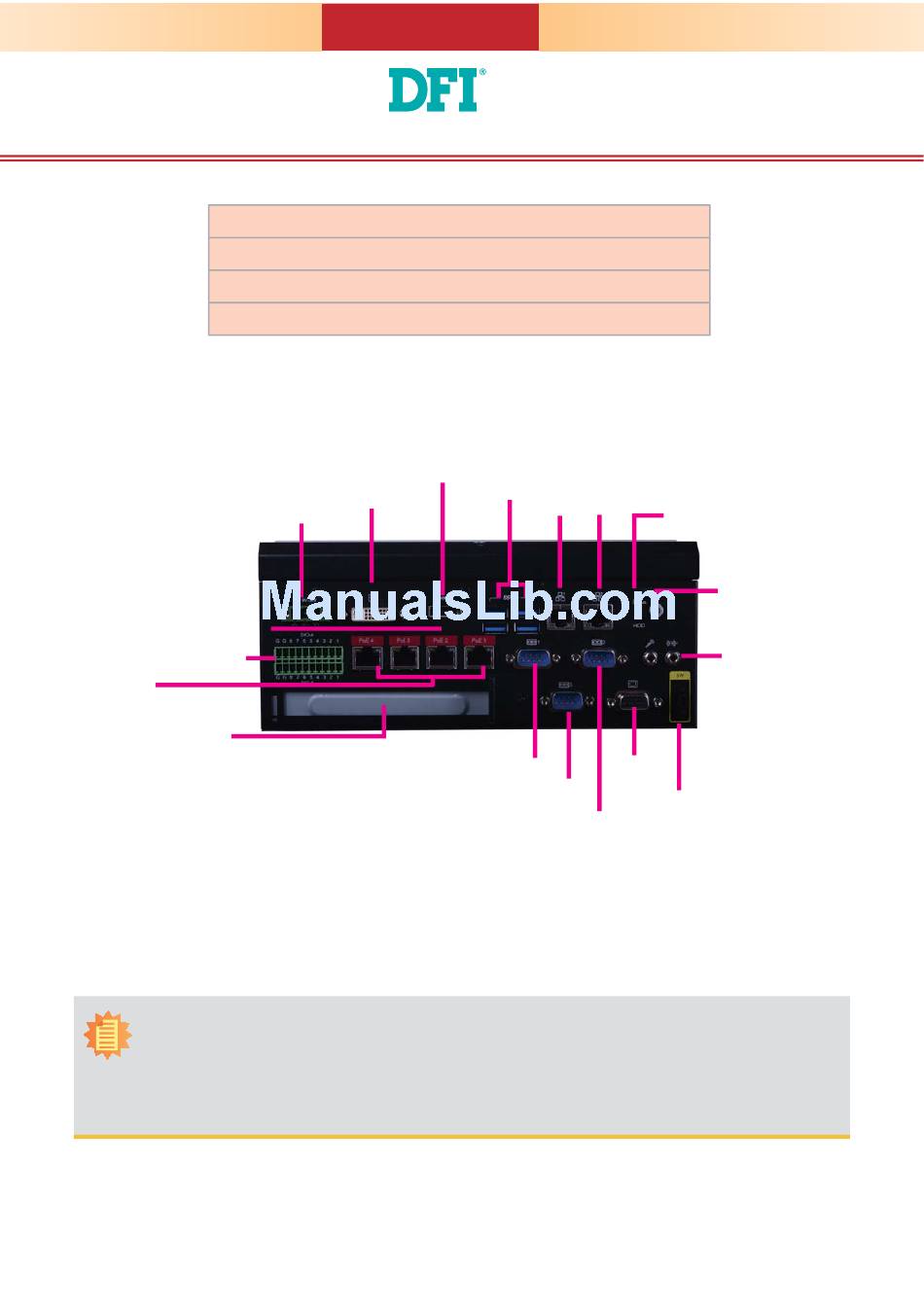

EC510-SD/EC511-SD Installation Guide
• 1 EC510-SD/EC511-SD system unit
• 1 Quick Installation Guide
• 1 CD disk includes:
- Drivers / Manual
Digital IO
(1)(2)
PoE 1~4
or
LAN 3~6
Expansion slot
Notes:
1.
The PoE ports support PoE devices that comply with 802.3af and each port delivers 15.4W of
power to connected devices.
2.
The system may be equipped with 4 Gigabit Ethernet ports without PoE depending on the SKU;
please refer to the Ordering Information for details.
DFI reserves the right to change the specifi cations at any time prior to the product's release. For the latest revision and details of the
installation process, please refer to the user's manual.

Package Contents

Panel
DVI-I
HDMI
(DVI-D signal)
DC-in
www.dfi .com
1
USB 3.0
LAN 1 LAN 2
VGA
COM 1
COM 3
Remote power on/off
COM 2
Status LED (Orange)
HDD LED (Red)
Power Button
with LED (Green)
Mic-in, Line-out

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EC510-SD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for DFI EC510-SD

  • Page 1: Package Contents

    Ordering Information for details. DFI reserves the right to change the specifi cations at any time prior to the product's release. For the latest revision and details of the installation process, please refer to the user's manual.
  • Page 2: Removing The Chassis Cover

    Removing the Chassis Cover Please observe the following guidelines and follow the procedure to open the system. 1. Make sure the system and all other peripheral devices connected to it have been powered off. 2. Disconnect all power cords and cables. 3.
  • Page 3 Installing a 2.5" SATA Drive 1. The SATA HDD bracket is included in the product package. Locate the supporting plate on which the SATA HDD bracket will be mounted. Supporting plate 2. Insert the SATA drive into the HDD bracket and secure it in place with the provided screws (black screws).
  • Page 4 3. Place the SATA drive with the HDD bracket into the system. Align the mounting holes on the HDD bracket with the mounting holes on the supporting plate and use the provided screws to secure the drive in place. Mounting Screw 4.
  • Page 5: Installing A Sodimm

    Installing a SODIMM Grasp the module by its edges and align the SODIMM’s notch with the socket’s key; then insert the SODIMM into the socket at an angle and push it down until the retaining clips snap into place. DIMM2 DIMM1 The installed SODIMM To remove a SODIMM, gently spread the retaining clips at each end of the...
  • Page 6 Installing a Mini PCIe Expansion Card The Mini PCIe sockets are located on the mainboard. You need to revmove the riser card and daughter board to access them. The 2 mounting screws on the supporting bracket of the riser card are used to secure the riser card to the chassis.
  • Page 7 The mainboard is equipped with 2 Mini PCIe slots: one full-size and one half-size slot. Here we will demonstrate the installation of a full-size Mini PCIe card. 1. Grasp the Mini PCIe card by its edges and align the notch in the connector of the Mini PCIe card with the connector's key on the mainboard.
  • Page 8 Installing a PCI or PCIe Expansion Card Important: When inserting expansion cards into the system, please select a standard card within 167.65mm (as shown in the picture below) in order to fi t into the expansion slot. The PCI and PCIe slots on the riser card inside the system are used to install expansion cards.
  • Page 9: Front View

    2. Insert the expansion card into a PCI or PCIe slot on the riser card. Ensure the card is properly seated into the slot and secure the bracket in place. PCI card Front View Note: The EC511-SD has one PCIe x16 slot with the H120-1E riser card, whereas the EC510- SD has one PCI slot with the...
  • Page 10: Board Layout And Jumper Settings

    Board Layout and Jumper Settings Parallel Front Audio S/PDIF Auto Power-on Power Front Select (JP11) DIO Power Button Panel Status LED USB 2.0 USB 2.0 13-14 HDD LED DDR4_2 SODIMM Reset DDR4_1 SODIMM System LAN 2 Fan 1 Clear CMOS Data (JP1) LAN 1 (JP9)
