Communication Example - TDK-Lambda G10-500 User Manual

8.9

Communication Example

This section provides an example of how to communicate with the IEEE option
Supply using the National Instruments™ MAX application.
1. Run the National Instruments™ MAX (Measurement & Automation Explorer).
2. On the side tree, expand My System and select Devices and Interfaces -> "GPIB0".
3. In the GPIB Explorer toolbar, click Scan for Instruments. Refer to Figure 8–4.

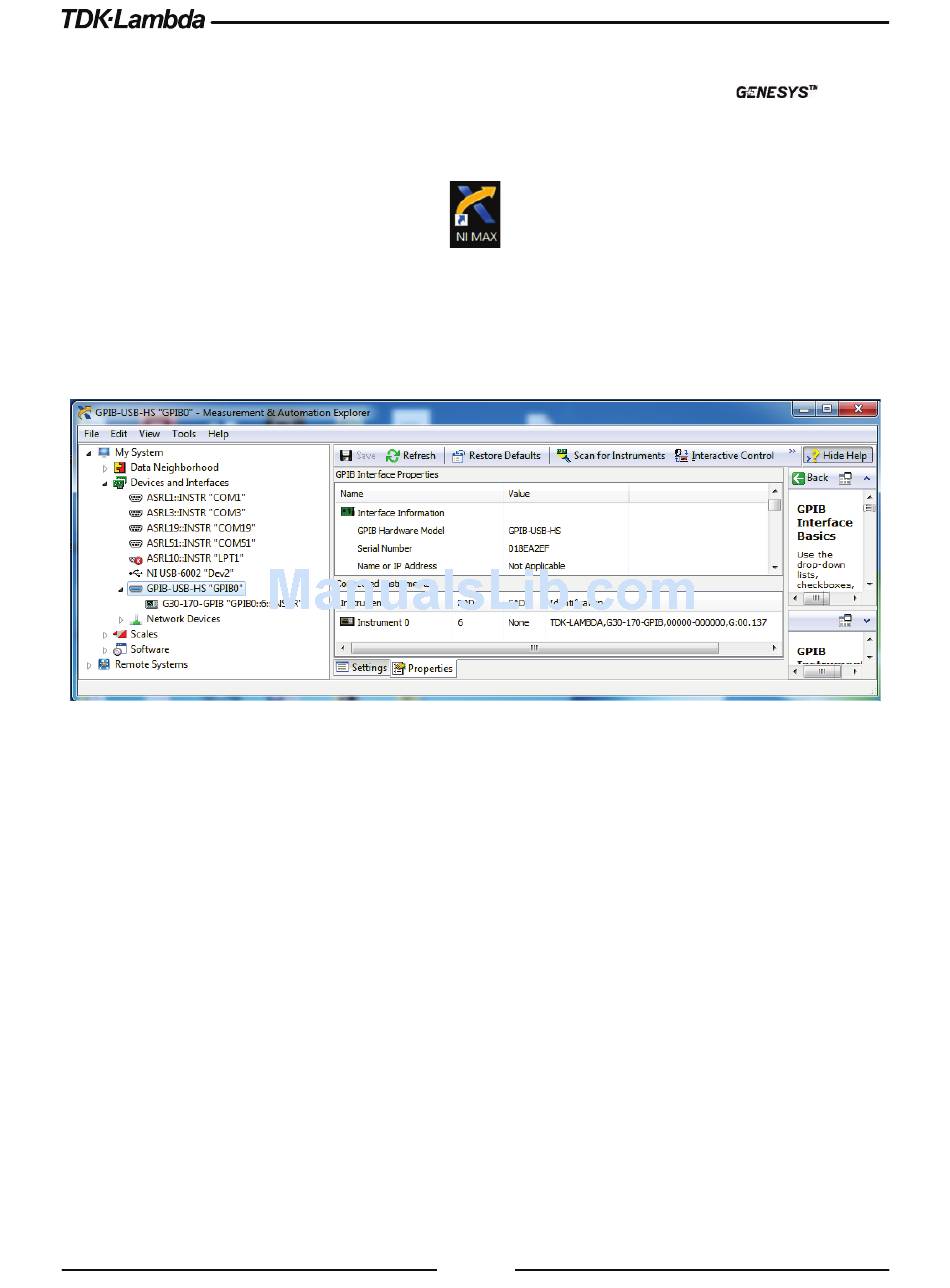

Figure 8–3: National Instruments™ MAX – Desktop Icon
Figure 8–4: Scan for Instruments
