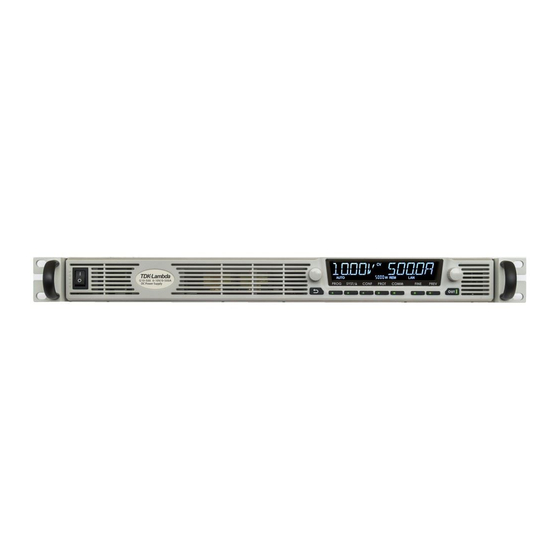

TDK-Lambda G10-500 User Manual

Genesys series programmable dc power supplies 5kw in 1u 0- 600v/ 0-500a
Hide thumbs Also See for G10-500:
Table of Contents

Advertisement

Quick Links

This manual covers models
G10-500
G20-250
G30-170
G40-125
G60-85
Programmable DC Power Supplies
5kW in 1U 0-600V/ 0-500A
Built in LAN, USB, RS-232 & RS-485 Interface
Optional Interface: IEEE488.2 (GPIB)
USER MANUAL
G80-65
G100-50
G150-34
G300-17
G600-8.5
Series
GB10-500
GB20-250
GB30-170
GB40-125
GB60-85
GB80-65
GB100-50
GB150-34
GB300-17
GB600-8.5
IA761-04-02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G10-500 and is the answer not in the manual?

Questions and answers

Related Manuals for TDK-Lambda G10-500

Summary of Contents for TDK-Lambda G10-500

  • Page 1 Series Programmable DC Power Supplies 5kW in 1U 0-600V/ 0-500A Built in LAN, USB, RS-232 & RS-485 Interface Optional Interface: IEEE488.2 (GPIB) USER MANUAL This manual covers models G10-500 G80-65 GB10-500 GB80-65 G20-250 G100-50 GB20-250 GB100-50 G30-170 G150-34 GB30-170 GB150-34...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS CHAPTER 1: SPECIFICATIONS ....................1 5000W Series Specifications ..................1 Standard Unit Low Voltage Outline................5 Standard Unit High Voltage Outline ................6 Blank Panel Unit Low Voltage Outline ............... 7 Blank Panel Unit High Voltage Outline ............... 8 Optional accessories ....................
  • Page 3 Series Operation ....................... 36 3.4.1 Series Connection for Increased Output Voltage ........36 3.4.2 Series Connection for Positive and Negative Output Voltage ....37 3.4.3 Remote Programming in Series Operation ..........37 Daisy-Chain Connection ................... 38 3.5.1 Daisy In Function ..................38 Rear Panel (J1 Connector) Functions ...............
  • Page 4 5.7.2.2 LAN Command Speed ..............61 5.7.3 Select the Control Method ................. 62 5.7.3.1 Control Method Options .............. 62 5.7.3.2 Select LAN Remote Mode ............62 5.7.3.3 LAN Status LEDs ................62 5.7.4 Connect to a Network ................. 63 5.7.4.1 LAN Cable ..................63 5.7.4.2 Types of Networks ...............
  • Page 5 5.10.2 Numeric / Data Type Parameters ............... 88 5.10.3 Command Set Categories ................88 5.10.4 Identification Commands ................89 5.10.5 Initialization Commands ................89 5.10.6 Output Commands ..................90 5.10.7 Global Output Commands ................93 5.10.8 Auxiliary Commands ................... 95 5.10.9 Status Commands ..................
  • Page 6 6.2.3 Trigger Out ....................137 6.2.4 Trigger Delay ..................... 138 Sequencer + Trigger System Examples ..............138 6.3.1 WAVE Mode Voltage Programming via Communication Example ... 138 6.3.2 WAVE Mode Execution via Communication Example ......138 6.3.3 LIST Mode Example ................... 139 6.3.4 WAVE Mode Example ................
  • Page 7 Multi Drop Connection ................... 164 8.4.1 Selecting a Single Power Supply in a Multi Drop Chain ......164 Communication Cables ..................165 IEEE Controller Configuration ................165 Power Supply Configuration .................. 165 Execution Time ....................... 165 Communication Example ..................166 CHAPTER 9: AIR FILTER OPTION ..................
  • Page 8 This page intentionally left blank...

  • Page 9: Chapter 1: Specifications

    CHAPTER 1: SPECIFICATIONS 5000W Series Specifications...

  • Page 13: Standard Unit Low Voltage Outline

    Standard Unit Low Voltage Outline...

  • Page 14: Standard Unit High Voltage Outline

    Standard Unit High Voltage Outline...

  • Page 15: Blank Panel Unit Low Voltage Outline

    Blank Panel Unit Low Voltage Outline...

  • Page 16: Blank Panel Unit High Voltage Outline

    Blank Panel Unit High Voltage Outline...

  • Page 17: Optional Accessories

    Optional accessories 1.6.1 Printed User manual • Printed User manual, order P/N: G/M 1.6.2 Serial Port Cables • For ordering serial port cables refer to CHAPTER 5: 1.6.3 Paralleling Cable • Paralleling cable: order P/N: G/P.

  • Page 18: Chapter 2: Front/Rear Panel Control & Connectors

    CHAPTER 2: FRONT/REAR PANEL CONTROL & CONNECTORS Introduction Power Supply series has a full set of controls, indicators and connectors that allow the user to setup and operate the unit. Before starting to operate the unit, please read the following sections for an explanation of the functions, controls and connector terminals.
  • Page 19 Control/Indicator Description Current Display 4-digit 16-segment Current display. Normally displays the output current. In Preview mode, the display indicates the program setting of the output current. In menu navigation, the display indicates the selected parameter. Indicators Bar Refer to Figure 2–2 and Table 2-2: Front Panel Display and Indicators for description of the front panel Indicators bar.
  • Page 20 Control/Indicator Description CONF Button / Indicator Activates the Configuration menu. The Configuration menu provides power supply start mode control, Voltage & Current source control, Analog Programming / Monitoring range selection, Internal Resistance function, Constant power limit function, and Slew- Rate control function. Green LED lights when the Configuration menu is active.

  • Page 21: Front Panel Display And Indicators

    Control/Indicator Description PREV Button / Indicator Press the PREV button to display the Output Voltage and Current Limit settings. The display shows the settings for 5 seconds. If buttons are not pressed for 5 seconds, the display returns back to show actual output voltage and current. If Voltage or Current values are changed, and there is no keypress for 15 seconds, the display returns back to show actual output Voltage and Current.
  • Page 22 Control/Indicator Description Section Voltage Display 4-digit 16-segment Voltage display. Normally displays the output voltage. In preview mode, the display indicates the program setting of the output voltage. In menu navigation, the display indicates the selected function. Operation Mode Indicator CV/CC/CP operation mode indicator. Current Display 4-digit 16-segment Current display.
  • Page 23 Control/Indicator Description Section REM Indicator REMOTE indicator. REM is on if power supply is controlled by a remote communication (RS232/485, USB, LAN, OPTional). RS Indicator Recommended Standard indicator. RS232 or RS485 communication type is selected. USB Indicator Universal Serial Bus indicator. USB communication type is selected.

  • Page 24: Rear Panel Connections And Controls

    Rear Panel Connections and Controls Refer to Figure 2–3 and Table 2-3 for description of the Rear Panel connections and controls. Figure 2–3: Rear Panel Connection and Controls Connection Description Section AC Input Connector Connector type: PC 5/ 4-G-7,62. Ground Stud Functional Ground connection M4x8 Stud.

  • Page 25: J1 Connector Terminal And Function

    NOTE * LAN Connector LEDs (Green & Amber) and Red Status Indicators might lit in Power Switch OFF state. WARNING Refer to the Safety & Installation Manual for any connect/disconnect of any connector on the rear panel. J1 Connector Terminal and Function Control and monitoring signals are SELV.
  • Page 26 Connection Description Section VPGM Input for remote (analog) voltage/resistance programming of the Output Voltage. NOT USED ENA_IN Enable / Disable the power supply output by dry-contact (short / open) or voltage source. Selectable signal polarity. COMMON. Return for all signals. COMMON.

  • Page 27: Front Panel Display Messages

    Front Panel Display Messages Table 2-5 shows the various messages shown on the display in different operating modes. Display Text Text Description Display Text Text Description OUTPUT LOCK LOCK UNLOCK ULOCK Interface SENSE INTFC SENSE RS232 LOCAL RS232 LOCAL RS485 REMOTE RS485 INTERLOCK...

  • Page 28: Menu Navigation

    Display Text Text Description Display Text Text Description PANEL TRIGGER PANEL TRIG EXTERNAL VOLTAGE INIT E.VOL INIT EXTERNAL RESISTANCE ABORT E.RES ABORT CURRENT SOURCE LOAD C.SRC LOAD RANGE TRIGGER INPUT RANGE TRG.IN INTERNAL RESISTANCE EXTERNAL R.INT CONSTANT POWER C.PWR POWER CONTINUES POWER CONT...
  • Page 29 COMMUNICATION MENU VOLTAGE CURRENT ENCODER ENCODER C O MM E N T E R - -- - -- - -- - -- - -- - -- - -- built_in - -- - -- - -- - -- - -- - -- - -- - -- option al - -- INTFC RS232...
  • Page 30 PROTECTION MENU VOLTAGE CURRENT ENCODER ENCODER P R O T E N T E R 25.5 UVP.DL FOLD FOLD CC/CV FOLD 25.5 FLD.DL Fun ction (Voltage Disp lay) Lev el down E N T E R Par am eter (Cur re nt Dis play) Voltage e ncod er 1 step r otate Voltage e ncod er m ultiple steps rotate Cur re nt e ncod er 1 step r otate...
  • Page 31 CONFIGURATION MENU VOLTAGE CURRENT ENCODER ENCODER C O N F E N T E R SAFE AUTO START PANEL E.VOL E.RES V.SRC R.SRC V.SRC PANEL E.VOL E.RES C.SRC RANGE R.INT R.INT R.INT 0.001 1.000 C.PWR C.POW C.POW POWER R.SRC V.SRC CURR VOLT SLEW...
  • Page 32 SYSTEM MENU VOLTAGE CURRENT ENCODER ENCODER S Y S T/ E N T E R P resent mode LOCA L LOCK Note: Menu displays alternative P resent mode PANEL parameter only, no selection. RE MOTE / LOCK E D ULOCK SENSE LOCAL NORM...

  • Page 33: Exiting A Menu

    PROGRAM MENU VOLTAGE CURRENT ENCODER ENCODER P R O G T R I G E N T E R A borted / No inita ilzed INIT Note: Menu displays alternative TRIG parameter only, no selection. Inita ilzed ABORT LOAD TRG.IN CONT 0.000 10.00...

  • Page 34: Chapter 3: Local Operation

    CHAPTER 3: LOCAL OPERATION Introduction This Chapter describes the operating modes that do not require programming and monitoring the power supply via its communication interfaces: LAN, USB, RS232/RS485, Optional communication or by remote analog signals. Ensure that the REM indicator on the display is off (indicating Local mode).
  • Page 35 WARNUNG Bei Einsatz einer Stromversorgung mit einer Ausgangsspannung von über 60VDC besteht am lastseitigen Sense-Punkt die potentielle Gefahr eines elektrischen Schlags. Stellen Sie sicher, dass die Anschlüsse an der Last abgedeckt sind, um versehentlichen Kontakt mit gefährlicher Spannung zu vermeiden. CAUTION When using shielded sense wires, ground the shield in one place only.

  • Page 36: Connecting Multiple Loads, Radial Distribution Method

    3.2.3 Connecting Multiple Loads, Radial Distribution Method Figure 3–3 shows multiple loads connected to one supply. Each load should be connected to the power supply’s output terminals using separate pairs of wires. It is recommended that each pair of wires will be as short as possible and twisted or shielded to minimize noise pick-up and radiation. Load lines, Twisted pairs, shortest length possible POWER...

  • Page 37: Constant Voltage Mode And Voltage Setting

    3.2.5 Constant Voltage Mode and Voltage Setting In Constant Voltage mode, the power supply regulates the output voltage at the selected value, while the load current varies as required by the load. While the power supply operates in Constant Voltage mode, the CV indicator on the display illuminates.

  • Page 38: Automatic Crossover

    Adjust the output current, when the power supply output is enabled (Output On) or disabled (Output Off). There are three options to set output voltage: (a) When the output is enabled, rotate the Current encoder knob to program the output current.

  • Page 39: Safe-Start And Auto-Restart Modes

    3.2.9 Safe-Start and Auto-Restart Modes At AC turn on, the power supply can start at the last setting of the Output Voltage and Current limit with the output enabled (Auto-restart), or it can start with the output disabled (Safe mode). Press the Configuration button.

  • Page 40: Over Voltage Protection

    3.3.2 Over Voltage Protection The OVP circuit protects the load in the event of a remote or local programming error or a power supply failure. The protection circuit monitors the voltage at the power supply sense points thus providing the protection level at the load. Upon detection of an Over Voltage condition, the power supply output will shut down.

  • Page 41: Under Voltage Protection And Under Voltage Limit

    3.3.3 Under Voltage Protection and Under Voltage Limit The UVL function prevents output voltage setting below the UVL set value, and prevents an adjustment of the output voltage below a certain limit. The UVP function prevents power supply operation, if the output voltage is below the UVL set value.

  • Page 42: Foldback Protection

    3.3.4 Foldback Protection Foldback protection will shut down the power supply output if power supply operation mode crosses over from CC to CV or from CV to CC, according to a selected operation mode. There are three states of Foldback protection. •...

  • Page 43: Protection Delay

    3.3.5 Protection Delay Foldback protection delay is the time between feedback transition (CV to CC transition or vice versa) event occurrences to output shutdown. UVP protection delay is the time between UVL crossover point events to output shutdown. NOTE At output OFF -> ON transition, additional 500ms delay is added. Total protection delay = 500ms + delay setting.

  • Page 44: Series Operation

    Series Operation Power supplies of the same model can be connected in series to obtain an increased output voltage. Split connection of the power supplies gives positive and negative output voltage. WARNING When power supplies are connected in series, and the load or one of the output terminals is grounded, no point may be at a greater potential of +/- 200VDC from ground for models up to 100VDC rated output and +/- 600VDC from ground for models 150 ~ 600VDC rated output.

  • Page 45: Series Connection For Positive And Negative Output Voltage

    3.4.2 Series Connection for Positive and Negative Output Voltage In this mode, two units are configured as positive and negative output. Set the current limit of each power supply to the maximum that the load can handle without damage. It is recommended that diodes be connected in parallel with each unit output to prevent reverse voltage during start-up or in case one of the units shuts down.

  • Page 46: Daisy-Chain Connection

    Programming via serial communication ports The Communication ports are referenced to the (RS232/RS485, USB): COM_SELV, which is isolated from the power supply output potential. Therefore, power supplies connected in series can be chained using the Remote-In and Remote- Out connectors. Refer to section 2.4 for details. Daisy-Chain Connection It is possible to configure a multiple power supply system to shut down all units when a fault condition occurs in one of the units.

  • Page 47: Rear Panel (J1 Connector) Functions

    For signal details, refer to Table 3-2. SO signal level Power Supply Output DAISY_Out Level PS_OK Level (J1-2 – J1-11) (J1-3 – J1-11) (J1-1 – J1-11) 2-30V or Open High 0-0.6V or Short Off (SO FAULT) High (Open Collector) Table 3-2: Daisy_In Signal Definition Rear Panel (J1 Connector) Functions 3.6.1 Interlock Function - Analog On/Off (Enable/Disable)

  • Page 48: Enable In Function

    3.6.2 Enable In Function ENA_IN signal serves as power supply output enable control. Connection to the signal is made via pin J1-10 (ENA_IN) and pin J1-11 (COM_SELV), which are isolated from the power supply output. ENA_IN is reported by a display message ENA FAULT, RED alarm LED is blinking 1/2 Hz frequency. ENA_IN can be enabled/disabled via communications or the Front Panel as follows: Press the SYST button.

  • Page 49: Auxiliary Programmed Signals Prog_Out_1 And Prog_Out_2

    NOTE Safe Start mode - If the Interlock fault condition clears while units are in the Safe Start mode, the power supply returns to Output Off mode. Auto-Restart mode - The output will automatically return to the previous setting. The following faults will require \ENA_IN recycle: UVP, OVP or Foldback. Alarm LED Front Panel ENA Polarity...

  • Page 50: Power Supply Ok Signal

    3.6.5 Power Supply OK Signal Power Supply OK signal (\PS_OK_OUT) indicates power supply output state (ON/OFF). It is an open collector signal at J1-3, referenced to COM_SELV at J1-11 (Isolated Interface Common). When a fault condition occurs or power supply output is Off, \PS_OK_OUT level is high, maximum input voltage is 30V.

  • Page 51: Parameter Setting Memory

    Parameter Setting Memory Power supply has the following memory configuration modes: 3.7.1 Default Setting This function sets all parameters to their default state, as defined in Table 3-5 and Table 3-6. Factory Reset settings can be restored via Front Panel menu or communication command. The following states are cleared: OVP, Foldback and UVP.
  • Page 52 User can recall up to 4 sets of parameters. Refer to Table 3-5 for available Recall parameter sets. To recall the Front Panel setting, perform the following steps: Press the SYST button. SYST (GREEN) LED illuminates. Rotate Voltage encoder until RECAL 1 appears on the display.
  • Page 53 Function Factory Reset (Default Settings) IP Address DHCP configuration DHCP Ping server Enabled Auto-Negotiation Enabled Description (Service Name) TDK-LAMBDA Supply <last 3 serial number digits> Password Clear field (None) Hostname G[H]<rated voltage>-<rated current> VXI-11 Discovery Enabled Keep-Alive Time [S] 1800 mDND &...

  • Page 54: Chapter 4: Remote Analog Programming

    CHAPTER 4: REMOTE ANALOG PROGRAMMING Introduction The Rear Panel connector J1 allows the user to program the power supply output voltage and current with an analog device. J1 also provides monitoring signals for output voltage and output current. The programming range and monitoring signals range can be selected between 0-5V or 0- 10V using the Front Panel menu or communication.

  • Page 55: Remote Voltage Programming Of Output Voltage And Current

    Remote Voltage Programming of Output Voltage and Current For Voltage Analog Programming wiring, refer to Figure 4–1. Set the Remote Programming settings as follows: Short the pin J1-6 to J1-11. Press the CONF button. CONF (GREEN) LED illuminates. Rotate the Voltage encoder until V.SRC or C.SRC appears on the voltage display. Rotate the Current encoder to set E.VOL.

  • Page 56: Remote Resistor Programming Of Output Voltage And Output Current

    Remote Resistor Programming of Output Voltage and Output Current For resistive programming, the internal current sources for output voltage and/or output current control, supply 1mA current through external programming resistors connected between J1-8 and J1-18 and between J1-7 and J1-18. The outcome voltage, as a result, of current flow across the programming resistors is used as a programming voltage for the power supply.

  • Page 57: Monitoring Of Output Voltage (V_Mon) And Current (I_Mon)

    NOTES: 1. The power supply can be programmed to up to 108% of the rated output voltage and current. However, it is forbidden to operate the power supply over its voltage and current ratings. Performance is not guaranteed when operating the power supply above its ratings. 2.

  • Page 58: Chapter 5: Serial Rs232/Rs485, Usb & Lan Interfaces

    CHAPTER 5: SERIAL RS232/RS485, USB & LAN INTERFACES Introduction This chapter describes the set-up, operation, commands, and communication protocols of the power supplies via serial communication interfaces: RS232, RS485, or USB, and LAN. Configuration Function Level Display Parameter Level Display Description RS232 RS232...

  • Page 59: Address Setting

    5.2.3 Address Setting The power supply address can be set to any address in the range of 0 to 31. Press the COMM button. COMM LED illuminates. INTFC message appears on the Voltage display. Rotate the Voltage encoder 1 step clockwise. ADR message appears on the Voltage display.

  • Page 60: Baud Rate Setting

    5.2.5 Baud Rate Setting Five optional rates are possible: 9600, 19200, 38400, 57600 and 115200. Press the COMM button. COMM LED illuminates. INTFC message appears on the Voltage display. Rotate the Voltage encoder 2 steps clockwise *. BAUD message appears on the Voltage display. Rotate the Current encoder to select required baud rate: 9600, 19200, 38400, 57600 or 115200 **.

  • Page 61: Setting Unit In Remote, Local Lockout Or Local Mode

    5.2.7 Setting Unit in Remote, Local Lockout or Local Mode If power supply is in Local mode, it can receive communication commands & queries. If a command is received, power supply will execute and change its mode to Remote. If a query is received, power supply will reply and remain in the Local mode.

  • Page 62: Rear Panel Rs232/Rs485 In Connector

    Rear Panel RS232/RS485 IN Connector RS232/485 in the interface is accessible through the rear panel RS232/485 IN connector. The connector is eight contacts, shielded RJ-45 type. The connector is used to connect power supplies in RS232 or RS485 configurations. Refer to Figure 5–1 for the connector description. Shield (Connector enclosure) 1 2 3 4 5 6 7 8...

  • Page 63: Rear Panel Rs485 Out Connector

    Rear Panel RS485 OUT Connector RS485 OUT interface is accessible through the Rear panel RS485 OUT connector. The connector is eight contacts, shielded RJ-45 type. The connector is used to connect power supplies in RS485 Daisy chain configuration. Refer to Figure 5–2 for the connector description. Shield (Connector enclosure) 1 2 3 4 5 6 7 8...

  • Page 64: Connecting Power Supply To Rs232 Or Rs485 Bus

    Connecting Power Supply to RS232 or RS485 BUS Connect rear panel RS232/RS485 IN connector to the controller, or a PC RS232 or RS485 port using a suitable shielded cable. Refer to Figure 5–3 and Figure 5–4 for the available RS232 and RS485 cables.

  • Page 65: Rear Panel Usb Connector

    Rear Panel USB Connector A standard USB Type B connector is located on the rear panel of the USB communication interface. Refer to Figure 5–5. Figure 5–5: USB Connector 5.6.1 USB Getting Started USB Cable (*) Connect to USB port Figure 5–6: USB Connection Insert the software CD-ROM shipped with the product into a CD-ROM Drive.

  • Page 66: Rear Panel Lan

    Rear Panel LAN 5.7.1 Introduction The Local Area Network (LAN) connection for the Power Supply Series allows the user to remotely program, measure and check status of the power supply. A computer web page browser can be used to operate the power supply through a built-in web page server.

  • Page 67: Specifications

    Selects fastest of 10Base-T or 100Base-T networks (10 or 100 Megabits per second) NETWORK CONFIGURATION MAC Address TDK-Lambda assigned: 00:19:f9:xx:xx:xx xx:xx:xx is the unique address for each unit IP Address View or set from the Front Panel or embedded web page DHCP Receive an address from network server.
  • Page 68 Multiple web pages can be open at the same time Identity Identify power supply model, serial number, revision, etc. View and set LAN configuration Configuration Active Control Program and read output settings Send Send SCPI commands, read errors Commands Help Link to TDK-Lambda web sites...

  • Page 69: Lan Command Speed

    SUPPLY CONFIGURATIONS Local Control Supply may be controlled from the Front Panel even if LAN is monitoring LAN Remote Control Supply may be controlled and monitored through LAN RS232, RS485, USB LAN interface is disabled if the standard RS-232, RS-485, USB or or Option Control Optional communications are active Analog Control...

  • Page 70: Select The Control Method

    5.7.3 Select the Control Method 5.7.3.1 Control Method Options The power supply with may be operated through four interfaces. This section describes how to enable each option. MODE MODE DESCRIPTION Control using an Ethernet connection LAN disables serial, analog and optional communication ports Local Control using the front panel encoders...

  • Page 71: Connect To A Network

    Duplicate IP: Blinking green • If there are two (or more) instruments with the same IP address, green led is blinking. • LAN Fault/Disconnected: Steady red Shows that the LAN interface is not selected, LAN connection is disconnected or broken. 5.7.4 Connect to a Network 5.7.4.1...

  • Page 72: Power-Up The Lan Power Supply

    • PEER-TO-PEER NETWORK In this type of configuration, the power supply is connected directly to a computer that is not a network server. The power supply configures its own IP address and other settings. Figure 5–8: Peer-to-Peer Network 5.7.4.3 Power-up the LAN Power Supply The power supply LAN option automatically detects if it is connected or disconnected from a network.

  • Page 73: Ip Addresses

    5.7.4.4 IP Addresses The simplest and most reliable way to open a network connection is via the Power Supply’s IP address, which is represented by a group of four numbers separated by periods (i.e. 10.1.15.123). The Power Supply can receive an IP address in three modes: DHCP Auto-IP Static IP...

  • Page 74: Description And Dns Service Names

    This is called a service name conflict. In this case, the supply will change its service name to a unique name by appending a number in brackets to it. For example, its service name will become TDK-LAMBDA Supply 123 (2).

  • Page 75: Lan Setup

    A LAN Reset does not change the service name, even if it is a custom name, but it may remove the dash and the number if a service name conflict has been removed. To restore the factory default service name, open the LAN  Modify web page and enter a blank for the new service name (refer to section 5.7.6.6).

  • Page 76: Lan Reset

    To change the IP address: Press COMM button. Rotate Voltage Encoder until IP appears on the Voltage display, 1 appears on the Current display. Press Current encoder to enter IP configuration. Rotate Voltage encoder to view the IP address. Voltage display shows IP1-IP4 by rotating Voltage encoder. The Current display shows the corresponding IP address.

  • Page 77: Web

    Keep-Alive: 1800 Seconds (30 minutes) Auto-Negotiate: Automatically select network speed VXI-11 Discovery: Enabled Password: None Multicast DNS: Enabled 5.7.6 Web Pages 5.7.6.1 Benefits of Web Pages web pages are useful for: • Reading the Power Supply model, identity, revision and LAN setup information Configuring the LAN connection •...

  • Page 78: The Home Page

    5.7.6.3 The Home Page The following page appears when the web page is opened for the first time or when it is refreshed: Figure 5–9: Home Page VISA Name Using IP Address For automation programming, VISA is a type of communication driver. For LAN instruments, the IP address may be used in the VISA resource descriptor.

  • Page 79: Login Rules

    Multicast DNS The LAN broadcasts its hostname even if no network server is present. This is useful for connecting over simple peer-to-peer networks. Logging In To change Power Supply output or LAN settings, a user must first log in. When the DC Power tab or LAN tab is clicked, a login box appears: Click the Login button at the bottom-left side of the web page.

  • Page 80: Dc Power Page

    5.7.6.5 DC Power Page When the DC Power tab is selected, the following web page opens. This page and its sub-menus allow a user to operate the Power Supply and adjust its output settings. A. DC Power ➔ Output Page When the DC Power tab is selected, the Output page opens by default (GUI).
  • Page 81 Settings This section displays the selected Power Supply’s output voltage, current limit and output ON/OFF settings. The settings cannot be changed until you have logged-in as 'admin'. To change a settings, perform the following: Tick Check to Modify. Set desired settings. After settings are made, click Apply. To view the actual settings, deselect Check to Modify.
  • Page 82 C. DC Power ➔ System Page On the DC Power tab, the System button is available at the top of the panel. When opened, the window allows the user to operate four functions: • Reset One Instrument (this resets only the supply selected in the RS-485 list box). •...

  • Page 83: Lan Page

    To read system errors, send SYST:ERR:ENAB command to enable the error system (has to be sent once prior reading errors). The settings can be changed only by logging-in as 'admin'. Figure 5–14: DC Power - Utility Tab 5.7.6.6 LAN Page When the LAN tab is selected, the following web page opens.
  • Page 84 The Power Supply hostname may be used instead of the IP address to create a communication link. Description • By default, this is “TDK-LAMBDA Supply <Last 3 digits of the Serial Number>”, but it may be changed. Controller Access •...
  • Page 85 NOTE: After changing the LAN settings, you are requested to close the web browser. Re-open the web page. If the change duplicates IP, the LAN Status green LED and the Front Panel display will blink, IP address will revert to the previous state. Press any Front Panel button or encoder to stop the blinking.
  • Page 86 C. LAN ➔ Advanced & LAN->Advanced->Modify Page Click the LAN ➔ Advanced button to view advanced LAN settings: Figure 5–17: LAN – Advanced Tab These settings can be changed only by logging-in as 'admin'. Figure 5–18: LAN – Changing Settings •...

  • Page 87: Help Page

    Once a password is applied, it may be changed by using the same screen, but it can only be removed by performing the LAN Reset function. Figure 5–19: LAN – Users Tab 5.7.6.7 HELP Page A Help tab is available. This page is an Internet link to TDK-Lambda’s website pages. Figure 5–20: Help Tab...

  • Page 88: Programming Using Visa Drivers

    5.7.7 Programming Using VISA Drivers 5.7.7.1 VISA Description In the test and measurement industry, Virtual Instrument Software Architecture (VISA) is a popular framework that includes hardware drivers, configuration utilities and connection managers. Varieties of communication busses are supported. VISA drivers are available from several instrument vendors.

  • Page 89: Programming Using Sockets

    5.7.8 Programming Using Sockets 5.7.8.1 Socket Description The VISA drivers for the Power Supply are commonly used in the Test and Measurement industry. For customers who cannot use VISA because of installation, licensing issues or because the controller (i.e.: industrial PLC) does not support VISA, the offers socket connections.

  • Page 90: Input Buffer Requirements

    5.7.8.4 Input Buffer Requirements With a controller using TCP or UDP sockets, the Power Supply can receive commands much faster than it can process. To make sure the LAN is not overloaded, it is required that the controller sometimes sends a query and then waits for the response. The response is the acknowledgement from the Power Supply that it has finished processing all commands.

  • Page 91: Using Udp Sockets

    5.7.8.7 Using UDP Sockets This is a simpler socket type with reduced network traffic. It is a ‘connectionless’ protocol because messages are sent and there is no acknowledgement that they have been received. Open UDP socket port 8005 to send SCPI commands. Responses to queries are sent back automatically with a line-feed terminator and carriage return appended.

  • Page 92: Multi Power Supply Connection (Daisy-Chain) To Rs232, Rs485, Usb Or Lan

    Multi Power Supply Connection (Daisy-Chain) to RS232, RS485, USB or LAN A Daisy-chain configuration of up to 32 units can be connected to RS232, RS485, USB, LAN or optional communication (i.e. IEEE). The first unit connects to the controller or PC via RS232, RS485, USB, LAN or optional communication, while the RS485 bus connects the other units.
  • Page 93 NOTE: If a custom cable is used, connect only the pins listed in the table above. Keep pins 1, 2 and 7 not connected. CAUTION When using multiple LAN controllers with Multi-drop, only one Power Supply may be “selected” at a time because one controller may change the selected address and the others may not be aware that a new address is active.
  • Page 94 All the supplies on the multi-drop chain will be set to 70 volts, except for the supply at RS-485 address 4 that will be set to 90 volts. NOTE: RS-485 retransmit baud-rate is automatically set to 115,200 bps if USB, LAN or optional communication (i.e.

  • Page 95: Gen Protocol (Gen Series Communication Language)

    GEN Protocol (GEN series communication language) GEN communication language is supported to provide compatibility to the legacy GENESYS Programmable Power Supplies Series. To use the advanced functions of the Power Supply, refer to SCPI language, section 5.12. Recommended time delay between commands: 5mSec minimum. NOTES: The address (ADR n) command must return an ”OK”...

  • Page 96: Numeric / Data Type Parameters

    • In commands with an argument, a space must appear between the command and the argument. • For any command that sets a numeric value, the value may be up to 12 characters long. • Carriage Return: If the CR character (ASCII 13) is received by itself, the Power Supply will respond with an ”OK”...

  • Page 97: Identification Commands

    5.10.4 Identification Commands IDN? Query Returns the Power Supply model identification as an ASCII string (one comma, no spaces) Returns <SRD> Example TDK-LAMBDA,G100-50 REV? Query Returns the software version as an ASCII string Returns <SRD> Example G:XX.XXX Query Returns the supply’s serial number. Up to 12 characters in any format Returns <SRD>...

  • Page 98: Output Commands

    Function Reset setting. Refer to Table 3-5. Returns <DSC> OK Function Repeat last command. If \<CR> is received, the Power Supply will repeat the last command Returns <DSC> OK FRST Function Restore factory reset parameters. Refer to Table 3-5 & Table 3-6 Returns None NOTE:...
  • Page 99 Query Returns the measured output power Returns <NR2> 5 digits format DVC? Query Displays Voltage and Current data. Data returns as a string of ASCII characters. A comma separates different fields. Fields order: Measured Voltage, Programmed Voltage, Measured Current, Programmed Current, Over Voltage Set Point and Under Voltage Set Point Example 10.000, 10.000, 020.02, 010.00, 040.5, 000.0...
  • Page 100 OVP <NR2> Function Sets the Over-Voltage Protection level. An attempt to adjust from the front panel or program the OVP below this level will result in the execution error response (‘E04’) and the OVP setting will stay unchanged Parameters Range is limited by the OVP programming range and voltage programmed value.

  • Page 101: Global Output Commands

    MODE? Query Returns the Power Supply operation mode. If Power Supply is off, returns OFF. If Power Supply is on, returns CV for Constant Voltage, CC for Constant Current, or CP for Constant Power Return <DSC> OFF|CV|CC|CP Query Returns the Master/Slave setting Single, Master + # (# - number of slaves units connected) or Slave Return <NR1>...
  • Page 102 GOUT <Bool> Function Refer to OUT command description. Parameter 0|1, OFF|ON Returns No reply GPV <NR2> Function Refer to PV command description. Returns No reply Model Rated Output Voltage (V) Minimum (V) Maximum (V) Table 5-4: Voltage Programming Range NOTE: The Power Supply can accept values higher by 5% than the table values.

  • Page 103: Auxiliary Commands

    Model Rated Output Minimum (V) Maximum (V) Voltage (V) 330.75 661.5 Table 5-6: OVP Programming Range Model Rated Output Minimum (V) Maximum (V) Voltage (V) 28.5 Table 5-7: UVL Programming Range 5.10.8 Auxiliary Commands LANG SCPI Function Set a communication protocol to the SCPI language. The Power Supply addressing is lost after the communication language change.

  • Page 104: Status Commands

    PCS <DSC> Function Set the Current programming source: Front Panel, External Resistor, or External Voltage. Parameters 0|1|2 or DIG|VOL|RES Query PCS? Returns <DSC> DIG|VOL|RES APR <DSC> Function Set the Power Supply analog programming & monitoring range. Programming – 5/10 volt or 5/10kΩ. Monitoring –...
  • Page 105 FLT? Query Returns the value of the Questionable Group Condition register, a read-only register holding the real-time Power Supply faults. Returns <NRh> Example 09FA FENA <NRh> Function Sets the value of the Questionable Group Enable register. This register is a mask to enable specific bits from the Condition register to the Event register.

  • Page 106: Serial Communication Test Set-Up

    5.11 Serial Communication Test Set-Up Basic set-up to test serial communication operation. Equipment PC with a serial communication terminal software installed, Power Supply and RS232 or USB cable. PC Set-up Bits per second: 115200 Data bits: 8 Parity: None Stop bits: 1 Flow control: None Power Supply Set-up Connect Power Supply to the PC using RS232 or USB cable.

  • Page 107: Scpi Protocol

    5.12 SCPI Protocol NOTE: Selecting the Power Supply (INSTrument:NSELect <address>) is necessary before using any other command. 5.12.1 Data Format Serial data format is 8 bit, one start bit and one stop bit. No parity bit. 5.12.2 End of Message The end of message is the Carriage Return character (ASCII 13, 0x0D).

  • Page 108: Scpi Command Hierarchy

    5.12.6 SCPI Command Hierarchy SCPI is an ASCII-based command language designed for use in test and measurement equipment. The command structure is organized around common roots, or nodes, which are the building blocks of the SCPI subsystems. An example of a common root is OUTPut. Some of the commands that reside in the OUTPut subsystem are: OUTPut [:STATe] <bool>...

  • Page 109: Commands Notes

    Data Description Formats <DSC> DiSCrete. Discrete parameters are used to program settings that have a limited number of values (i.e. TRIGger:SOURce {BUS|EXTernal}). Discrete parameters have a short form and a long form, just like command keywords. One can mix upper-case and lower-case letters. Query responses will always return the short form in all upper-case letters.
  • Page 110 *ESE <NR1> Function This command programs the Standard Event Status Enable register bits. The programming determines which events of the Standard Event Status Event register (see *ESR? below) are allowed to set the ESB (Event Summary Bit) of the Status Byte register. "1"...
  • Page 111 Interface firmware revision, and an installed option firmware revision. Returns <SRD> Example TDK-LAMBDA,GH100-50-GPIB,12345-123456,G:01.000 *OPC Function Sets Operation Complete (bit 0) in the Standard Event Status Event Register at the completion of the current operation.
  • Page 112 *OPT? Query Returns the type of an optional card installed. Returns <SRD> 0, No Option Installed 1, GPIB *PSC <Bool> Function The Power ON Status Clear (PSC) command controls automatic Power ON clear of the Service Request Enable Register, the Standard Event Status Enable Register, and Device Specific Event Enable registers.
  • Page 113 *SRE <NR1> Function Sets the condition of the Service Request Enable Register. This register determines which bits from the Status Byte Register are allowed to set the Request for Service (RQS) summary bit. A "1" in any Service Request Enable Register bit position enables the corresponding Status Byte Register bit. All such enabled bits are logically OR-ed to determine the Status Byte Register, RQS bit state.

  • Page 114: Scpi Subsystem Commands

    *TST? Query Self-test query. If one or more tests fail, "1" is returned. Error is stored in the error queue. Returns <Bool> 0|1 *WAI Function Configures the instrument to wait for all pending operations to complete before executing any additional commands over the interface. ABORt Function This command cancels any sequencer actions in progress.

  • Page 115: Initiate Subsystem

    5.14.2 Initiate Subsystem INITiate[:IMMediate] Function Initialize trigger system. If initialized, trigger in system is active (system is ready to receive trigger signal). If not initialized, all trigger signals are ignored. INITiate:CONTinuous <Bool> Function Continously re-initiates a trigger. If inactive, the trigger system must be re-initiated for each trigger by the INITiate command.

  • Page 116: Measure Subsystem

    GLOBal:*RCL <NR1> Function Refers to *RCL <NR1> command description. Parameters 1,2,3,4 GLOBal:*RST Function: Refers to *RST command description. GLOBal:*SAVe <NR1> Function Refers to *SAV <NR1> command description. Parameters 1,2,3,4 GLOBal:CURRent[:AMPLitude] <NRf+> Function Refers to [SOURce]:CURRent[:LEVel][:IMMediate][:AMPLitude] <NRf+> command description. Units GLOBal:OUTPut[:STATe] <Bool> Function Refers to OUTPut[:STATe] <Bool>...

  • Page 117: Output Subsystem

    5.14.6 Output Subsystem OUTPut[:STATe] <Bool> Function Enables / Disables the Power Supply output Setting. Query returns an actual output status. Parameter 0|1, OFF|ON Query OUTPut[:STATe]? Return <Bool> 0|1 OUTPut:ENA[:STATe] <Bool> Function Enables / Disables the ENA function. If disabled, Power Supply ignores the ENA pin signal (J1-10). Parameter 0|1, OFF|ON Query...
  • Page 118 OUTPut:PON[:STATe] <DSC> Function Determines the Power Supply output state after the AC recovery or non- latching (OTP, ILC, ENA, DAISY_IN) faults. SAFE – Power Supply output recovers to off state. AUTO – Power Supply output recovers to prior failure state. Parameter 0|1, OFF|ON, SAFE|AUTO Query...

  • Page 119: Program Subsystem

    OUTPut:RELay2[:STATe] <Bool> Function Sets PROG_OUT_2 pin (J1-20) in a rear panel connector. 0 – MOSFET is ON. 1 – MOSFET is OFF. Parameter 0|1, OFF|ON Query OUTPut:RELay2[:STATe]? Return <Bool> 0|1 OUTPut:TTLTrg:MODE <DSC> Sets the operation mode of the Trigger Out signal to OFF, FSTR, or TRIG Function mode.
  • Page 120 [PROGram]:LIST:DWELl <NRf+>,{<NRf+>} Function: Specifies the time interval of each value (point) in a list to remain in effect. The function accepts up to 100 parameters. Parameters 0.001 to 129,600 Unit Query [PROGram]:LIST:DWELl? Return <NR2>,{<NR2>} Example LIST:DWEL .6,1.5,1.5,.4 NOTE: A delay of ~100mSec is required after the [PROGram]:LIST:DWELl command if long sequences are used, prior sending any additional command.
  • Page 121 NOTES: Delay of ~20mSec is required after the LOAD command, prior to sending any additional command. UVL and OVP level settings clamp sequence-programmed values. Loading an empty sequence results in error -286,”Data Load Empty”. Loading a sequence while any sequence is running, results in error -284,”Program Currently Running”.
  • Page 122 NOTE: A delay of ~100mSec is required after the [PROGram]:WAVE:CURRent command if long sequences are used, prior sending any additional command. [PROGram]:WAVE:TIME <NRf+>,{<NRf+>} Function: Specifies the time interval of each slope between 2 points of a WAVE. The function defines up to 100 parameters. Parameters 0.001 to 129,600 seconds.

  • Page 123: Source Subsystem

    5.14.8 Source Subsystem [SOURce]:CURRent:EXTernal:LIMit[:STATe] <Bool> Function Enables/disables the current limit in the analog source control mode. If enabled, the analog current programming range by the rear panel is limited to a digital current programming value. Parameter 0|1, OFF|ON Query [SOURce]:CURRent:EXTernal:LIMit[:STATe]? Return <Bool>...
  • Page 124 [SOURce]:CURRent:SLEW:UP <NRf+> Function Sets a digital current reference up programming slew rate. Parameters 0.0001 ~ 999.99 Unit A/mS Query [SOURce]:CURRent:SLEW:UP? Return <NR2> Example :CURR:SLEW:UP 1 Sets a digital current reference up programming slew to 1A/mS. :CURR:SLEW:UP? returns a digital current up programming slope value. :CURR:SLEW:UP? MAX and :CURR:SLEW:UP? MIN return the maximum and minimum digital current reference up programming slope value.
  • Page 125 [SOURce]:VOLTage:SLEW:DOWN <NRf+> Function Sets a digital voltage reference down programming slew rate. Parameters 0.0001 ~ 999.99 Unit V/mS Query [SOURce]:VOLTage:SLEW:DOWN? Return <NR2> Example :VOLT:SLEW:DOWN 1 Sets a digital voltage reference down programming slew to 1V/mS. :VOLT:SLEW:DOWN? returns a digital voltage down programming slope value.
  • Page 126 NOTE: Minimum value is limited to 5% above the actual voltage setting value [SOURce]:VOLTage:PROTection:LOW:DELay <NRf+> Function Sets the time delay between UVP fault event and output disable. Parameters 0.1 ~ 25.5|MIN|MAX. Resolution: 0.1 Note: Round input parameter to closest 100mSec step. Unit Query [SOURce]:VOLTage:PROTection:LOW:DELay?
  • Page 127 [SOURce]:POWer:STATe <Bool> Function Enables/Disables the constant power limit mode. Parameters 0|1, OFF|ON Query [SOURce]:POWer:STATe? Return <Bool> 0|1 NOTE: Analog programming, internal resistance & sequencer functions should be disabled to enable Constant Power. [SOURce]:POWer[:LEVel] <NRf+> Function Sets the constant power limit level. Parameters The range is limited to a multiplication of maximum voltage by maximum current rating values.

  • Page 128: Status Subsystem

    5.14.9 STATus Subsystem STATus:OPERation[:EVENt]? Query Returns the value of the Operational Condition Group Event register. The value is according to the Operational Condition Group Condition register and Operational Condition Group Enable register. The Event register is a read-only register. Events are updated as transition from 0 to 1. Reading the register clears it. Bit configuration of the Operational Condition Group Event register is as follows: Position Value...
  • Page 129 STATus:OPERation:CONDition? Query Returns the value of the Operational Condition Group Condition register, which is a read-only register that holds the real-time operational status of the Power Supply. Bit configuration of the Operational Condition Group Condition register is as follows: Position Value 32768 16384...
  • Page 130 STATus:OPERation:ENABle <NR1> Function Sets the value of the Operational Condition Group Enable register. This register is a mask for enabling specific bits from the Condition register to the Event register. Refer to STATus:OPERation[:EVENt]? command for the complete list of the registers that can be masked. Parameters 0…65535 Query...
  • Page 131 STATus:QUEStionable:CONDition? Query Returns the value of the Questionable Condition Group Condition register, which is a read-only register that holds the real-time conditional status of the Power Supply. Refer to STATus:QUEStionable[:EVENt]? command for the complete registers list. Returns <NR1> 0…65535 Example 00136 STATus:QUEStionable:ENABle <NR1>...

  • Page 132: System Subsystem

    Reads hostname. LAN specific command. Return <SRD> up to 15 characters long Example G10-500-<X> NOTES: <X> represents a running number (1, 2, 3, etc…) according to the number of Power Supplies from the same type. A number is added only if at least 2 Power Supplies of the same type are connected to the same...
  • Page 133 SYSTem[:COMMunicate]:LAN:IDLED <Bool> Function Blink Display & green LXI LED. LAN specific command. Parameters 0|1, OFF|ON SYSTem[:COMMunicate]:LAN:IP <SRD> Function Sets a LAN IP address. LAN specific command. Parameters xxx.xxx.xxx.xxx Query SYSTem[:COMMunicate]:LAN:IP? Return <SRD> xxx.xxx.xxx.xxx Example 192.200.0.10; 192.9.33.110 (No zeros padding) SYSTem[:COMMunicate]:LAN:MAC? Query SYSTem[:COMMunicate]:LAN:MAC? LAN specific command.
  • Page 134 SYSTem:FRST Function Restores factory default parameters. Refer to Table 3-5 & Table 3-6 NOTE: Factory Reset does not affect advanced parallel configuration acknowledgment (does not affect power supply configuration (Single, Master or Slave roles does not change). SYSTem:FIRMware[:VERSion]? Function Returns firmware versions string: Interface, Master Control, Display, and Option (if available).
  • Page 135 SYSTem:PRELoad[:STATe] <Bool> Function Enables / Disables Preload. If disabled, preload is deactivated 5 seconds after DC output off. Parameters 0|1, OFF|ON Query SYSTem:PRELoad[:STATe]? Return <Bool> 0|1 SYSTem:PSOK:DELay <NRf+> Function Set PS_OK signal delay following output ON. Parameters 0.000 ~ 10|MIN|MAX. Resolution: 0.001 Unit Query SYSTem:PSOK:DELay?
  • Page 136 SYSTem:REMote[:STATe] <DSC> Function Sets the Power Supply control source (front panel or communication) to local, remote, or LLO mode. Local – Enables the front panel control. Remote – Disables the front panel settings change. LLO – same as remote + disable front panel unlock by the front panel. Deactivates LLO only by communication or AC recycle.

  • Page 137: Trigger Subsystem

    5.14.11 TRIGger Subsystem NOTE: The Trigger subsystem must be enabled from the Initiate subsystem. If disabled, commands from the trigger subsystem will not affect Power Supply output. TRIGger[:IMMediate] Function If Trigger is enabled (by INITiate command), TRIG generates an immediate trigger signal. TRIGger:DELay <NRf+>...

  • Page 138: Scpi Commands Summary

    5.15 SCPI Commands Summary Com m on Com m ands Description SCPI Command *CLS Clear standard event status register *ESE <NR1> (?) Set standard event status enable <NC> register *ESR? Return standard event status event <NC> register *IDN? Return instrument identification string IDN? *OPC (?) Set "operation complete"...
  • Page 139 :PON [:STATe] <DSC> (?) Programs the Power-ON state AST(?) :PROTection :CLEar Protection clear <NC> :FOLDback [:MODE] <DSC> (?) Set operation protection mode FLD(?) :DELay <NRf+> (?) Set foldback delay FBD(?) :RELay {1|2} [:STATe] <Bool> (?) Set control pins status {1|2}(?) :TTLTrg :MODE <DSC>...
  • Page 140 :QUEStionable [:EVENt]? Returns the value of the Event register FEVE? :CONDition? Returns the value of the Condition FLT? register :ENABle <NR1> (?) Enables specific bits in the Event FENA(?) register [:]SYSTem [:COMMunicate] :ADDRess <NR1> (?) Set communication address <NC> :BAUDrate <NR1> (?) Set Baud rate <NC>...

  • Page 141: Chapter 6: Advanced Functions

    CHAPTER 6: ADVANCED FUNCTIONS Sequencer The sequencer allows advanced waveforms programming of power supply output in steps of one mille-second. Up to four sequences, 100 points each, can be stored inside power supply memory. There are two programmable modes: LIST and WAVE. These programmable modes are synchronized by input trigger (refer to section 6.2.2).

  • Page 142: Wave Mode

    0.01s ec Tri gger Ini ti a ted INIT:IMM Tri gger Wa i t Tri gger Event Tri gger Del a y 0.02s TRIG:DEL 0.02 Dwel l 0.05s 0.06s 0.03s LIST:DWELL 0.05,0.06,0.03 OUTPUT LIST:VOLT 5,10,0 VOLTAGE STEP AUTO Figure 6–2: LIST Mode Sequence Example 6.1.2 WAVE Mode Output value change in slopes is determined by parameters in the WAVE.

  • Page 143: Sequencer Functions

    0.01s ec Tri g Ini ta ted INIT:IMM Tri gger Wa i t Tri gger Event Tri gger Del a y 0.02s TRIG:DEL 0.02 Ti me 0.03s 0.02s 0.03s 0.03s 0.02s 0.03s WAVE:TIME 0,0.03,0.02,0.03 WAVE:VOLT 5,10,10,0 OUTPUT VOLTAGE COUN 2 INIT:CONT 0 STEP AUTO Figure 6–4: WAVE Mode Sequence Example...

  • Page 144: Step

    6.1.3.6 Step Execute a single step from a sequence in the LIST or WAVE mode. Step function is available via the Front Panel menu (refer to section 2.7) or via the communication command [PROGram]:STEP <DSC>. 6.1.3.7 Abort Stop sequencer WAVE or LIST mode execution. Return sequencer system to idle state. Abort function is available via the Front Panel menu (refer to section 2.7) or via the communication command ABORt.

  • Page 145: Trigger System

    Trigger System The Trigger system, consisting of Trigger In and Trigger Out functions, provides the ability to synchronize sequencer arbitrary waveforms. In addition, the Trigger Out function provides the ability to generate trigger signal, if power supply output state or voltage / current programming value has changed.

  • Page 146: Trigger Delay

    Programming mode WAVE or LIST (for Current or Voltage mode) • OFF Mode – No trigger output signal. • TRIG Mode – Trigger is generated if the LIST or WAVE sequence is completed. • FSTR Mode – Trigger is generated every step (after completion). To enable Trigger Out signal functionality, refer to the Front Panel menu operation (refer to section 2.7) or to the communication command OUTPut:TTLTrg:MODE <DSC>.

  • Page 147: List Mode Example

    6.3.3 LIST Mode Example VOLT: MODE LIST Select LIST Mode Sequence LIST:VOLT 2,4,2,8,5,4 Set voltage values ”2,4,2,8,5,4” Volts LIST:DWEL 0.5,0.5,1,1,1,1 Set dwell values ”0.5,0.5,1,1,1,1” Seconds STEP AUTO Set AUTO step execution mode ”AUTO” COUN 1 Set list execution iterations ”1” TRIG:SOUR BUS Select BUS trigger source via communication interface or front panel...

  • Page 148: Wave Mode Example

    6.3.4 WAVE Mode Example VOLT: MODE WAVE Select Sequence Mode ”WAVE” WAVE: VOLT 2,4,4,9,9,3,3 Set voltage values ”2,4,4,9,9,3,3” Volts WAVE:TIME 1,0.5,0.5,0.5,0.5,1.5,1.5 Set time values ”1,0.5,0.5,0.5,0.5,1.5,1.5” Seconds STEP AUTO Set AUTO step execution mode ”AUTO” COUN 1 Set wave execution iterations ”1” WAVE:STEP AUTO Set AUTO step execution mode ”AUTO”...

  • Page 149: Internal Resistance

    Internal Resistance Internal resistance function is primarily used to simulate battery voltage drop, as a response to load current. In addition, it can be used in cases of voltage drop over long load wires. Power supply output voltage V is set according to voltage setting minus actual load current multiplied by internal resistance value setting (V =V-I×R Internal resistance function is enabled via the Front Panel menu (refer to section 2.7) or the...

  • Page 150: Constant Power Limit

    Constant Power Limit The Constant Power Limit function limits the output power provided by the power supply. The Constant Power Limit function is enabled via the Front Panel menu (refer to section 2.7) or the communication command [SOURce]:POWer:STATe <Bool>. Constant power setting range is limited by multiplication of rated voltage by rated current, in steps of 1 watt.

  • Page 151: Preload Control

    To limit voltage and current values (in addition to constant power limit), set voltage limit and current limit, as shown in Figure 6–9. Figure 6–9: Constant Power - Example 2 Preload Control Preload Control function provides the ability to enable/disable internal preload circuitry. This function is mainly used to prevent discharge of batteries connected to the power supply output terminals.

  • Page 152: Ocl - Analog Programming Over Current Limit

    OCL – Analog Programming Over Current Limit Analog Programming Over Current Limit (OCL) function provides the ability to limit analog programming of maximum current programming value. Setting OCL to ON state clamps maximum current programming value to digital programming value (set by Front Panel or communication). Setting OCL to OFF state (default configuration) provides the ability to program current setting according to power supply rated current value (up to about 108% of rated current).

  • Page 153: Slew-Rate Control

    Slew-Rate Control Slew-Rate control function provides the ability to control voltage or current reference slew rate. Slew rate function is enabled via the Front Panel menu (refer to section 2.7) or the communication commands SYSTem:SLEW[:STATe] <DSC>. • Select VOLT for voltage reference slew control •...

  • Page 154: Advanced Parallel

    Advanced Parallel Up to four units of the same voltage and current ratings can be connected in parallel to provide up to four times of the output current capability. One of the units operates as a master while the remaining units operate as slaves. The configuration of the system (Master-Slave) is automatic. Each unit configures itself according to advanced parallel cable connection.

  • Page 155: Advanced Parallel System Acknowledge

    Figure 6–12: Parallel Connection with Remote Sensing CAUTION Make sure the connection between –V terminals is reliable to prevent disconnection during operation. Disconnection may cause damage to the power supply. NOTE With local sensing, it is important to minimize wire length to decrease wire resistance. In addition, the positive and negative wire lengths should be as close as possible to each other to achieve better current balance between power supplies.

  • Page 156: Acknowledge Via The Front Panel

    6.9.3.1 Acknowledge via the front panel To acknowledge a parallel system via the Front Panel, turn on the master unit, and wait for 5 seconds. The following appears on the master display: WAIT ACK. To acknowledge, press the Current encoder. Display blinks, indicating that the parallel system assembly was accepted.

  • Page 157: Slave Units Operation In Advanced Parallel Connection

    Advanced Parallel system identification (*idn?) To identify a system connected in parallel, master unit updates its identification name. Standard unit identification string format is: TDK-LAMBDA,Gx-y,S/N,G:r. • x – rated voltage, y – rated current, S/N – serial number, r – firmware revision.

  • Page 158: Chapter 7: Status, Fault And Srq Registers

    CHAPTER 7: STATUS, FAULT AND SRQ REGISTERS General This section describes various status errors (faults) and SRQ register structures. The registers can be read or set via communication commands. Two individual sets of registers are managed, one set for the SCPI language, another set for the GEN language. SCPI Language 7.2.1 SCPI Register Tree...

  • Page 159: Questionable Condition (Fault Register) Group Structure

    SCPI register tree shown in Figure 7–1 describes the structure of status, events, faults, messaging and service request registers. Condition registers hold a snapshot of the actual state. The Enable registers can be set by the user to enable SRQ (Service request) in case of a condition change.

  • Page 160: Operational Condition (Status Register) Group Structure

    7.2.3 Operational Condition (Status Register) Group Structure Operational condition status register group holds a snapshot of the actual status state of the power supply at a present time. Power supply status might quickly change condition before the controlling PC detects it. Events can be stored in the Event register if the Enable register allows it. Refer to STATUS subsystem (section 0) Operation Condition commands set.

  • Page 161: Standard Event Status Group Structure

    7.2.4 Standard Event Status Group Structure Standard event status group latches error groups. Power switch on and operation complete events status might quickly change its condition before the controlling PC detects it. Events can be stored in the Event register if the Enable register allows it. Refer to Common Commands Group (section 5.13) for standard event status group commands.

  • Page 162: Output Queue

    7.2.5 Output Queue The output queue is a queue that stores the message sent from the power supply to the controlling PC until the message is read. The output queue is cleared at power on and by the *CLS command. Whenever the queue holds a message, it sets the MAV bit in the status byte register (refer to Figure 7–1).
  • Page 163 Error Number Error Description Error Event -300 “Device-Specific Error” Generic device dependent error -301 “Message Timeout” Timeout of 15 sec. before receiving a terminator (CR or LF) has occurred -302 “General Error” Unrecoverable system error, recycle AC. If problem persists, contact service -304 "Advanced Slave Fault"...
  • Page 164 Error Number Error Description Error Event “Internal Resistance is ON” An attempt to set Constant Power Mode, Analog Programming, Slew Rate or Sequencer while Internal Resistance is ON “Constant Power Mode is An attempt to set Internal Resistance, Analog Programming, Slew ON”...

  • Page 165: Service Request Enable Group Structure

    7.2.7 Service Request Enable Group Structure Service request enable group register summarizes questionable condition group, standard event status group and operational condition group events, if these are enabled. The group also contains busy bit and message available bit and service request bit. The register can be read by *STB? Command.

  • Page 166: Determining The Cause Of A Service Interrupt

    7.2.8 Determining the Cause of a Service Interrupt A service request (SRQ) is set if the contents of at least one of the event registers has changed (from logical zero to logical one). To determine the reason for an SRQ, perform the following actions: Poll by *STB? query to determine which bits are active in the service request enable status byte.

  • Page 167: Gen Language

    GEN Language 7.3.1 GEN Register Tree Figure 7–2: GEN Registers Tree Diagram GEN register tree shown in Figure 7–2 describes the structure of the status, faults, messaging and service request registers. Condition registers hold a snapshot of the actual state. Enable registers...

  • Page 168: Questionable Group (Fault Register) Structure

    can be set by the user to enable SRQ (Service request) in case a condition change occurs. Event registers latch condition registers state if the corresponding Enable registers are set to logical one. Event registers remain set (latched) until the user reads the register, reading the register clears its values until the next event.

  • Page 169: Operational Group (Status Register) Structure

    7.3.3 Operational Group (Status Register) Structure Operational condition status register group holds a snapshot of the actual status state of the power supply at a present time. Power supply status might quickly change its condition before the controlling PC detects it. Events can be stored in the Event register if the Enable register allows it. Refer to General Status Register Commands (section 5.10.9) set.

  • Page 170: Execution Error ("Exx")

    7.3.5 Execution Error (“Exx”) Power Supply responds with an execution error if it receives a valid command, but it cannot execute the command at that time, because another setting prevents it. The execution error response format is ‘Enn<CR>‘ where ‘nn’ is ‘01’ to ‘08’. The following error commands are available: E01 Cannot program voltage above the OVP setting (*1) E02 Cannot program voltage below the UVL setting (*2)

  • Page 171: Chapter 8: Ieee Option

    CHAPTER 8: IEEE OPTION General The internal factory, General Purpose Interface Bus (GPIB), installed as an option, allows operation of the Power Supply from a controller/computer via IEEE-488. The interface allows the user a remote control of the Power Supply, including output voltage, current setting and monitoring, protection setting, trigger, waveform list operation, Power Supply status, SRQ reporting and more.

  • Page 172: Multi Drop Connection

    Multi Drop Connection One IEEE Interface can control more than one Power Supply. A maximum of 31 units can be connected via RS485 interface to a Power Supply with the installed IEEE option. Refer to Figure 8–2.The Power Supply connected to a PC via the GPIB cable must be configured to an IEEE communication interface, the other must be configured to RS485 interface.

  • Page 173: Communication Cables

    Communication Cables • GPIB cable - Use standard IEEE-488, 26 AWG GPIB cable up to 3 meters in length. • RS485 link cable - Use serial link cable with RJ-45 shielded connectors (P/N: GEN/RJ45). IEEE Controller Configuration A typical IEEE controller is a personal computer with an IEEE interface card. Each card vendor supplies its own configuration instructions and interface software.

  • Page 174: Communication Example

    Communication Example This section provides an example of how to communicate with the IEEE option Power Supply using the National Instruments™ MAX application. Run the National Instruments™ MAX (Measurement & Automation Explorer). Figure 8–3: National Instruments™ MAX – Desktop Icon On the side tree, expand My System and select Devices and Interfaces ->...
  • Page 175 On the side tree, select instrument (i.e. G30-170-GPIB) and review the device settings. Refer to Figure 8–5. Figure 8–5: Instrument Properties In the GPIB Explorer toolbar, click Communicate with Instrument. NI-488.2 Communicator appears. Refer to Figure 8–6. Figure 8–6: ID String Query In the Send String: text box, *IDN? appears.

  • Page 176: Chapter 9: Air Filter Option

    For 10V model only, Derate 1°C/100m, Or 2% Load/100m, above 2000m. NOTE For power supplies with Air filter option and GPIB option, please contact TDK-Lambda customer support department or your local sales office. Maintenance Cleaning of the air filter – according to customer considerations and needs.

  • Page 177: Assembly Instructions For Standard Power Supplies

    9.3.2 Assembly Instructions for Standard Power Supplies...

  • Page 179: Assembly Instructions For Blank Power Supplies (Without Display)

    9.3.3 Assembly Instructions for Blank Power Supplies (Without Display)

  • Page 181: Chapter 10: Maintenance

    For units with optional air filter assembled, refer to CHAPTER 9: (Air filter option), for maintenance instructions. 10.4 Adjustments and Calibration No internal adjustment or calibration is required. There is NO REASON to open the power supply cover. Cover removal is allowed only by TDK-Lambda qualified service personnel.

  • Page 182: Parts Replacement And Repairs

    10.5 Parts Replacement and Repairs As repairs are made only by the manufacturer or by authorized service facilities, no parts replacement information is provided in the manual. In case of failure, unusual or erratic operation of the unit, contact the TDK Lambda sales or service facility nearest you. Please refer to the TDK Lambda sales offices address listings on the back cover of this user manual.

  • Page 183: Fuse Rating

    SYMPTOM CHECK ACTION REF. If analog programming is used, check if the OVP is set lower than the output. 3.6.1 No output. Display indicates SO Check if the rear panel J1 Output Daisy is in function. 3.7.1 No output. Front panel Display indicates ILC_FAULT Check the Rear Panel J1 Interlock Alarm LED is on.

  • Page 184: Einleitung

    10.4 Einstellungen und Kalibrierung Es ist intern keine Einstellung oder Kalibrierung erforderlich. Es gibt KEINEN GRUND, die Abdeckung des Netzgerätes zu öffnen. Das Entfernen des Gerätedeckels ist nur durch TDK-Lambda qualifiziertes Service-Personal erlaubt. 10.5 Bauteilewechsel und Reparaturen Da Reparaturen ausschließlich vom Hersteller oder von zugelassenen Servicestellen ausgeführt werden, enthält dieses Handbuch keine Informationen zum Austausch von Teilen.
  • Page 185 frontgesteuerten Betrieb und führen Sie die angeführten Tests im Kapitel 3.7 durch, um festzustellen, ob das Problem am Netzgerät liegt. Die Tabelle 10-1 enthält die grundlegenden Tests zur Ausführung einer Problemdiagnose und liefert Hinweise auf Abschnitte dieses Handbuches, welche weiterführende Informationen enthalten.
  • Page 186 Feststellung PRÜFEN Nächster Schritt BEZUG 3.7.2 Display zeigt ”ENA_FAULT” an. An der Rückseite den ENA-Anschluss und deren Funktion am J1-Stecker prüfen. 3.4.4 Kein Ausgang. Frontseitige Display zeigt ”Fold Fault” an. Foldback-Einstellung und Laststrom Alarm LED blinkt an der prüfen. 3.3.6 Frontplatte mit 0.5Hz.

  • Page 187: Chapter 11: Index

    CHAPTER 11: INDEX Address Setting, 51 Command Set Description, 87 Adjustments and Calibration, 173 Register Tree, 159 ADVANCED FUNCTIONS, 133 GEN Protocol, 87 Advanced Paralle HOME Page, 70 Slave units, 149 Opening, 69 Advanced parallel IEEE Operation, 148 488.2 Interface, 163 Advanced Parallel, 146, 147 Controller Configuration, 165 Connection, 146...
  • Page 188 Controls, 10 Setting Front, 10, 13 Baud Rate, 52 Rear, 10, 16 Default, 43 Parameter Setting Signal. See CV/CC Memory, 43 Power Supply, 42 Parts Replacement and Repairs, 174 Signals Periodic Maintenance, 173 Programmed, 41 Preload Control, 143 Slew-Rate Control, 145 Programming Socke Remote Resistor, 48...
