SEA LEPUS 800 Fitting And Connection Instructions

Sistemi Elettronici
di Apertura Porte e Cancelli
International registered trademark n. 804888

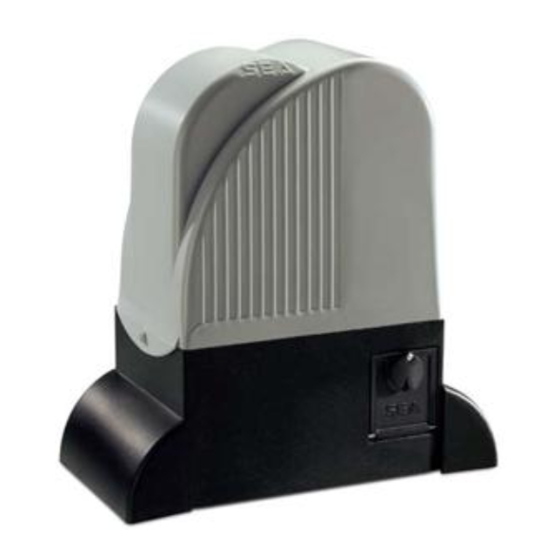

LEPUS is an oil-bathed motor-reducer created for sliding
gates automation. The motor-reducer irreversibility allows a
perfect and safe gate closing
electrolock and in case of power supply lacking, the release
device which is in the frontal part of the motor-reducer allows the
manual opening and closing. The operator has a mechanical
adjustable clutch which ensures the control of the gate
pushing. Moreover, the electronic reversing device realized
through an encoder makes the lepus motor-reducer a safe and
reliable operator allowing in a simple way to comply with the
current norms in the countries where this product is set up.
MAIN PARTS NOMENCLATURE
1 Adjustable Foundation plate
2 Anchor bolts
3 Fixing angulars
4 Angular cover
5 Pinion
7 7
9 9
6 6
4 4
3 3
2 2
TECHNICAL DATA
Power Supply
Power
Absorbed current
Motor rotation speed
Reduction ratio
Room temperature
Thermal protection intervention
Weight of the unit with oil
Oil quantity
Protection rating
Gate speed (pinion Z16)
Gate speed (pinion Z20)
Maximum weight of the gate
Mechanical clutch
Inductive or mechanical limit switch
cod. 67410010
®
LEPUS
FITTING AND CONNECTION INSTRUCTIONS
avoiding the setup of an
6 Lever release reducer
7 Adjusting screw mechanical clutch
8 Electronic control unit
9 Oil filling up cap
10 Magnetic encoder
8 8
10 10
1 1
5 5
800 1800
230 V (±5%) 50/60 Hz 380V
330W 450W 450W
1,5 A 1,7 A 1,2 A
1400 rpm
1/30
-20°C +55°C
130°C
15 Kg
1,75 L.
IP 55
10,5 m/min
12 m/min
800 Kg 1800 Kg 2000Kg
LEPUS MOTOR-REDUCER USING-GRAPHIC
3000 Kg
2000 Kg
1800 Kg
800 Kg
400 Kg
300 Kg
25%
40%
60%
75%
100%
DIMENSIONS (mm)
2000
1. GATE ARRANGEMENT
The first thing to check is that the gate is in good running order as
follows:
a) The gate is rigid and straight and runs smoothly throughout its
travel.
b) The lower track is in good order, straight and levelled.
c) The lower support wheels have sealed bearings or grease
points.
d) The top guide must be manufactured and installed so that the
gate is perfectly upright.
e) Physical gate stops must be fitted to prevent the gate coming
out of its guides and track.
REV 07 - 10/2008
Oil-bathed motor-reducers
ENGLISH
