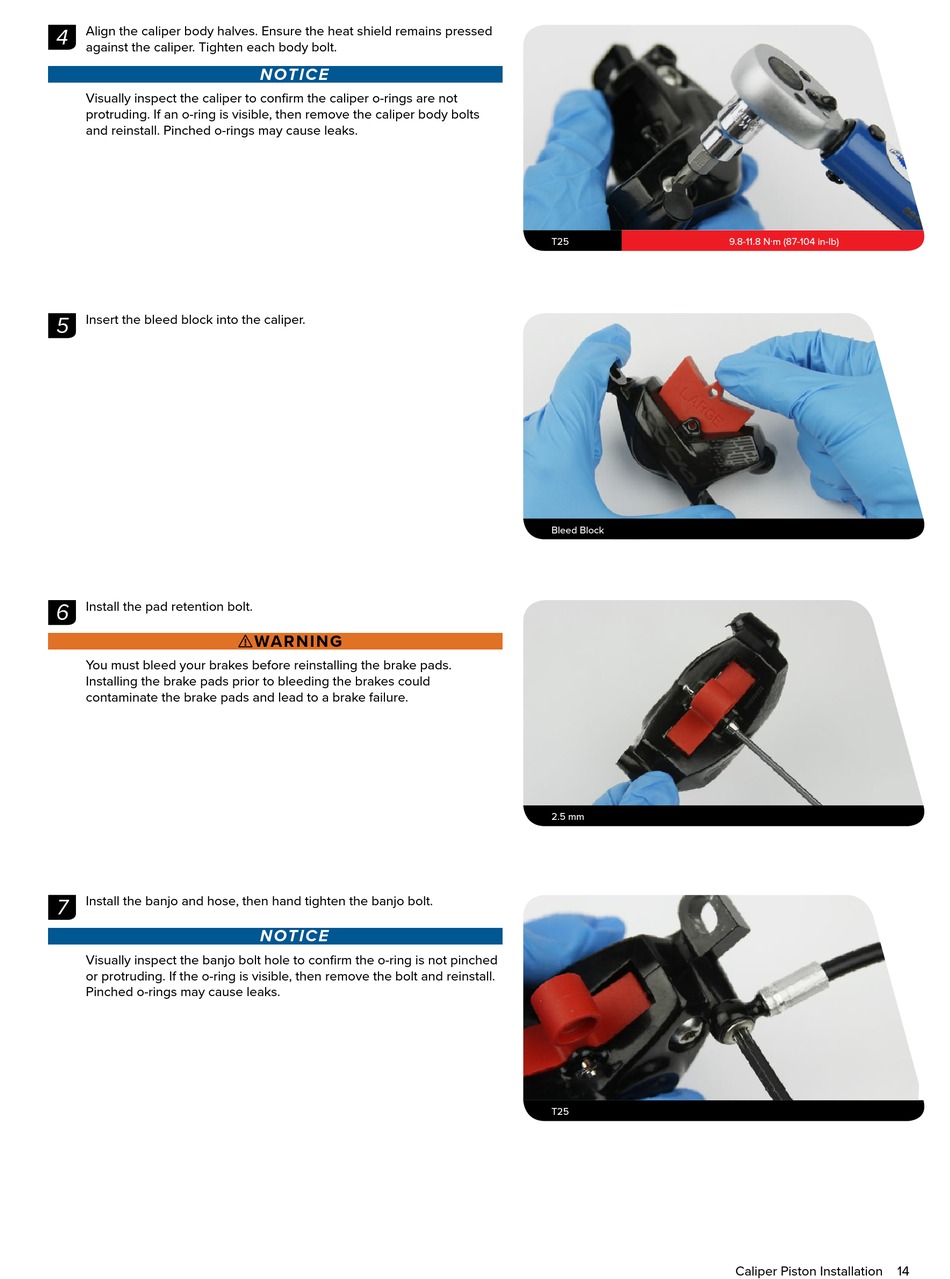

SRAM code rsc 2018 Service Manual page 14

4 Align the caliper body halves. Ensure the heat shield remains pressed
against the caliper. Tighten each body bolt.
Visually inspect the caliper to confirm the caliper o-rings are not
protruding. If an o-ring is visible, then remove the caliper body bolts
and reinstall. Pinched o-rings may cause leaks.
5 Insert the bleed block into the caliper.
6 Install the pad retention bolt.
You must bleed your brakes before reinstalling the brake pads.
Installing the brake pads prior to bleeding the brakes could
contaminate the brake pads and lead to a brake failure.
7 Install the banjo and hose, then hand tighten the banjo bolt.
Visually inspect the banjo bolt hole to confirm the o-ring is not pinched
or protruding. If the o-ring is visible, then remove the bolt and reinstall.
Pinched o-rings may cause leaks.
NOTI CE
⚠WARNING
NOTI CE
T25 9.8-11.8 N·m (87-104 in-lb)
Bleed Block
2.5 mm
T25
Caliper Piston Installation 14
