SixThreeZero AROUND THE BLOCK Assembly Manual page 48

L I M I T E R S C R E W S
1 0

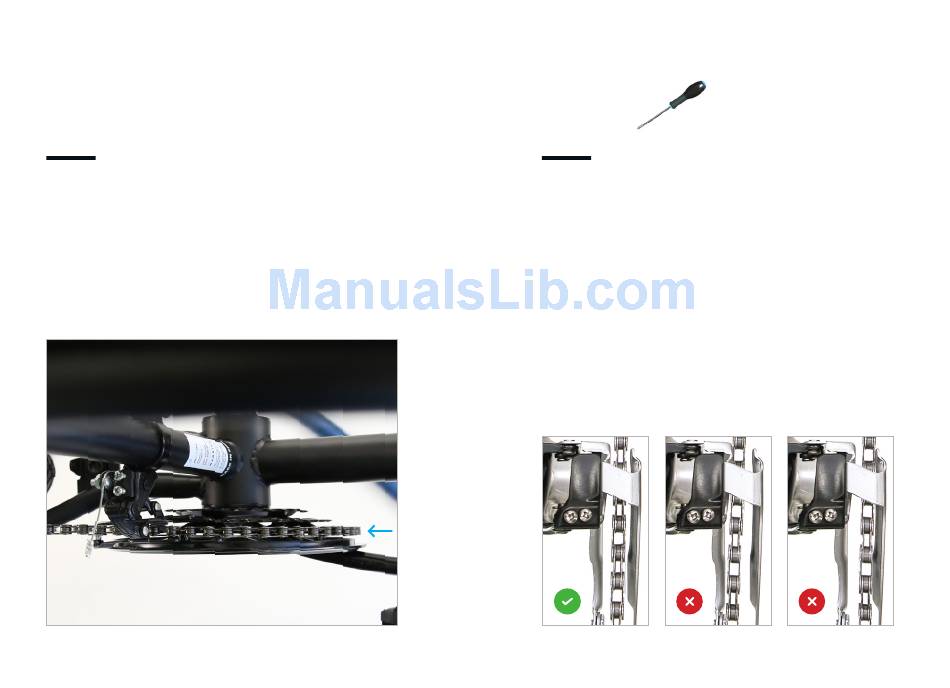

Now, let's check the H limit screw. Begin by shifting the
derailleur to 3rd gear. While turning the pedals, shift into
3rd gear. If the chain does not fall off the largest chain-
wheel when shifting into 3rd gear, the H limit screw is
close to proper positioning.
H AV I N G T R O U B L E ? WA N T L I V E H E L P ? C A L L 3 1 0 . 9 8 2 . 2 8 7 7 O R E M A I L T E A M @ S I X T H R E E Z E R O . C O M .
1 1
P H I L L I P S
S C R E W D R I V E R
Reference the bottom left image below to check if the
derailleur is properly adjusted. If it matches the images,
please move forward to Step 12. Looking through the
front of the derailleur cage, decide whether the chain is
too close to the inner or outer cage plates. If the chain
is too close to the outer cage plate, turn the H screw
clockwise a quarter turn at a time until it is centered. If
the chain is too close to the inner cage plate (closer than
the outer cage plate or it is rubbing), then turn the H
screw counter-clockwise a quarter turn at a time until it
is centered.
