SixThreeZero AROUND THE BLOCK Assembly Manual page 23

1 3
4 M M
A L L E N K E Y

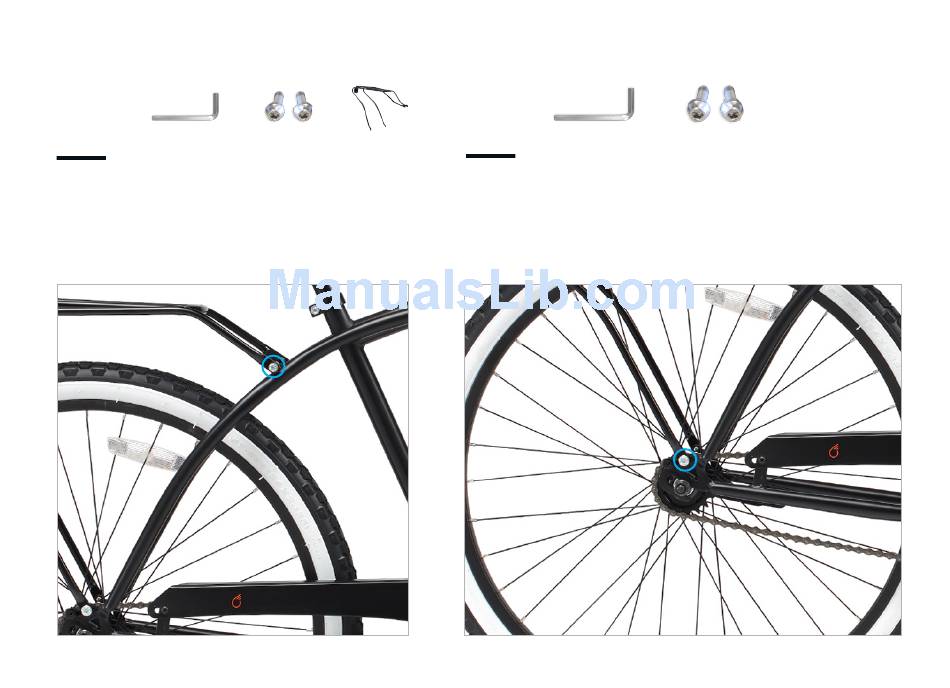

Align the front rear rack arms to the eyelets on the frame
below the seat. Use a 4mm allen key to tighten the screws
and attach the rear rack to the frame.
WATC H A S S E M B LY V I D E O S O N O U R Y O U T U B E C H A N N E L , H T T P S : / / S I X T H R E E Z E R O . C O M / PA G E S / A S S E M B LY
( 2 ) 4 M M A L L E N R E A R
K E Y S C R E W S R A C K
( p r e - i n s t a l l e d )
1 4
5 M M
A L L E N K E Y
Install the bottom rear rack arms to the frame using the 5mm allen
screws. Tighten with a 5mm allen key. Repeat on both sides.
( 2 ) 5 M M A L L E N
K E Y S C R E W S
( p r e - i n s t a l l e d )
