SixThreeZero AROUND THE BLOCK Assembly Manual page 18

0 7
B I C Y C L E O R
A U TO G R E A S E

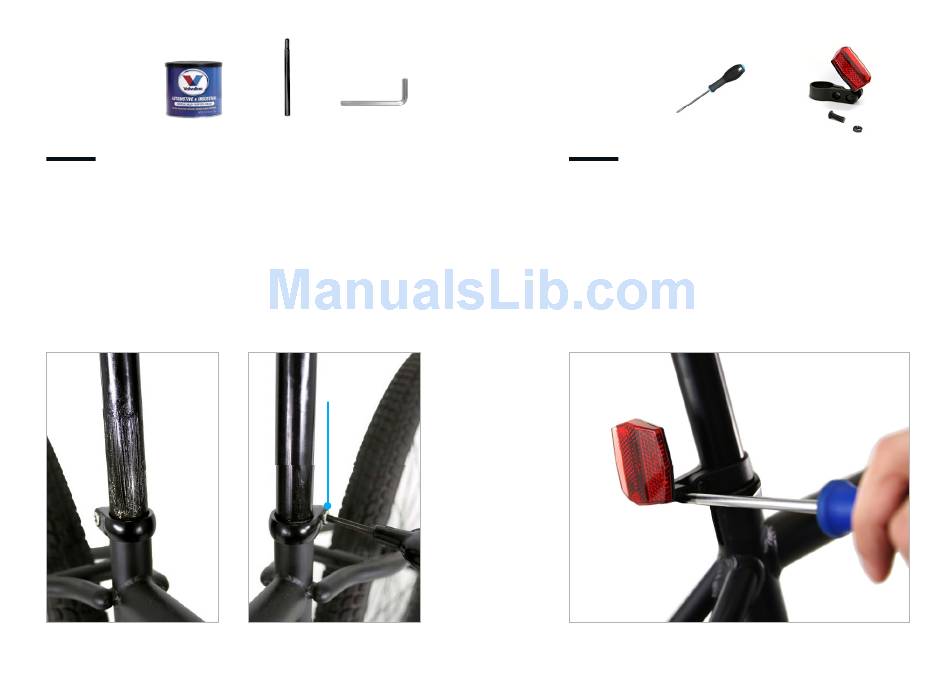

Apply grease to seat lever. Holding the seat post firmly, insert
into seat post tube until the top is level with your waist.
Tighten the seat post clamp with a 6mm Allen key.
C A U T I O N
Make sure not to drop seat post into the frame.
H AV I N G T R O U B L E ? WA N T L I V E H E L P ? C A L L 3 1 0 . 9 8 2 . 2 8 7 7 O R E M A I L T E A M @ S I X T H R E E Z E R O . C O M .
S E AT 6 M M
P O S T A L L E N A K E Y
T I G H T E N
6 M M
0 8
P H I L L I P S
S C R E W D R I V E R
Using a Phillips head screwdriver, loosen the bolt
in the bracket and slide the rear reflector over the
seatpost. Tighten anywhere on the seatpost that is of
uniform diameter.
N O T E
Only install the rear reflector if it comes separate from the rear rack.
R E A R
R E F L E C TO R
