SixThreeZero AROUND THE BLOCK Assembly Manual page 47

0 9
9 M M
M U LT I -TO O L

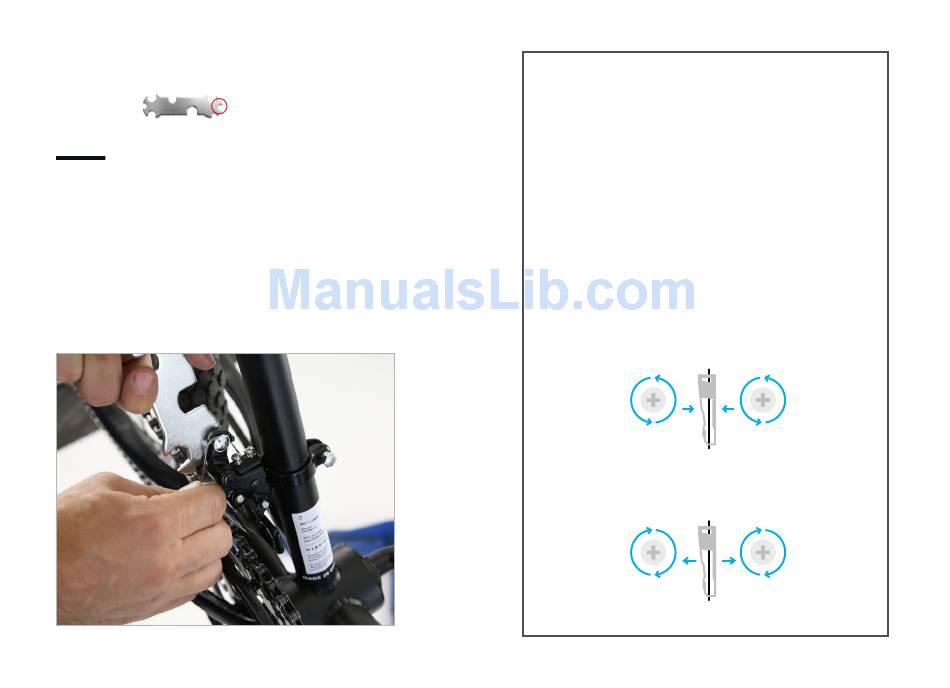

Pull the shifting cable up, align it behind the clamping
nut, and make sure to pull out any slack in the cable.
Tighten the shifting cable to the derailleur by using a
9mm wrench/socket.
WATC H A S S E M B LY V I D E O S O N O U R Y O U T U B E C H A N N E L , H T T P S : / / S I X T H R E E Z E R O . C O M / PA G E S / A S S E M B LY
N O T E
Derailleurs work off of tension, and this is
the reason that they are designed with High
and Low Limiter screws. The High and Low
Limiters essentially act as boundaries so that
no matter how much tension you put into
or take off the shifter cable, the derailleur will
not go past the largest or smallest gears. The
High (H) screw is the limiter for the largest
gear, and the Low (L) screw is the limiter for
the smallest gear.
C O U N T E R C LO C K W I S E
Turning the L & H counterclockwise shortens
the range where the derailleur cage can travel.
L H
C LO C K W I S E
Turning the L & H clockwise increases the
range where the derailleur cage can travel.
L H
