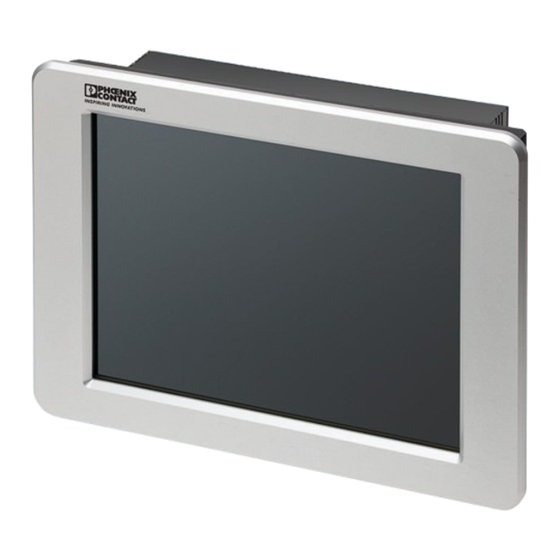

Valueline VL PPC 6015 VW 10 User Manual

Ipc with touch screen
Hide thumbs
Table of Contents

Advertisement

Quick Links

User manual
UM EN VALUELINE IPC
Order No.: 9047058
Valueline industrial PC
Installation and configuration

Advertisement

Table of Contents
loading

Summary of Contents for Valueline VL PPC 6015 VW 10

  • Page 1 User manual UM EN VALUELINE IPC Order No.: 9047058 Valueline industrial PC Installation and configuration...
  • Page 2 User manual Valueline industrial PC Installation and configuration 2012-06-05 Designation: UM EN VALUELINE IPC Revision: Order No.: 9047058 This user manual is valid for: Designation Version Order No. Valueline IPC 2913108 2637_en_D PHOENIX CONTACT...
  • Page 3 Please observe the following notes User group of this manual The use of products described in this manual is oriented exclusively to: – Qualified electricians or persons instructed by them, who are familiar with applicable standards and other regulations regarding electrical engineering and, in particular, the relevant safety concepts.
  • Page 4 Please observe the following notes General terms and conditions of use for technical documentation Phoenix Contact reserves the right to alter, correct, and/or improve the technical documen- tation and the products described in the technical documentation at its own discretion and without giving prior notice, insofar as this is reasonable for the user.

  • Page 5: Table Of Contents

    Table of contents Overview..........................1-1 Getting acquainted with the VL IPC ..............1-2 1.1.1 Status LEDs ..................1-5 Installation..........................2-1 Mounting and clearances ...................2-1 2.1.1 Temperature specifications ..............2-1 2.1.2 Wall-mount and bookshelf installation ..........2-2 2.1.3 Panel mount ..................2-3 Interfaces......................2-6 2.2.1 Communication interfaces ..............2-7 2.2.2 External display ...................2-7 2.2.3...
  • Page 6 Boot options ..................4-6 4.2.2 Power on after power fail options ............4-7 Troubleshooting....................4-8 4.3.1 Video driver ..................4-8 4.3.2 QUINT-DC-UPS… and Valueline IPC (Windows XP) ......4-8 4.3.3 Miscellaneous solutions ..............4-9 Product data ........................... A-1 Ordering data....................A-1 Technical data ....................A-1 Appendices..........................B-1 List of figures ....................

  • Page 7: Overview

    1 or 2 CompactFlash slots This manual describes the possible options and features of the Valueline IPC available at the time of printing. For specific part numbers and components, refer to the configuration sheet included with the unit to determine the installed options.

  • Page 8: Getting Acquainted With The Vl Ipc

    Hard Disk PCI Slot 0 Power Switch RTC Battery Heat Sink (entire back) 24 V DC Power Connector Access Door Open Access Door Closed Figure 1-1 Valueline IPC with Core™2 Duo or Celeron® processor and optional PCI slots PHOENIX CONTACT 2637_en_D...

  • Page 9: Vl Ipc With Atom Processor In Atom Enhanced Chassis

    Overview CompactFlash Slot 0 Serial Port CompactFlash Slot 1 Eject Button Status LEDs CompactFlash VGA Video Slot 1 USB Ports (4) Press Here to open Access Door Access Door Catch Ethernet Ports Removable Hard Disk RTC Battery Power Switch Heat Sink (entire back) 24 V DC Power Connector...

  • Page 10: Vl Ipc With Atom Processor In Atom Standard Chassis

    Valueline IPC Serial Port CompactFlash Slot 1 Eject Button Status LEDs CompactFlash Slot 1 VGA Video USB Ports (4) Press here to open Access Door Access Door Catch Ethernet Ports RTC Battery Power Switch Heat Sink (entire back) 24 V DC...

  • Page 11: Status Leds

    Overview 1.1.1 Status LEDs There is a set of four LEDs. ERROR X8 DVI D Figure 1-4 LED layout Table 1-1 LED status indicators Indication Description ERROR Yellow Indicates reduced performance due to processor temperature Indicates an over temperature condition has caused the processor to shut down Reserved for future use Flashes...
  • Page 12 Valueline IPC PHOENIX CONTACT 2637_en_D...

  • Page 13: Installation

    Make sure that there is adequate space around the heat sink (on the back of the VL IPC) and air inlets and outlets to provide sufficient cooling. 2.1.1 Temperature specifications Operational temperature limits depend on the specific configuration of the Valueline IPC (see Table 2-1 “Temperature limits” for details). Table 2-1 Temperature limits...

  • Page 14: Wall-Mount And Bookshelf Installation

    Exceeding the system temperature limits can result in performance degradation of any or all components. It is therefore important that the ambient temperature of the installation environment is kept within the system temperature limits of your Valueline IPC. 2.1.2 Wall-mount and bookshelf installation Wall mounts are valid for VL IPCs that do not include a display.

  • Page 15: Panel Mount

    Installation 2.1.3 Panel mount Panel mounts are the only valid mounting system for VL IPCs with a display. This mounting system permits installation of the VL IPC in a cabinet so the display panel is visible on the outside (see Figure 2-2). NOTE: Connectors and switches must be accessible from the rear.
  • Page 16 Valueline IPC Cut a hole in the enclosure according to the dimensions for the selected display. Figure 2-3 Panel cut-out dimensions for displays Table 2-2 Cutout dimensions Display size X (mm) Y (mm) 12 in. 334.0 253.0 15 in. 386.6 285.6...
  • Page 17 Installation From the rear, place the display clamps, 1, in the slots, 2, on the display and slide the clamp to the right (see Figure 2-4). Clamps must be used in every slot. Figure 2-4 Panel mount clamps Tighten the screws with a screwdriver on all clamps, alternating from one side to the other until the front bezel is secure against the panel.

  • Page 18: Interfaces

    After mounting the VL IPC, make any necessary cable connections. Depending on the mounting method, connections are made at the rear or bottom of the VL IPC (see Figure 2-5). If the Valueline computer includes PCI slots, additional connections may be required to the PCI cards inserted in the PCI slots.

  • Page 19: Communication Interfaces

    Installation 2.2.1 Communication interfaces Various ports and connections allow the VL IPC to communicate with other devices. The connections available on the IPC module are – Ethernet: Two RJ45 connectors are located on the rear of the VL IPC. These allow the computer to communicate on a 10/100/1000 Base-T Ethernet network.

  • Page 20: Installing Pci Cards

    Valueline IPC 2.2.3 Installing PCI cards Installing a PCI card in the optional PCI slots is done as follows: NOTE: Use standard ESD precautions when removing or installing PCI cards to avoid damage to the cards and the VL IPC.
  • Page 21 Installation PCI card installation can be in slot 1 (see below), slot 0 (see “For PCI slot 0:” on page 2-10) or both. When installing two cards of the same type, drivers often assign higher priority to the card in the lower slot number. –...
  • Page 22 Valueline IPC – For PCI slot 0: a) Remove the two Phillips-head screws, 1, holding the bracket frame, 2. Remove the bracket frame and bracket, 3, as an assembly. b) Remove the retaining screw and washer, 4, and remove the bracket from the bracket frame.
  • Page 23 Installation Figure 2-9 PCI slot 0 card installation c) Attach the PCI card, 1, to the bracket frame, 2, and secure it with the retaining screw and washer previously removed. d) Position the PCI card and frame assembly so the frame assembly rests on top of the vibration reduction strip.
  • Page 24 Valueline IPC 2-12 PHOENIX CONTACT 2637_en_D...

  • Page 25: Startup And Operation

    Startup and Operation Startup and Operation Power CAUTION: The VL IPC is set to automatically power-up and boot after a valid power connection is made as a default BIOS setting; to change this setting, see “Boot options” on page 4-6. Connect 24 V DC power (see Figure 3-1) to the included removable power connector (Order No.

  • Page 26: Power Switch

    Valueline IPC Power switch With all components and I/O properly connected, press the power switch in the direction of the dot and release it. It is a momentary switch and returns to its original position. To turn power off, press and hold the switch for about one second and then release it to perform an orderly shutdown of the Windows operating system.

  • Page 27: Firmware And Software Updates

    The Windows product key is on a sticker that is affixed to the VL IPC. Firmware and software updates From time to time, Phoenix Contact may make updates available for the firmware and software utilities used in the Valueline products. These updates can be found at the Phoenix Contact download center at www.phoenixcontact.net/catalog.

  • Page 28: Touchkit...setting

    Valueline IPC The “Touchkit: USB Controller… General” dialog box opens. This displays all the touch screen controllers installed. The default controller for the VL IPC is USB Controller. If multiple controllers are installed, click the icon of the controller to be modified before clicking the desired tab.
  • Page 29 Startup and Operation – Duration: This adjusts the time between beeps when Beep On Touch and Beep On Release are both checked. Move the slider to the left for the beep occur immediately upon the release. Move the slider to the right for the beep to be delayed to a maximum of 1 second after the release.
  • Page 30 Valueline IPC Although the modes are predefined, each mode can be manually modified by clicking the “Option” button. Figure 3-4 Mouse mode “Option” dialog box Click the check box of the desired functionality. – Enable Constant Touch: Enables the “Constant Touch Area” slider to increase/decrease movement granularity (values are displayed in pixels).
  • Page 31 Startup and Operation 3.5.2 Touchkit… Tools The “Tools” tab provides access to several tools for calibration and testing of the touch screen functionality. Figure 3-5 “Touchkit… Tools” dialog box 2637_en_D PHOENIX CONTACT...

  • Page 32: Points Calibration Screen

    Valueline IPC 4 Points Calibration Basic calibration can be completed using this utility. Click the “4 Points Calibration” button to start. The display will change to a white screen with four blinking touch points. Figure 3-6 4 Points Calibration screen Touch and hold each point until the point stops blinking.
  • Page 33 Startup and Operation Click the “Linearization” button to start the utility. The display will change to a white screen with either 9 or 25 blinking touch points. Figure 3-7 9 Points Calibration screen Touch and hold each point until the point stops blinking. If a touch point is not touched within 30 seconds, the utility is closed, returning to the “Touchkit…...
  • Page 34 Valueline IPC Draw Test To verify the calibration and other settings of the touch screen, click the “Draw Test” button. This utility opens a scratch pad for testing purposes. Touch the screen and perform typical operations to evaluate the touch screen calibration and settings.

  • Page 35: Touchkit

    Startup and Operation 3.5.3 Touchkit… Edge Compensation The “Edge Compensation” tab sets the cursor overshoot and undershoot touch points along the edge of the screen. This helps to compensate for the difficulty sometimes experienced in touching the edge of a screen. Figure 3-9 “Touchkit…...
  • Page 36 Valueline IPC Individual adjustment can be made along each edge on a percentage basis. 100% is at the edge of the screen, 50% is approximately 0.5 in. before an edge (on the screen) and 200% past an edge where the cursor is not visible. In addition, the cursor display position can be shifted along either the X or Y axis, displayed by pixel.
  • Page 37 Startup and Operation 3.5.4 Touchkit… Hardware The “Hardware” tab displays controller and firmware information about the touch screen. This information may be required if problems occur. Figure 3-11 “Touchkit… Hardware” dialog box Click the “Hardware Setting” button to open the “Saturn - Hardware Configuration” dialog box.

  • Page 38: Touchkit

    Valueline IPC Sliders are available to adjust the sensitivity and delay time of touches. Lower sensitivity allows a lighter touch on the screen. Values range between 80 and 255. Shorter delay time provides a quicker reaction to touches. Values range from 0 to 2550 μs.

  • Page 39: On-Screen Tools

    Startup and Operation Table 3-1 Touchkit menu functions Menu Function Apply to Touchscreen Selects the touchscreen controller. The Valueline IPC uses a controller called “USB Controller.” Mouse Mode Selects the mouse mode (see “Mouse modes” on page 3-5). Beep Selects the Beep mode (see “Audio acknowledgement” on page 3-4).

  • Page 40: Right-Click Tool

    Valueline IPC Touch the “Brightness Control” menu to display the “Brightness Control” window. Figure 3-14 The “Brightness Control” window Move the slider in the “Brightness Control” window to adjust the brightness of the VL IPC display. 3.6.2 Right-Click tool The floating “Right-Click” tool provides right-click functionality and a way to launch the on- screen keyboard.

  • Page 41: On-Screen Keyboard

    Startup and Operation 3.6.3 On-Screen Keyboard To display the keyboard, touch the “On-Screen Keyboard” button. The “On-Screen Keyboard” dialog box may appear (see Figure 3-16). Touch the “OK” button to close the dialog box. To prevent the dialog box from appearing again, touch the “Don’t show this message again”...

  • Page 42: Intel ® Graphics Media Accelerator User Interface

    Valueline IPC ® Intel Graphics Media Accelerator user interface ® The Valueline IPC uses the Intel Graphics Media Accelerator video driver and has a variety of customization features available, including multiple displays. 3.7.1 User interface To access the video driver controls: –...

  • Page 43: Figure 3-19 Graphics Media Accelerator Main User Interface Screen

    Startup and Operation – Output To allows selection of the number and type of display (see “Single Display configuration” on page 3-20 and “Multiple Display configuration” on page 3-22). – Panel Fit selects either a border or no border. – Hot Keys can be enabled or disabled (see “Hot Keys”...

  • Page 44: Single Display Configuration

    Monitor: this is for an analog display connected to the VGA port. – Digital Display: this is for a digital display connected to the DVI-D port. If a digital display is not connected to the Valueline IPC, this option will not appear. Figure 3-20 Single digital display selected The selected options appear in the top tab of the dialog box.

  • Page 45: Figure 3-21 Display Settings For A Single Display

    Startup and Operation Display Settings Click the “Display Settings” tab on the left side to access additional settings for color quality, screen resolution, refresh rate and rotation. Figure 3-21 Display settings for a single display The drop-down boxes only display selections pertinent to the particular display being configured.

  • Page 46: Multiple Display Configuration

    Valueline IPC Adjusting colors Click the “Color Correction” tab on the left side to access color, gamma, brightness and contrast settings. Figure 3-22 Color corrections Click the “Apply” button to apply the settings to the selected display. 3.7.3 Multiple Display configuration The VL IPC allows two displays to be connected at the same time using either the built-in touch screen display, or displays connected to the VGA or DVI-D ports (see “External...

  • Page 47: Figure 3-23 Extended Desktop Selected For Multiple Displays

    Startup and Operation – Extended Desktop: outputs two displays independently with different configurations for increased desktop space. Figure 3-23 Extended Desktop selected for multiple displays After clicking one of the Multiple Display radio buttons, select which is the Primary Device and which is the Secondary Device using the drop-down menus.

  • Page 48: Figure 3-24 Display Settings For One Display Of A Multiple Display Setup

    Valueline IPC Display Settings Click the “Display Settings” tab on the left side to access additional settings for color quality, screen resolution, refresh rate and rotation.The top tab allows selection of the display if Dual Display Clone or Extended Desktop are selected,...

  • Page 49: Adjusting 3D Operation

    Startup and Operation Adjusting colors Click the “Color Correction” tab on the left side to access color, gamma, brightness and contrast settings. Figure 3-25 Color corrections Click on the top tab to select the desired display for configuring Dual Display Clone or Extended Desktop selections.

  • Page 50: Configuring Video Overlay

    Valueline IPC 3.7.5 Configuring video overlay Click the “Video Overlay” button to open the “Overlay Settings” dialog box. Figure 3-27 “Overlay Settings” dialog box Video overlay adjustments provide the ability to make changes to video running in a separate, pop-up window.

  • Page 51: Hot Keys

    Enable Digital Display <CTRL<ALT>F4 only appears in the list if a digital display is connected to the Valueline IPC DVI-D port. If the system is waiting for a user to login, the hot keys will not work until after the login is completed.

  • Page 52: Zoom

    Valueline IPC Figure 3-30 Hot key selection Click the drop-down menu for the field on the left, and then click the desired combination of Ctrl, Alt and Shift keys. This combination selects the first two keys of the three-key combination.

  • Page 53: Graphics Information

    Startup and Operation Several options can be selected from the “Action” menu, including zoom in, zoom out and lock. 3.7.9 Graphics Information Graphics information is not included in Windows 7. Click the “Information” button to open the “Information” dialog box. Figure 3-32 “Information”...

  • Page 54: Uninterruptable Power Supply

    A 24 V DC uninterruptable power supply receives Alternating Current (AC) and outputs 24 V DC to a Valueline IPC (in this case). It is comprised of a power supply, switching unit and a rechargeable battery working together in one of two modes. The first mode sources DC voltage from the power supply so the Valueline IPC can operate when AC power is present (often referred to as normal mode).

  • Page 55: Power Supply Recommendations

    Startup and Operation 3.8.1 Power supply recommendations The Valueline IPC requires a 24 V DC power source. This can be either a standard power supply or a DC UPS. The following table provides expected amperage requirements for different configurations. Table 3-2...

  • Page 56: Figure 3-34 Power Connector A And B

    Valueline IPC – Monitors the state of the Low Battery Alarm, which is a contact closure inside the UPS, after the battery reaches approximately 20.4 V. When this signal is active, the Windows operating system starts the Critical Alarm timer which gives 30 seconds to launch and execute an optional program before the VL IPC begins the shutdown procedure.

  • Page 57: Figure 3-35 Db-9 Serial Port Connection

    NOTE: The Valueline IPC serial port and pins A-B on the power connector cannot accept 24 V. The un interruptible power supply shutdown must be initiated through dry contacts. The QUINT-DC-UPS… must be configured for dry contact mode. If another type of un interruptible power supply is used, it must be configured for dry contact mode or a relay must be installed between the Valueline IPC and the uninterruptable power supply.

  • Page 58: Figure 3-36 "Ups Selection" Dialog Box

    Valueline IPC In the Windows XP Control Panel, double-click the “Power Options” icon and click the “UPS” tab (not available in Windows 7). Figure 3-36 “UPS Selection” dialog box Click the “Select” button and set these options: – In the “Select manufacturer” field, select Generic from the drop-down menu.

  • Page 59: Figure 3-38 "Power Options Properties" Dialog Box

    Startup and Operation Click the “Finish” button to return to the “Power Options Properties… UPS” dialog box. Figure 3-38 “Power Options Properties” dialog box Click the “Configure” button. The suggested configuration of the driver is as follows: – Click the “Enable all notifications” check box to display a message when the VL IPC goes to battery power.

  • Page 60: Figure 3-39 "Ups Configuration" Dialog Box

    Valueline IPC – Set the desired number of seconds before subsequent messages are displayed. Figure 3-39 “UPS Configuration” dialog box – Click the “Minutes on battery before critical alarm” check box and set the amount of time for the IPC to be on battery power once the UPS is in that mode (increased battery power will allow longer time settings).

  • Page 61: Trio-Ups

    Startup and Operation 3.8.3 TRIO-UPS… installation Connect the TRIO-UPS… to a USB port on the VL IPC using the IFS-USB-PROG- ADAPTER (Order No. 2811271) data cable. Apply power to the VL IPC and wait for the boot-up process to complete. If prompted by the operating system, install the updated driver for the IFS-USB-PROG- ADAPTER from the internet.

  • Page 62: Accessing The Optical Drive

    Valueline IPC Accessing the optical drive Use the optional CD-RW/DVD-RW to install programs or backup control programs and data. To insert or remove a CD/DVD, follow these steps: Open the access door. Press the eject button to remove an optical disk.

  • Page 63: Using Compactflash Cards

    To install a CompactFlash card follow these steps: NOTE: CompactFlash cards are handled like hard drives in a Valueline IPC and are, therefore, not hot-swappable. Ejecting a CompactFlash before the VL IPC is powered-down could result in data loss.
  • Page 64 Valueline IPC Install a CompactFlash card in the proper slot. The card should be inserted so the lip is toward the connectors. Push the card straight into the device until seated. When inserting a CompactFlash card, use the slot 0 for bootable CompactFlash cards and the slot 1 for data-only CompactFlash cards.

  • Page 65: Maintenance

    Maintenance Maintenance The Valueline IPC has several removable components. To access some of these components, it may be necessary to remove cables connected to the VL IPC. 2637_en_D PHOENIX CONTACT...

  • Page 66: Vl Ipc Components

    Valueline IPC VL IPC components There is an access door under the connectors of the VL IPC system module (see Figure 4-1). Under the access door are two type II CompactFlash® slots (slot 0 and slot 1), a bay for an optional optical storage device, a removable hard disk bay, and the RTC battery.
  • Page 67 Maintenance CompactFlash Slot 0 Serial Port Status LEDs CompactFlash Slot 1 VGA Video USB Ports (4) Ethernet Ports Removable Hard Disk Power Switch RTC Battery Heat Sink (entire back) 24 V DC Power Connector Figure 4-2 VL IPC with Atom processor in Atom enhanced chassis with access door open 2637_en_D PHOENIX CONTACT...
  • Page 68 Valueline IPC Serial Port CompactFlash Status LEDs Slot 1 VGA Video USB Ports (4) Ethernet Ports RTC Battery Power Switch Heat Sink 24 V DC (entire back) Power Connector Figure 4-3 VL IPC with Atom processor in Atom standard chassis with access door...

  • Page 69: Real-Time Clock Battery

    Maintenance 4.1.1 Real-time clock battery There is a battery located under the access door. This battery supplies power to the Real- Time Clock (RTC) in the VL IPC when the system is not connected to a 24 V DC power source.

  • Page 70: Bios Configuration

    Valueline IPC Pull the lever to slide the tray and hard drive assembly out of the bay. Hold the access door flat to ensure the tray clears as it is removed. If present, the hard drive can be removed from the tray by removing the four screws along the sides of the hard drive.

  • Page 71: Power On After Power Fail Options

    Use the arrow keys to highlight the desired device under Hard Disk or CDROM, then press the <Enter> key to boot from that device. 4.2.2 Power on after power fail options The Valueline IPC provides three options for power-up behavior once power is applied. To change the setting: Select Integrated Peripherals. Select SuperIO Device.

  • Page 72: Troubleshooting

    Graphics Options (certain tools from the Intel GMA UI) are available as options. – Reload the video driver. Go to C:\Phoenix Contact\ValueLine IPC\Drivers\Video, launch Setup and respond to the prompts accordingly. Reloading the driver will overwrite any saved graphics settings (rotate, screen resolutions, color balances, etc.).

  • Page 73: Miscellaneous Solutions

    What is the correct type of CompactFlash memory? – Industrial fixed media CompactFlash cards must be used in the Valueline IPC CompactFlash slots. Though the brand does not matter, the type of card does. Therefore, as the Windows® operating system will not boot from consumer grade removable media CompactFlash cards in a Valueline IPC, they cannot be used.
  • Page 74 Valueline IPC 4-10 PHOENIX CONTACT 2637_en_D...

  • Page 75: A Product Data

    Order No. Pcs./Pkt. Industrial PC, configurable Valueline IPC 2913108 a. An order key must be appended to the 7-digit order number to reflect the various options that are specified in each configuration. The order key is generated using the Phoenix Contact on-line configuration tool.
  • Page 76 Valueline IPC General data (continued) Degree of protection IP65 (front), IP20 (back) UL Type 4 Mounting Panel, bookshelf, and wall LED indicators Power, HDD, Run, Error a. Only 12-, 15- and 17-in. displays without the front USB port Electrical data...
  • Page 77 Technical data Display - 24 in. Screen size, diagonal 608 mm (24.0 in.) Screen size, horizontal x vertical 531 x 299 mm Resolution 1920 x 1080 Type Resistive touch screen with serial/USB interface Brightness 300 Cd/m² Number of colors 16.7 million Contrast ratio 1000:1 View angle, horizontal/vertical (CR=10)
  • Page 78 Valueline IPC Display - 15 in. Screen size, diagonal 378 mm (14.88 in.) Screen size, horizontal x vertical 304 x 228 mm Resolution 1024 x 768 Type Resistive touch screen with serial/USB interface Brightness 350 Cd/m² Number of colors 16.2 million...

  • Page 79: List Of Figures

    B Appendices List of figures Section 1 Figure 1-1: Valueline IPC with Core™2 Duo or Celeron® processor and optional PCI slots ................1-2 Figure 1-2: VL IPC with Atom processor in Atom enhanced chassis ....1-3 Figure 1-3: VL IPC with Atom processor in Atom standard chassis ......1-4 Figure 1-4: LED layout ..................1-5...
  • Page 80 Valueline IPC Figure 3-13: Touchkit menu .................3-14 Figure 3-14: The “Brightness Control” window .............3-16 Figure 3-15: Right-Click tool .................3-16 Figure 3-16: The “On-Screen Keyboard” dialog box ..........3-17 Figure 3-17: The “On-Screen Keyboard” window (Windows XP) ......3-17 Figure 3-18: Graphic Media Accelerator direct select options ......3-18 Figure 3-19: Graphics Media Accelerator main user interface screen ....3-19...
  • Page 81 List of figures Section 4 Figure 4-1: VL IPC with access door open ............4-2 Figure 4-2: VL IPC with Atom processor in Atom enhanced chassis with access door open ...................4-3 Figure 4-3: VL IPC with Atom processor in Atom standard chassis with access door open ...................4-4 Figure 4-4: Insert RTC battery as shown ..............4-5...
  • Page 82 Valueline IPC PHOENIX CONTACT 2637_en_D...

  • Page 83: List Of Tables

    List of tables Section 1 Table 1-1: LED status indicators ................1-5 Section 2 Table 2-1: Temperature limits ................2-1 Table 2-2: Cutout dimensions ................2-4 Section 3 Table 3-1: Touchkit menu functions ..............3-15 Table 3-2: Power requirements................3-31 Table 3-3: QUINT-DC-UPS… connections............3-33 2637_en_D PHOENIX CONTACT...
  • Page 84 Valueline IPC PHOENIX CONTACT 2637_en_D...

This manual is also suitable for:
