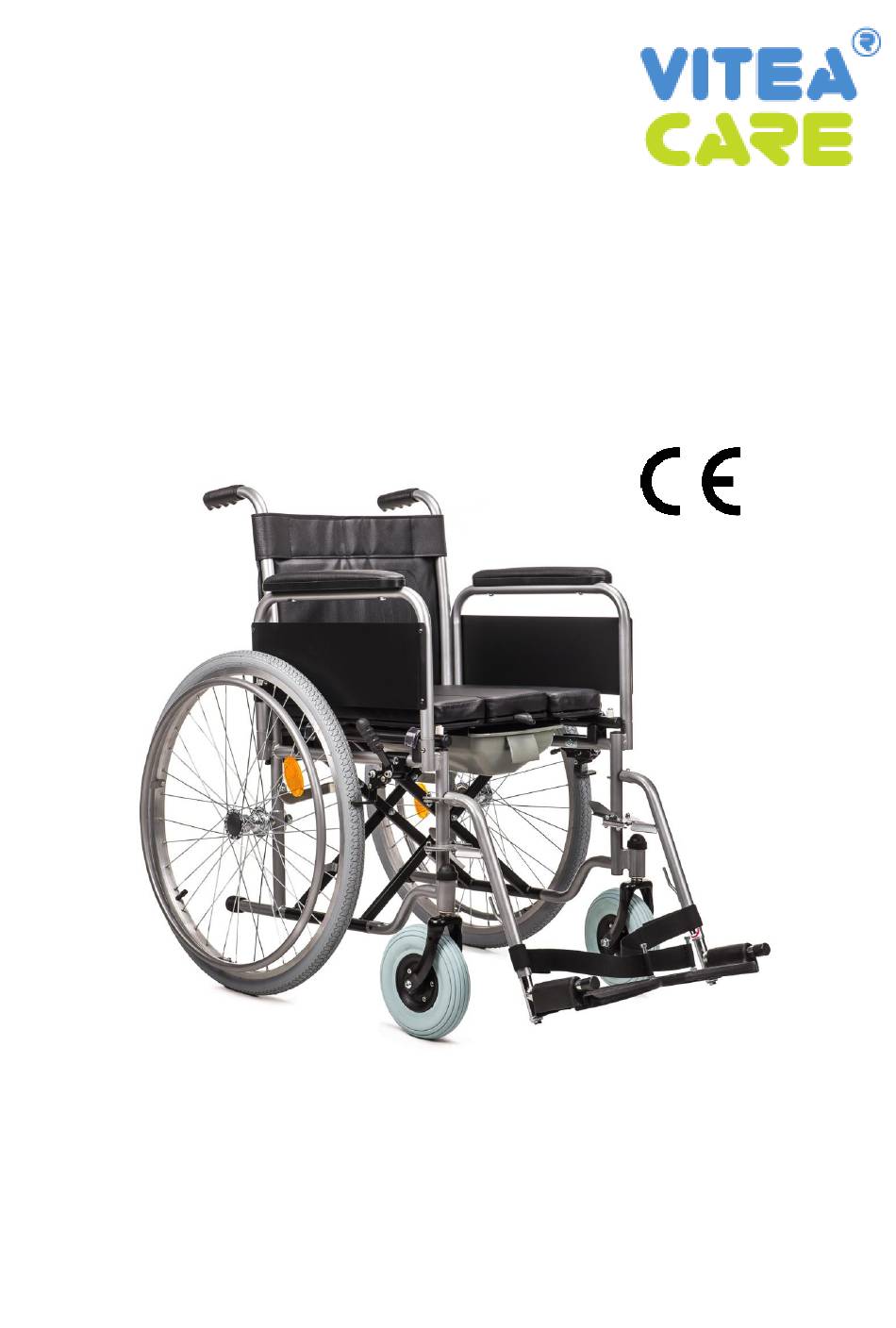

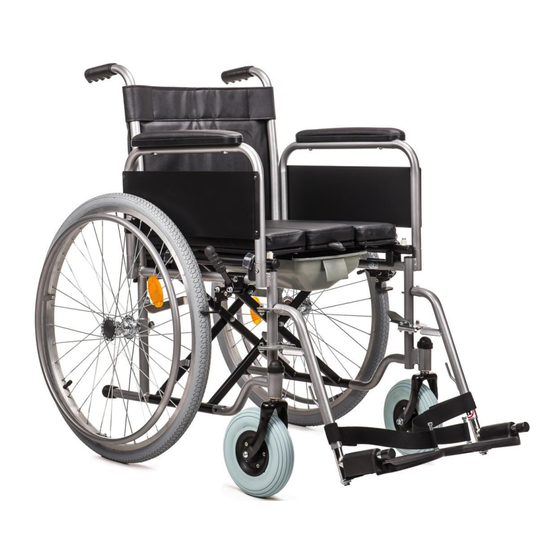

- Page 1 INSTRUCTIONS FOR USE TRUST STANDARD WHEELCHAIR WITH TOILET FUNCTION VCWK4T EDITION EJ 06.2022...
-
Page 2: Table Of Contents
Tabele of contents Introduction ............................. 3 Description of product ........................3 Indications............................5 Contraindications ..........................5 Usage ............................... 5 Safety of use – WARNING! ......................7 Everyday use and maitenance ......................8 Technical paramets ........................15 Symbols ............................16 10. Contact details ..........................18 PLEASE READ CAREFULLY BEFORE USING WHOLE OF INSTRUCTIONS... -
Page 3: Introduction
1. Introduction Thank you for choosing our product. We are deeply convinced that it will meet your expectations. Please read this document before first use. This manual was made in order to provide the necessary information on the safe use of the device. The correct application of the recommendations will contribute significantly to extend the durability and aesthetics of the product. - Page 4 11. Backrest 12. Seat cushion 13. Sanitary container 14. Footrest frame 15. Cros frame 16. Footrest handle 17. Calfrest 18. Footrest platform Elements that should be inside the packaging: Illustration 2. Seat with removable element enabling to obtain a sanitary hole. Illustration 3.Sanitary container Ilustracja 4.
-
Page 5: Indications
Hooks Illustration 5. Two footrests Illustration 6. Wheelchair 3. Indications The wheelchair is used in order to commute by people with disabilities e.g. after the spinal cord damages, cerebral palsy or various lower limb injuries, neuromuscular diseases, post-traumatic cranial cerebral or for geriatric patients. 4. - Page 6 UNFOLDING THE WHEELCHAIR The wheelchair must be placed with rear wheels in front of You. Unfold the handle holder towards the outside (Illustration 6.). Then place wheelchair with front wheels in front of You. Press seat frames, until complete unfolding. (Illustration 7., 8.) Illustration 7.
-
Page 7: Safety Of Use - Warning
Illustration 12. Safety of use – WARNING! a) Before using the wheelchair refer to this manual and keep it for future reference. b) While getting o and out of the wheelchair, the brakes always have to be on! c) Before getting on or getting off the wheelchair, do not stand on the footrest, you must fold or completely set aside footrests first. -
Page 8: Everyday Use And Maitenance
(to the side, front, back). z) In order to avoid accidental rolling off the wheelchair, always put on the brakes when the stroller is stopped, when patient get in, get off, while changing the position. aa) Do not leave the patient in the wheelchair (even with turned on both brakes) on the descents, ramps, landings, etc. - Page 9 Armrest clip Illustration 13. Place the patient the wheelchair. Put on the armrest. Install and open the footrests and put on it patient's feet. Place the patient on wheelchair so that the patient is in upright sitting position (knees should be bent at an angle of ~ 90 °).
- Page 10 Then cross the curb. Ahead with the help of a caretaker Higher curbs can be overcome with caretaker help. Caretaker should slightly tilt the wheelchair back. Cross the curb moving on the rear wheels. Then the wheelchair must be paced on all four wheels.
- Page 11 Seat frames Illustration The wheelchair have to be moved by holding the frame elements only. Never hold the wheelchair by the armrests or footrests. REGULATIONS: BRAKE MECHANISM Brake lever Brake Illustration 15. Illustration 15. shows the brake mechanism. ...
- Page 12 FOOTREST Footrest could be adjustable in length. To set the desired length of the footrest, remove the footrests. At the bottom of the footrest is a footrest adjustment screw. With the wrench number 12 loosen the adjustment screw. (Illustration 18.) ...
- Page 13 To remove the toilet container, just pull it , while in the seat put removable element . PUMPING TYRE (It applies to wheelchair fitted with wheels pumped) Schrader valve Prest valve Illustration Illustration Before pumping the tires, identify the type of valve which is located on the tire. This may be one of the two valves shown in Illustration 20 and 21.
- Page 14 PRESSURE IN WHEELS AND BRAKING POWER Pressure in wheels should be select to the user weight and then with assistance caregiver check the operation of the parking brakes (wheelchair with user facing toward the fall, can not roll on a plane with a slope of 15%.) ...
-
Page 15: Technical Paramets
correct fixing. are fixed tightly. Every two months Cleanliness and general condition. In case of mechanical damage contact the producer immediately. Once a month wheel axles Wheel axles must be conserved, seting between the axle and the hub a few drops of lubricant preservative. In addition, make test each wheel. -
Page 16: Symbols
Maximum safe slope Description of the environment in which the product will be used Temperature of storage and use The humidity for the storage and use From 30% to 70% Printed on the product Tools necessary to adjustment Wrench numbes 10, 13 9. - Page 17 Protect from sunlight Permitted user weight. Use inside and outside buildings Maximum safe slope. The product is intended to transport by car. The product is not designed for use as a seat to transport in a motor vehicle. Unique Device Identifier The possibility of fingers jamming.
-
Page 18: Contact Details
Temperature of storage and use Medical device Contact details mdh Sp. z o.o. ul. Maratońska 104, 94-007, Łódź, Polska tel. +48 42 674 83 84 fax. +48 42 636 52 21 www.mdh.pl www.viteacare.com...
