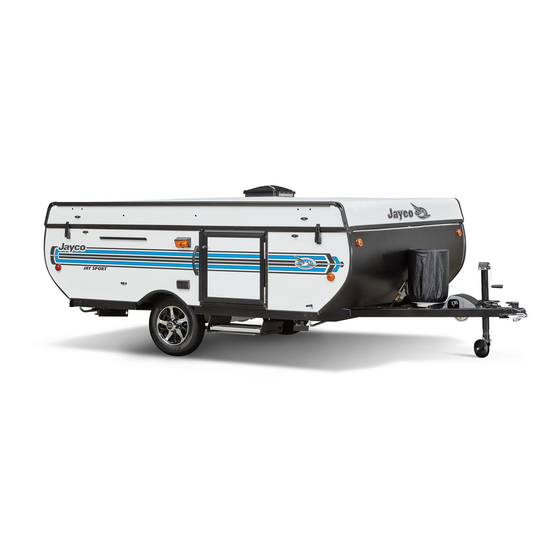

Jayco JAY SPORT 2018 Owner's Manual

Camping trailers
Hide thumbs
Table of Contents

Advertisement

Quick Links

2018
CAMPING TRAILERS
Owner's Manual
PRINTED ON RECYCLED PAPER
0181064.2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JAY SPORT 2018 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jayco JAY SPORT 2018

Summary of Contents for Jayco JAY SPORT 2018

  • Page 1 2018 CAMPING TRAILERS Owner’s Manual PRINTED ON RECYCLED PAPER 0181064.2018...
  • Page 3 44,683 people. We’re proud of our results, and we know those numbers show that a little initiative can go a long way. The Jayco EcoAdvantage is our way of making sure endless generations can enjoy the Great Outdoors.

  • Page 5: Table Of Contents

    Change Of Address/Ownership Suggestions For Obtaining Service Obtaining Service For Separately Warranted Items Obtaining Service At Our Customer Service Facility Parts & Accessories Notice To Jayco Dealers Section 2: Occupant Safety Secondary Means of Escape (Exit Window) Fire Safety Exit Window Label...
  • Page 6 Table of Contents Spare Tire Carrier (If So Equipped) Bracket mount travel position Hoist mount travel position Crank access port Setting Up Your Recreation Vehicle Bumper Mount Caring For The Tent Tent Set Up And Tear Down Canopy (if so equipped) Screen Room Lifter System Section 5: Slideout Systems...
  • Page 7 Table of Contents Potable Water Label Sanitizing/Winterizing the Plumbing System Gravity Water Fill Water heater drain plug location Water Heater Anode rod replacement chart Outside Shower (If So Equipped) Faucets Bathroom Tub / Shower Toilet (If So Equipped) Grey Drains Section 9: Heating and Cooling Air Conditioner Prep (If So Equipped) Power Roof Vent (If So Equipped)
  • Page 8 Maintenance Record Table of Contents...
  • Page 9 Section 1: Warranty & Service WARNING: Read all instructions in this manual and component manufacturer supplied information before using your RV. This manual has been provided by your recreational vehicle manufacturer for the sole purpose of providing instructions concerning the operation and maintenance of this recreational vehicle.
  • Page 10 Section 1: Warranty & Service Maintenance Record Table of Contents...
  • Page 11 Canada may differ to conform to Canadian Codes. Dealer Responsibility At the time of sale of the new recreation vehicle, your Jayco dealer is expected to: Deliver your recreation vehicle in the best condition possible. Your recreation vehicle must pass the dealer’s pre-delivery inspection (PDI), including all systems tests.
  • Page 12 (or any effect of the alterations) to any of the parts, components, systems or assemblies installed by Jayco. Jayco is not responsible for the safety or quality of design features, materials or workmanship of any alterations by such suppliers.

  • Page 13: About This Manual

    Canada. In addition, the club offers a variety of local and regional activities throughout the year. By belonging to the Jayco Travel Club, you will find new ways to enjoy your RV and make friends all across the country.

  • Page 14: Warranty Packet

    Section 1: Warranty & Service Warranty Packet There are components that are excluded from the vehicle warranty, or are warranted separately by their own individual manufacturer’s limited warranty. The Warranty Packet contains these component manufacturer supplied manuals or information sheets, warranty cards and/or registrations.

  • Page 15: Reporting Safety Defects

    Section 1: Warranty & Service  Indicates a potentially hazardous situation that, if not avoided, may result in death or serious injury. Reporting Safety Defects In the United States: If you believe that your recreation vehicle has an alleged defect which could cause a crash or cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA), in addition to notifying our Customer Service Department.

  • Page 16: Change Of Address/Ownership

    Section 1: Warranty & Service As technology advances, new improvements enter the RV industry every day, and each RV manufacturer has its own unique manufacturing process. Familiarize yourself with the Limited Warranty applicable to your recreation vehicle. There are components that are excluded or warranted separately by their individual manufacturer’s limited warranty (refer to the Warranty Packet or Chassis Guide if applicable).

  • Page 17: Obtaining Service For Separately Warranted Items

    Section 1: Warranty & Service Obtaining Service For Separately Warranted Items Your selling dealer is responsible for servicing your recreational vehicle before delivery, and has an interest in your continued satisfaction. We recommend your dealer perform all inspection, warranty and maintenance services. Some dealers may be authorized service centers for those OEMs whose products are warranted separately and excluded from the Limited Warranty.
  • Page 18 Floor/Bed Platforms Jayco extends to the original retail purchaser only, a limited warranty on the floor and on the bed wood against functional defects in material or workmanship in the structural integrity of the floor and the structural integrity of the bed wood for a period of five (5) years. The...
  • Page 19 Jayco are covered. Dealer labor to remove and reinstall the tent sections(s) plus shipping costs to Jayco is not covered. (In simple terms, you send it to us, we will fix it and send it back during years three (3), four (4), and five (5)).
  • Page 20 (3) months after the expiration of the warranty period. DISCLAIMER OF CONSEQUENTIAL AND INCIDENTAL DAMAGES You and any other user of Jayco products shall not be entitled to any consequential or incidental damages, including without limitation, loss of use of the unit, inconvenience, lodging, damage to personal property, phone calls, meals, lost income or earnings.

  • Page 21: Towable Limited Warranty

    RV is delivered to the first retail purchaser by an independent, authorized dealer of Jayco, or, if the dealer places the vehicle in service prior to retail sale, on the date the RV is first placed in such service. In the event that a substantial defect in material or workmanship, attributable to Jayco, is found to exist during the warranty period, it will be repaired or replaced, at Jayco’s option, without charge to the RV owner, in accordance with...
  • Page 22 RV to the service center on the specified appointment date. If you need assistance you may contact Jayco, at 903 S. Main Street, P.O. Box 460, Middlebury, Indiana 46540, Attn: Customer Service, (574) 825-5861, (800) 283- 8267 or www.jayco.com.
  • Page 23 Certain things completely discharge Jayco from any obligation under this warranty and void it. By way of example, the following shall discharge Jayco from any express or implied warranty obligation to repair or replace any defect that results from: any rental or other commercial use or purchase of the RV (as defined in this warranty), any RV sold outside of, or used outside of, the United States, U.S.
  • Page 24 Jayco, or any agent of Jayco, shall be interpreted as an extension of the warranty period or this limitation period. Some states do not allow a reduction in the statute of limitations, so this reduction may not apply to you.

  • Page 25: Jayco Towable Rental Limited Warranty

    Limited Warranty will not apply to this RV. The Towable Limited Rental Warranty applies in that situation. If, on the other hand, the Jayco dealer sells this RV to a retail customer then the rental warranty would not be applicable. The rental warranty does not apply to retail consumers.
  • Page 26 Pay any freight or transportation costs, import duties, fees and all incidental expenses associated with obtaining warranty service. If you need assistance you may contact Jayco, at 903 S. Main Street, P. O. Box 460, Middlebury, Indiana, 46540, Attn: Customer Service (574) 825-5861, (800) 283-8267 or www.jayco.com.
  • Page 27 You must inspect the RV for this type of damage when you take delivery from Jayco. If you find any such defect or damage you must notify Jayco within three (3) days of delivery of the RV to you to have these items covered by this limited warranty and to have work performed on the items covered by this limited warranty.
  • Page 28 Jayco, or any agent of Jayco, shall be interpreted as an extension of the warranty or this limitation period. Some states do not allow a reduction in the statute of limitations, so this reduction may not apply to you.

  • Page 29: Secondary Means Of Escape (Exit Window)

    Section 2: Occupant Safety Secondary Means of Escape (Exit Window) The emergency egress window allows a quick exit from the recreation vehicle during an emergency if access to the main entrance door is not available. Make sure all occupants know how to open and operate the egress window before an emergency occurs.

  • Page 30: Fire Extinguisher

    Section 2: Occupant Safety Refer to the following sections for additional fire safety information. Electrical Systems, In case of an electrical fire. Appliances, In case of a grease fire. Fire Extinguisher Fire extinguishers are classified and rated by fire type, A, B and C. These classifications identify the kinds of fires or burning materials they are designed to fight.
  • Page 31 Section 2: Occupant Safety Be aware the smoke alarm is not fool proof and cannot detect fires if smoke does not reach it. Anything preventing smoke from reaching the alarm may delay or prevent an alarm. Though the alarm horn in this detector meets or exceeds current UL standards, it may not be heard for reasons that include (but not limited to): a closed or partially closed door, other noise from electronics, appliances or traffic.

  • Page 32: Combination Carbon Monoxide /Propane Alarm

    Section 2: Occupant Safety Combination Carbon Monoxide /Propane Alarm Your recreation vehicle is equipped with a combination carbon monoxide (CO) / propane alarm that is listed for use in recreation vehicles. The combination carbon monoxide/ propane alarm will only work if it is operational and maintained. ...
  • Page 33 Section 2: Occupant Safety limited life of the alarm.Carbon monoxide (CO) is an insidious poison. It is a colorless, odorless and tasteless gas. Many cases of reported carbon monoxide poisoning indicate while victims are aware they are not well, they become so disoriented they are unable to save themselves by either exiting the recreational vehicle or calling for assistance.
  • Page 34 Section 2: Occupant Safety that motor vehicle(s) are not, and have not been, operating in an attached garage or adjacent to the recreation vehicle. If problems are identified during this inspection, have the alarm serviced immediately. Note any combustion equipment not inspected by the technician and consult the manufacturer’s instructions or contact the manufacturer directly for more information about carbon monoxide safety and this alarm.

  • Page 35: Formaldehyde

    Section 2: Occupant Safety NOTE: The carbon monoxide/propane alarm manufacturer strongly recommends replacement of the detector five years after the date of purchase. Formaldehyde Some components in the recreation vehicle contain formaldehyde-based adhesives that may release formaldehyde fumes into the air for an unknown period of time. Individuals who are allergic to formaldehyde gas fumes may experience irritation to eyes, ears, nose and throat.

  • Page 36: Condensation

    Section 2: Occupant Safety Condensation  Condensation may cause dampness, mildew, mold, staining and, if allowed to continue, it may result in damage to the recreation vehicle (damage caused by condensation is not warrantable). It can also lead to mold or mildew issues, which could be a health hazard.

  • Page 37: Tow Vehicle

    Section 3: Pre-Travel Information Tow Vehicle If you plan to tow your recreation vehicle with a tow vehicle you already own, or if you plan to purchase a new one, make sure the Gross Vehicle Weight Rating (GVWR) or your recreation vehicle does not exceed your tow vehicles towing rating.

  • Page 38: Tire & Loading Information

    Section 3: Pre-Travel Information OCCC Label (Occupant & Cargo Carrying Capacity: The upper portion of this yellow label is federally required and includes the maximum Occupant & Cargo Carrying Capacity that may be placed in or on the trailer as it was manufactured and weighed before leaving the factory.

  • Page 39: Loading Your Recreation Vehicle

    Section 3: Pre-Travel Information Loading Your Recreation Vehicle  Never load the RV in excess of the GAWR for either axle. Overloading your RV may result in adverse handling characteristics and damage to the RV. DO NOT EXCEED YOUR GVWR! This means you should weigh your RV as loaded for your normal travel to determine the actual weight.

  • Page 40: Rear Bumper

    Section 3: Pre-Travel Information Rear Bumper  Do not add items to the recreation vehicle rear bumper. Add-on items will eventually damage your bumper. Damage caused by such aftermarket equipment installation or improper loading voids the Towable Limited Warranty. The rear bumper of your RV is not designed to carry cargo. Items that extend beyond the bumper OR weigh over 100 lbs.

  • Page 41: Travel Trailer Hitch (Customer Supplied)

     Using an oversized or undersized hitch can cause damage to the RV frame. Jayco cannot be responsible for the tow vehicle suspension system. The final ball height after the tow vehicle/travel trailer combination is completely hooked up is a factor that must be considered. To avoid overloading your trailer axles and minimize possible handling difficulties, your trailer should be level when hooked to your tow vehicle.
  • Page 42 Section 3: Pre-Travel Information Adjust the equalizing bars of the hitch assembly so that the tow vehicle and the trailer are essentially level. A high hitch will transfer weight behind the axles and cause the vehicle to fishtail. A low hitch will transfer additional weight to the hitch. Refer to the hitch manufacturer instructions to adjust the weight-distributing hitch to the proper height.
  • Page 43 Section 3: Pre-Travel Information Suggestions for sway situations: Slowly ease your foot off the accelerator. Turn the steering wheel as little as possible. Natural lag time reaction when counter- steering to correct sway could possibly make it worse. If the trailer is equipped with electric brakes, using the hand control will help to keep the vehicles aligned.

  • Page 44: Wire Harness/Connector Plug

    Section 3: Pre-Travel Information Wire Harness/Connector Plug A 7-way wire harness/connector plug is wired into your trailer to connect electrical power from the tow vehicle for travel. This supplies power to the RV brakes, taillights, clearance lights, turn signals, brake lights, etc. Wiring to operate your brakes must be the same size in both the tow vehicle and RV (the RV brake wiring is 12-gauge wire).
  • Page 45 Section 3: Pre-Travel Information Your RV must be weighed fully loaded (with food, clothing, fuel, water, propane, supplies, etc). Weigh the RV including the tongue weight, while detached from the tow vehicle. This actual overall weight must be less than or equal to the GVWR for safe operation. If the overall weight is greater than the GVWR, some contents must be removed until the actual overall weight is less than or equal to GVWR.
  • Page 46 Section 3: Pre-Travel Information RV. Slow down in advance of dips, bumps and railroad tracks to reduce the jolting to your tow vehicle/RV combination. Proceed slowly and let the trailer tires pass over them before accelerating. Adverse weather conditions and extremes in terrain may affect the performance and handling of your tow vehicle.
  • Page 47 Section 4: Vehicle Operation When your RV is new, it is impossible to adjust the brake shoes precisely. It takes approximately 1,000 miles and/or 50 medium to heavy stops to “burnish” fit or “seat” the shoes to the brake drum. After the initial break-in period your brake shoes must be adjusted accurately for best performance and increased durability.

  • Page 48: Towing Behind Your Rv

    Towing Behind Your RV  If you do not have a Jayco factory installed hitch receiver, towing items behind your Jayco RV, or overloading the rear, will void the warranty and may result in: damage to the RV or add-on items, towing difficulties, property damage and/or personal injury.

  • Page 49: Campsite Hook-Up

    Section 4: Vehicle Operation  Make sure the entrance door is completely closed and locked when traveling. Locking the door helps prevent it from opening unintentionally and keeps intruders from your recreation vehicle. The entrance screen door may be equipped with a slide panel that allows access to the entrance door handle and locks.

  • Page 50: Stabilizer Jacks

    Section 4: Vehicle Operation Stabilizer Jacks  DO NOT USE THE STABILIZER JACKS TO LEVEL THE RV. It is important to remember that the stabilizer jacks are to be used only for support while occupying and moving around the RV. They are not designed to support the weight of the RV.

  • Page 51: Emergency Towing

    Section 4: Vehicle Operation  DO NOT USE THE STABILIZER JACKS TO LEVEL THE RV. It is important to remember that the stabilizer jacks are to be used only for support while occupying and moving around the RV. They are not designed to support the weight of the RV.
  • Page 52 Section 4: Vehicle Operation  Check and tighten wheel lug nuts regularly to make sure they did not loosen during travel. Wheel lug nuts must be applied and maintained at the proper torque levels to prevent loose wheels, broken studs and possible separation of the wheel(s) from your recreation vehicle.

  • Page 53: Tires

    Section 4: Vehicle Operation Tires Read and understand the following before taking your first trip in your RV. Routine maintenance on your motor home is important. To insure your tires are operating safely, regular inspection of the tires and checking tire pressures is absolutely mandatory.
  • Page 54 Section 4: Vehicle Operation You must follow the manufacturer’s inflation guidelines for maximum load capacity; under-inflation is just as dangerous as over-inflation. Proper inflation should be monitored closely. Failure to do so could result in the overheating of a tire causing a blowout. Inflation pressure should be as recommended by the tire manufacturer or as the federal label for the recreation vehicle indicates.

  • Page 55: Changing A Tire

    Section 4: Vehicle Operation Changing a Tire  Do not use the stabilizer jacks to support the recreational vehicle while under the vehicle or changing tires. The stabilizer jacks are designed as a stabilizing system only. Do not use the stabilizer jacks as a jack or in conjunction with a jack.

  • Page 56: Hoist Mount Travel Position

    Section 4: Vehicle Operation Spare Tire Carrier (If So Equipped) If your recreational vehicle is equipped with a spare tire, it will either be mounted under the unit (hoist) or on the rear bumper. Hoist mount  DO NOT exceed the maximum load capacities of 100 lbs. for the hoist. DO NOT use air driven guns or impact wrenches to lift the spare tire to the travel position.
  • Page 57 Section 4: Vehicle Operation Bumper mount The spare tire bracket can be released and extended down to access a storage compartment at the rear of the trailer without removing the tire. To extend the tire down Remove the cotter key from the pin holding the tire carrier in place.

  • Page 58: Caring For The Tent

    Section 4: Vehicle Operation Travel Trailer Set Up Unhook the wire harness/connector plug, safety chains and breakaway switch lanyard. Install the dolly wheel or platform. Release the weight distributing bars (customer supplied). Open the tongue jack coupler latch. Turn the tongue jack crank to raise the coupler above the hitch ball. Level the RV (front-to-back) with the tongue jack crank.
  • Page 59 Section 4: Vehicle Operation If the tent must be stored wet, open the trailer and allow the tent to dry thoroughly as soon as possible. Be aware that the canvas portion of the tent will take longer to dry than the vinyl. Make sure the entire tent is completely dry before refolding it and storing the trailer.

  • Page 60: Tent Set Up And Tear Down

    Section 4: Vehicle Operation Tent Set Up And Tear Down  Do not use the bed braces if they are bent or damaged. Contact your dealer to replace any damaged brace(s). Ensure all tent Velcro fasteners are securely fastened. Loose areas could result in openings large enough for an infant, child or adult to fall through.
  • Page 61 Section 4: Vehicle Operation Power Lift System (if so equipped) The power cord should be plugged into provide power to operate the lift system. If your RV is equipped with a power (roof) lift system, you will have two controls available. One is a switch located on the motor (arrow), and the other is a key fob remote.
  • Page 62 Section 4: Vehicle Operation Hinged braces installed on the front of the RV. Pull out the front bed until it is fully extended. Install the (hinged) brace ends into the brackets (C) located under both beds (D). A second person lifting the bed will make it easier to insert brace into the bracket.
  • Page 63 Section 4: Vehicle Operation Repeat the process on the rear bed using the shorter braces. Make sure the bed is fully extended. Step 6 - If your model is equipped with a slideout, make sure the seal on the interior makes contact with the bracket on the slideout (arrow).
  • Page 64 Section 4: Vehicle Operation Step 10b - (Slide out-if so equipped) The window bow brace for the slideout is typically stored under the dinette table. Attach the “claw” to the curved window bow (3-A) between the screws. Attach the loop end to the bracket near the ceiling. Put the tab end of the brace in the wide hole of the bracket (1) and slide toward the narrow end (2).
  • Page 65 Section 4: Vehicle Operation Step 14a – Lifter post covers Velcro all fabric lifter post covers. Bottom edges are straight and top edges are tucked under the roof. Step 15 - Tent set up is complete. Make any adjustments to the tent to assure optimum water run-off.
  • Page 66 Section 4: Vehicle Operation Step 4 - Bottom of the door is in the channel, and the door frame is against the aluminum pieces on each side of the doorway. Clips turn to hold the door in place. It helps to have a second person outside to help guide the door into the channel so it is square in the frame.
  • Page 67 Section 4: Vehicle Operation STANDARD DOOR REMOVAL Step 1 - Remove the standard entry door, by lifting the door off the hinges. The standard door should be removed if the full screen door has been installed. Step 2 - The standard door is stored underneath the rear sliding bed.
  • Page 68 Section 4: Vehicle Operation To avoid damaging the valance, when securing the bottom of the entrance door, insure the door valance is placed between the door and the ceiling. If your unit is equipped with a kitchen flip-top, put it into the travel position before lowering the roof.
  • Page 69 Section 4: Vehicle Operation Step 5 - Remove the bed bow braces from the bed bows on each bed and the ceiling brackets. Place the braces under the bed mattress. Place the sharp ends of the brace against the edge of the bed. If equipped with a slideout, remove the slideout bow brace and store it under the dinette table.

  • Page 70: Canopy (If So Equipped)

    Section 4: Vehicle Operation Step 12 - Turn out all lights in the camper. Camping trailers have an automatic ceiling light shut- off switch that prevents ceiling light and/or ceiling fan operation with the roof in the lowered position. Periodically test the automatic ceiling light shut-off switch to make sure all interior light(s) and fan(s) turn off.
  • Page 71 Section 4: Vehicle Operation Maintenance It is important to keep the canopy clean. Wash down the canopy brushing lightly with a cloth or soft brush. Keep the underside of the canopy clean by brushing it with a clean household broom. Wash the underside in the same manner as the top. Hose your canopy down occasionally (monthly) with a garden hose.
  • Page 72 Section 4: Vehicle Operation NOTE: If your canopy has a center post, insert the post into the hole in the center of the main rail. Pull out the telescoping side arms. Pull the canopy flaps over the front and side rails and at the corners. NOTE: tilting the vertical legs in slightly will make it easier to pull the flaps down at the corners.
  • Page 73 Section 4: Vehicle Operation The roof of the unit can now be raised and tent installation completed.  Always install tent stakes to avoid wind damage to the poles and fabric. Wind and rain damage are not covered by warranty. Alternate Set-up The canopy can be set up so that the canopy legs are angled and attached to the side of the unit.

  • Page 74: Screen Room

    Section 4: Vehicle Operation Screen Room NOTE: The canopy and hardware must be installed and set up before attempting to attach the screen room (see Canopy set-up and Care). It will be easier to install the screen room prior to staking down the canopy legs and raising the roof.
  • Page 75 Section 4: Vehicle Operation Starting at one corner, start the side zipper) and zip it up completely. Repeat on the other side. NOTE: It may be easier to begin set up if the canopy leg is tilted inward. Attach the Velcro on the front corner. Continue attaching the Velcro across the entire front of the screen room.
  • Page 76 Section 4: Vehicle Operation NOTE:The screen room is designed with excess fabric at the bot- tom to aid in water run-off. Make sure the bottom is lying flat, away from the screen room. Refer to “Caring for Your Canopy” on the canopy set-up sheet for details on preventing damage from wind and heavy rain.
  • Page 77 Section 5: Slideout Systems Slideout System not applicable for this product Maintenance Record Table of Contents...
  • Page 78 Section 5: Slideout Systems Notes: Maintenance Record Table of Contents...

  • Page 79: The Electrical System

    Section 6: Electrical System The Electrical System The RV electrical system is comprised of two independent electrical systems. One operates off of 12-volt DC power and the other off of 120-volt 60hz AC power. All installations have been made in compliance with industry standards applicable on the date of manufacture. Because the electrical equipment and associated circuitry are engineered into a dedicated system specific to your RV, do not make unauthorized changes or add fixed appliances to it.

  • Page 80: Gfci Receptacle

    Section 6: Electrical System the RV, and contains switches and controls for various electrical functions. Command center applications, configurations and components will vary by model. Command Center Panel or Command Center Panel with Switch Modules Items found on these panels may include: Fuel gauge and hour meter with switches for fuel pump and fuel levels;...

  • Page 81: Testing The Campsite Power Connection

    Section 6: Electrical System Test all GFCI receptacles monthly Push in the GFCI “TEST” button. The GFCI “RESET” button should pop out indicating the GFCI receptacle has been “tripped” and interrupted 120-volt power. Push in the GFCI “RESET” button to restore 120-volt power. Contact your independent dealer for assistance if the GFCI “RESET”...

  • Page 82: Power Converter

    Section 6: Electrical System Campsite 120-volt power receptacles can be tested using a digital multimeter or a dedicated circuit analyzer. Dedicated circuit analyzers plug directly into the campsite power receptacle and minimally test for open neutral, open ground, and correct polarity. Polarity indicators can be purchased in most electrical and hardware stores.
  • Page 83 Section 6: Electrical System If your lights are dimming or flickering that usually indicates an overloaded converter. Remove some of the load by turning off DC lights or appliances. Fan is controlled by load. It will begin running at 3 to 6 amp DC draw. It increases in speed with a higher load until 14 to 15 amps.

  • Page 84: Volt Dc System

    Section 6: Electrical System Converter w/charge wizard (if so equipped) Some converters may be equipped with a charge wizard There are (3) possible charging modes; NORMAL, BOOST and STORAGE. The charge wizard will automatically select the best mode to charge your battery. A green LED next to the wizard mode button will indicate by flashes, which mode is currently being used.
  • Page 85 Section 6: Electrical System Replacing a fuse Before replacing a fuse, always turn off the electrical components protected by it. Disconnect the shore power cord. Turn “off” the inverter (if so equipped). Disconnect the house or auxiliary batteries main negative battery cable. Remove the fuse panel cover to check fuses.

  • Page 86: Switch Appearance May Vary By Model

    Section 6: Electrical System Dry camping The auxiliary battery should be fully charged prior to dry camping. If the auxiliary battery is not being recharged and power is being drawn from it, it will eventually discharge. A battery will discharge at a faster rate as its energy level becomes depleted. Plan your electrical usage accordingly.

  • Page 87: Load Center

    Section 6: Electrical System enclosed exterior compartment. The style of the disconnect switch may vary per model. This switch does not shut off all power, but only shuts off the 12VDC power to the main 12V fuse panel, and the interior of the vehicle. Batteries can still be trickle charged by the converter, and there will still be power to some devices.

  • Page 88: Approximate Electrical Load Ratings

    Section 6: Electrical System  Circuit breakers and fuses will not offer complete protection of the electrical system in the event of power surge or voltage spike. Replacement Only replace circuit breakers with those of the same specified type, voltage, and current rating.

  • Page 89: Volt (30 Amp) Ac System (If So Equipped)

    Section 6: Electrical System Step Cover 10.0 AMPS TV Plate/Antenna Booster 1.0 AMP Water Heater 6.0 AMPS Water Pump 7.0 AMPS *Momentary Load 12 Volts: Labeled watts divided by 12 = Power consumed in AMPS 120 Volt System Air cConditioner 18 AMPS Coffee Maker 6-12 AMPS...
  • Page 90 Section 6: Electrical System 30-amp Power Cord (If So Equipped)  Do not hook up the power cord to any receptacle until you have verified proper polarity and grounding. Polarity indicators can be purchased in most electrical and hardware stores. Do not use any cheater plug, adapter or extension cord to reconfigure incoming AC power or break the continuity of the circuit connected to the grounding pin.
  • Page 91 Section 6: Electrical System Replacing Light Bulbs Before replacing a bulb, be sure the light is off. Do not touch the glass part of the new bulb with your bare fingers. The skin oil left on the glass will evaporate when the bulb gets hot, the vapor will condense on the reflector and it will dim the surface.
  • Page 92 Section 6: Electrical System Notes: Maintenance Record Table of Contents...

  • Page 93: Exhaust Gas Fumes

    Section 7: Fuel & Propane System Exhaust Gas Fumes  Avoid inhaling exhaust gases as they contain carbon monoxide, which is a potentially toxic gas that is colorless and odorless. If you are in a recreation vehicle with either a nearby tow vehicle engine running or the generator (if so equipped) running there is a potential for exhaust fumes to filter back into the recreation vehicle To avoid breathing exhaust gases, follow these precautions:...
  • Page 94 Section 7: Fuel & Propane System Continued periodic checks of the propane system at 5,000 miles of travel (or at least once a year), by a qualified propane service representative as part of your normal maintenance is recommended. Hand tighten the LP gas system valves only, do not use a wrench or pliers as over tightening may damage the valve seals and cause them to leak.
  • Page 95 Section 7: Fuel & Propane System OPD and ACME type 1 service valve are identified by the triangular service valve knob. DOT cylinders are typically marked with “top” or an arrow to indicate the correct orientation of the cylinder(s). Do not mount, store or transport any cylinder other than the in proper position indicated.
  • Page 96 Section 7: Fuel & Propane System When you have a new cylinder filled for the first time, make sure your propane supplier purges your new cylinder of trapped air. Otherwise, an improper mixture of gas and air will make it impossible to light your propane appliances.
  • Page 97 Section 7: Fuel & Propane System pressures exceeding those of the propane system. However, because environment and time can both contribute to the deterioration of these components, they must be inspected for wear at regular intervals. Be sure to inspect the hose before each season and when having the tank refilled. Look for signs of deterioration such as cracks or loss of flexibility.
  • Page 98 Section 7: Fuel & Propane System Propane Use and Safety Propane is a colorless and odorless gas that, in the liquefied state, resembles water. An odorant (usually a sulfur compound) is added as a warning agent. If you smell propane within the vehicle, quickly and carefully perform the procedure listed on the propane system label.

  • Page 99: Ensure A Supply Of Fresh Air (Canada Units Only)

    Section 7: Fuel & Propane System If you have double cylinders on your recreation vehicle, use only one at a time. Otherwise, the propane supply will be drawn equally from both cylinders until the supply has been totally exhausted. Using one cylinder until it is empty, then using the second cylinder will allow you to fill the empty cylinder at your convenience without running totally out of propane.

  • Page 100: Single Cylinder

    Section 7: Fuel & Propane System NOTE:Some states prohibit propane appliances to be operated during travel, especially in underground tunnels. Make sure you know the laws for the areas where you travel. Traveling with Propane Use care when fueling your motor fuel tanks and/or propane containers.

  • Page 101: Main Supply Hose

    Section 7: Fuel & Propane System Secure the cylinder to the A-frame bracket using the bolts, nuts and washers provided. Double Cylinder Mounted On A-Frame (if so equipped) When a second cylinder is installed, a tee check valve is used to replace the 90° elbow at the top of the regulator and another 1/4”...
  • Page 102 Section 7: Fuel & Propane System Notes: Maintenance Record Table of Contents...

  • Page 103: Plumbing System

    Section 8: Plumbing System Plumbing System There are two different water systems in your recreation vehicle: The fresh water system consists of the fresh water holding tank, faucets and connections, water pump, outside shower assembly (if so equipped), water heater, tub/shower, and water purification system (if so equipped).
  • Page 104 Section 8: Plumbing System Fresh Water Holding Tank There may be several ways to fill the fresh water tank depending on the model. For details of each method, refer to the Fresh Water Connections or the Utility Center (if so equipped) sections.

  • Page 105: Fresh Water Connections

    Section 8: Plumbing System The water pump switch should be in the OFF position when the RV is left unattended for any amount of time. If something would happen to the water system, this may help limit water damage to a smaller area. Fresh Water Connections Your recreation vehicle may be equipped with one or both of the following fresh water connections: city water and gravity fill.

  • Page 106: Potable Water Label

    Section 8: Plumbing System To Disconnect the City Water Fill Shut OFF the water at the pressurized water source. Disconnect the non-toxic drinking water hose and reinstall the connection cap. The connection cap should always be installed if the water fill is not in use. Using the Gravity Fill (If So Equipped) You can fill the fresh water tank from a container of fresh water and the gravity water fill inlet if you do not have access to City Water.
  • Page 107 Section 8: Plumbing System Water heater switches (if so equipped): The water heater switches are typically located on the monitor panel. Refer to the Monitor Panel section for function details. When to sanitize When your RV is new. At the beginning and end of each season. When the water system becomes contaminated or every three months of use.
  • Page 108 Section 8: Plumbing System Finish filling the fresh water tank by pouring fresh water into the gravity fill inlet. A pressurized water source can be used, but the hose will not screw on to the gravity fill inlet, use a funnel or hold the hose up to the inlet.
  • Page 109 Section 8: Plumbing System NOTE: The winterization process may vary slightly due to different plumbing configurations between models. NOTE: Appliances (refrigerator, dishwasher or clothes washer) must be winterized. Refer to the appliance owner’s manual for additional information or contact your Dealer or Customer Service for as- sistance.

  • Page 110: Water Heater Drain Plug Location

    Section 8: Plumbing System Winterizing with Antifreeze Use ONLY RV ANTIFREEZE in your fresh water system for freeze protection. No other product or commodity should be used.  Automotive antifreeze (ethylene glycol) and windshield washer antifreeze (methanol) are poisonous. Never use these products in your fresh water system.

  • Page 111: Water Heater

    Section 8: Plumbing System NOTE: In the spring when flushing antifreeze out of the water lines make sure to turn the fresh water tank shutoff valve back ON. If needed, contact your RV dealer for assistance. Water Heater The water heater manufacturer has preset the sensing limit to maintain the water temperature when the water heater is activated.
  • Page 112 Section 8: Plumbing System Water heater-pilot light (if so equipped) This water heater is gas only with a pilot ignition. The water heater controls are typically located in an outside compartment, and is ignited manually from the outside of the vehicle. Hot water will be available in approximately 30 minutes.
  • Page 113 Section 8: Plumbing System the water from the water heater tank whenever the RV is not being used. Avoid any extended time of non-use with water in the tank. To prevent a water leak when replacing the anode rod, a pipe thread sealant approved for potable water (such as Teflon Tape) must be applied to the threads of the anode rod.

  • Page 114: Outside Shower (If So Equipped)

    Section 8: Plumbing System Maintenance Do not allow the burner to burn with a yellow flame, or continue to operate the water heater with an improper burner flame. Periodically, inspect the water heater vent for soot. Soot is a sign of incomplete combustion and must be corrected before operating the water heater.

  • Page 115: Faucets

    Section 8: Plumbing System NOTE: The shower head may be removed from the hose so that it will drain faster. If you remove the shower head, be sure to reas- semble it prior to storage. NOTE:When putting the shower assembly back into the storage compartment, make sure the hose is not pinched or the shower head is positioned in a way it can be damaged.

  • Page 116: Toilet (If So Equipped)

    Section 8: Plumbing System Maintenance Refer the manufacturer’s user guide or label instructions for detailed cleaning information. The tub/shower walls are made of ABS plastic material. Use a mild detergent soap and warm water to clean. Do not use gritty or abrasive particle soaps or scouring compound to clean ABS plastic.

  • Page 117: Air Conditioner Prep (If So Equipped)

    Section 9: Heating and Cooling Air Conditioner Prep (If So Equipped) Your camping trailer may have the wiring needed to install an air conditioner (customer supplied). We recommend that aftermarket parts installation be performed by qualified RV technician(s). The camping trailer roof weight limit for air conditioners is 110 lbs. It is your responsibility to verify that the air conditioner to be installed complies with all necessary codes and weight limits.
  • Page 118 Section 9: Heating and Cooling  The furnace should be inspected periodically (monthly during the heating season) for presence of soot on the vent. Soot is formed whenever combustion is incomplete. This is a visual warning that the furnace is operating in an unsafe manner. If soot is observed on the vent, immediately shut the furnace OFF and contact a qualified service agency.

  • Page 119: Cooking Safety

    Section 10: Appliances Cooking Safety In Case Of a Grease Fire  Do not attempt to use water to put out the fire. Water can spread some types of fire, and electrocution is possible with an electrical fire. Grease is flammable. Never allow grease to collect around top burners or on the cook top surface.
  • Page 120 Section 10: Appliances Use care to avoid steam burns if a wet sponge or cloth is used to wipe spills on a hot surface. Some cleaners can produce noxious fumes if applied to a hot surface. To prevent staining or discoloration, clean appliance after each use. If a part is removed, be sure it is correctly replaced.
  • Page 121 Section 10: Appliances Oven (if so equipped) The propane gas oven must have 12-volt power to operate. If you have any questions, contact your dealer or our customer service department. Do not use the oven as a storage area. Refer to the manufacturer’s user guide for detailed operation, cleaning and safety information.

  • Page 122: Gas Grill & Mounting

    Section 10: Appliances Set the BBQ grill on the mounting bar by inserting the (2) pegs on the bar into the grill side mounting brackets. Make sure the mounting bar and the grill are securely in place before proceeding with the propane connection.
  • Page 123 Section 10: Appliances Gas/electric models (If So Equipped)  If you smell propane gas STOP! Follow the directions located in your manufacturer’s owner’s manual and in this manual. Residential models (If So Equipped) NOTE: If you are using electric to power the refrigerator, make sure you are connected to a 120-volt power source.
  • Page 124 Section 10: Appliances Leave an open box of baking soda in the refrigerator and freezer to help prevent odors. NOTE:Do not use abrasive or harsh cleaners such as window sprays, scouring cleansers, flammable fluids, cleaning waxes, concentrated detergents, bleaches or cleansers containing petroleum products on plastic parts, interior and door liners or gaskets.

  • Page 125: Cleaning The Interior

    Section 12: Interior Cleaning The Interior To keep the value of your recreation vehicle, perform regular maintenance using the proper materials and procedures. Using the wrong cleaner may result in damage to the surfaces in your vehicle. Check with the manufacturer’s information for the recommended cleaning agent.
  • Page 126 Section 12: Interior use spot remover, household cleaners or detergents to remove soiled spots, as these may cause damage to fabric or loss of color from fading. Mini Blinds: A simple dry rag may do the trick. If they are especially dirty, you can use cold or warm water to clean them;...

  • Page 127: Pantry Or Hutch (If So Equipped)

    Section 12: Interior ABS Plastics Dust and wipe clean with soft, damp cloth or chamois, wiping gently. Do not use gritty or abrasive particle soaps or scouring compound to clean ABS plastic. Avoid using “citrus” or biodegradable cleaners that contain “D-Limonene” as they may damage plastic materials. Pantry or Hutch (If So Equipped) Your recreation vehicle may have a pantry or hutch that you can use for storage.

  • Page 128: Flooring

    Section 12: Interior Difficult stains can be removed from the matte finish with a green Scotch Brite® pad and a mild abrasive cleaner. Disinfect the surface periodically with diluted household bleach (one part water to one part bleach). For cuts and scratches, sand the matte finish lightly with (220) fine grit sandpaper until the cut or scratch is gone.
  • Page 129 Section 12: Interior Ensure the heated bed mats are on the bed board so the label and connector point up. The cord should be at the head of the bed. Do not tuck in the wired area of the heated bed mats. Let the cord hang free.
  • Page 130 Section 12: Interior Notes: Maintenance Record Table of Contents...

  • Page 131: Cleaning The Exterior

    Section 13: Exterior Cleaning The Exterior To protect your recreation vehicle’s exterior finish, wash it often and thoroughly. For recreation vehicles with painted exterior graphics: If desired you may wash and wax your vehicle 60 days after purchase. The exterior paint does need time to cure before any wax is applied to the exterior surface.
  • Page 132 Section 13: Exterior Do not use solvent based cleaners on bird droppings or tree sap as these are water based stains. They can be dissolved using ammonia based glass cleaner, warm soapy water and a little “elbow grease”. Once again, after removing stubborn stains immediately rinse with clean water.

  • Page 133: Frame

    Section 13: Exterior  Do not use waxes containing high-abrasive compounds. Such waxes remove rust and stains effectively from the paint work, but they are also harmful to the luster of the painted surface since they scrape off the coating. Further, they are detrimental to glossy surfaces, such as the grille, garnish, moldings, etc.

  • Page 134: E-Z Lube Or Super-Lube Axle (If So Equipped)

    Section 13: Exterior E-Z Lube or Super-Lube Axle (If So Equipped) The E-Z lube or Super-lube feature on your axles provides the ability for the bearings to be periodically lubricated without removing the hubs from the axle. This feature consists of axle spindles that have been specially drilled and fitted with grease zerks in their ends.
  • Page 135 Section 13: Exterior If you notice water inside the recreation vehicle, immediately have the dealer check for the source of the leak. Failure to correct the leak may result in serious damage to your recreation vehicle; this damage may not be warrantable. Although the following diagrams may not accurately reflect the exact model of your recreation vehicle, make sure you inspect all sealants as indicated in the text.
  • Page 136 Section 13: Exterior Notes: Maintenance Record Table of Contents...

  • Page 137: Travel Checklist

    Section 14: Additional Information Travel Checklist Following is a preliminary list of items that need to be checked before leaving your home or campsite. This is a general list, which you may want to customize as you determine your own needs. Safety Make sure you follow all safety precautions noted in this owner’s manual and in any manufacturer’s operators manual when preparing to travel.
  • Page 138 Section 14: Additional Information leaks. If leaks are detected, find the cause and correct it immediately. Turn off propane tanks. Empty black and gray holding tanks, rinse as needed (if so equipped). Retract awning and secure in place for transport (if so equipped). Close roof vents.
  • Page 139 Section 14: Additional Information Adding fuel stabilizer to the generator (if so equipped) will aid in preventing condensation and fuel varnishing. Disconnect 120-volt AC power to the RV. Remove all batteries from the RV and store in a place where they will not freeze. A battery that has been frozen will never hold a proper charge.
  • Page 140 Section 14: Additional Information Notes: Maintenance Record Table of Contents...

  • Page 141: Featured Components Quick Reference Chart

    Your recreation vehicle may be equipped with some of the items listed below. This is a partial listing and it is not intended to cover all components. All information is the latest available at the time of publication. Jayco reserves the right to change any of the following information without notice.
  • Page 142 Section 15: Additional Information Winegard Company www.winegard.com TV Antenna King Jack www.kingconnect.com Water Heater, Tank DSI Atwood Greenbrier www.atwoodmobile.com Girard Systems www.greenrvproducts.com Water Heater, Tankless Truma AquaGo www.truma.com Shurflo East www.shurflo.com Water Pump, 12V Maintenance Record Table of Contents...

  • Page 143: Vehicle Maintenance Record

    Section 15: Additional Information Vehicle Maintenance Record Make: Model: Model Year: Vehicle Serial#: Service Performed Mileage Work Performed Notes Date Maintenance Record Table of Contents...
  • Page 144 Section 15: Additional Information Notes: Maintenance Record Table of Contents...
